Home > Multi Port RJ45 Connector > Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2

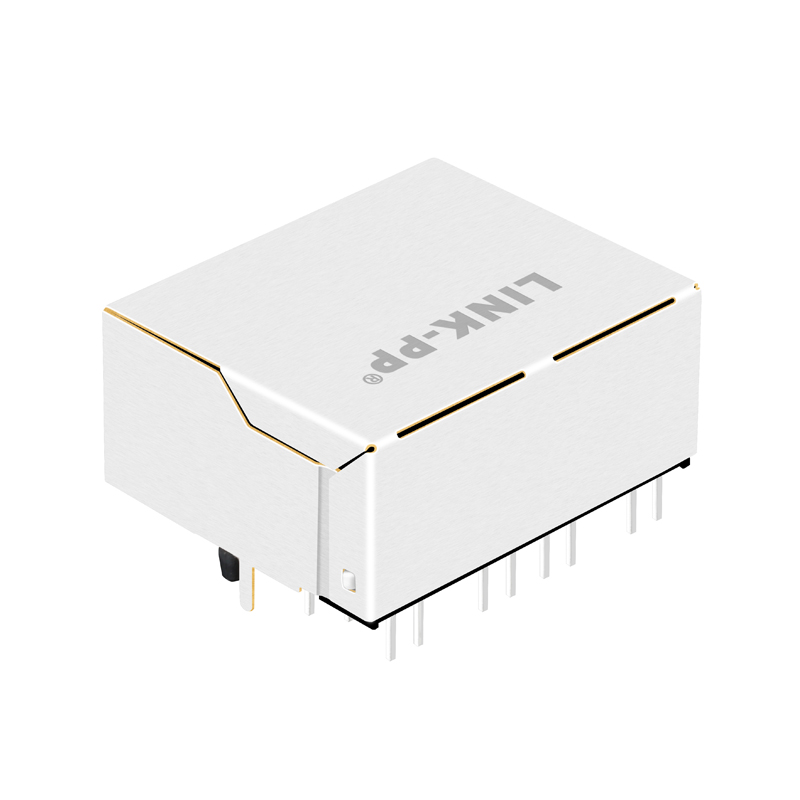

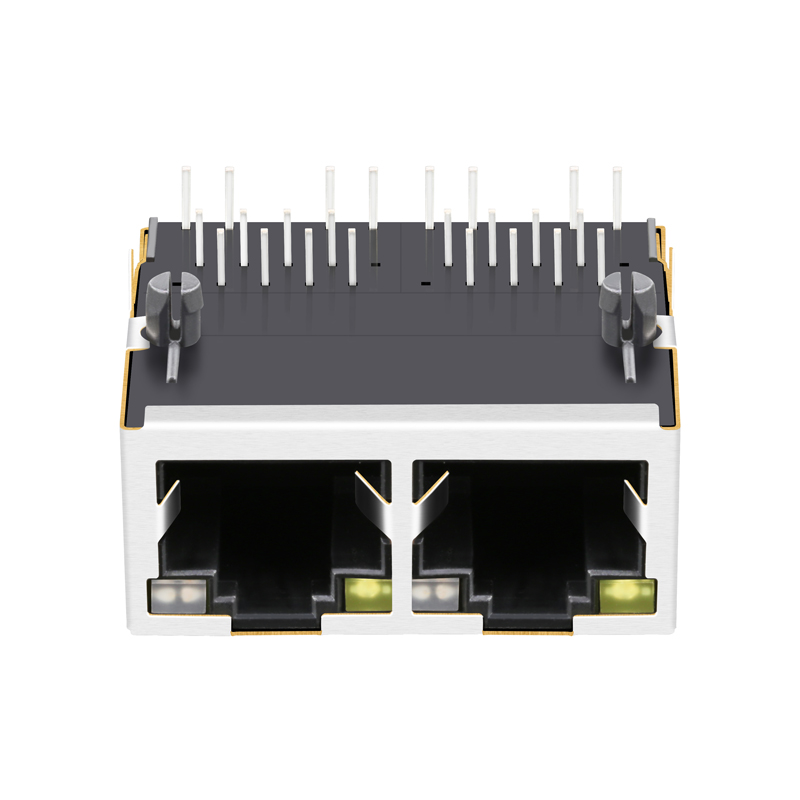

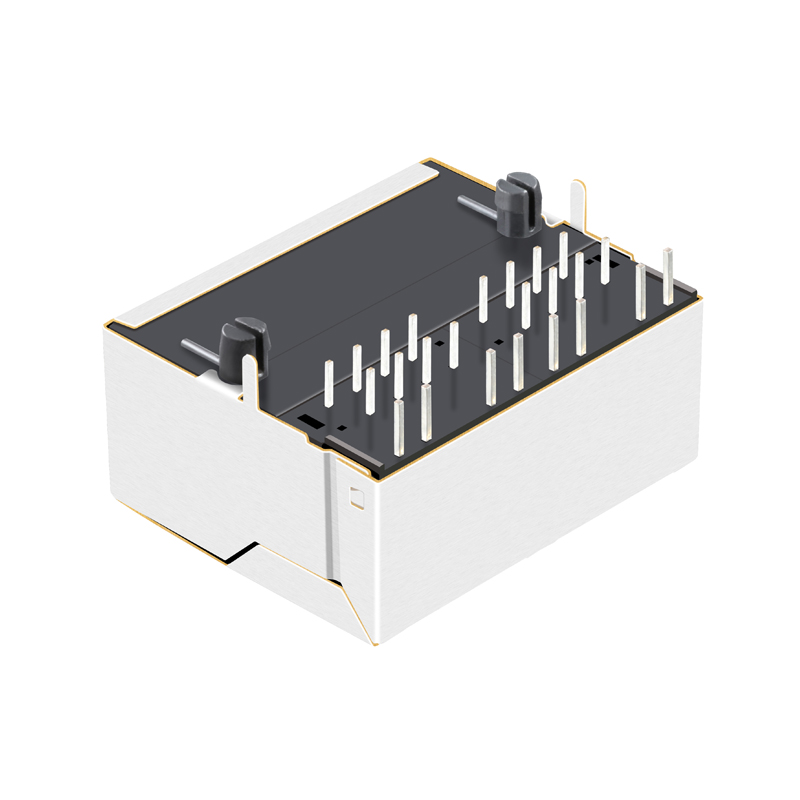

Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
1 / 5
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2

Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2

Send Inquiry

Product Description

Shielded Magnetic Dual Ports RJ-45 Connector Banner

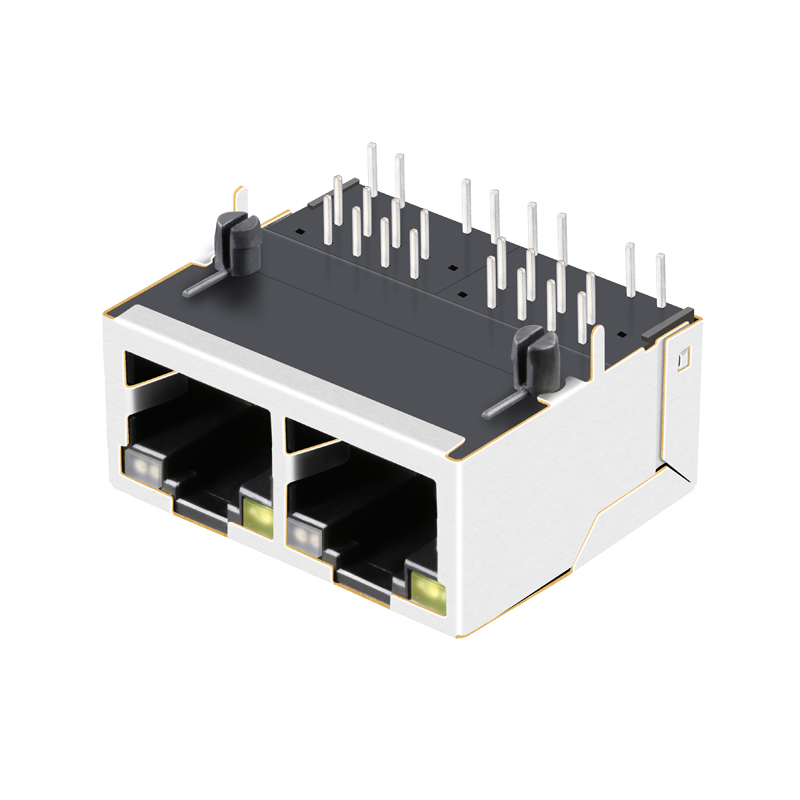

RJ-45 Connector Front View

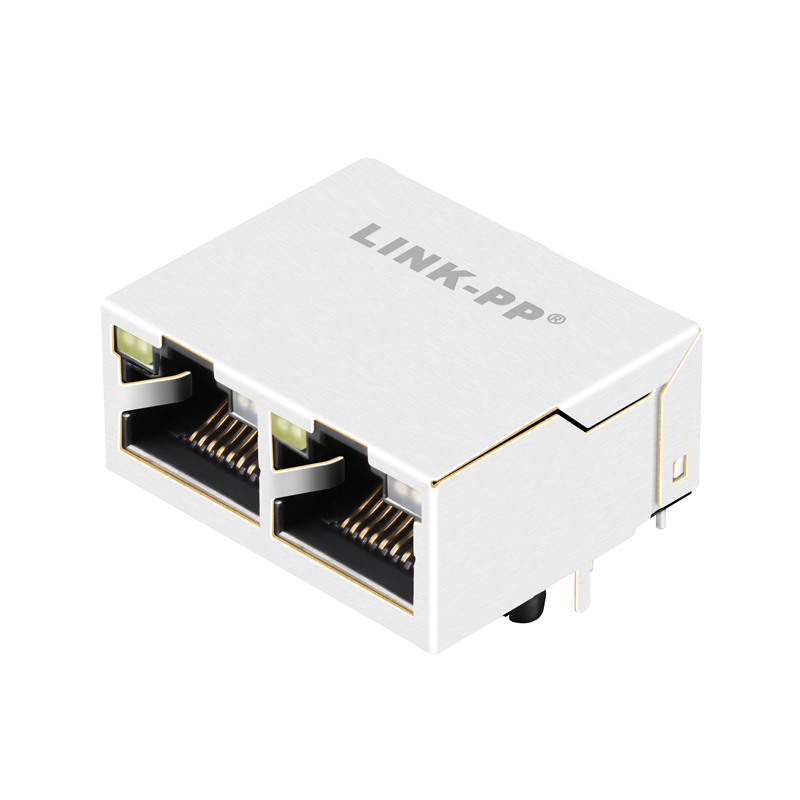

RJ-45 Connector Side View
Product Specification Banner

Product Specifications

Part Number1840538-3 6610128-1 1840538-4 1840538-2
Application-LANETHERNET (Non-PoE)
AutoMDIXYES
Bst CircuitYES
Configuration RXT, C
Configuration TXT, C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Cores Per Port6
DiodesNO DIODES
LED OptionGREEN/GREEN
LatchUP
Number of Ports1x2
PCB MaterialFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Shield EMI TabsWITH
ShieldingShielded
Speed10/100 Base-T
Temperature0 ~ 70℃
Turns Ratio RX1CT:1
Turns Ratio TX1CT:1
Mechanical Drawing

Why Choose Our Connectors

Professional Certification

  • ISO 9001:2008
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy

100% Quality Guarantee

  • Manufactured Under Strict Controls
  • 100% Tested (Not Just Batch Tested)
  • OEM Support for Global Brands
  • Preferred Industry Supplier
  • Quality Guarantee: 6 Years

Competitive Service

  • Highly Competitive Pricing
  • Fast Delivery: 2-3 Weeks
  • Free Samples Available
  • New Design Provisioning
  • Optimized Global Shipping Costs
Quality Testing Process
Connector Detail 1
Connector Detail 2
Bottom Banner Detail
Application Interface 1
Application Interface 2

Frequently Asked Questions

Q1: What are the main applications for these RJ45 connectors?
A: These shielded magnetic RJ45 connectors are primarily designed for 10/100 Base-T Ethernet applications, including networking equipment, industrial controllers, and non-PoE communication devices.
Q2: Does this connector support AutoMDIX functionality?
A: Yes, these connectors are fully compatible with AutoMDIX, allowing for automatic detection of straight-through or crossover cable connections.
Q3: What type of shielding and EMI protection is provided?
A: The connectors feature a robust metal shield with EMI tabs to ensure superior grounding and protection against electromagnetic interference.
Q4: Are these connectors compliant with international environmental standards?
A: Yes, they are RoHS compliant (with lead-in-solder exemption) and meet REACH certification requirements.
Q5: What is the operating temperature range for these parts?
A: The standard operating temperature range for these connectors is 0°C to +70°C, making them suitable for most commercial and industrial environments.
Q6: Can I request different gold plating thicknesses?
A: Yes, we offer multiple contact mating area plating options including 6u", 15u", and 30u" gold to meet your specific durability and conductivity needs.
