JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
1 / 5
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

Send Inquiry

Product Description

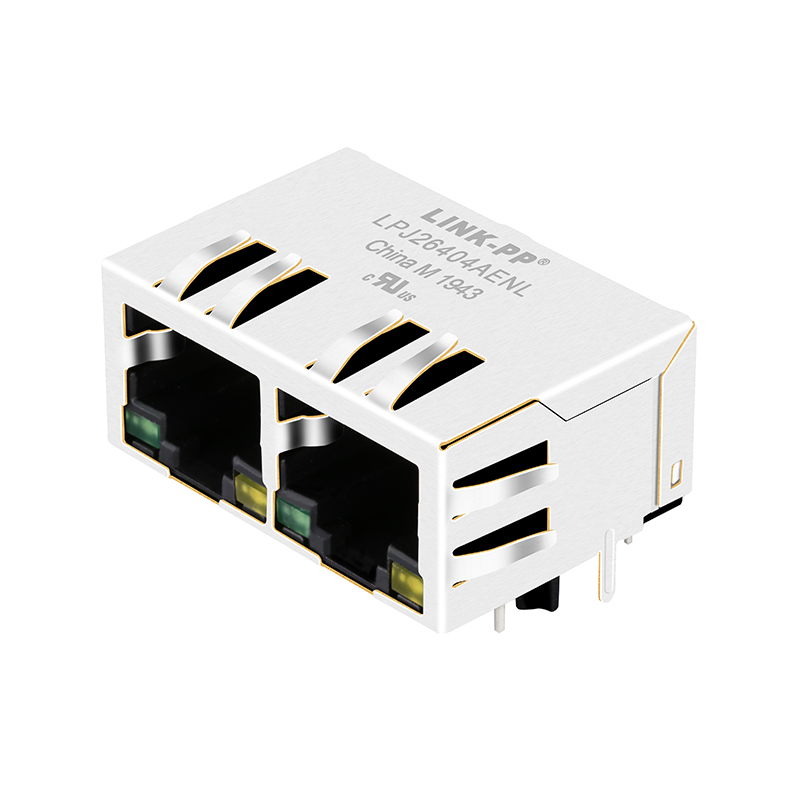

Product View 1

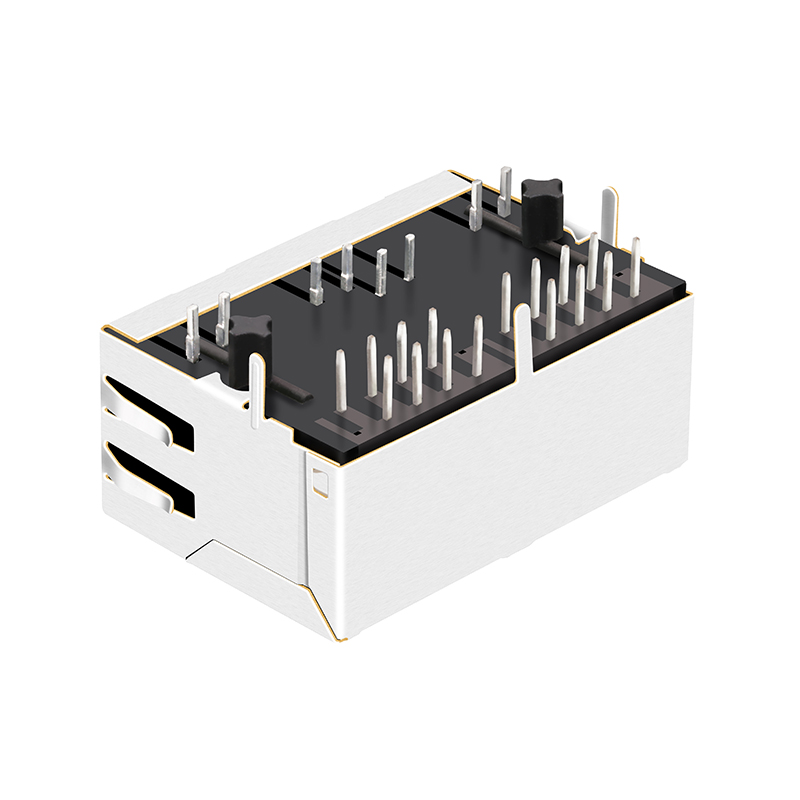

Product View 2
Product Specification
Part NumberLPJ26404AENL
Cross ReferenceJXD0-2005NL / JXR8-1001NL
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(Non_PoE)
Speed10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen/Yellow Led
Number of Cores per Jack4
ShieldingShielded, Emi Finger
Number of Ports1x2 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature-40°C ~ 85°C

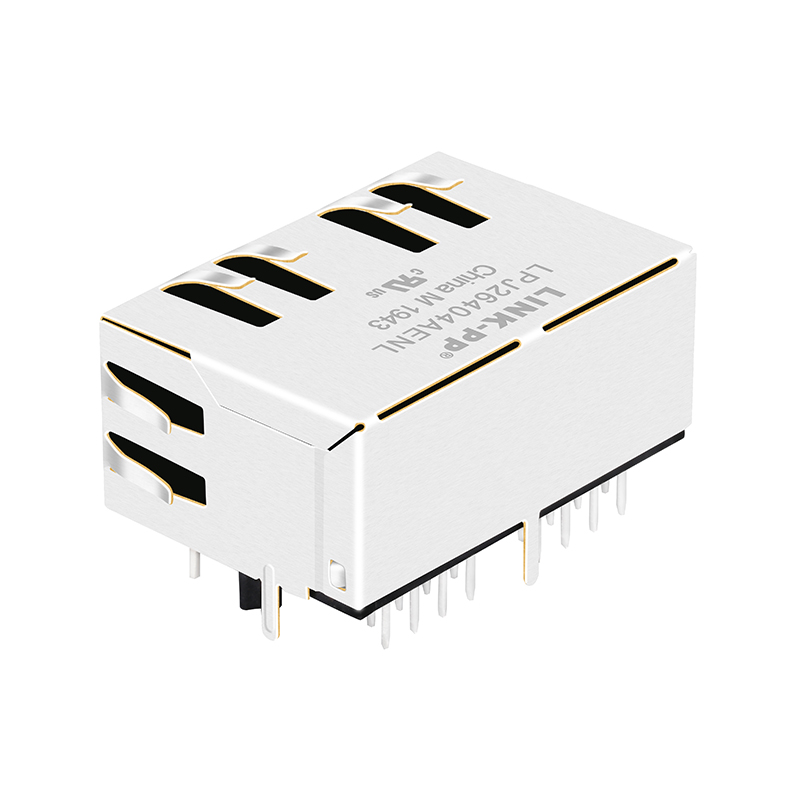

Feature View 1

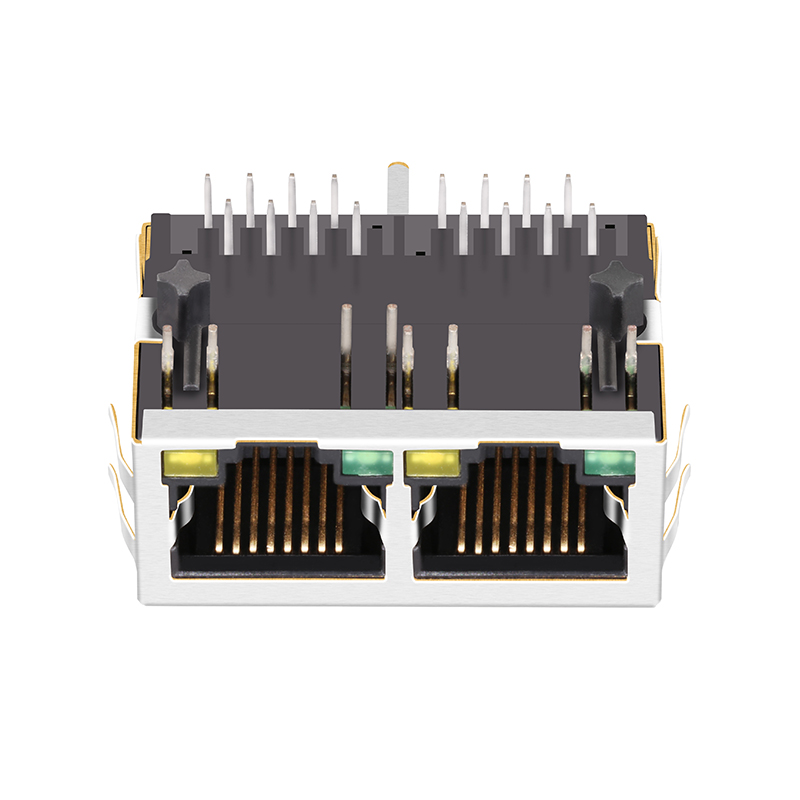

Feature View 2
Dimensional Drawing Application Diagram
Manufacturing Capabilities

A specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. The factory owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, the facility operates with a robust technical support team to provide professional complete solutions for magnetic components.

✔ 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
✔ RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
✔ T1/E1, T3/DS3/E3/STS-1 interface line transformer
✔ ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Testing Image 1
Testing Image 2
Factory Image
Certifications 1
Certifications 2
Frequently Asked Questions
Are you a manufacturer or trade company?
We are a specialized manufacturer of RJ45 connectors and LAN Transformers with over 23 years of industry experience.
Can I get some samples for testing?
Yes, 3-5 pieces of free samples are available for your evaluation. Small trial batches are also welcome.
Is OEM/ODM service available?
Yes, we have rich experience in translating custom designs and ideas into real products, including laser printing your brand on the components.
What is the standard lead time?
Equipped with a highly efficient production team, we typically ship within 30 days. Please verify specific lead times with our team for bulk orders.
What quality certifications do your products carry?
Our products are fully compliant with ISO9001:2000, RoHS, REACH, CE, and UL international standards to ensure top-tier reliability.
What applications are these components suitable for?
They are widely used in networking and communication equipment such as routers, switches, IP phones, hubs, and PC mainboards.
