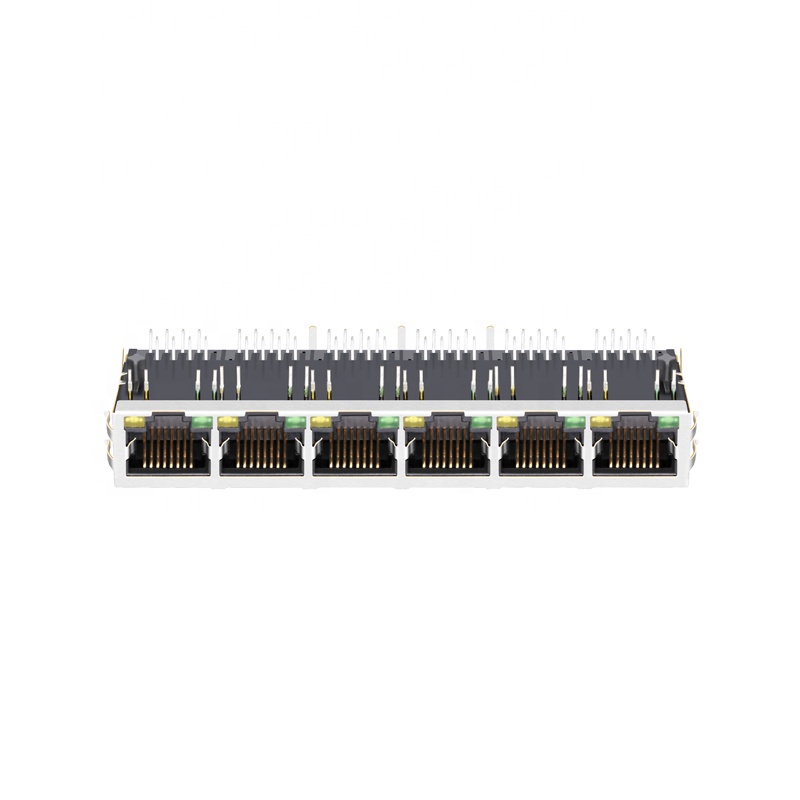

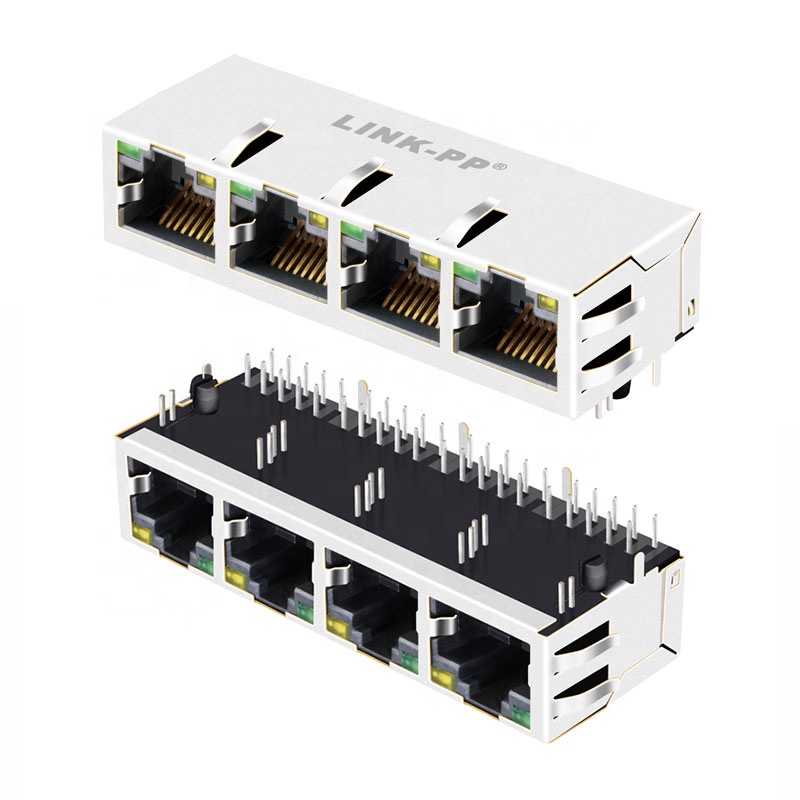

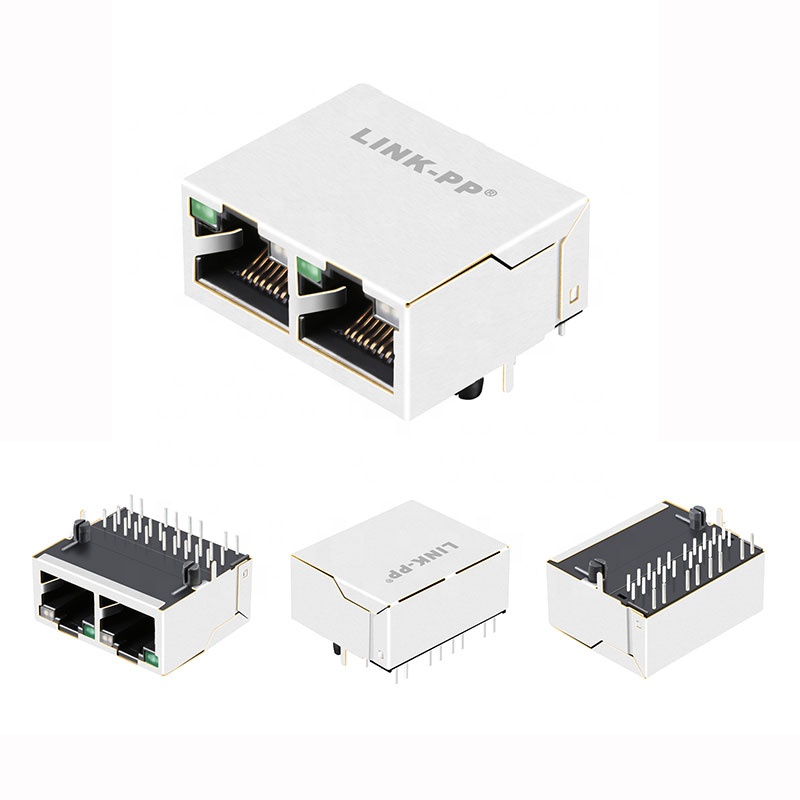

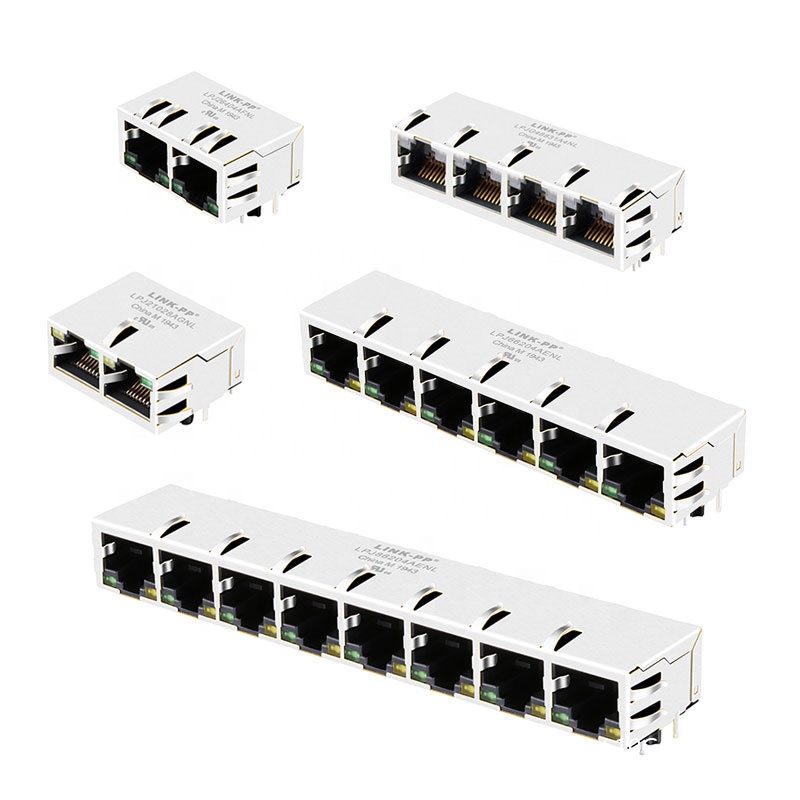

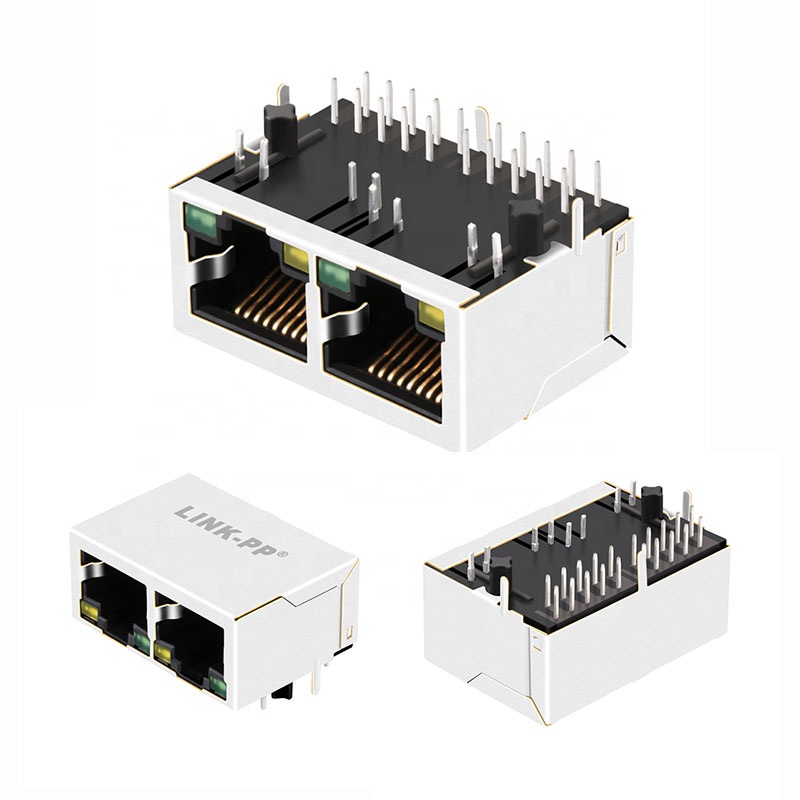

1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1 / 5
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors

1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors

Send Inquiry

Product Description

Product Description & Characteristics

Integrated Solution: RJ45 Connector with integrated transformer / common mode choke.

High Performance: Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s.

Versatile Options: Available in SMT, THT and THT with USB configurations.

Global Standards: Compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt.

Advanced Protection: HPLE products feature improved Common Mode Rejection due to additional NiZn cores.

Product Characteristics
Technical Specification
Model NumberIntegrated Connector Modules
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet (PoE/Non_PoE)
Speed10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact FinishGold (Thickness: 6.00µin / 0.152µm)
LED ColorYellow/Green, Green/Yellow, Multi-color options
ShieldingShielded, EMI Finger
Number of Ports1x2, 1x4, 1x6, 1x8 Port options
Operating Temp0°C ~ 70°C / -40°C ~ +85°C
Packing & Delivery

Standard Package: Tray

Carton Details: 37*30*30cm | Gross Weight: 9kg/carton

Quantity: 600pcs/carton | SPQ: 30pcs | Unit Weight: 0.015kg

Packing details
Product Gallery & Manufacturing
Frequently Asked Questions
What types of connectors do you specialize in?
We specialize in a wide range of network components, including RJ45 Magnetics, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
How is the quality of the products guaranteed?
Quality is maintained through a rigorous process: we always provide a pre-production sample before mass production and conduct a final inspection before every shipment.
What certifications do your RJ45 connectors hold?
Our products are fully certified by SGS, ISO9001:2008, UL, REACH, and CE, ensuring they meet international safety and quality standards.
What is your production capacity for large orders?
With a dedicated team and advanced manufacturing facilities, we have a productive capacity of approximately 30,000K units per week.
What payment and delivery terms are accepted?
We accept various delivery terms including FOB, CFR, CIF, EXW, DDP, and Express Delivery. Accepted payment methods include T/T, L/C, PayPal, Western Union, and Credit Card.
Are the connectors compatible with modern high-speed networks?
Yes, our integrated connector modules support a wide range of speeds from 10/100/1000 Base-T up to 10Gbit/s, making them suitable for the latest Ethernet technologies.
