Home > Multi Port RJ45 Connector > JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

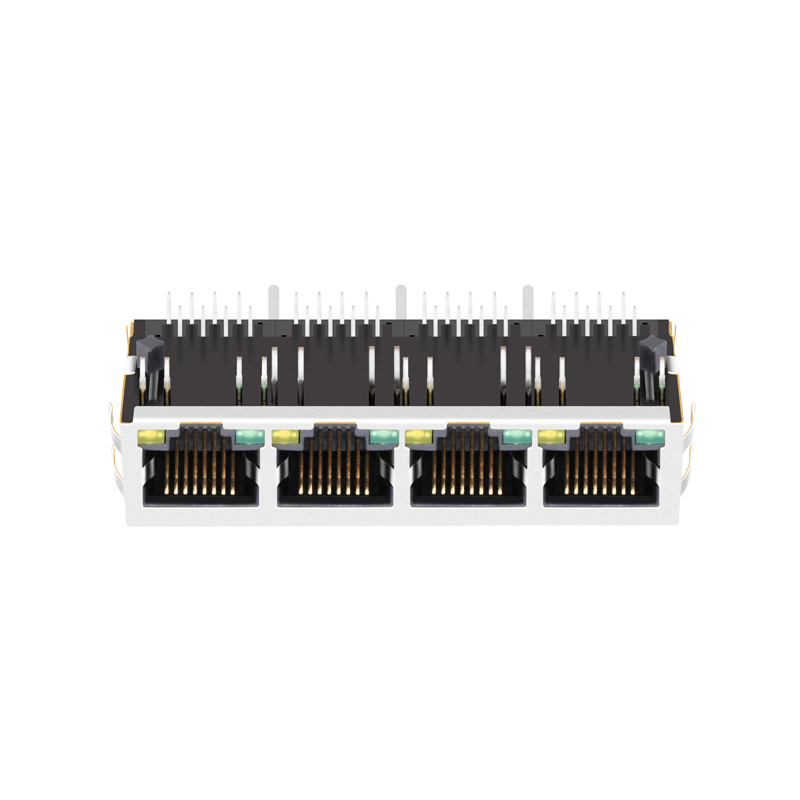

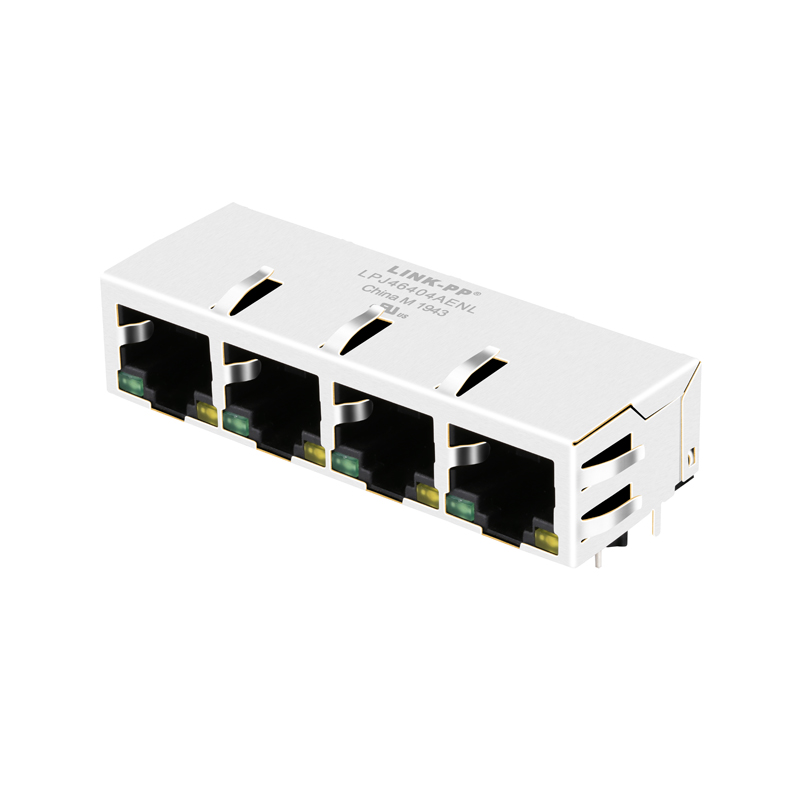

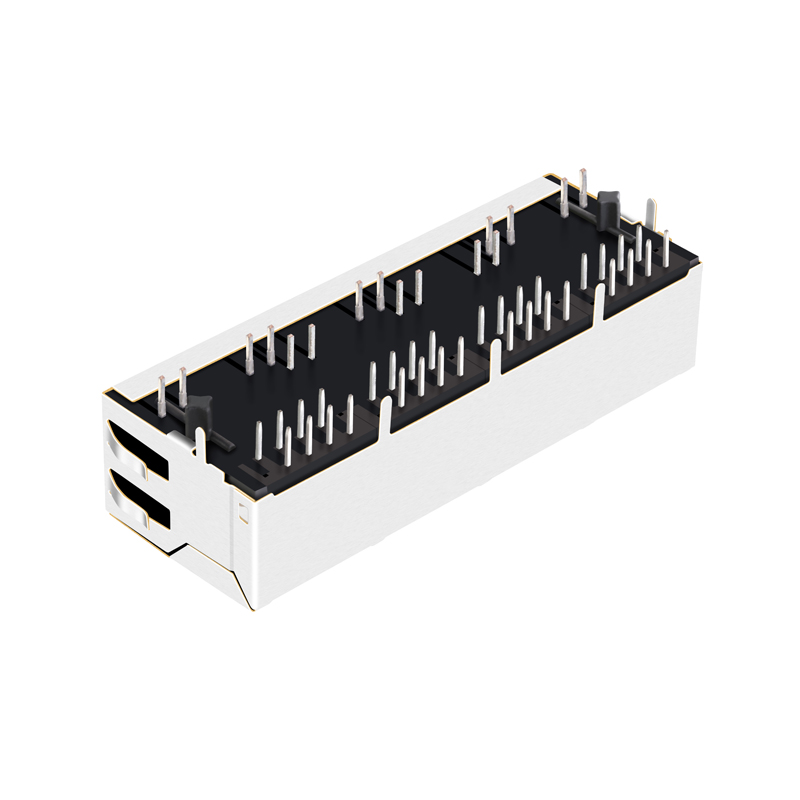

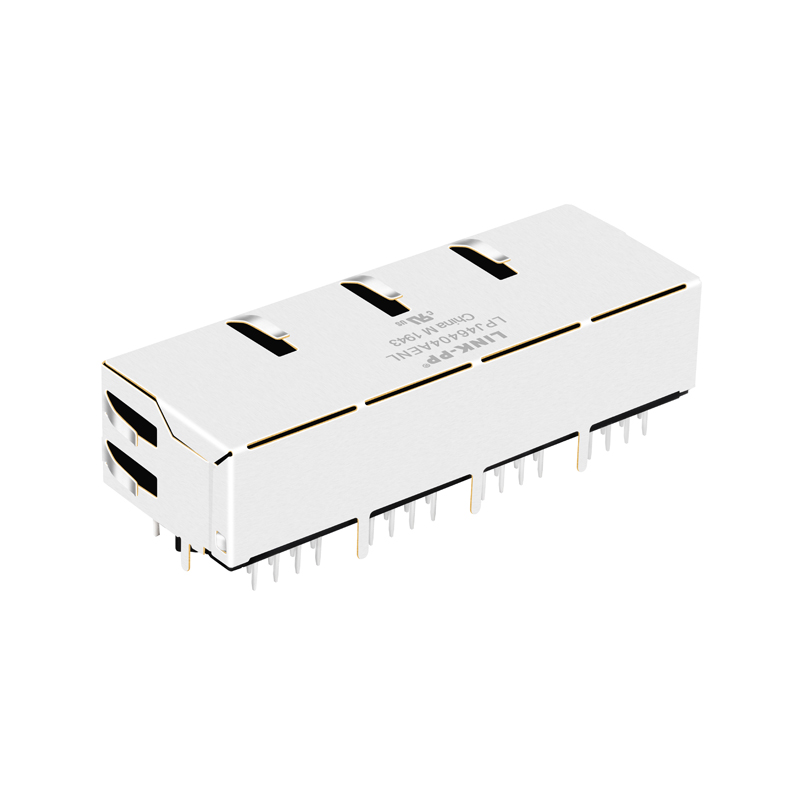

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
1 / 5
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

Send Inquiry

Product Description

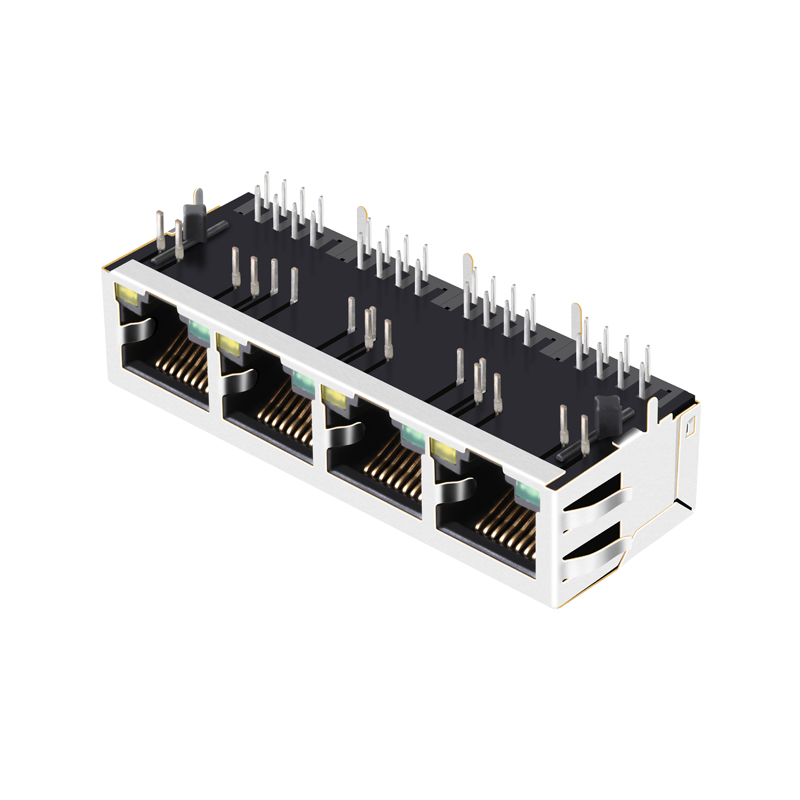

Product View 1
Product View 2
Technical Specifications
Part NumberLPJ46404AENL
Pulse Cross ReferenceJXD0-4005NL / JX80-0033NL
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet (Non-PoE)
Speed10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen/Yellow LED
Cores per Jack4
ShieldingShielded, EMI Finger
Number of Ports1x4 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT, C
Turns Ratio RX/TX1CT:1CT
Operating Temperature-40°C ~ 85°C
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Packaging View
Quality Control
Professional Manufacturing Capabilities
A specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL. The facility utilizes advanced manufacturing and test equipment to ensure peak performance. With a robust monthly production capacity of 3000K units, we provide reliable solutions for various networking equipment.
◈ Main Product Scope: 10/100/1000M/2.5G/5G/10G LAN pulse transformers and filters.
◈ Connectivity: RJ45 connectors with 10/100/1000M/2.5G/5G/10G magnetics.
◈ Interface Transformers: T1/E1, T3/DS3/E3/STS-1 interface line transformers.
◈ Specialized Solutions: ISDN, HDSL, ADSL and VDSL interface line transformers and splitters.
Production Line 1
Production Line 2
Factory Overview
Frequently Asked Questions
Q1: Are you a manufacturer or trading company? A: We are a manufacturer specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Q2: Can I request free samples for testing? A: Yes, 3-5 pcs free samples are available for your evaluation. Small trial batches are also accepted.
Q3: Is OEM/ODM service available? A: Yes. We have the capability to transform your designs into real products and can laser print your brand on the components.
Q4: What is the standard lead time for orders? A: Our efficient production team typically ships orders within 30 days. For specific project timelines, please consult with our team.
Q5: What are the primary applications for these RJ45 connectors? A: Our products are widely used in networking equipment such as Hubs, PC cards, Switches, Routers, Mainboards, SDH, PDH, IP Phones, and xDSL modems.
Q6: What certifications do your products hold? A: All products are manufactured under strict quality control and are certified by ISO9001:2000, RoHS, REACH, CE, and UL.
