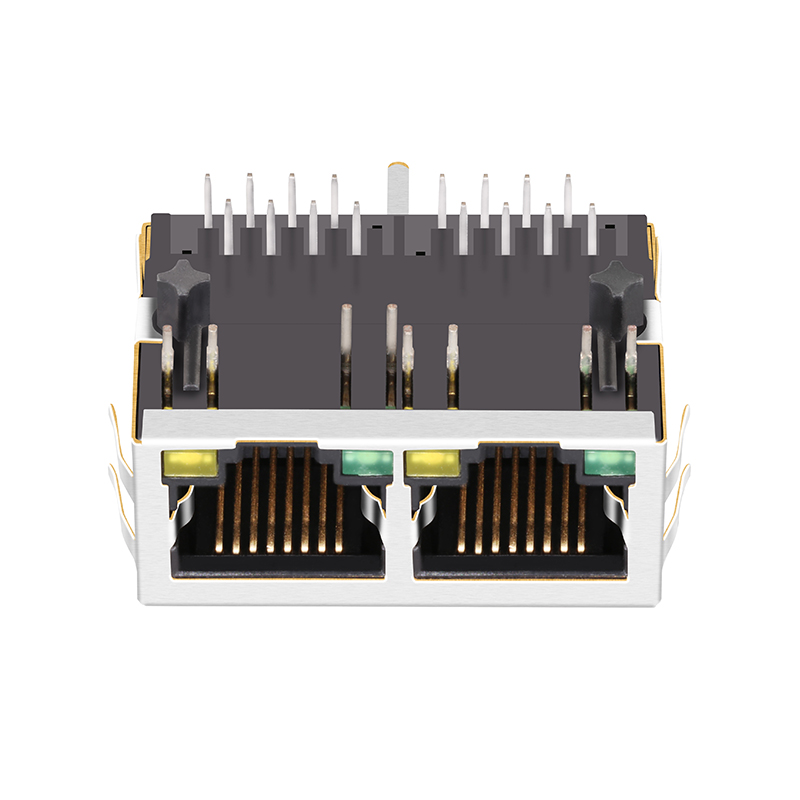

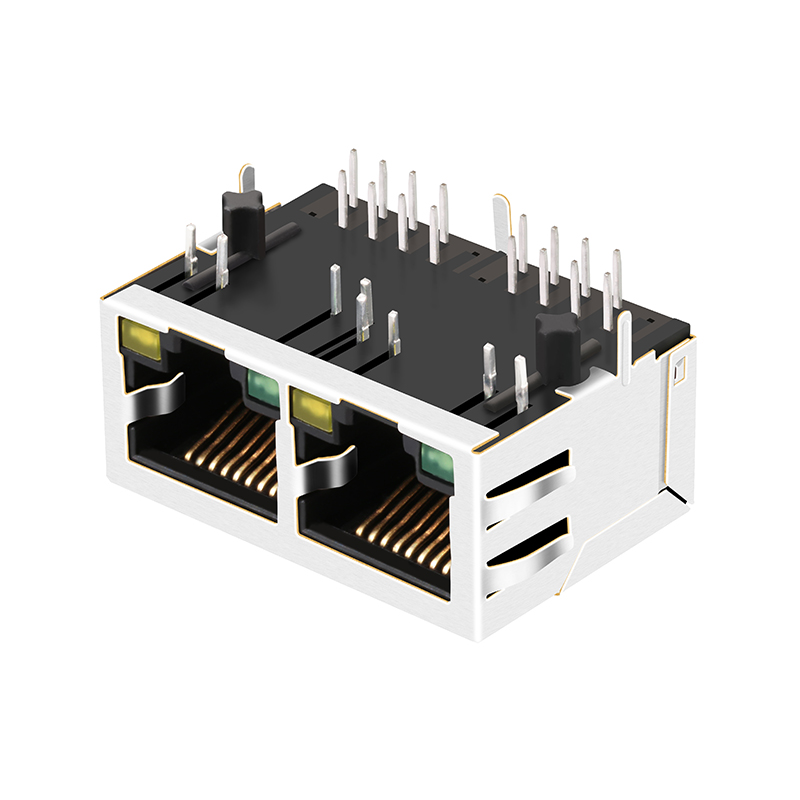

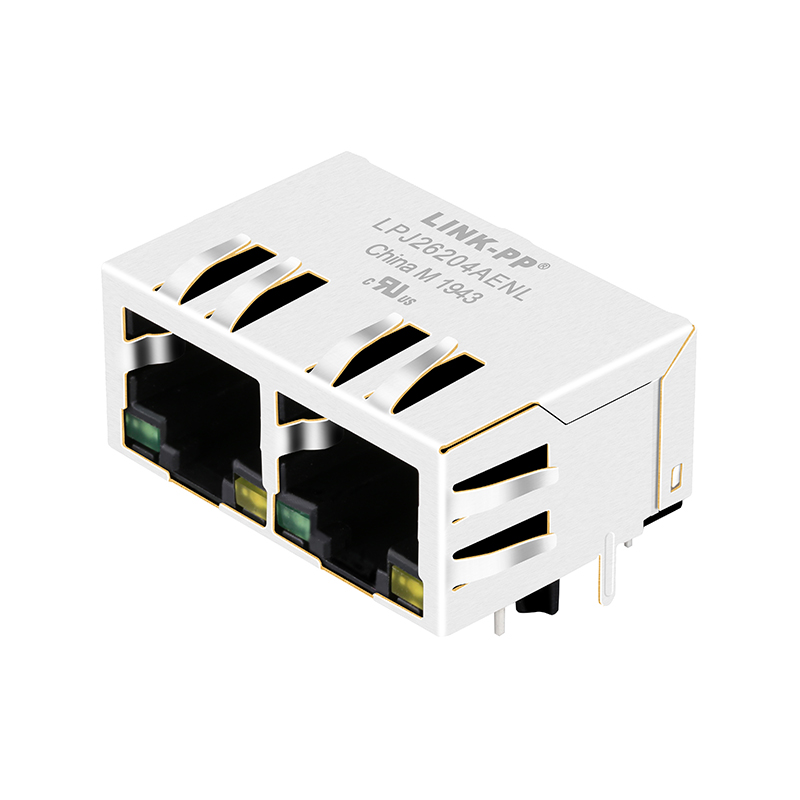

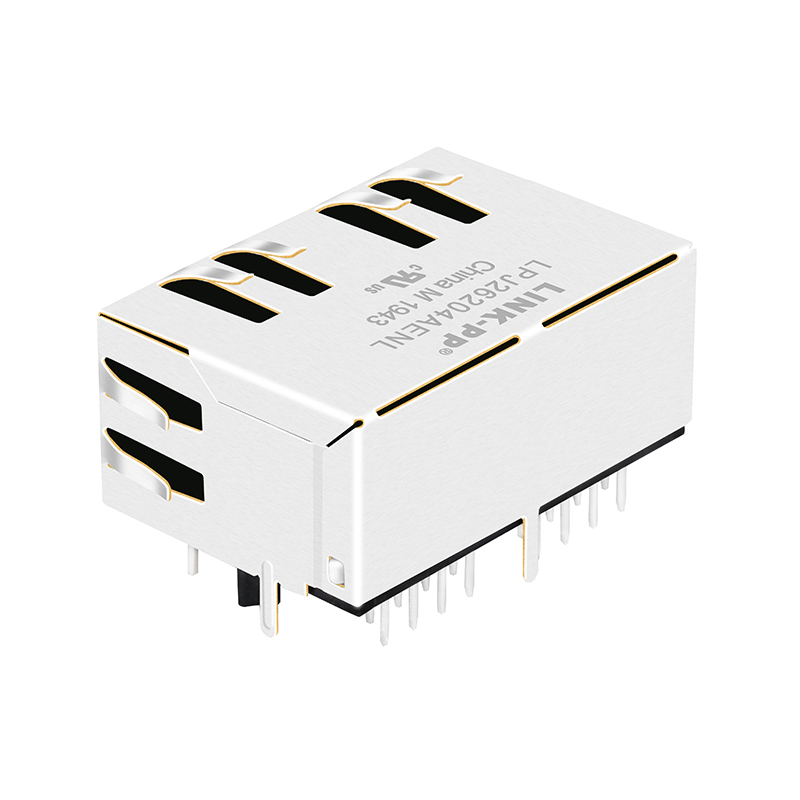

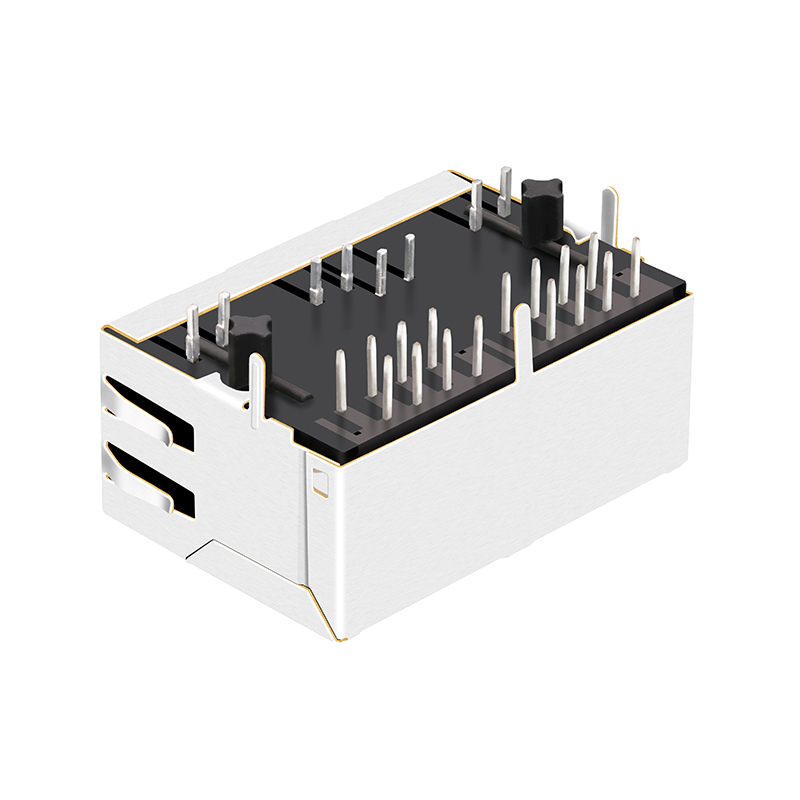

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

1 / 5

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

Send Inquiry

Product Description

Specification

Model Number	LPJ26204AENL
Part Status	Active
Connector Type	RJ45
Applications-Lan	10/100 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Green / Yellow
Number of Cores per Jack	4
Shielding	Shielded, EMI Finger
Number of Ports	1x2 Port
Features	Board Guide
Tab Direction	Down
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C

Packing & Delivery

Packaging Details

Package: Tray

Carton size: 37*30*30cm

G.W./carton: 9kg

Qty/carton: 600pcs

SPQ: 30pcs

N.W/pcs: 0.015kg

Technical Features

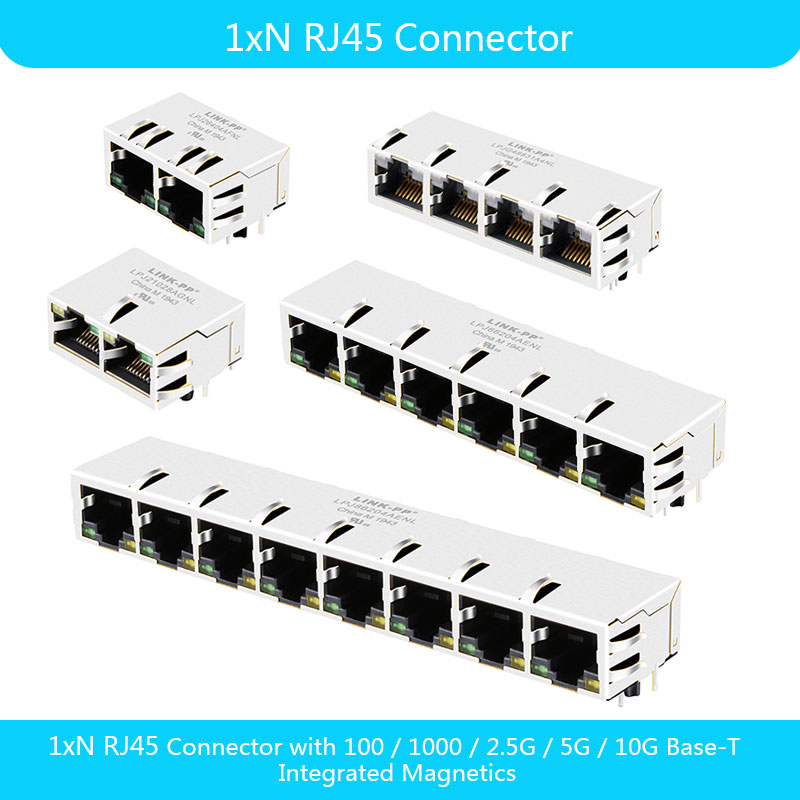

10 / 100 / 1000 / 2.5G / 5G / 10G Base-T 1xN Port RJ45 Connector

Applications: Suitable for industrial temperatures from –40 °C up to +85 °C. Compatible with Industrial Ethernet systems like EtherCAT or Profinet. Compliant with most IC’s for Ethernet applications such as Microchip, Broadcom, Marvell Hubs, Routers, Switches, IP cameras, and IoT applications.

Company Profile & Facilities

FAQ

1. What is the specialization of the manufacturer? We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 Magnetic, Lan transformers, Modular Jacks, and RJ11 Connectors. We are certified by ISO9001:2000, RoHS, REACH, CE, and UL.

2. How is product quality guaranteed? We ensure quality through a rigorous process: always providing a pre-production sample before mass production and conducting a final inspection before every shipment.

3. What are your main production capabilities? With advanced manufacturing facilities and a large professional staff, we have a productive capacity of 3000K per month, allowing for short delivery times and strong technical support.

4. Why should customers choose these components? With 19 years of experience in RJ45 connectors and LAN transformers, we are certified by SGS, ISO, UL, REACH, and CE, serving major global technology brands.

5. Which applications are these products suitable for? Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, Mainboards, SDH, PDH, IP Phones, and xDSL modems.

6. What delivery and payment terms are accepted? We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Accepted payment methods include T/T, L/C, PayPal, and Western Union in multiple currencies like USD, EUR, and HKD.
