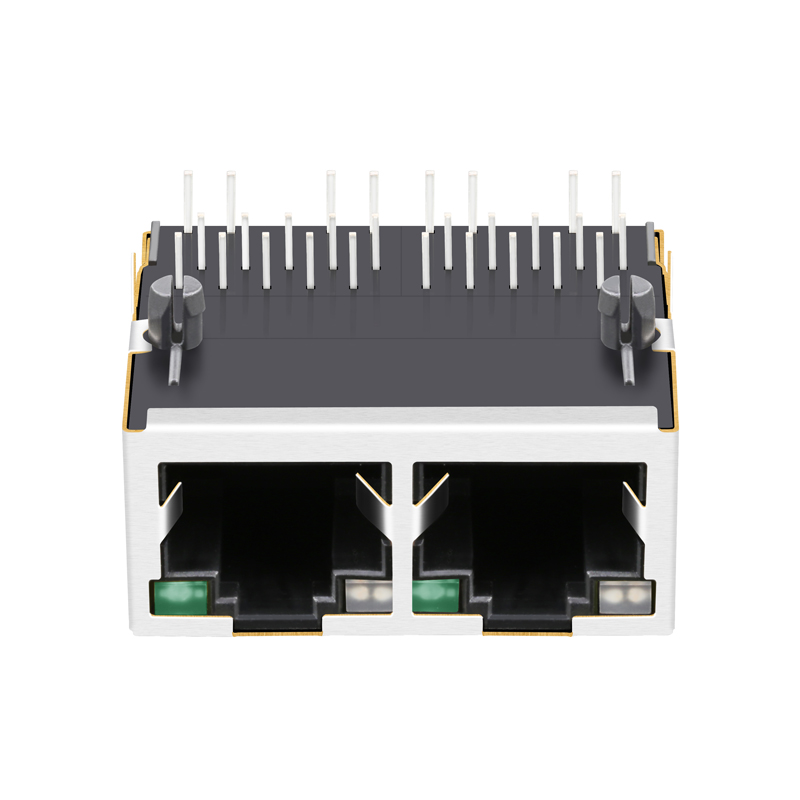

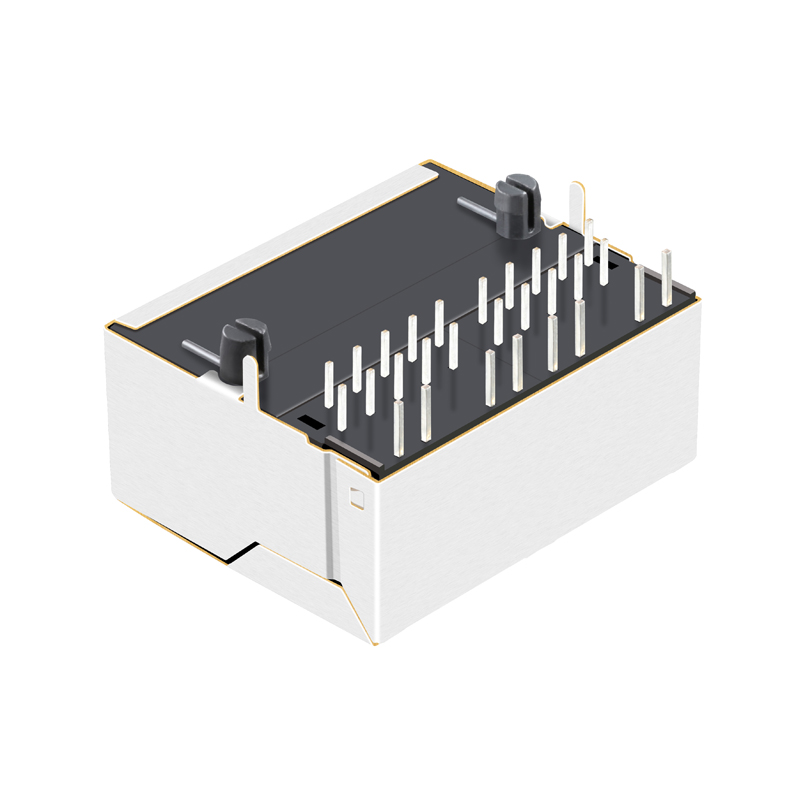

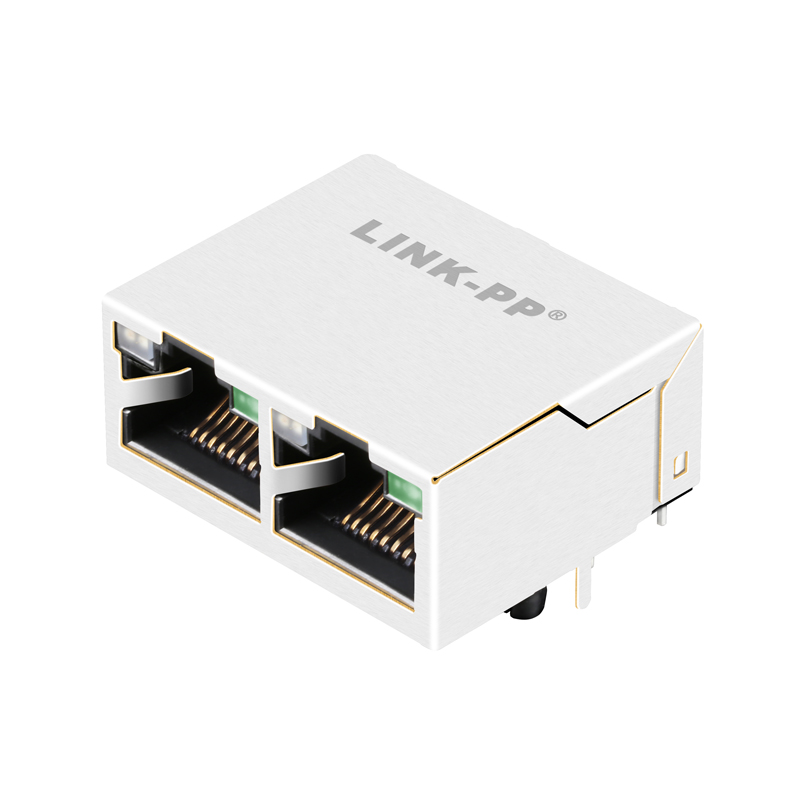

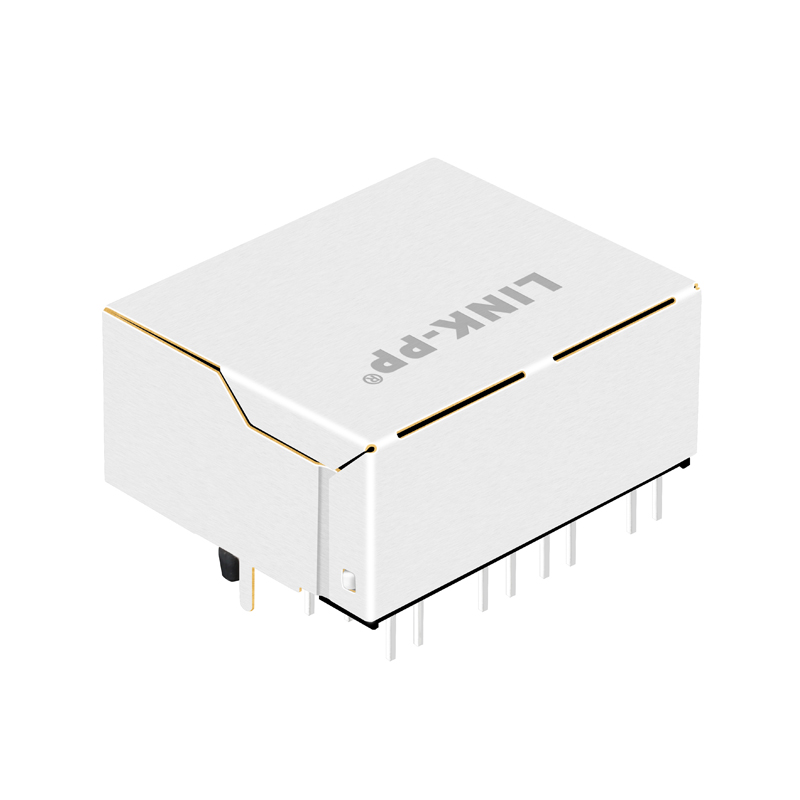

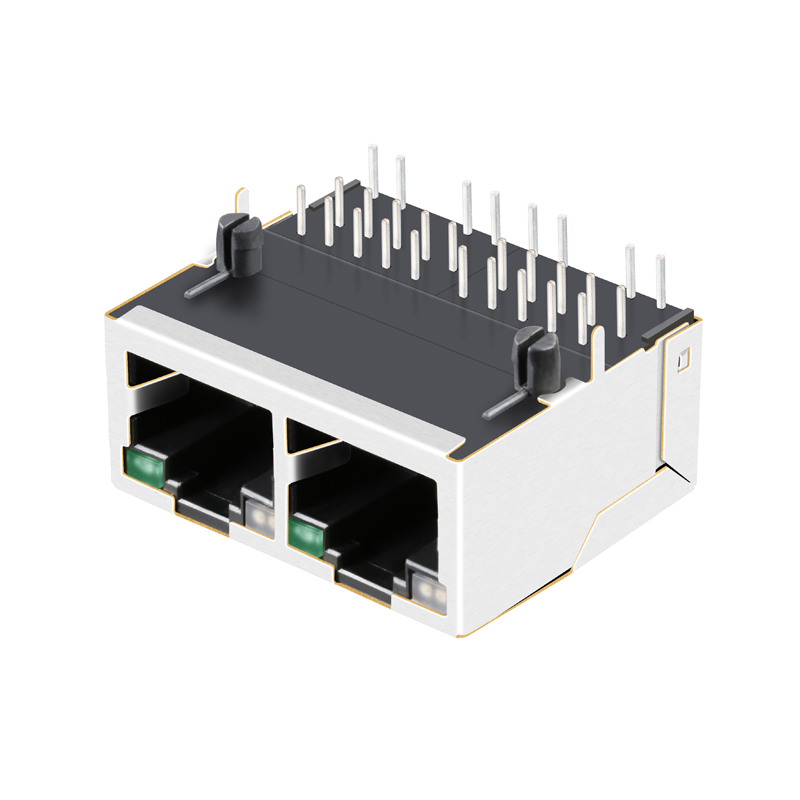

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
1 / 5
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

Send Inquiry

Product Description

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1

RJ45 Connector Specification Banner
5-6610197-1 RJ45 Product View
Technical Specifications Header
Part Number5-6610197-1
AutomDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"/50u"
Cores Per Port4
DiodesNO DIDES41
LED OptionGREEN/YELLOW
LatchUP
Number of Ports1X2
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH OR WITHOUT
Speed10/100 BASE-T
Temperature0 TO 70°C/-40 TO 85°C
Turns Ratio RX1CT:1
Turns Ratio TX1CT:1

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

✓ Professional Certification: ISO 9001:2008, UL Certification, Reach Certification, RoHS Compliance, Active Environmental Policy
✓ 100% Guarantee Quality: Manufactured Under Strict Controls, 100% Tested (Not Just Batch Tested)
✓ OEM Experience: Industry expertise for 9 years as an OEM manufacturer
✓ Quality Guarantee: 6 Years
✓ Competitive Price: More Competitive Price Than Global Major Brands
✓ Fast Delivery: 2-3 Weeks After Orders
✓ Service: Free Samples Available, New Design Support for Customer Requirements
Mechanical Drawing 1
Mechanical Drawing 2
Schematic Diagram

• Preferred Supplier Of Global Fortune 500 Electronics Companies

• Standard Components Used In High-Performance Computing Boards

• Verified Logo On High-End Embedded Hardware Platforms

Application Image
Production Line
Testing Lab

Frequently Asked Questions

What is the data transfer speed of the 5-6610197-1 connector?
This RJ45 connector supports 10/100 BASE-T Ethernet speeds, making it ideal for standard industrial and networking applications.
Is the 5-6610197-1 connector RoHS compliant?
Yes, it is RoHS-5 compliant with lead in solder exemption, meeting international environmental standards.
What is the operating temperature range for this component?
It is designed to operate in temperatures ranging from 0 to 70°C for standard use, with options for extended ranges from -40 to 85°C.
What are the plating options for the contact mating area?
We offer multiple gold plating thicknesses including 6u", 15u", 30u", and 50u" to suit different durability and conductivity requirements.
Does this 1X2 Harmonica Jack include LED indicators?
Yes, this specific model comes with Green and Yellow LED options for easy link and activity status monitoring.
Can I request a custom design for my specific PCB layout?
Absolutely. We provide new design services to meet specific customer requirements and offer free samples for verification.
