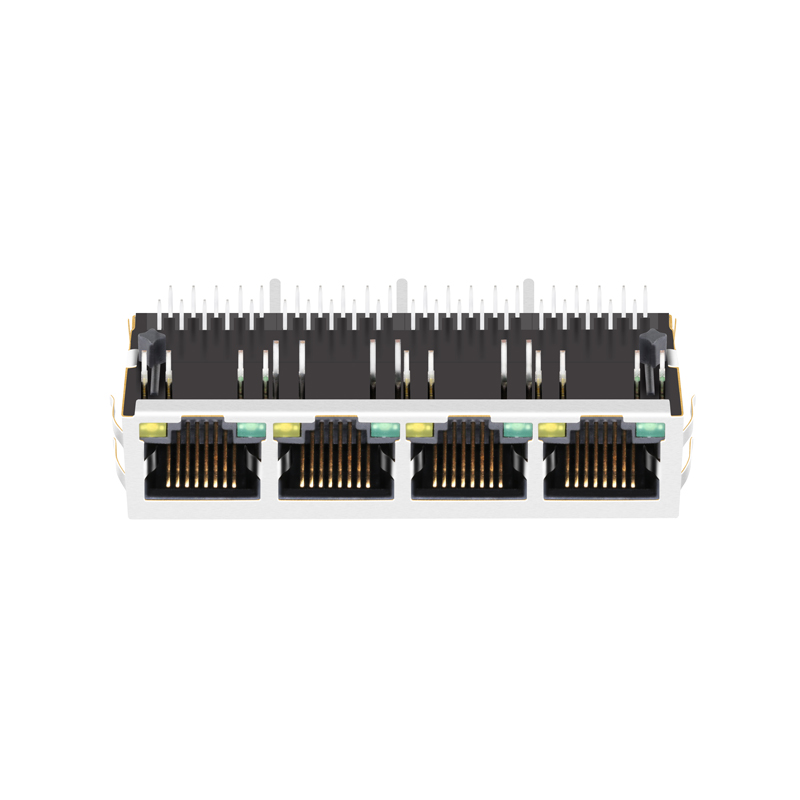

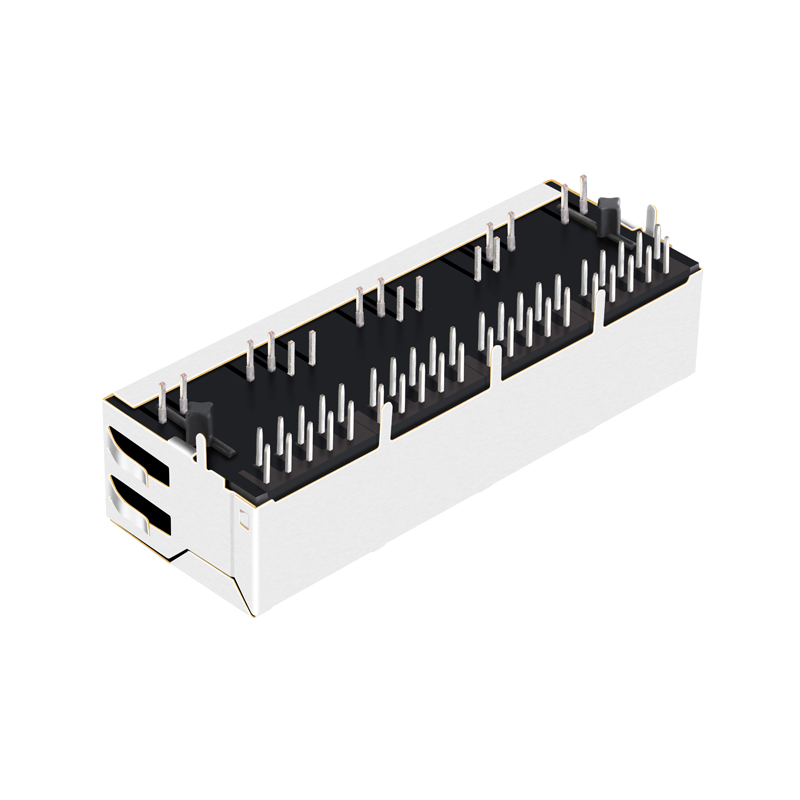

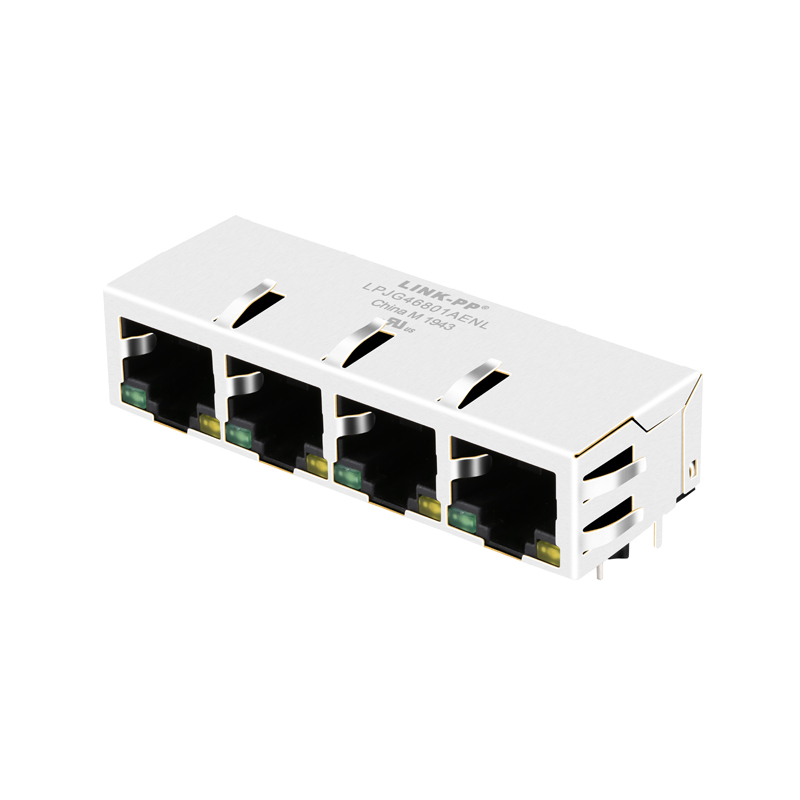

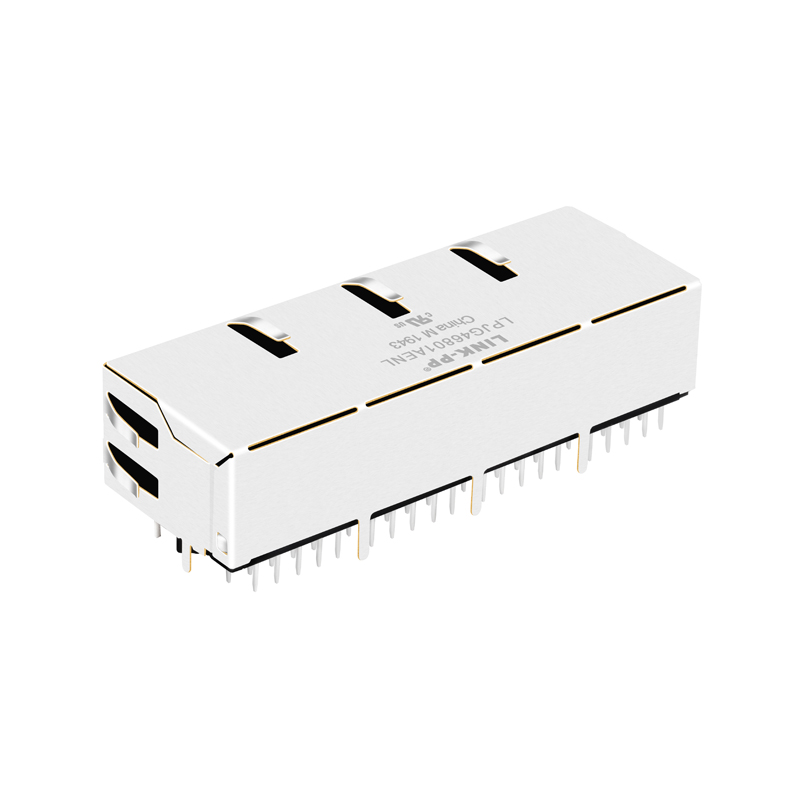

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
1 / 5
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

Send Inquiry

Product Description

⚙️ Product Description

Product Image 1

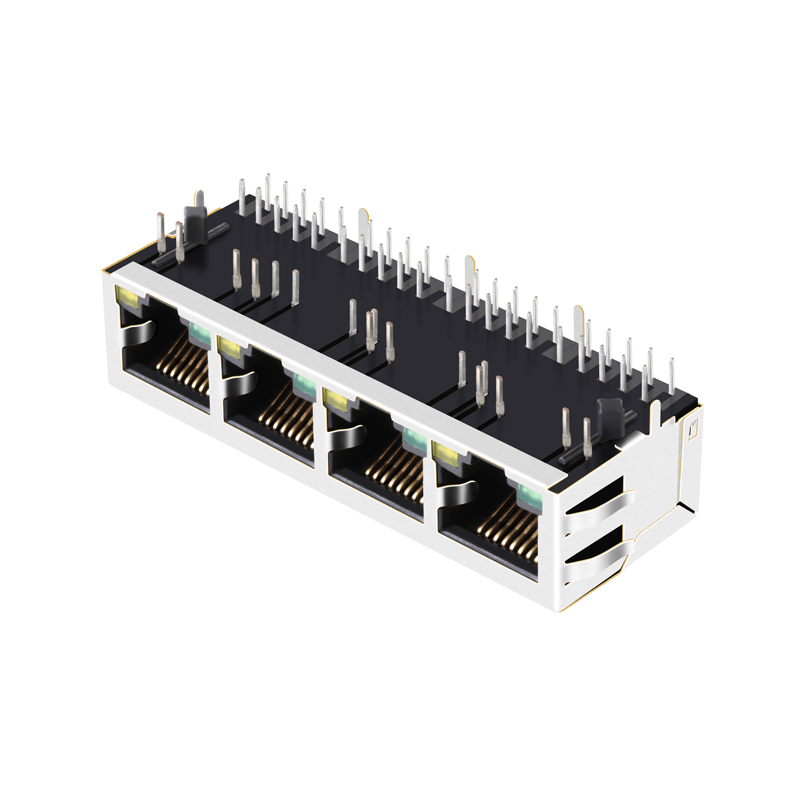

Product Image 2

📋 Specification

Item Value
Model Number LPJG46801AENL
Part Status Active
Connector Type RJ45
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Number of Ports 1X4 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C

📦 Packing & Delivery

ℹ️
Package standard details: 20 pcs in 1 tray, 20 tray in 1 carton (37*30*30cm), Gross Weight: 10KGS (400pcs) per carton.
Packing Image

100 / 1000 / 2.5G / 5G / 10G Base-T 1xN RJ45 Connector

Applications & Suitability:
  • Suitable for industrial operating temperatures ranging from –40 °C up to +85 °C
  • Compatible with Industrial Ethernet systems such as EtherCAT and Profinet
  • Compliant with mainstream ICs for Ethernet applications including Microchip, Broadcom, and Marvell
  • Perfect for Hubs, Routers, Switches, IP cameras, and various IoT applications
Connector Detail Image

🔍 Product Gallery

Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5

❓ FAQ

💬 1. What is our manufacturing background?
We are a specialized manufacturer of magnetic telecom and networking components. Certified by ISO9001, RoHS, REACH, CE, and UL, our production is backed by advanced manufacturing facilities and testing equipment imported from abroad. Established in 1997, we provide professional complete solutions for magnetic components alongside strong technical support.
💬 2. How do we guarantee product quality?
We strictly implement quality control measures, including providing a pre-production sample before starting mass production, and conducting a comprehensive final inspection of all goods before shipment.
💬 3. What products are available from us?
Our core product range includes RJ45 Magnetics, LAN Transformers, Modular Jacks, and RJ11 Connectors, widely applicable across hubs, switches, routers, and IP camera systems.
💬 4. Why choose us over other suppliers?
We have nearly two decades of focus on manufacturing RJ45 connectors and LAN transformers. We hold official certifications from SGS, ISO9001, UL, REACH, and CE. With massive weekly production capacity, we ensure reliable delivery, serving leading global electronics and networking brands.
💬 5. What delivery and payment terms do we support?
We support multiple delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, Express Delivery. Supported payment currencies include USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF, via standard payment methods such as T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, and Western Union.
