Home > LAN Transformer > In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
1 / 5
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

Send Inquiry

Product Description

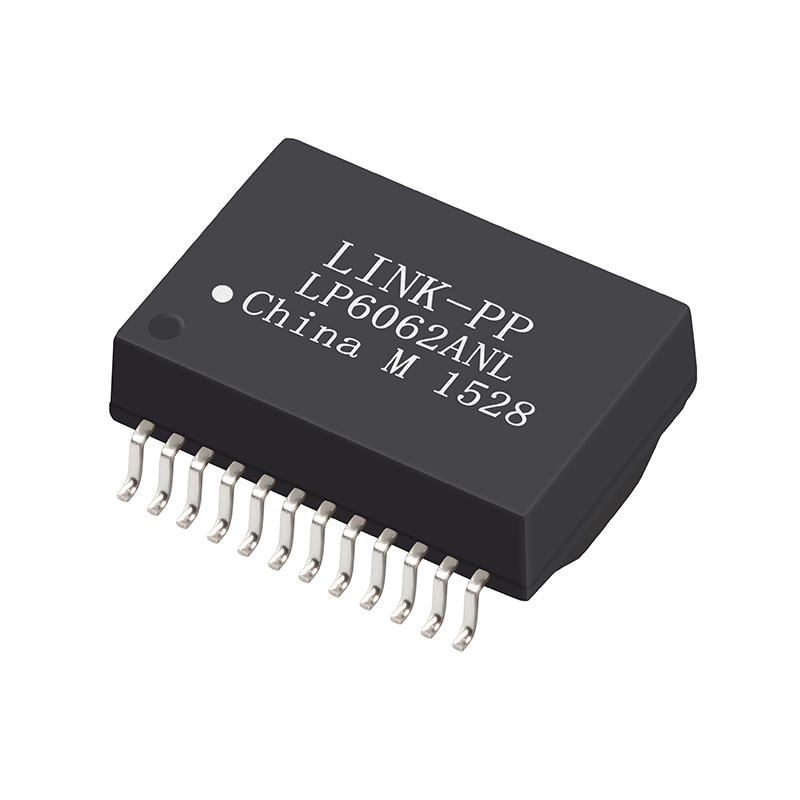

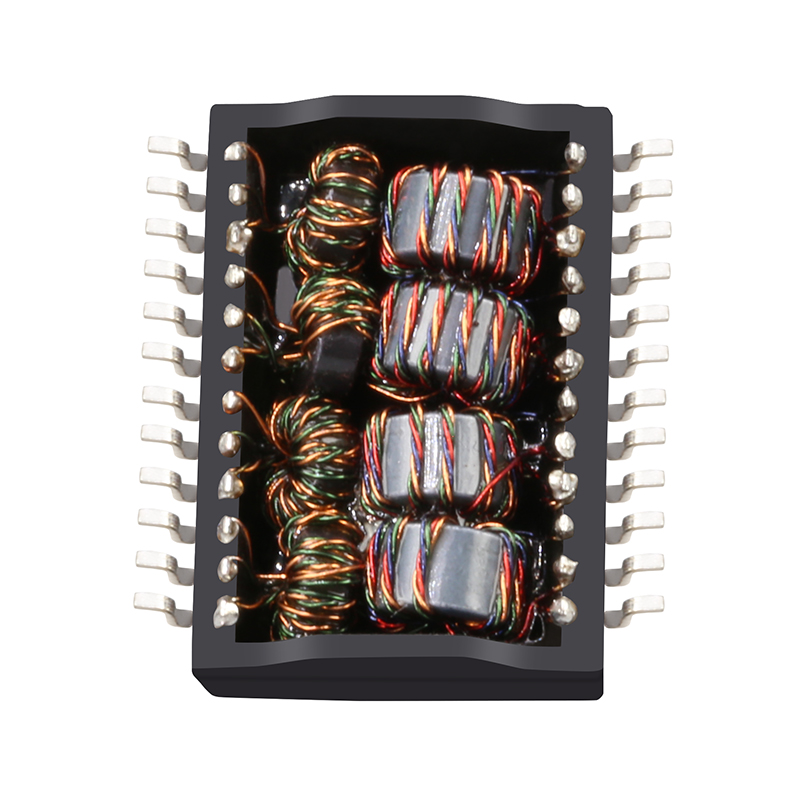

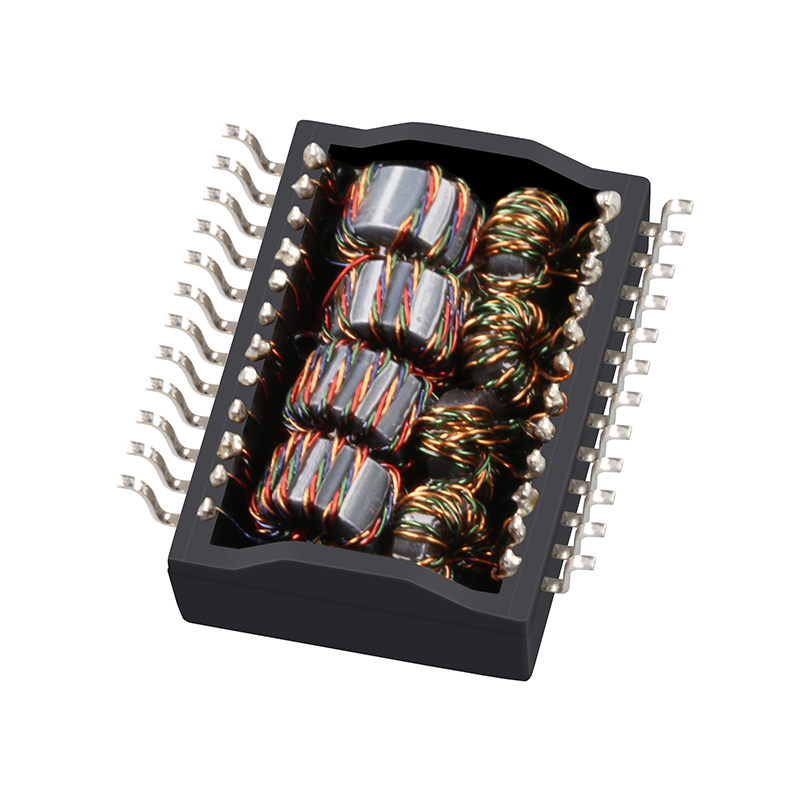

Product View

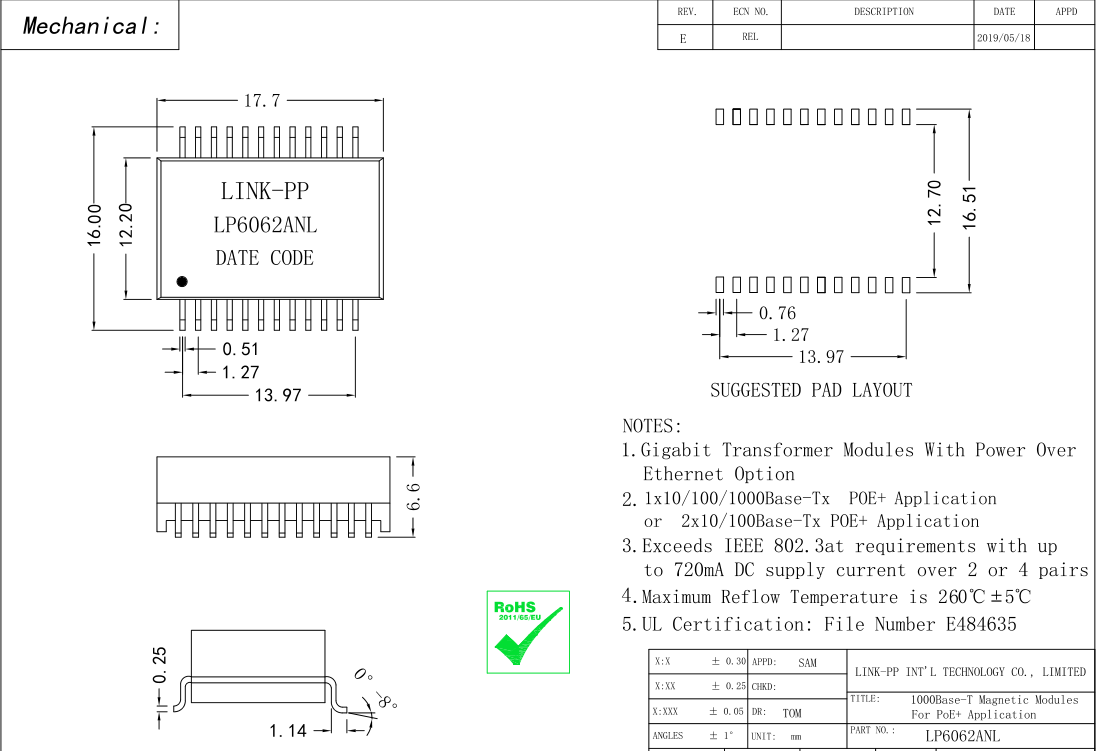

Technical Drawing
ItemValue
Place of OriginChina
Part NumberLP6062ANL
Halo Part NumberTG1G-S012NZRL
Transformer TypeLan Transformer
Application-LanEthernet(PoE+)
Number of PortsSingle Port
Speed10/100/1000 Base-T
PackageTape & Reel
Cores per Port8
PIN number24 Pin
Mounting TypeSurface Mount
Temperature-40℃ TO +85℃
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C,S
📦Packaging Details:
  • N.W/pcs: 0.004kg
  • Package Format: Reel
  • SPQ: 400pcs
  • Qty/carton: 1600pcs
  • Carton size: 37*37*25cm
  • G.W/carton: 5.8kg
What are the primary applications for the LP6062ANL transformer?
It is designed for Gigabit Ethernet applications, specifically supporting Power over Ethernet Plus (PoE+) systems.
What is the operating temperature range for this product?
The LP6062ANL is designed to operate reliably in industrial environments with a temperature range of -40℃ to +85℃.
Does this part support high-speed data transmission?
Yes, it supports 10/100/1000 Base-T speeds, making it ideal for high-speed network communication.
What is the standard mounting method for this component?
This is a Surface Mount (SMT) component with 24 pins, suitable for automated PCB assembly processes.
What are the packaging options for large orders?
The standard packaging is Tape & Reel, with 400 pieces per reel and 1600 pieces per master carton.
Is the LP6062ANL cross-compatible with Halo components?
Yes, this part serves as a direct equivalent to the Halo part number TG1G-S012NZRL.
