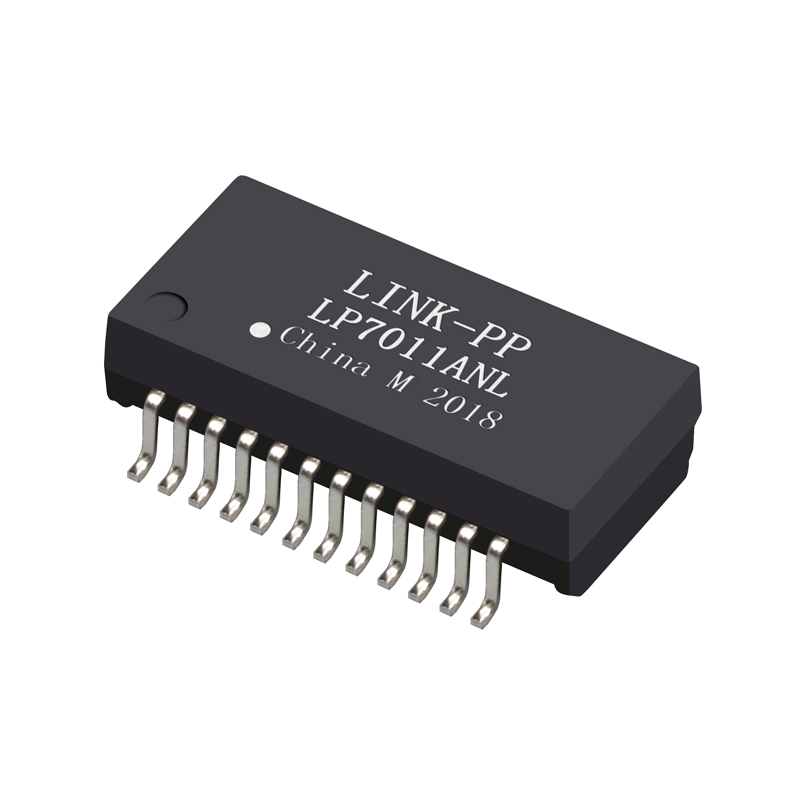

10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
1 / 5
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

Send Inquiry

Product Description

📦 Product Description
Product Image 1

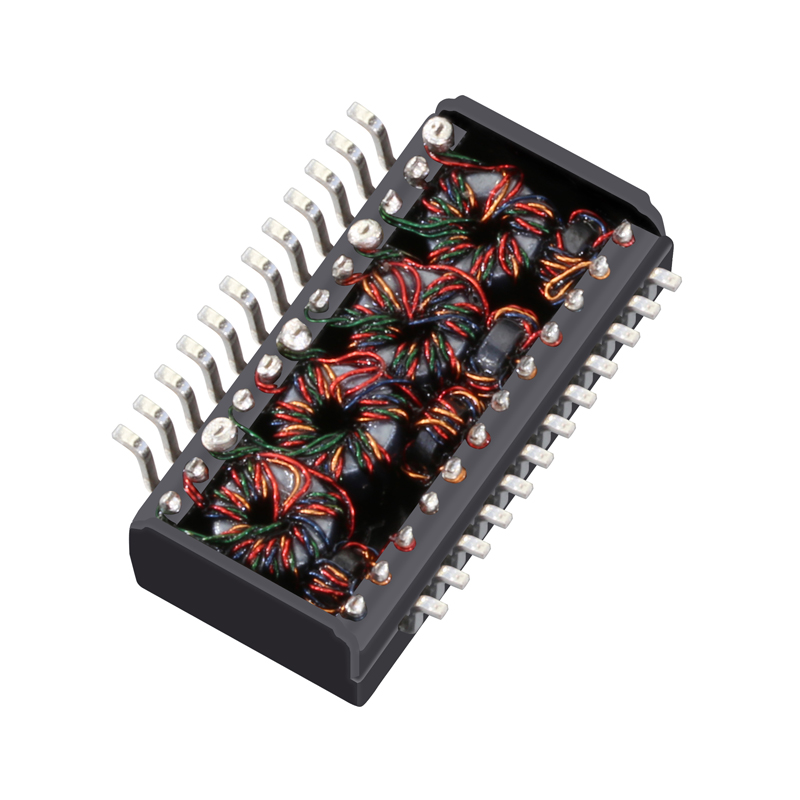

Product Image 2
📋 Specification
Item Value
Place of OriginChina
Part NumberLP7011ANL
Cross ReferenceXF-GH-002
Transformer TypeLan Transformer
Application-LanEthernet(PoE)
Number of PortsSingle Port
Speed10G Base-T
PackageTape & Reel
Cores per Port8
PIN number24
Mounting TypeSurface Mount
Temperature-40℃ TO +85℃
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C,S
🚚 Packing & Delivery
Packing Image
The package details:
N.W/pcs: 0.004kg | Package: Reel | SPQ: 400pcs | Qty/carton: 1600pcs | Carton size: 36*35.5*23cm | G.W/carton: 5.9kg
🔬 Technical Overview & Facilities

The manufacturer is a specialized provider of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE, and UL. The facility owns advanced manufacturing equipment and testing instruments imported from abroad. With a large staff and abundant productive capacity of 3000K per month, short lead times are guaranteed.

Professional complete solutions for magnetic components and strong technical support are provided. Products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.

Main Product Categories:

  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
❓ Frequently Asked Questions
What is the data speed capability of this LAN transformer?
This transformer supports 10G Base-T high-speed Ethernet applications, making it suitable for modern high-performance networking equipment.
Is this component compatible with Power over Ethernet (PoE)?
Yes, this specific model is designed for Ethernet (PoE) applications, allowing for both data transmission and power delivery.
What is the operating temperature range for the LP7011ANL?
The component is designed to operate reliably in an industrial temperature range of -40℃ to +85℃.
What mounting type is required for this transformer?
This is a Surface Mount Device (SMD/SMT) with 24 pins, ideal for automated PCB assembly processes.
How is the product packaged for bulk shipping?
The products are packaged in Tape & Reel format, with 400 pieces per reel and 1600 pieces per standard export carton.
Which certifications do these magnetic components hold?
The manufacturing process and products are certified by ISO9001:2000, RoHS, REACH, CE, and UL standards.
