Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
1 / 5
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Send Inquiry

Product Description

Product Description

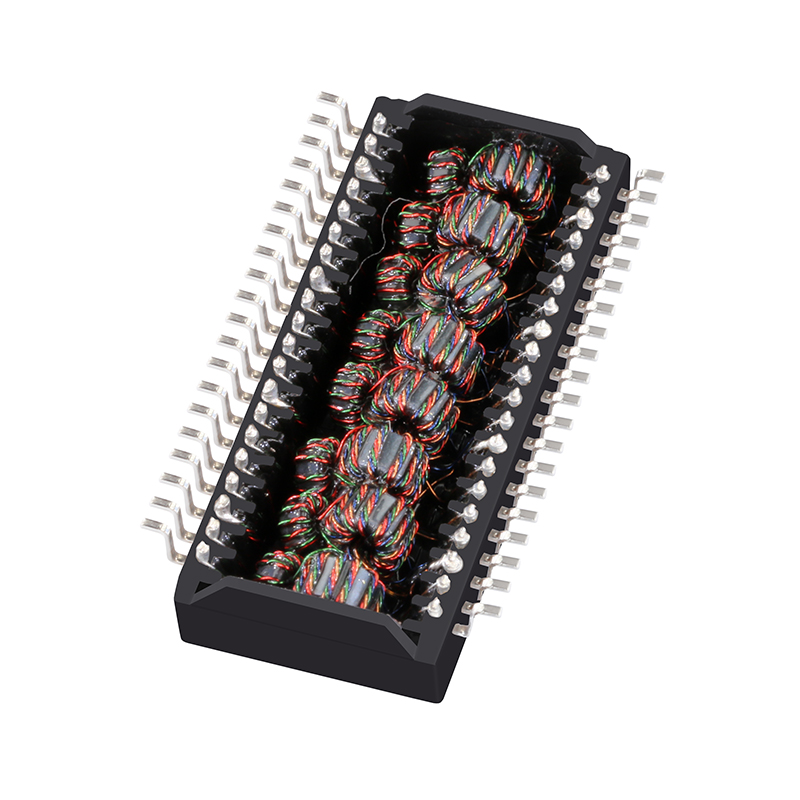

LAN Transformer Product View 1

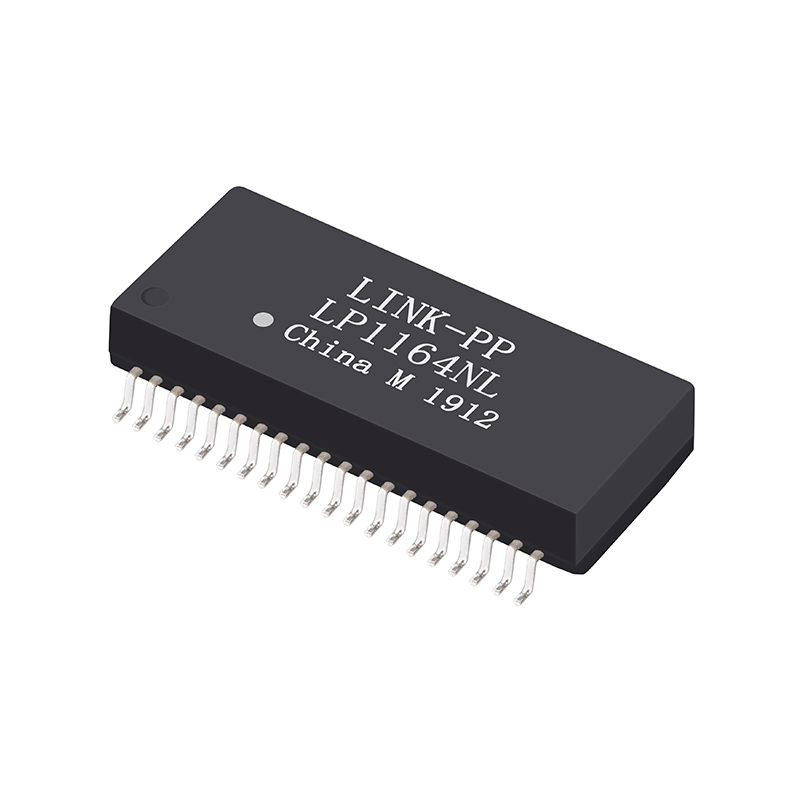

LAN Transformer Product View 2
Technical Specification
ItemValue
Place of OriginChina
Part NumberLP1164NL
Pulse EquivalentH1164NLT
Transformer TypeLan Transformer
ApplicationEthernet (Non-PoE)
Number of PortsQuad Port
Speed10/100 Base-T
PackageTape & Reel
Cores per Port16
PIN Number40
Mounting TypeSurface Mount (SMT)
Temperature Range0℃ TO +70℃
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT, C, S
Packing & Delivery
Packing and Shipping Details
  • N.W/pcs: 0.005kg
  • Package Format: Reel
  • SPQ: 400pcs
  • Quantity per Carton: 1600pcs
  • Carton Dimensions: 36*35.5*23cm
  • G.W/carton: 7.5kg
Manufacturing Capabilities

Specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE and UL. Equipped with advanced manufacturing facilities and test equipment. With an abundant productive capacity of 3000K per month, we ensure timely delivery and professional technical support for all magnetic component solutions.

Main Product Range:

  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter

Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, Mainboards, SDH, PDH, IP Phones, and xDSL modems.

Frequently Asked Questions
What is the application of the LP1164NL transformer?
It is designed for Ethernet (Non-PoE) applications, specifically for 10/100 Base-T networking equipment.
Is the LP1164NL compatible with Pulse H1164NLT?
Yes, the LP1164NL is a cross-reference equivalent to the Pulse part number H1164NLT.
What certifications do these components hold?
The manufacturing process and products are certified by ISO9001:2000, RoHS, REACH, CE, and UL standards.
What is the standard packaging for shipment?
Products are supplied in Tape & Reel format, with 400pcs per reel and 1600pcs per master carton.
Can these be used in high-temperature environments?
These units are rated for a standard operating temperature range of 0℃ to +70℃.
What is the mounting type for this specific port?
This is a Surface Mount (SMT) component with 40 pins, designed for automated PCB assembly.
