Deltavox
Deltavox

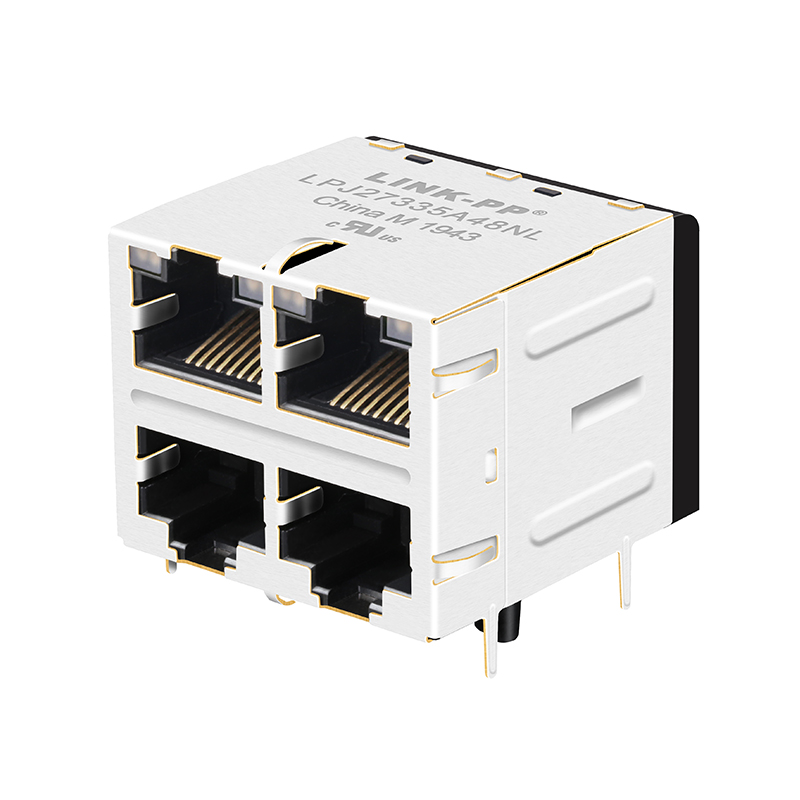

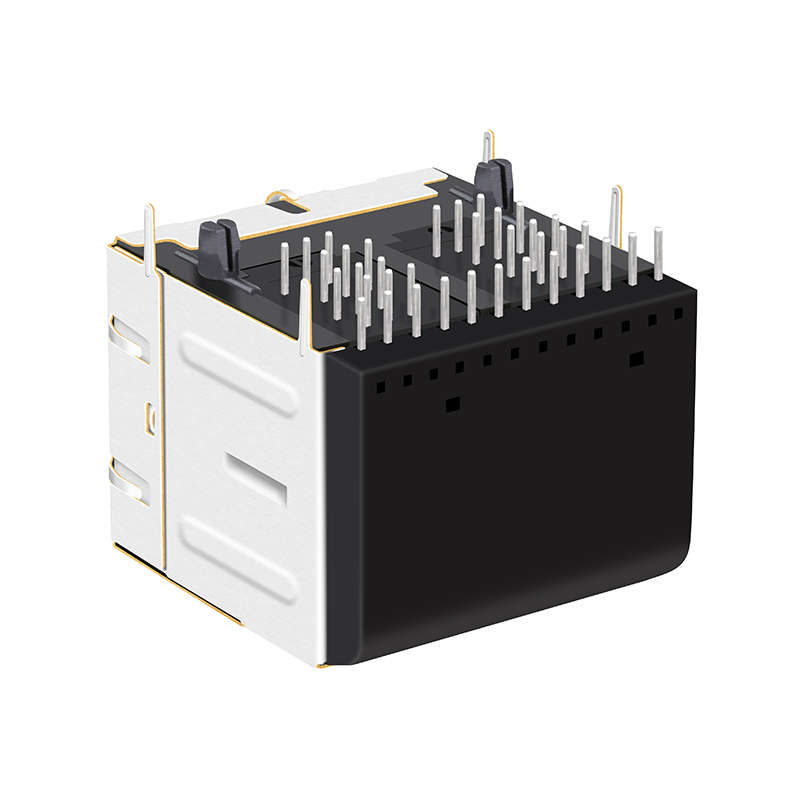

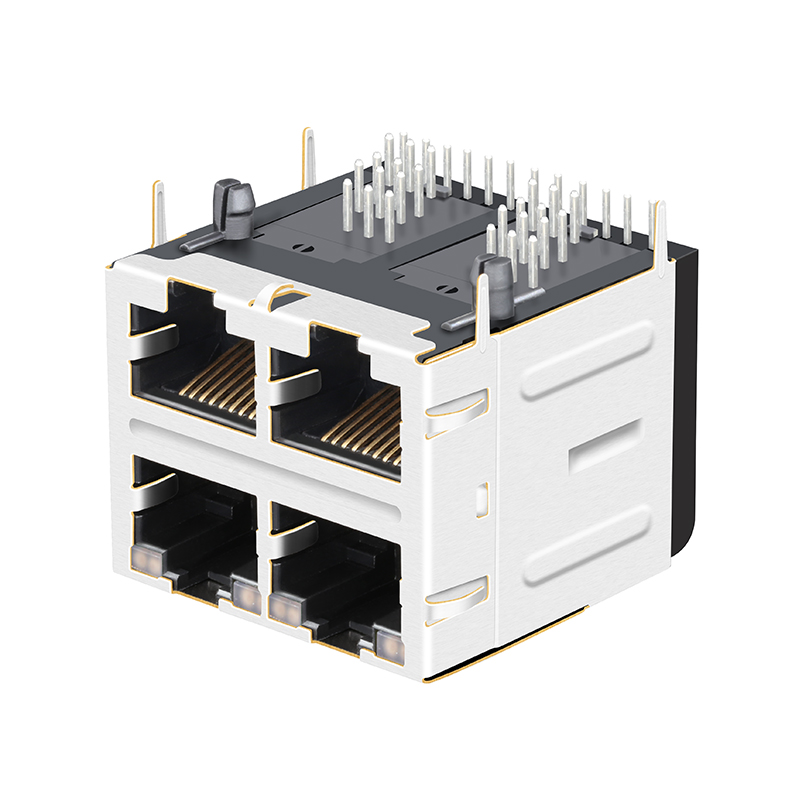

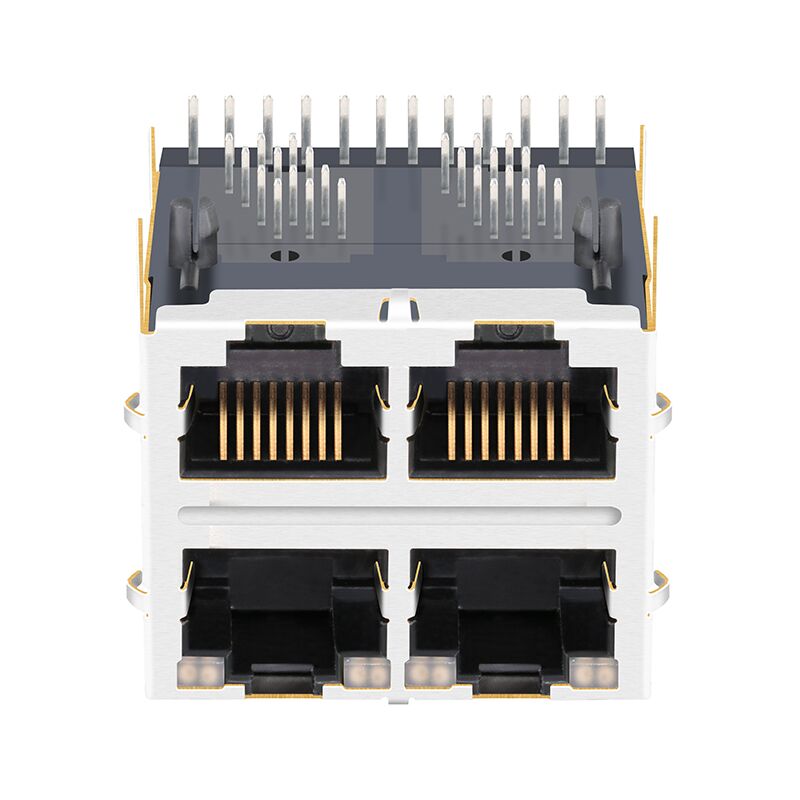

| Part Number | LPJ27335A48NL |
| Cross Reference | JX20-0252NL |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications-Lan | Ethernet (Non-PoE) |
| Speed | 10/100 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Green & Orange / Green & Orange |
| Number of Cores per Jack | 4 |
| Shielding | Shielded, Emi Finger |
| Number of Ports | 2x2 Port |
| Features | Board Guide |
| Tab Direction | Both |
| Contact Finish | Gold |
| Configuration RX/TX | T, C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | -40°C ~ 85°C |
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver goods within short lead times. We provide professional complete solutions for magnetic components and strong technical support. Our products are widely used in networking and communication equipment such as HUB, PC cards, Switches, Routers, Mainboards, SDH, PDH, IP Phones, and xDSL modems.
10/100/1000M/2.5G/5G/10G LAN pulse transformers and filters.
RJ45 connectors with 10/100/1000M/2.5G/5G/10G magnetics.
T1/E1, T3/DS3/E3/STS-1 interface line transformers.
ISDN, HDSL, ADSL and VDSL interface line transformers and splitters.
