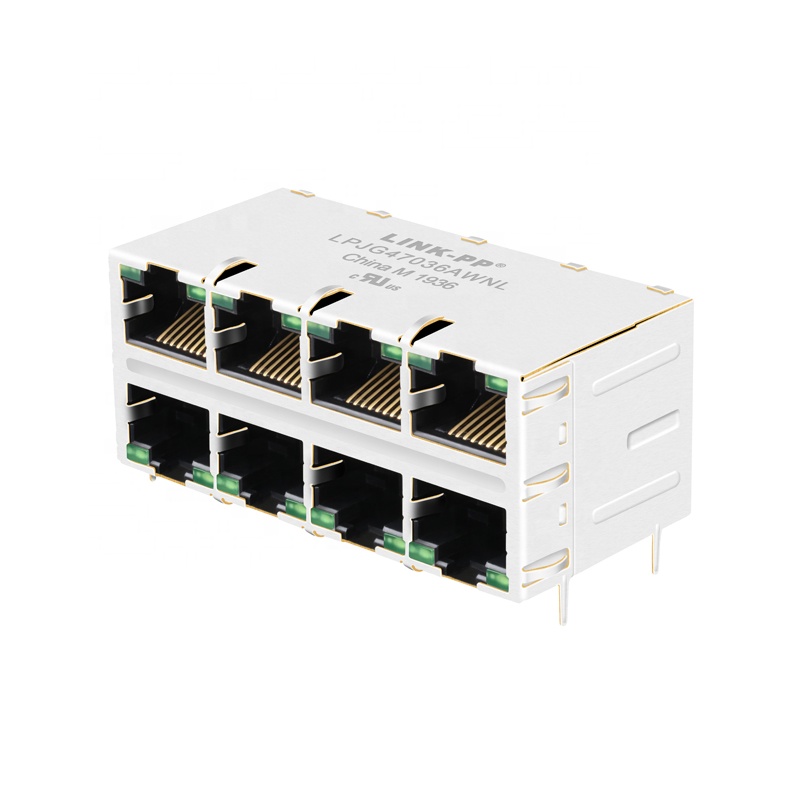

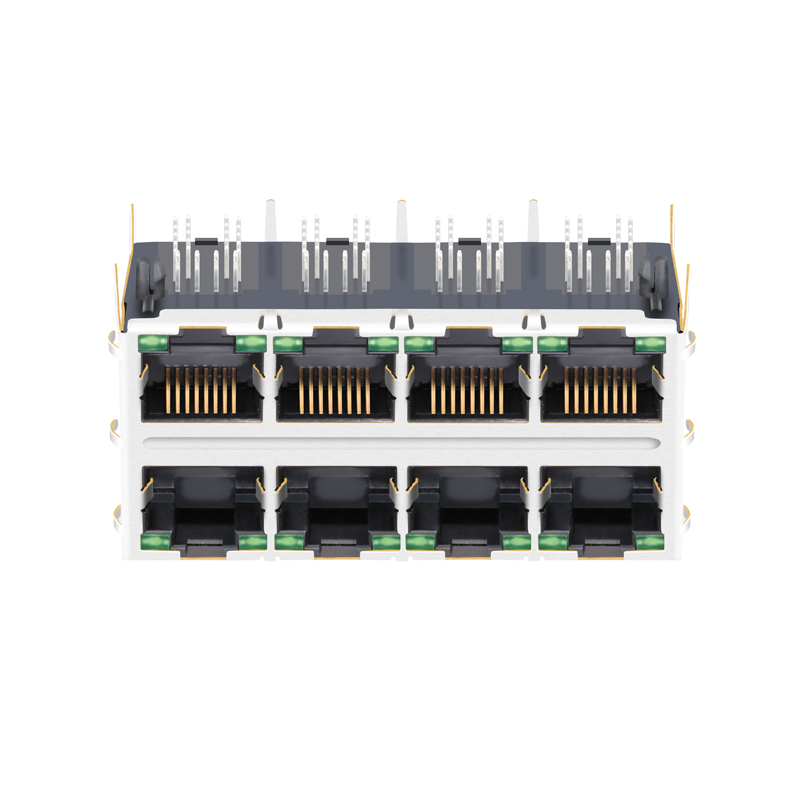

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

1 / 5

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

Send Inquiry

Product Description

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

Part Number	LPJG47036AWNL
Application-LAN	ETHERNET(POE)
AutoMDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	8
Diodes	NO DIODES
LED Option	GREEN/GREEN
Latch	UP/DOWN
Number of Ports	2X4
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES
Shielding	Shielded with EMI Tabs
Speed	2.5G BASE-T
Temperature	-20 ~ +70℃
Turns Ratio	1CT:1

🏆 Why Choose Our Solutions

World Leader Supplier Of Integrated RJ45 Connectors And Discrete Magnetic Transformers

📜 Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

🛡️ 100% Guaranteed Quality

Manufactured Under Strict Controls
100% Fully Tested (Not Just Batch Tested)
Preferred Supplier for Fortune 500 Enterprises
Quality Guarantee: 6 Years

⚡ Competitive Price & Service

More Competitive Price than Global Brands
Fast Delivery: 2-3 Weeks After Orders
Free Samples Available
New Design for Custom Requirements

❓ Frequently Asked Questions

1. What data transmission speed does this RJ45 connector support?

This connector is designed for 2.5G Base-T Ethernet applications, providing high-speed performance for modern networking needs.

2. Is this connector compatible with Power over Ethernet (PoE)?

Yes, it is specifically designed for PoE Cat5e applications, allowing both power and data to be transmitted through the same cable.

3. What are the operating temperature limits for this product?

The connector is rated for reliable operation within a temperature range of -20°C to +70°C.

4. Can I customize the gold plating on the contacts?

Yes, we offer multiple plating options for the contact mating area, including 6u", 15u", 30u", and 50u" gold plating to suit different durability requirements.

5. Is the product compliant with environmental regulations?

Absolutely. The product is RoHS compliant and meets Reach certifications, following an active environmental policy during manufacturing.

6. What is the port configuration and mounting type?

It features a 2x4 (8-port) configuration with a side-entry PCB mount angle and THT (Through-Hole Technology) solder pins.
