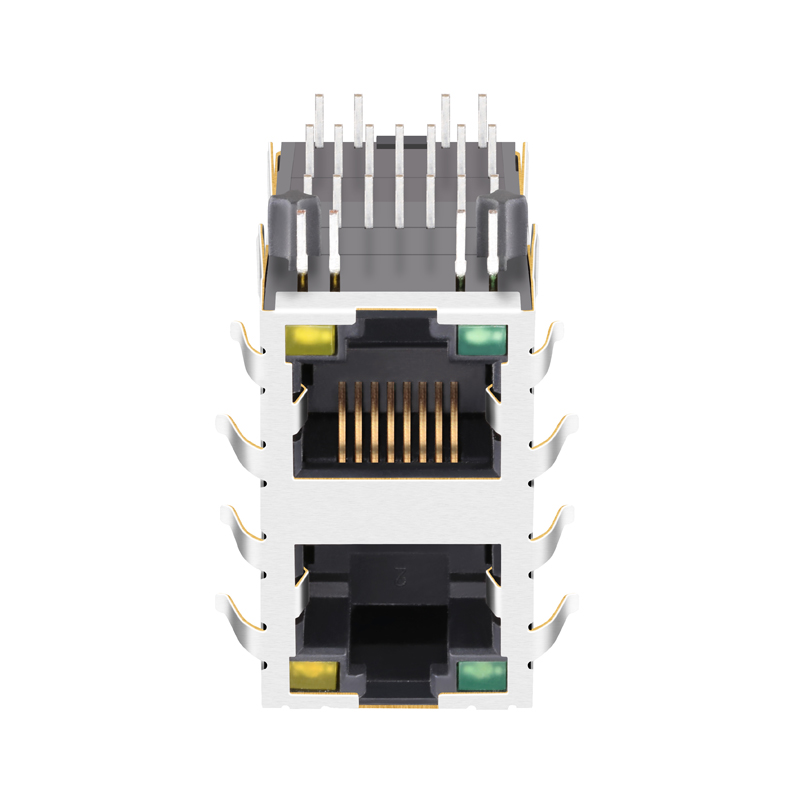

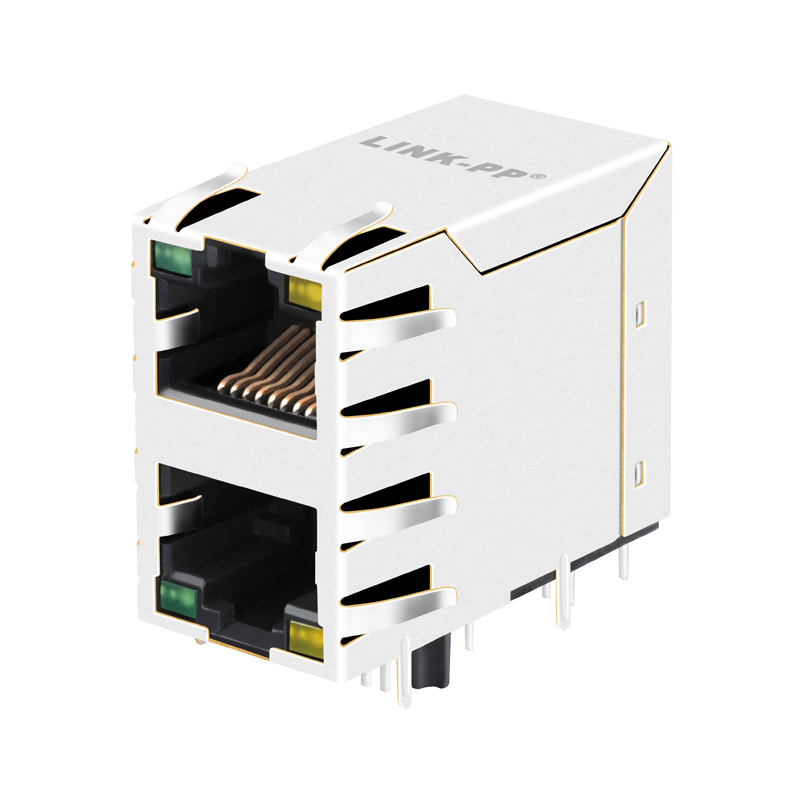

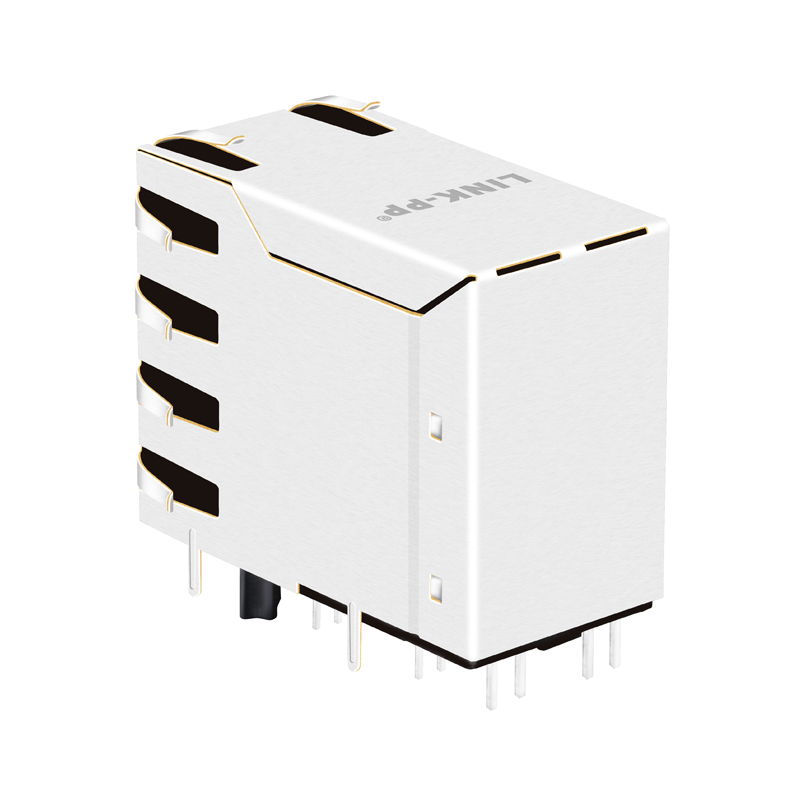

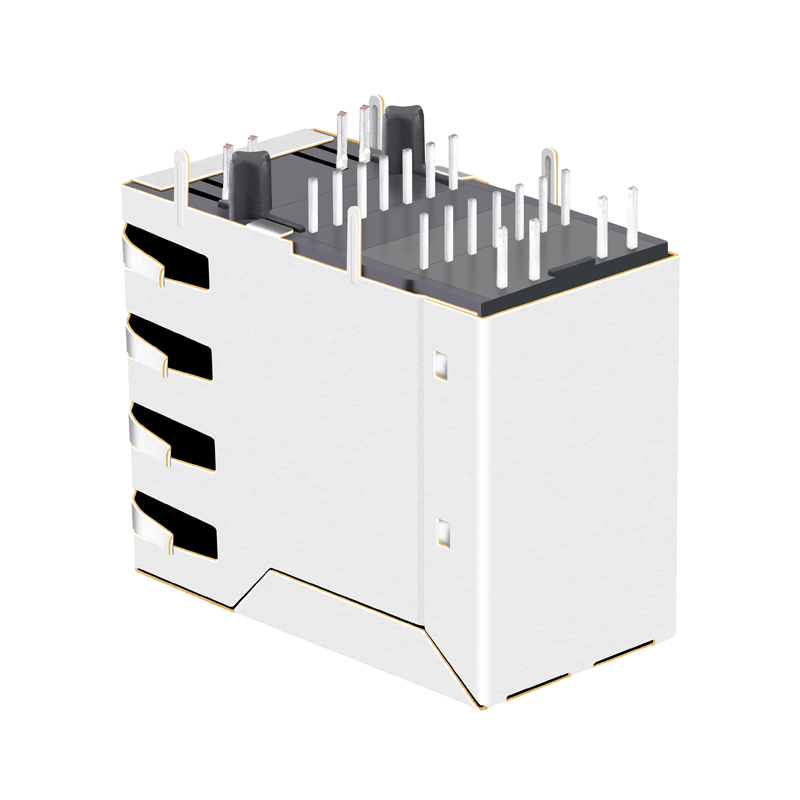

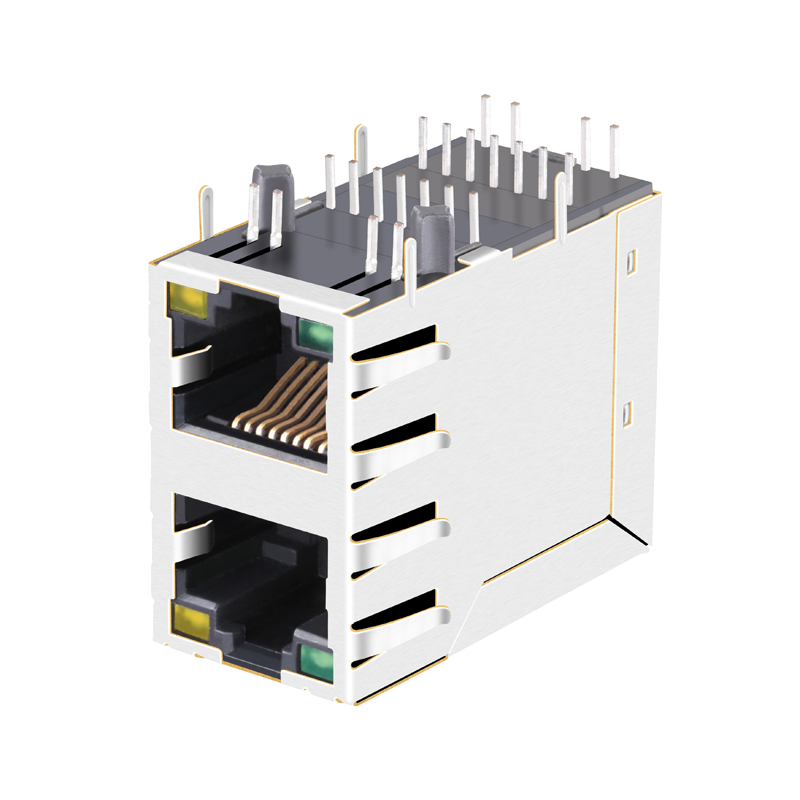

| 2x1 Port RJ45 Connector 10/100 Base-t Integrated Magnetics | |
|---|---|
| Manufacturer Part Number | LPJ17202CNL |
| Cross Reference Part | MIC24A10-0101W-LF3 / 7499051002 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutoMDIX | YES |
| Bst Circuit | YES |
| Configuration RX/TX | T,C / 1CT:1CT |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| LED Option | Without |
| Latch Orientation | TAB DOWN / Up |
| Number of Ports | 2x1 (Listed as 1x1 configuration variant) |
| PCB Material & Mount | FR4 / Side Entry (THT Solder) |
| RoHS Compliant | YES-RoHS-5 with lead in solder exemption |
| Speed | 10/100 Base-T |
| Operating Temperature | -40 TO 85℃ |
World Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Preferred Supplier For Global Industry Leaders
Our logos and components are integrated into major development boards and industrial hardware worldwide, ensuring reliability and high-speed connectivity.
A: These connectors are primarily used in Ethernet networking equipment such as hubs, switches, routers, and industrial servers where 10/100 Base-T speeds are required without Power over Ethernet (PoE) functionality.
A: Yes, it features integrated magnetics (10/100 Base-T) which helps in signal conditioning and provides galvanic isolation.
A: Absolutely. It is designed to operate in a wide temperature range from -40°C to +85°C, making it suitable for industrial-grade applications.
A: We offer multiple gold plating thicknesses including 6u", 15u", and 30u" to suit different durability and conductivity requirements.
A: Yes, it is fully RoHS compliant and adheres to Reach certification standards, ensuring it meets international environmental safety requirements.
A: Yes, we provide new designs based on specific customer requirements, including latch orientation (Tab Up/Down) and various LED options.
