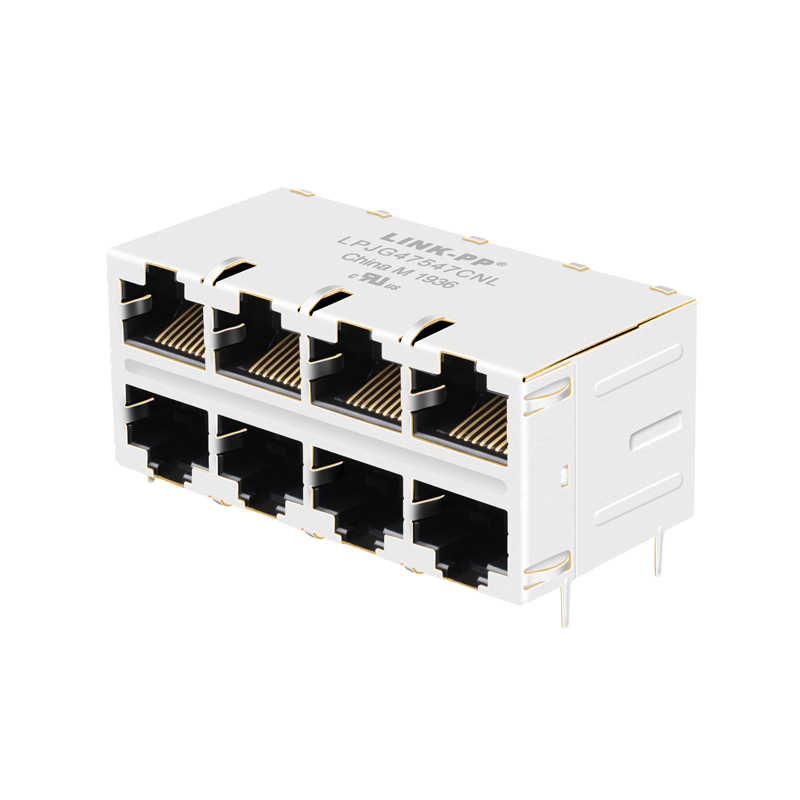

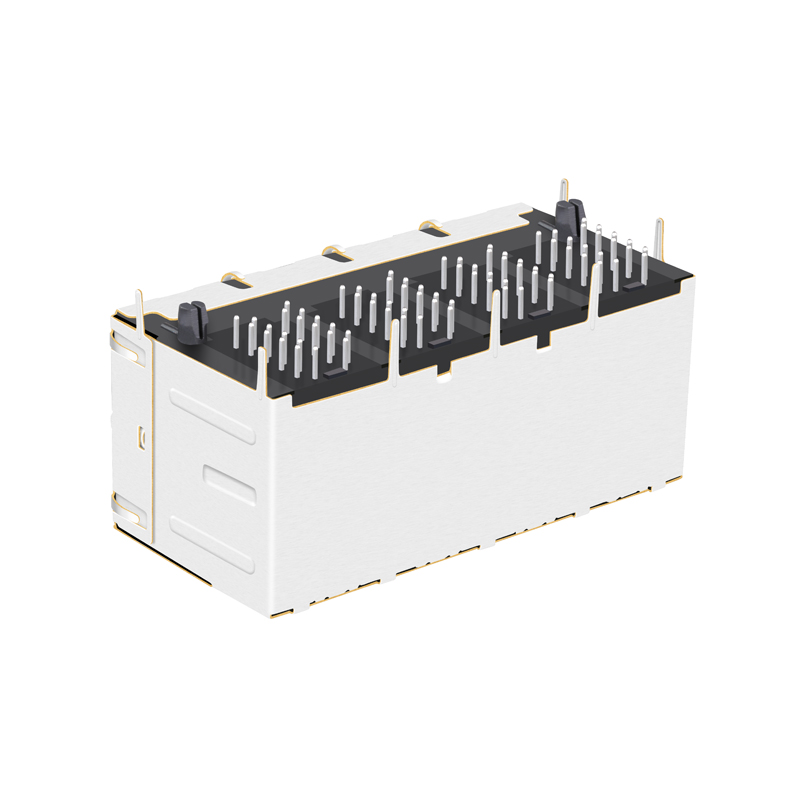

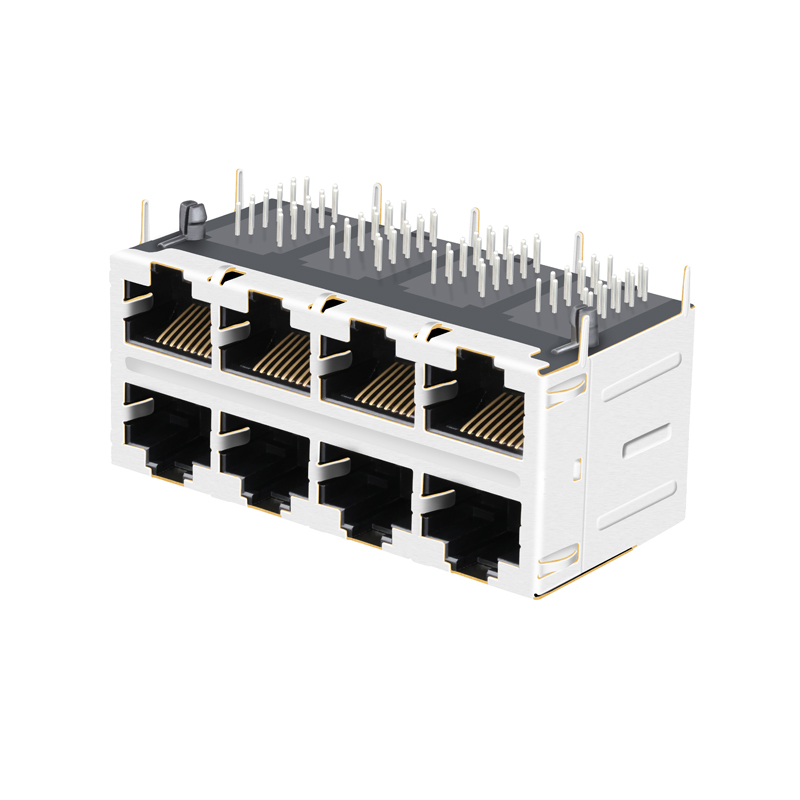

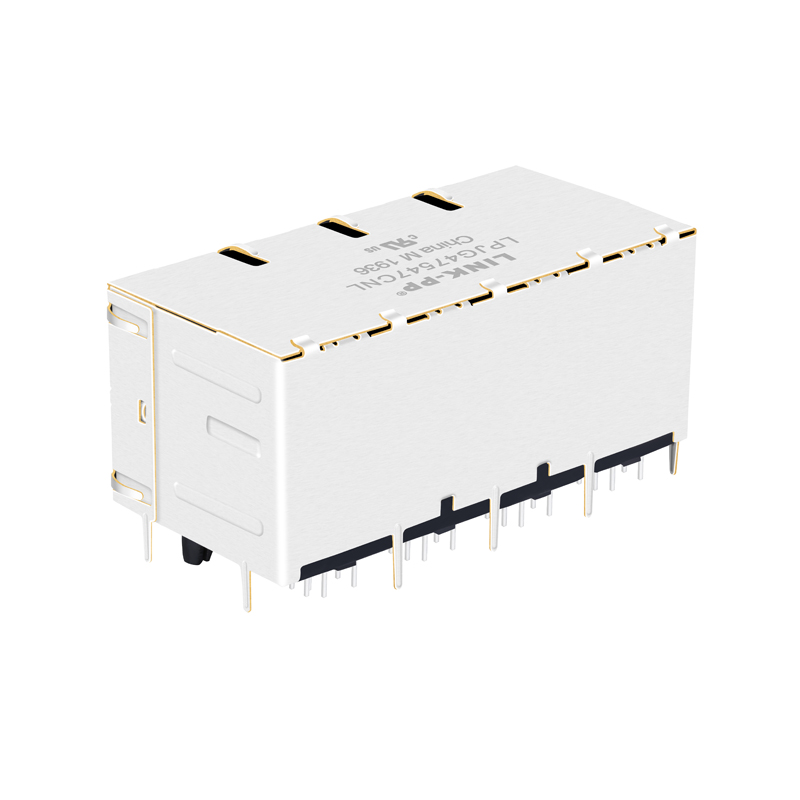

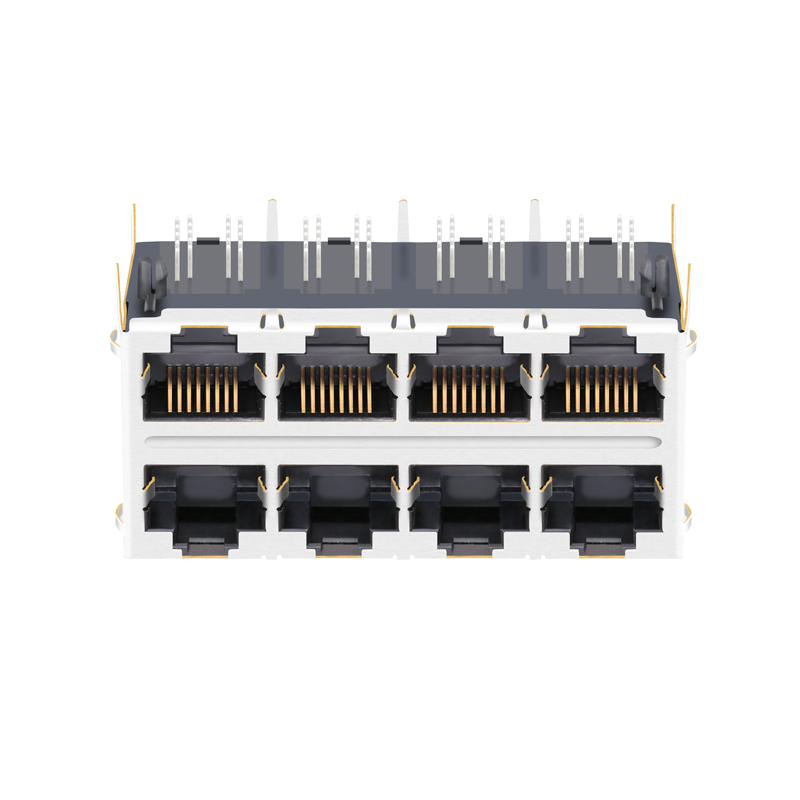

10P8C RJ45 Ethernet 2xN RJ 45 Connector, 2 * 4 Port RJ-45 Jack JC0-0131 DA6T00101 DA6T10303 DU1T202A1

Product Description

RJ45 Connector Overview
10P8C RJ45 Ethernet 2xN RJ 45 Connector, 2 * 4 Port RJ-45 Jack JC0-0131 DA6T00101 DA6T10303 DU1T202A1
Products Description
ItemRJ45 Female Connector
Part NumberLPJG47547CNL
Compatible WithJC0-0131 DA6T00101 DA6T10303 DU1T202A1
Part StatusActive
Connector TypeJack
Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non PoE)
Number of Ports2x4 Port
Speed1000 Base-T
Latch OrientationDown/Up
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith Shield
LED OptionWithout LED
PCB MaterialFR4
Temperature Range0℃ TO 70℃ / -40℃ TO 85℃
Turns Ratio RX/TX1CT:1CT
Product Detail
Product Series Display
RJ45 Series Technical Drawing Internal Structure
Production View Quality Control Testing Equipment
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

As a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer solutions.
Factory View Warehouse Office
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples for quality testing, though shipping costs are typically covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately. For mass production, the typical lead time is 15-30 days.
What after-sales service do you provide?
We provide a one-year guarantee period and offer 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us to discuss your detailed specifications.
What are your core advantages?
With over 19 years of production experience, we have established long-term partnerships with industry leaders like Intel and Jabil.
