IEEE 802.3 1000BASE-TX PoE Telecom Transformer HST-24030SXR / HST-24077SXCR

Product Description

Telecom Transformer Overview
IEEE 802.3 1000BASE-TX PoE Telecom Transformer HST-24030SXR / HST-24077SXCR
Products Description
Item Lan Transformer
Replaceable Brand Model HST-24030SXR / HST-24077SXCR
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1 Port
Speed 1000 Base-t
Cores per Port 8
Pin Number 24 Pin
Mounting Type SMT
Temperature 0°C TO 70°C
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel

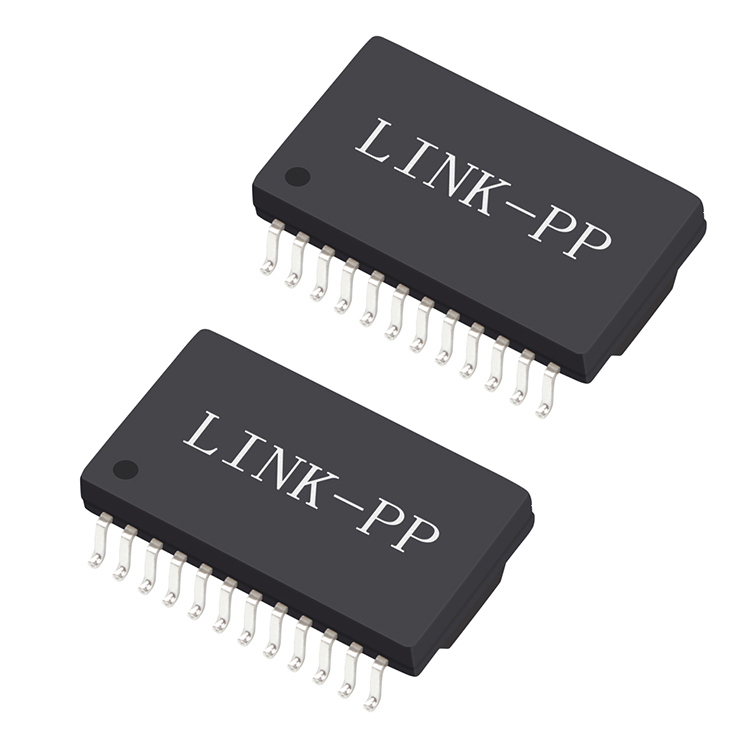

Lan Transformer Details 1
Lan Transformer Details 2
Lan Transformer Details 3
Lan Transformer Details 4
Lan Transformer Details 5
Dimension drawing
Schematic diagram
Why Choose Us
Quality Standard
Advanced Equipment
Testing Process
Warehouse and Packing
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components as well as strong technical support.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our customers cover most countries, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.

Main Customers: Partners include ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, and TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will convince you to be our long-term partner.
Production line
Testing equipment
Factory view
Office building
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, etc.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you should pay the shipping fee.
Q What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production orders.
Q What after-service can you offer?
We offer a one-year guarantee period and provide 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your custom requirements.
Q What is your advantage?
We have 19 years of professional production experience and have been a trusted partner for global industry leaders for many years.
