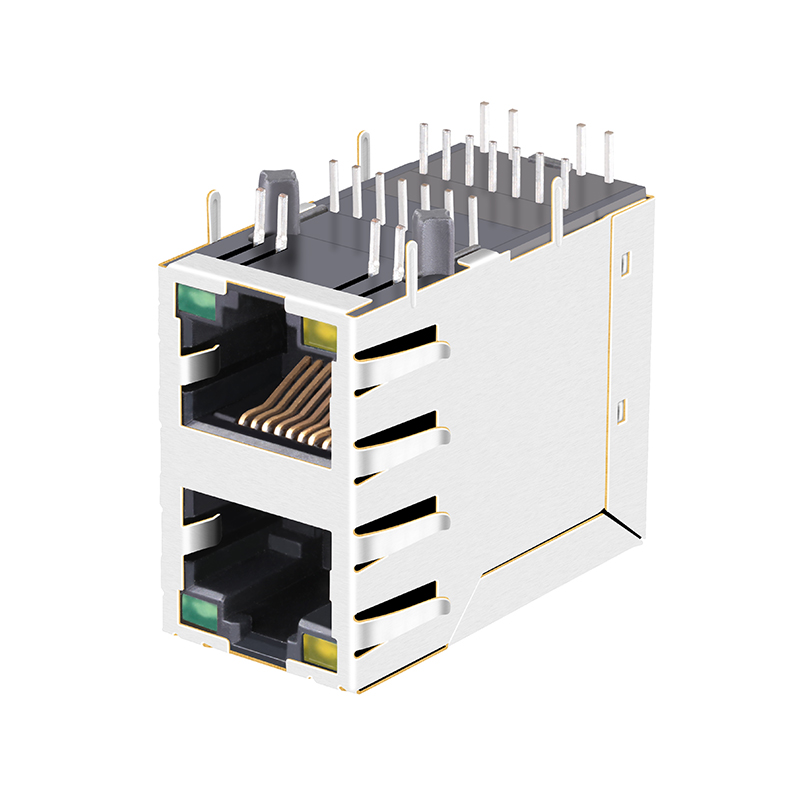

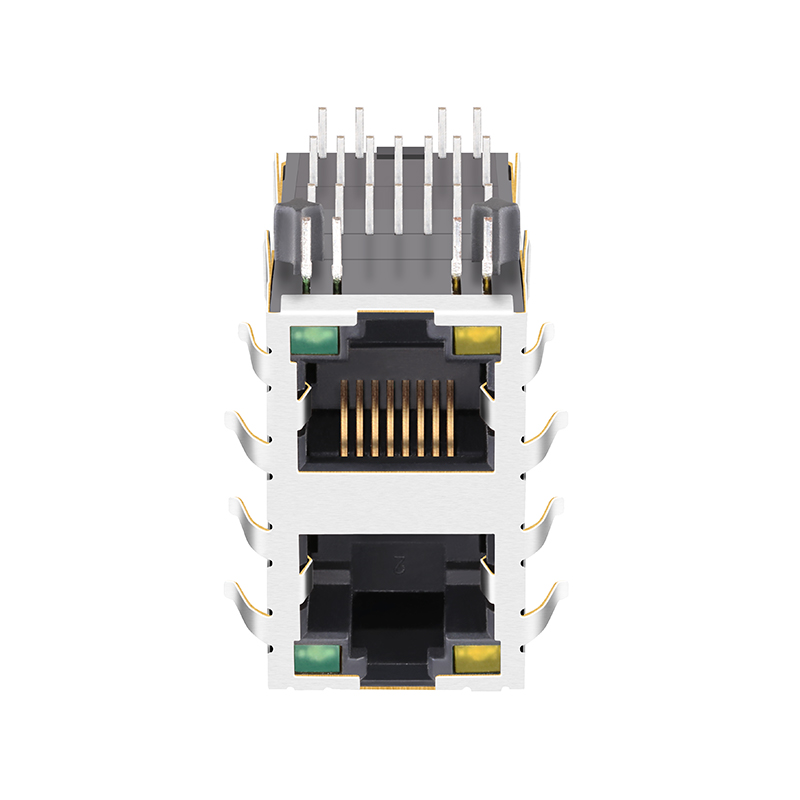

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
1 / 5
0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack

Send Inquiry

Product Description

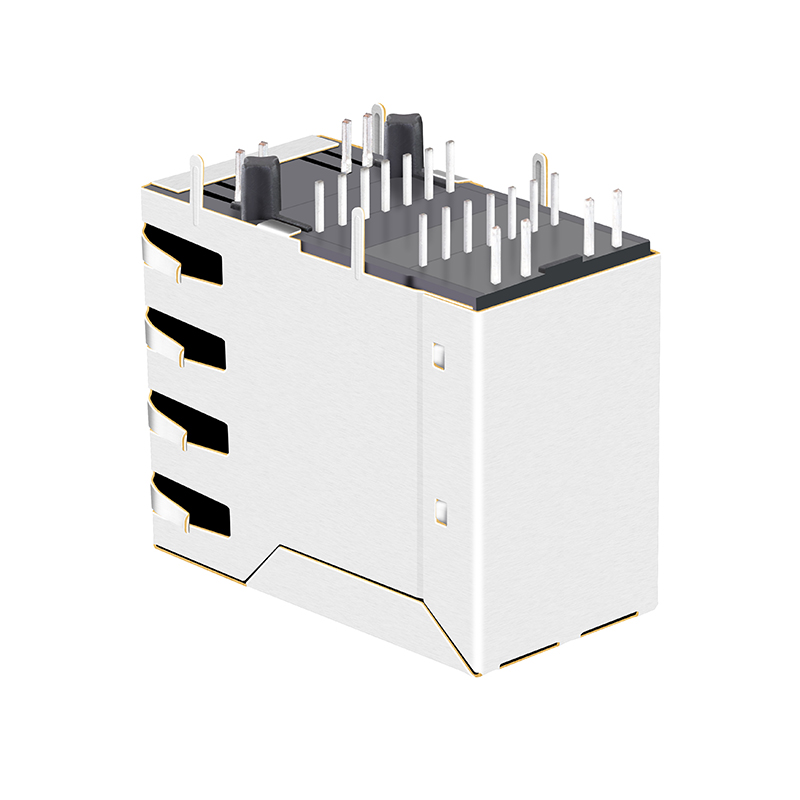

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack

0845-2D1T-H5 RJ45 Banner

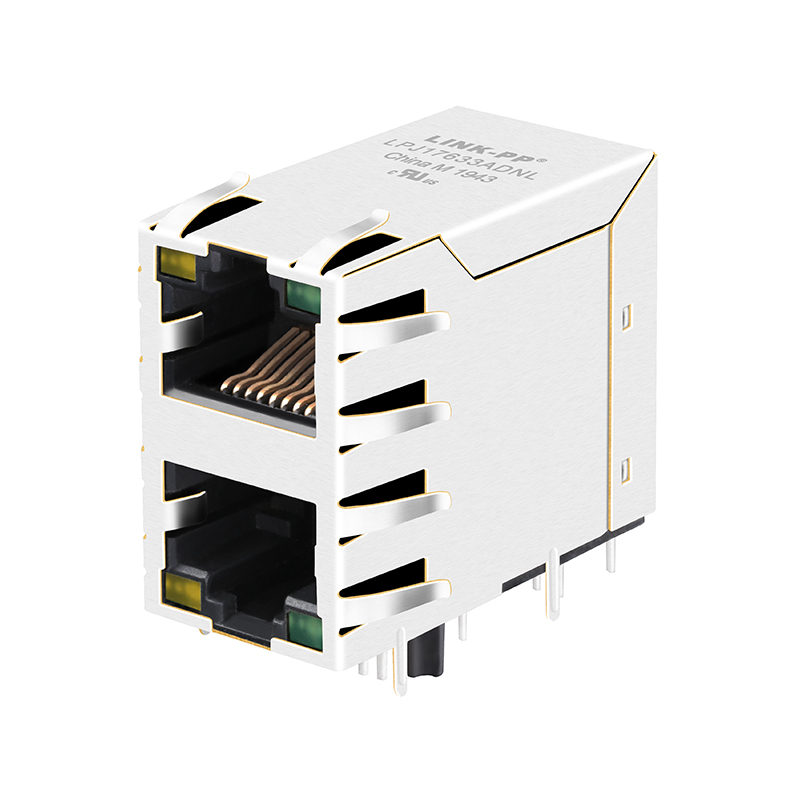

0845-2D1T-S4 Product View

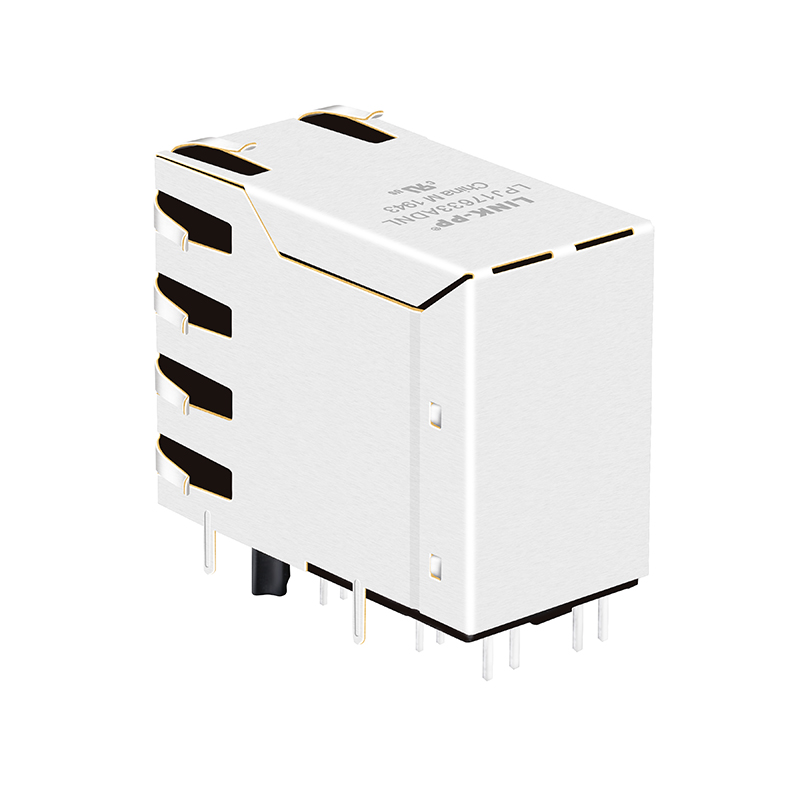

RM3-ZZ-0020 Technical View
Technical Specifications
Part Number 0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020
Application-LAN ETHERNET (NON PoE)
AutomDX YES
Bst Circuit YES
Configuration RX/TX T, C / T, C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores Per Port 4
Diodes NO DIODES
LED Option Yellow/Green LEDS
Latch UP/Down
Number of Ports 2x1 Port
PCB / Mount Angle FR4 / SIDE ENTRY
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Speed 10/100 Base-T Magnetics
Temperature Range -40 TO 85°C / 0 TO 70°C
Turns Ratio RX/TX 1CT:1 / 1CT:1
Professional Advantages
🛡️
Certifications: ISO 9001:2008, UL Certification, Reach Certification, RoHS Compliance.
✔️
100% Quality Guarantee: Manufactured under strict controls and 100% tested (not just batch tested).
⏱️
Fast Delivery: Standard delivery time of 2-3 weeks after orders.
💡
Custom Design: Provide new designs based on specific customer requirements.
🌍
Global Logistics: Significant savings on shipping costs via major international carriers.
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Product Application
Product Compliance
Internal Structure
Quality Testing
Frequently Asked Questions
1. What is the transmission speed of the 0845-2D1T-H5 series?
This series supports 10/100 Base-T Magnetics, making it suitable for standard Fast Ethernet applications.
2. Does this RJ45 Modular Jack support Power over Ethernet (PoE)?
No, this specific model (0845-2D1T-H5 / 0845-2D1T-S4) is designed for non-PoE Ethernet applications.
3. What are the LED configuration options available?
The standard configuration features Yellow and Green LEDs for link and activity status indication.
4. What is the operating temperature range for these connectors?
These connectors are designed to operate reliably within a range of 0 to 70°C, with industrial options supporting -40 to 85°C.
5. Is the product compliant with environmental standards?
Yes, the products are RoHS compliant (RoHS-5 with lead-in solder exemption) and meet REACH certification standards.
6. What is the typical lead time for a standard order?
The standard delivery time is approximately 2 to 3 weeks after order confirmation, depending on the quantity.
