Product Description

2 * 8 Port RJ 45 Jack, Shielded 16-Port RJ45 Connector

RJ45 Connector Header

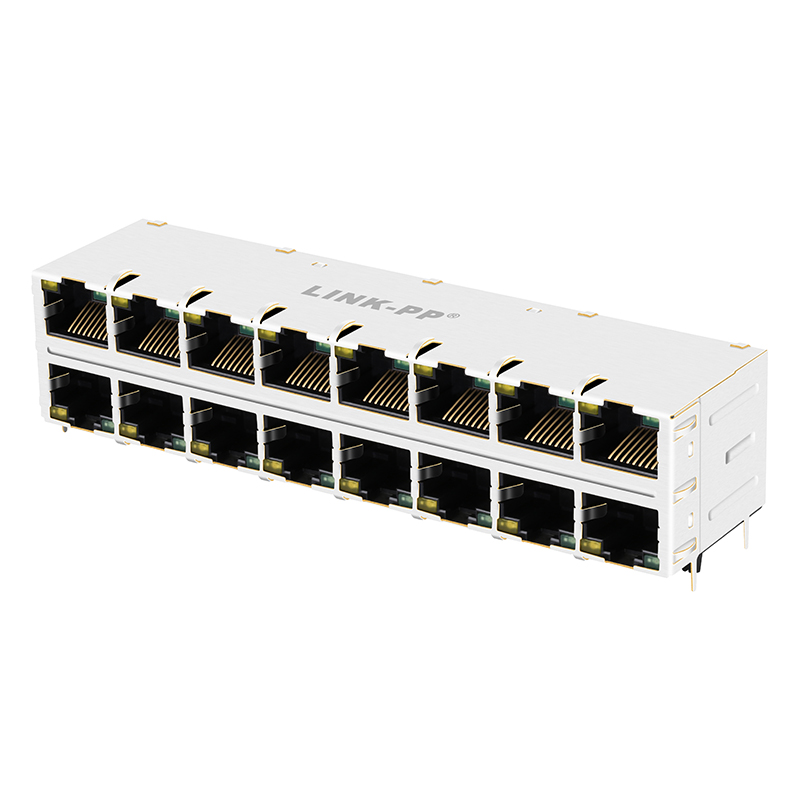

16 Port RJ45 Product View
RJ45 Connector Specifications Banner
Part NumberRJ45 connector
Application-LANETHERNET (NON POE)
AutoMDIXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Cores Per Port8
DiodesNO DIODES
LED OptionWITH LEDS
LatchUp/Down
Number of Ports2x8
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsShield, EMI Finger
Speed10/100/1000 Base-T
Temperature-40°C ~ 85°C
Turns Ratio RX1CT:1
Turns Ratio TX1CT:1
Technical Drawing
Why Choose Our Integrated RJ45 Connectors

A global leader in Integrated RJ45 Connectors and Discrete Magnetic Transformers.

✓
Professional Certification
ISO 9001:2008, UL Certification, REACH, and RoHS Compliance.
✓
100% Guaranteed Quality
Manufactured under strict controls and 100% tested (not just batch tested). Quality guarantee for 6 years.
✓
Competitive Advantage
Short delivery times (2-3 weeks) and customizable designs to meet specific requirements.
Production Process
Certifications 1
Certifications 2
Bottom Banner 1
Bottom Banner 2
Bottom Banner 3

Frequently Asked Questions (FAQ)

Q1: What is the port configuration of this RJ45 jack? A: This is a 2x8 port configuration, providing a total of 16 ports in a shielded, stacked arrangement.
Q2: Does this connector support Gigabit Ethernet? A: Yes, it supports 10/100/1000 Base-T speeds, making it suitable for Gigabit Ethernet applications.
Q3: What is the operating temperature range for this product? A: The connector is designed to operate in industrial environments with a temperature range of -40°C to +85°C.
Q4: Is the connector PoE (Power over Ethernet) compatible? A: According to the technical specifications, this specific part is designed for NON-PoE Ethernet applications.
Q5: What type of shielding and EMI protection does it offer? A: The connector features a robust shield with EMI fingers (tabs) to minimize electromagnetic interference and ensure stable signal transmission.
Q6: What are the plating options for the contact area? A: The contact mating area is gold-plated, with available thickness options of 6u", 15u", or 30u" to suit different durability requirements.
