1000BASE-TX 1000mA Max Telecom Magnetics Modules HST-24040SXR

Product Description

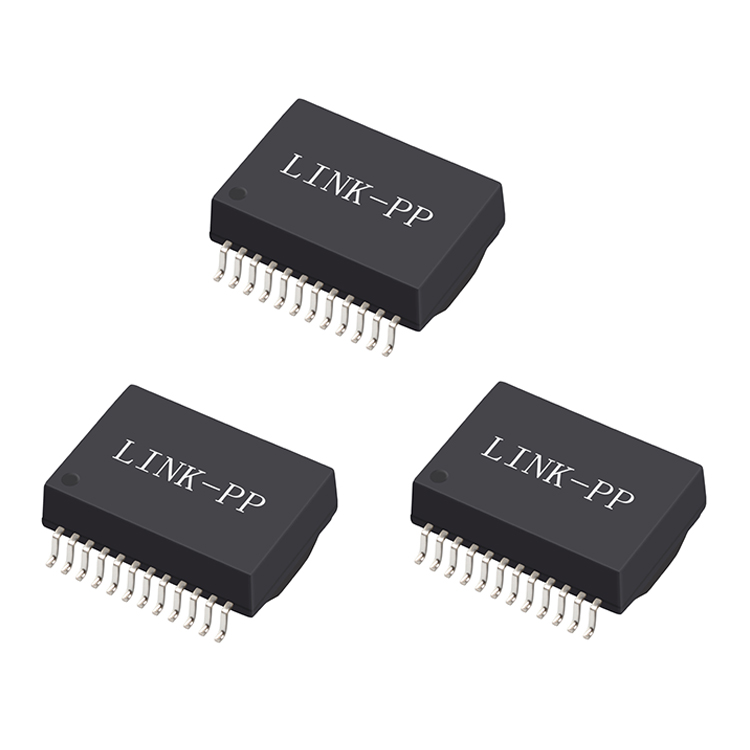

1000BASE-TX 1000mA Max Telecom Magnetics Modules HST-24040SXR
Telecom Magnetics Modules
Products Description
Item Lan Transformer
Replaceable Brand Model HST-24040SXR
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non PoE)
Number of Ports 1 Port
Speed 1000 Base-t
Pin Number 24 Pin
Mounting Type SMT
Temperature 0°C TO 70°C
AutoMDIX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel
Module Detail 1
Module Detail 2
Module Detail 3
Module Detail 4
Module Detail 5
Technical Drawing
Schematic Diagram
Why Choose Us
Quality Assurance
Advanced Equipment
Production Line
Testing Facility
Manufacturing Overview
Our facility is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have a large professional team dedicated to providing high-quality solutions. With an abundant monthly productive capacity, we are able to deliver goods within short lead times. We provide professional complete solutions for magnetic components along with strong technical support. Our main products include 10/100/1000M LAN pulse transformers, filters, and RJ45 connectors with integrated magnetics. These products are widely used in networking and communication equipment such as HUBs, switches, routers, and IP phones. We have successfully exported our solutions to more than 30 countries and regions worldwide, serving leading global technology partners.
Factory View 1
Factory View 2
Factory View 3
Factory View 4
Frequently Asked Questions
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are covered by the customer.
3. What is the standard delivery time?
Stock items are ready to ship immediately; mass production typically takes 15-30 days.
4. What after-sales service do you provide?
We provide a one-year guarantee period and offer 24-hour online technical support.
5. Do you accept OEM/ODM orders?
Yes, we welcome OEM and ODM requirements. Please contact us for a detailed discussion on your specifications.
6. What are your manufacturing advantages?
With over 19 years of production experience, we have established long-term partnerships with major global technology firms.
