Deltavox
Deltavox

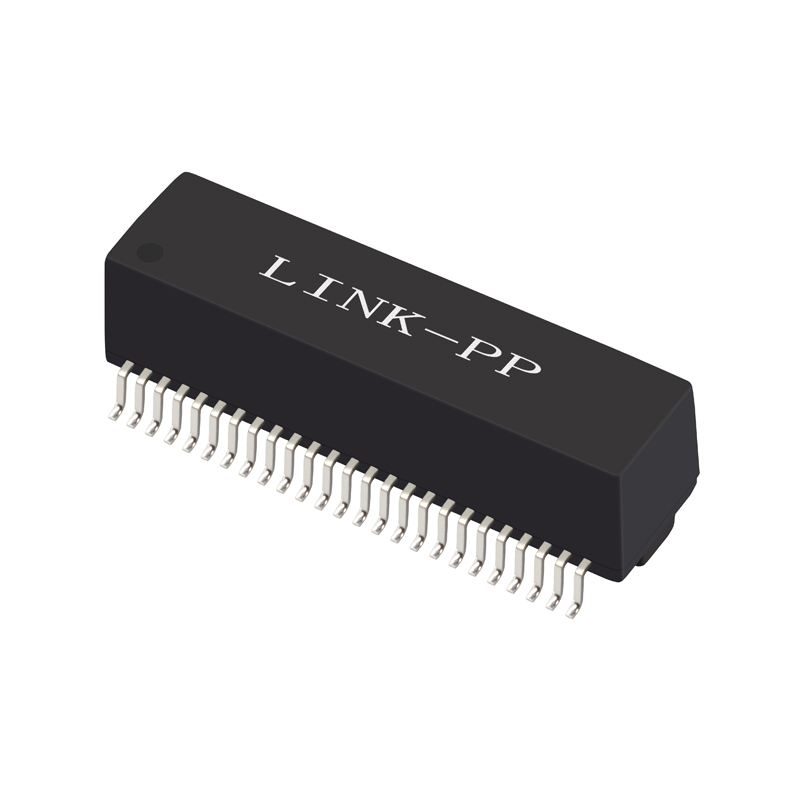

| Item | Lan Transformer |
| Replaceable Model | HST-48029SXCR / HST-48039SXCR |
| Part Status | Active |
| Construction | Open Frame |
| Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application | Ethernet (Non-PoE) |
| Number of Ports | 1 Port |
| Speed | 1000 Base-T |
| Cores per Port | 16 |
| Pin Number | 48 Pin |
| Mounting Type | SMT |
| Temperature | 0℃ TO 70℃ |
| Auto-MDIX | YES |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration | T,C,S |
| Package | Tape & Reel |
Specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. The facility owns advanced manufacturing facilities and test equipment imported from abroad. With abundant productive capacity, we are able to deliver goods within short lead times. Moreover, we provide professional complete solutions for magnetic components and strong technical support.
Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem.
