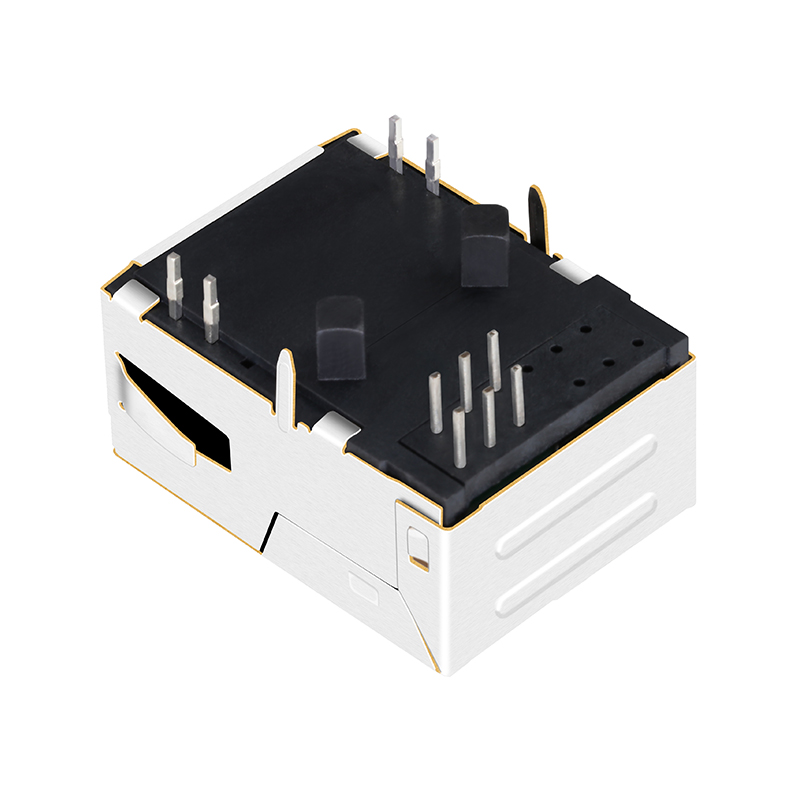

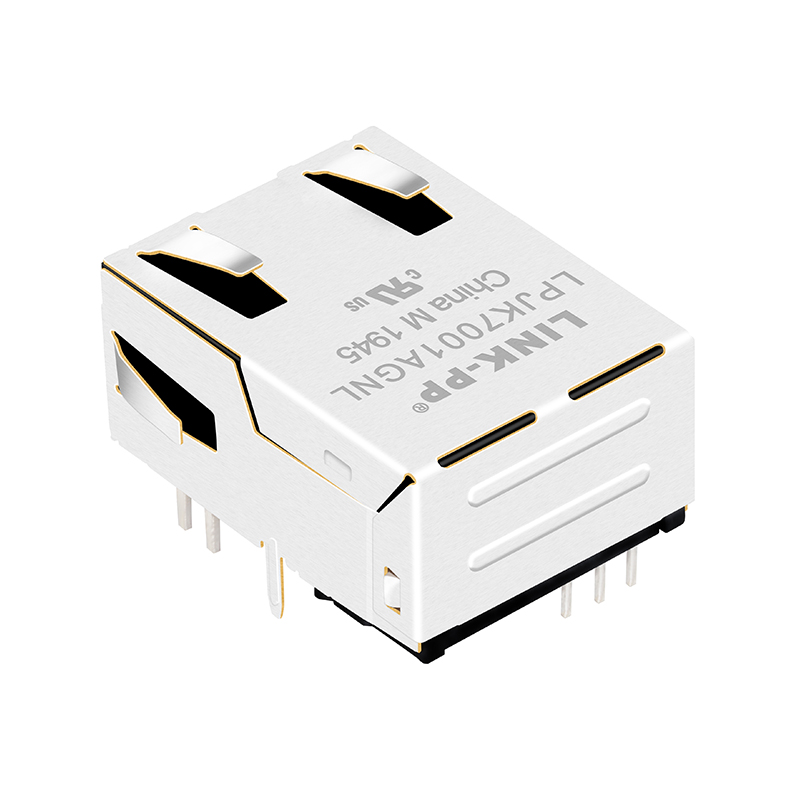

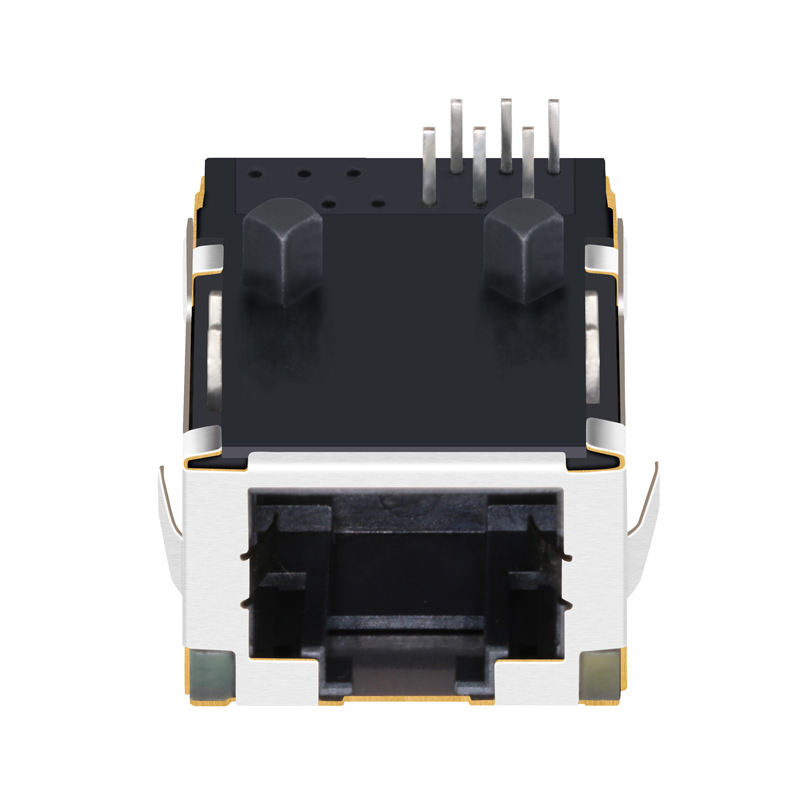

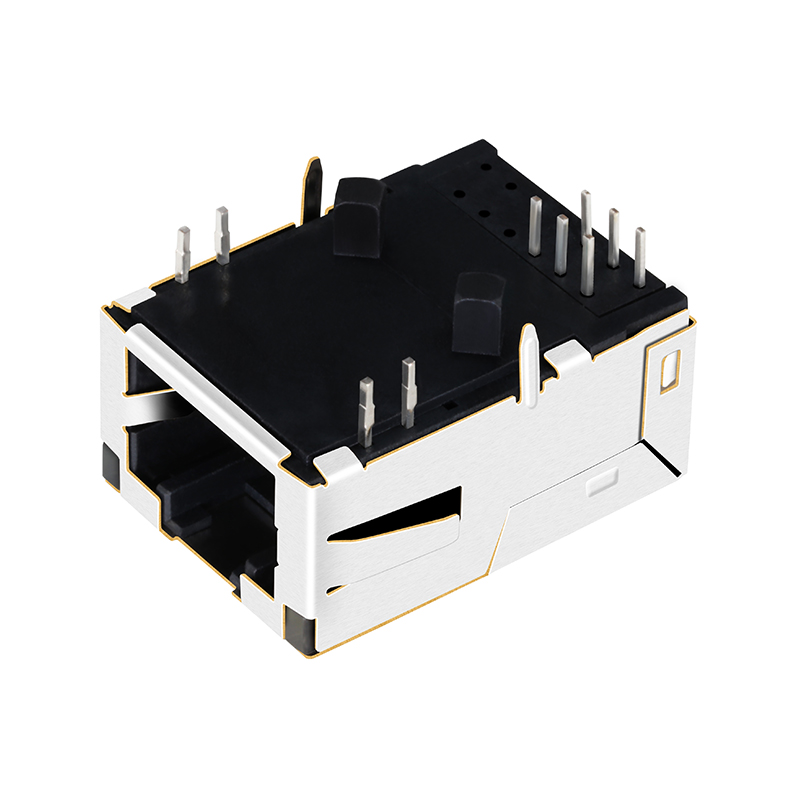

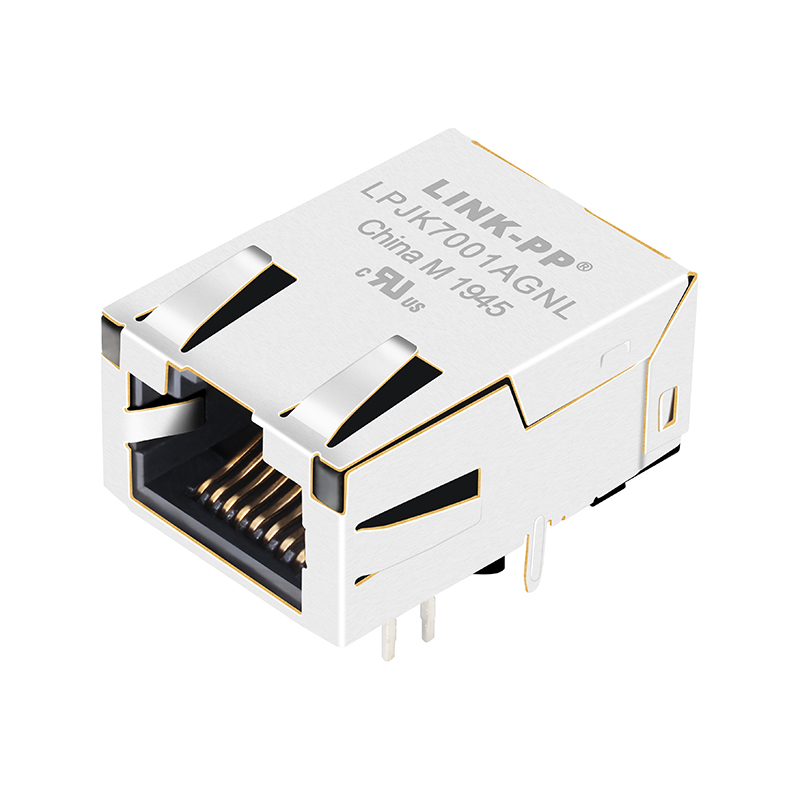

L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
1 / 5
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led

L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led

Send Inquiry

Product Description

RJ45 Connector Overview
L829-1D1T-91 Tab Up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
Products Description
ItemRJ45 Female Connector
Part NumberLPJK7001AGNL
Compatible WithL829-1D1T-91
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchUp
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionWith
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Product Technical Drawing
Product Series Gallery
Quality and Specifications
Professional Manufacturing
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer provider.
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees may apply.
What is your delivery time?
Items are ready to ship for stock, and it takes 15-30 days for mass production.
What after-service can you offer?
We provide a one-year guarantee period and technical support online 24 hours a day.
Can you accept OEM/ODM orders?
Yes, we welcome inquiries for OEM/ODM projects and can have detailed discussions on your requirements.
What is your advantage?
We have 19 years of production experience and have been a trusted partner for major global technology firms for many years.
