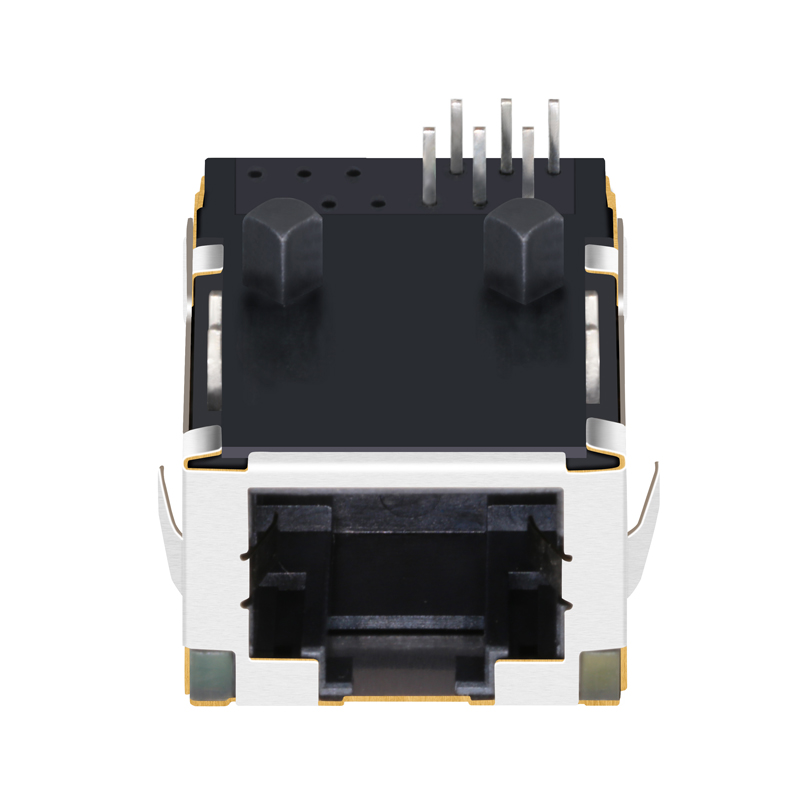

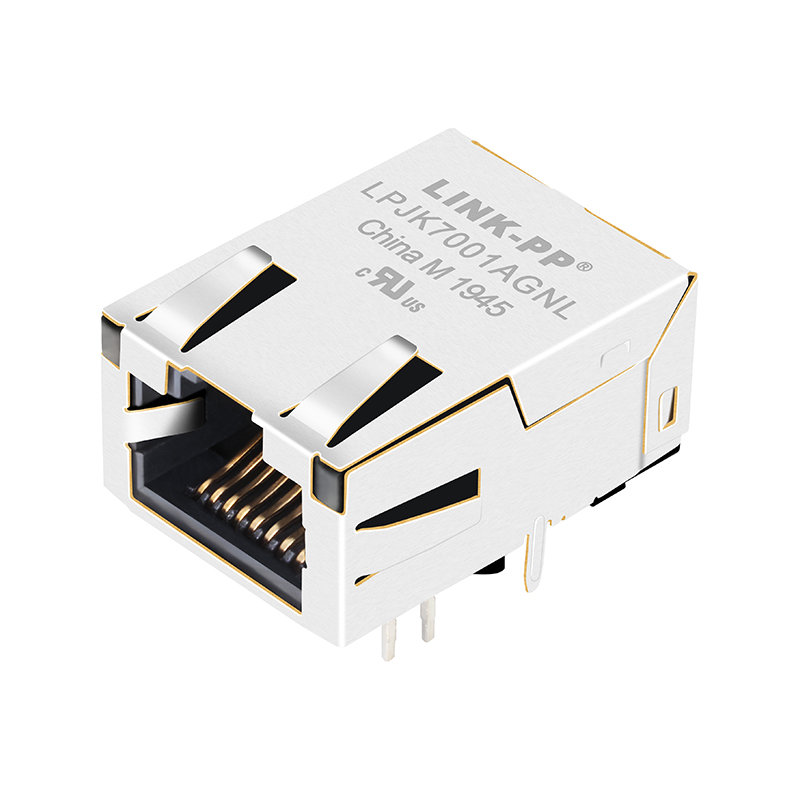

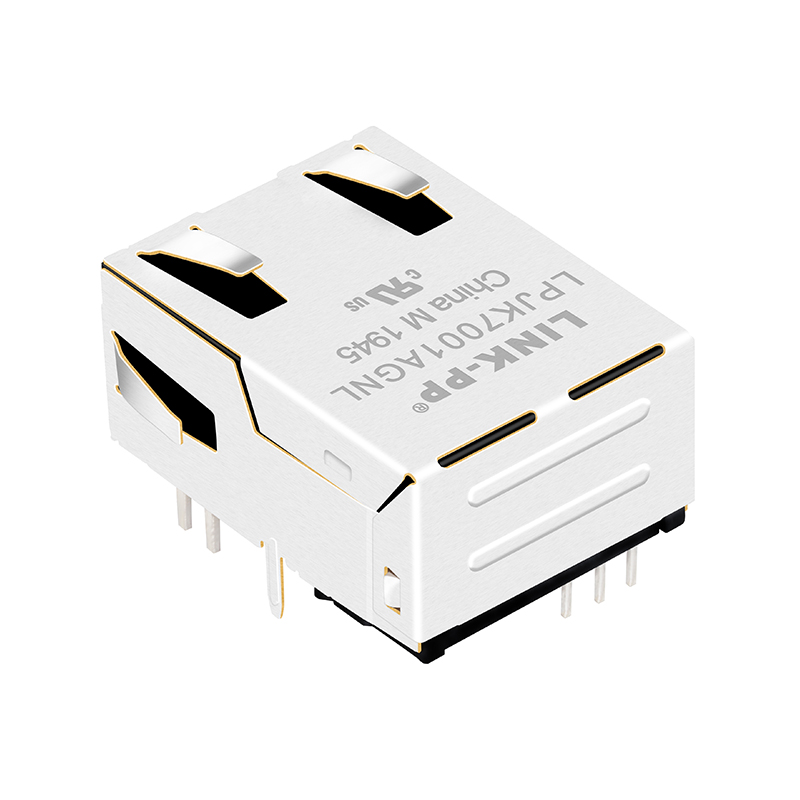

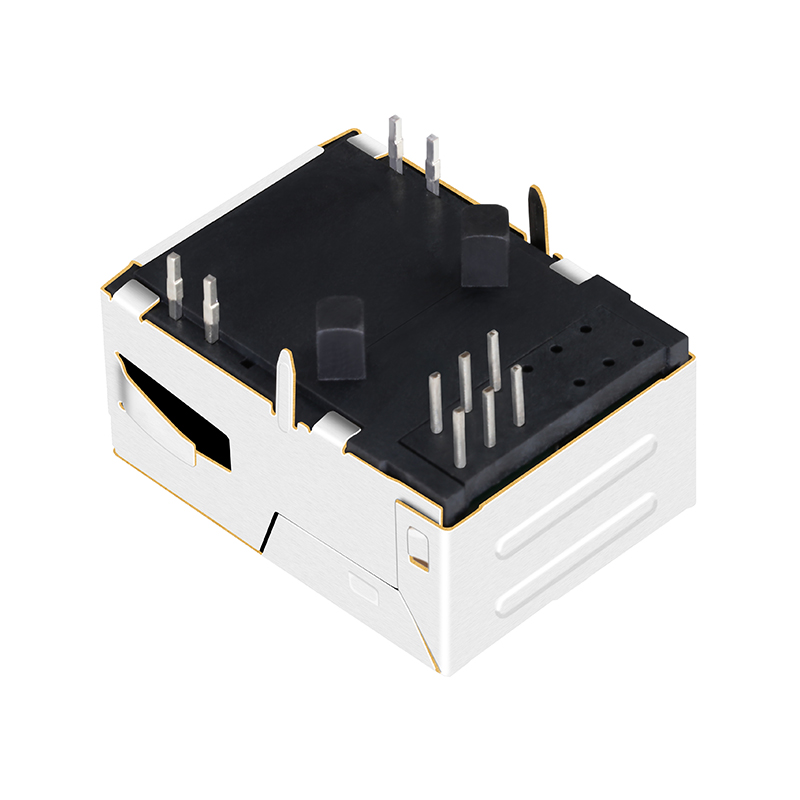

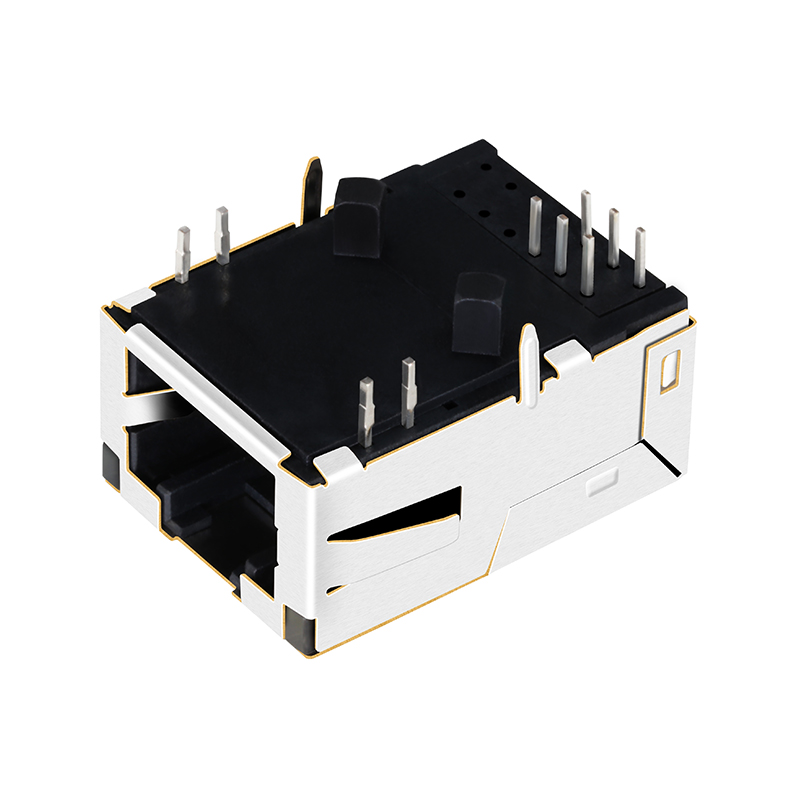

LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector. High-performance networking component designed for compact applications requiring reliability and speed.
| Item | RJ45 Connector |
| Model Number | LPJK7001AGNL |
| Part Status | Active |
| Connector Type | Low Profile RJ45 |
| Applications | 10/100 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Yellow/Green |
| Number of Cores per Jack | 4 |
| Shielding | Shielded |
| Number of Ports | Single Port |
| Features | Board Guide |
| Tab Direction | Up |
| Contact Finish | Gold |
| Configuration RX/TX | T,C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | 0°C ~ 70°C |
