100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
1 / 5
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

Send Inquiry

Product Description

1
Technical Specification

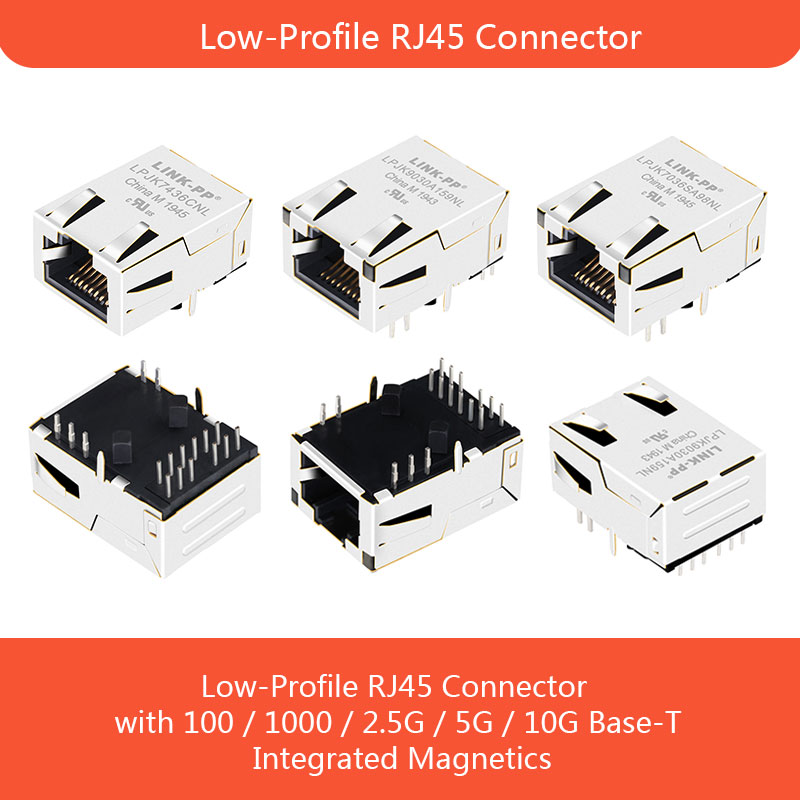

RJ45 Connector Characteristics
Main Characteristics:
RJ45 Connector with integrated transformer / common mode choke. Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s. Available in SMT, THT and THT with USB. Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt. HPLE products: Improved Common Mode Rejection due to additional NiZn cores.
Item Value
Model NumberLow profile rj45 jack
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(PoE/Non_PoE)
Speed10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack4/6/8/12
ShieldingShielded, Emi Finger
Number of PortsSingle Port
FeaturesBoard Guide
Tab DirectionDown/Up
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C/-40°C ~ +85°C
2
Packing & Delivery
Package Details: Tray Packing
Carton Size: 40*32*33cm
G.W./Carton: 12.3kg
Qty/Carton: 1200pcs
SPQ: 50pcs
N.W/pcs: 0.01kg
Packing details
3
Product Gallery
?
Frequently Asked Questions
What types of products do you offer?
We specialize in RJ45 Magnetic, Lan transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
How is the product quality guaranteed?
Quality is maintained through a pre-production sample before mass production and a final inspection before every shipment.
What is the supported Ethernet speed for these connectors?
Our connectors support a wide range of speeds including 10/100/1000 Base-T, as well as high-speed 2.5G, 5G, and 10G Base-T applications.
Are these products compatible with Power over Ethernet (PoE)?
Yes, they support Power over Ethernet (PoE) up to 50 Watts and are compliant with IEEE 802.3af, IEEE 802.3at, and upcoming IEEE 802.3bt standards.
What are your manufacturing certifications?
Our production processes are certified by SGS, ISO9001:2008, UL, REACH, and CE, ensuring high industry standards.
What payment methods are accepted?
We accept various payment types including T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, and Western Union in multiple global currencies.
