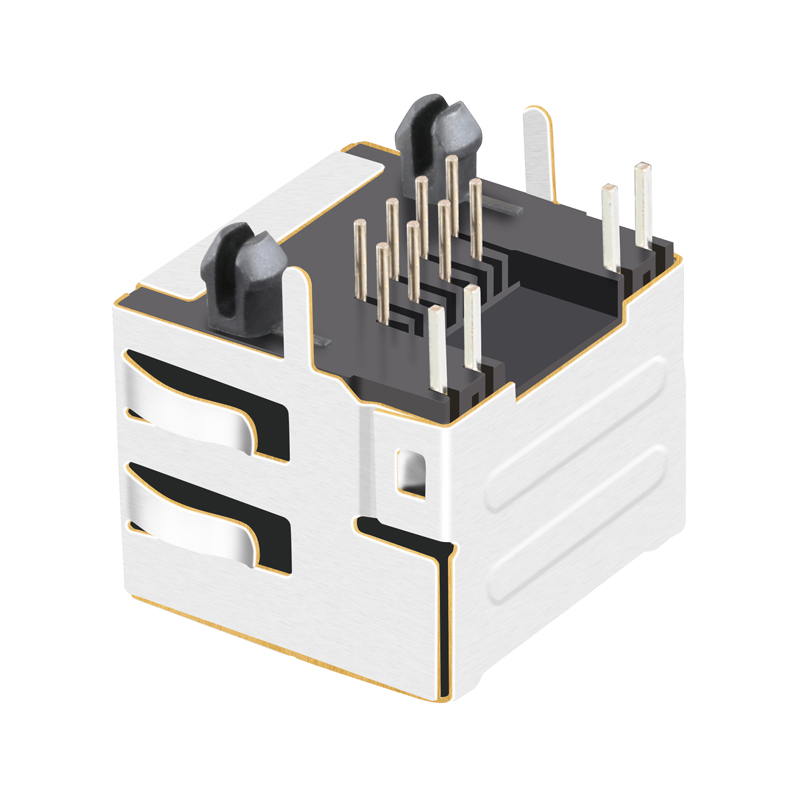

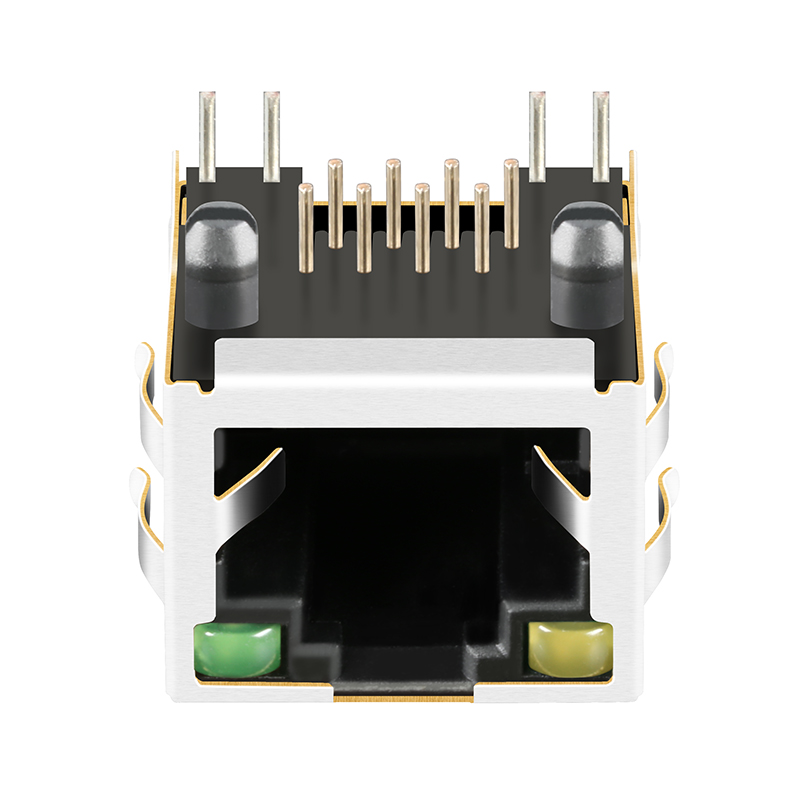

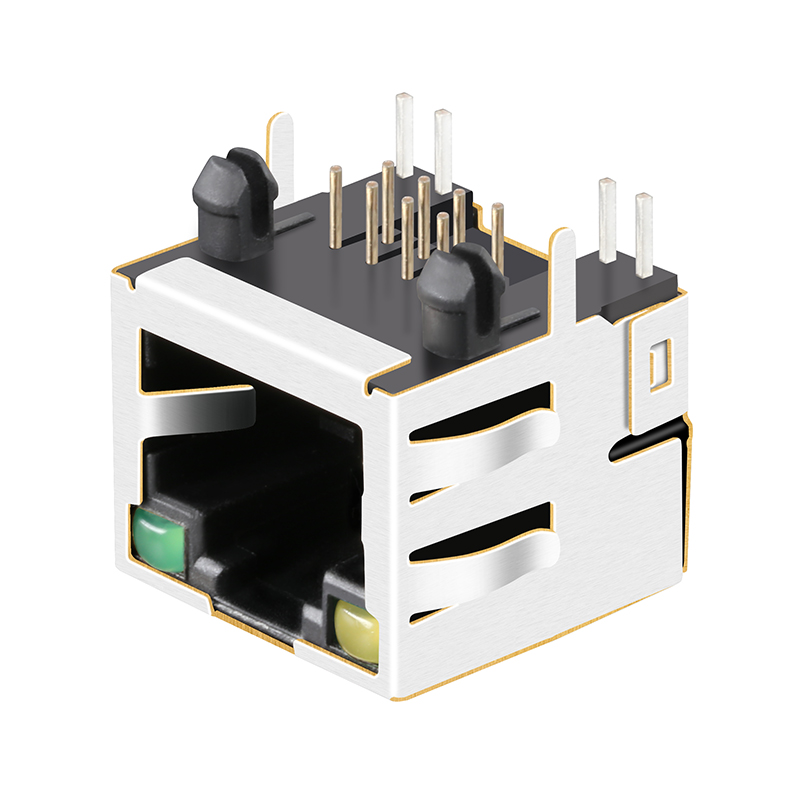

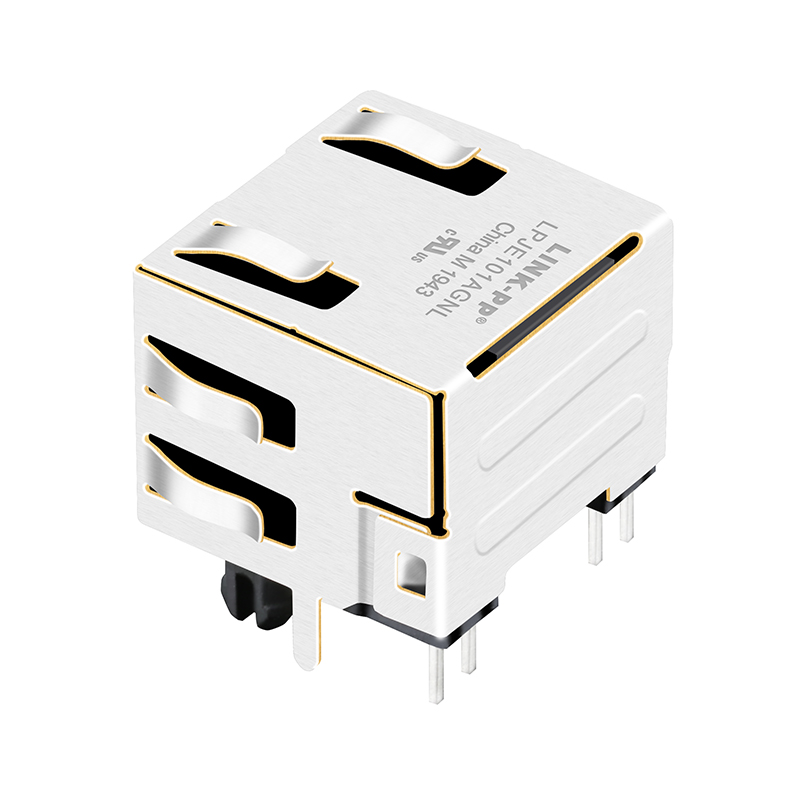

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

📦 Product Description

📋 Specifications

Item	Value

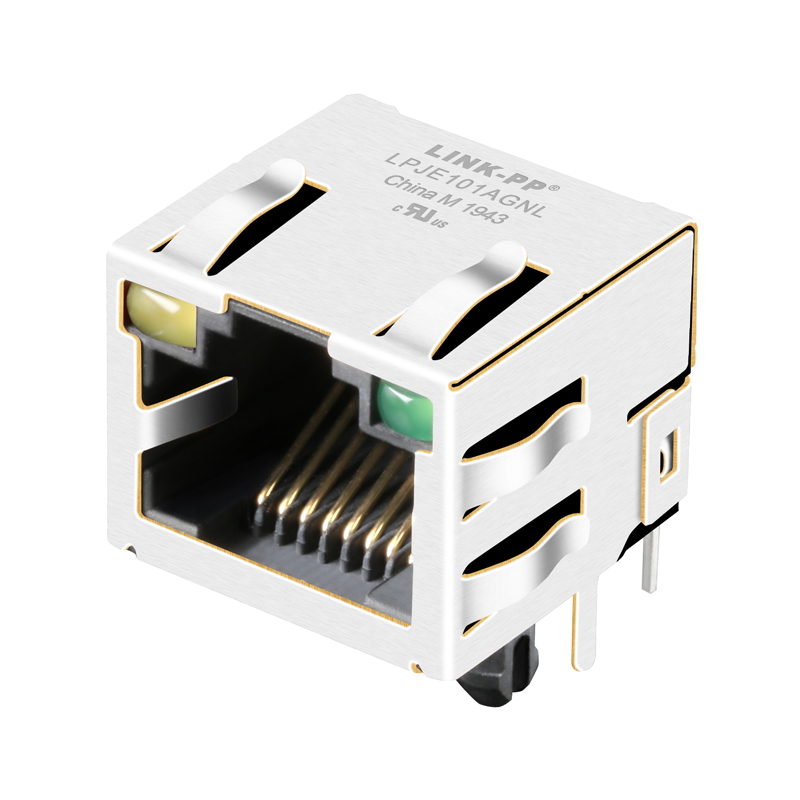

Model Number	LPJE101AGNL
Part Status	Active
Connector Type	RJ45
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green
Shielding	Shielded
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	-40°C ~ 85°C

🚚 Packing & Delivery

■

Standard Package: 100 pcs in 1 tray

■

Carton Quantity: 3000 pcs per carton

■

Carton Size: 54.5 * 28.5 * 27 cm

■

Gross Weight: 13.1 KGS per carton

🏭 Production & Facility

⚙️ Characteristics

✔ RJ45 Connector with integrated transformer / common mode choke

✔ Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s

✔ Available in SMT, THT and THT with USB

✔ Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt

✔ HPLE products: Improved Common Mode Rejection due to additional NiZn cores

❓ Frequently Asked Questions

1. What types of magnetic components can I purchase?

We provide a wide range of components including RJ45 Magnetics, Lan transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.

2. How do you guarantee the quality of your products?

We ensure high quality by providing a pre-production sample before mass production and conducting a final inspection before every shipment.

3. What technical standards do the RJ45 connectors meet?

Our products are compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt standards.

4. What are the available delivery terms?

We support multiple delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, and Express Delivery.

5. What payment methods are accepted?

We accept various payment methods including T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, and Escrow in multiple currencies like USD, EUR, and JPY.

6. What certifications does the manufacturing facility hold?

The production processes are certificated by SGS, ISO9001:2008, UL, REACH, and CE to ensure global compliance and safety.
