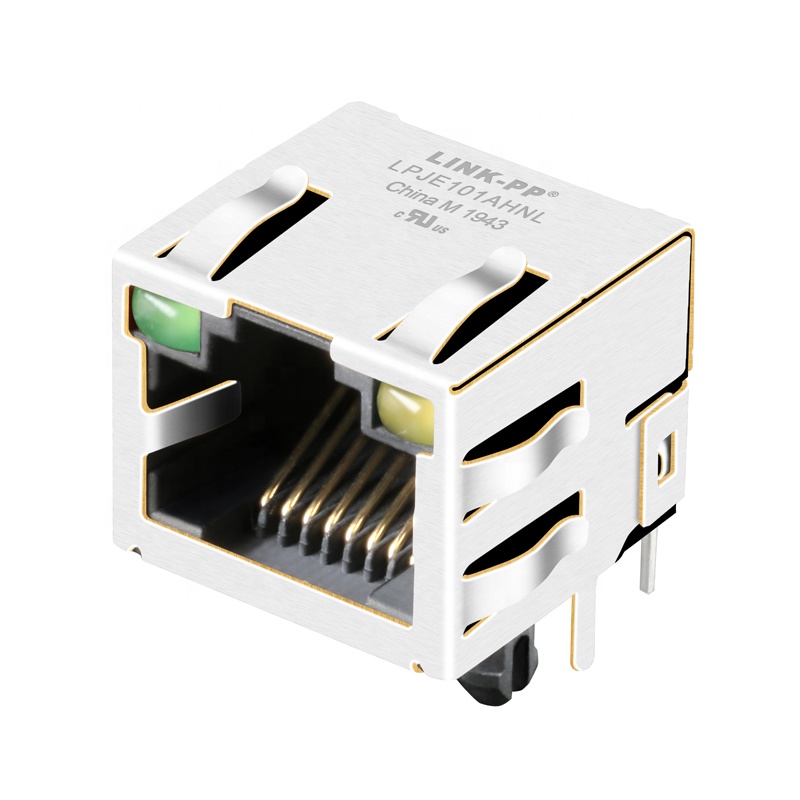

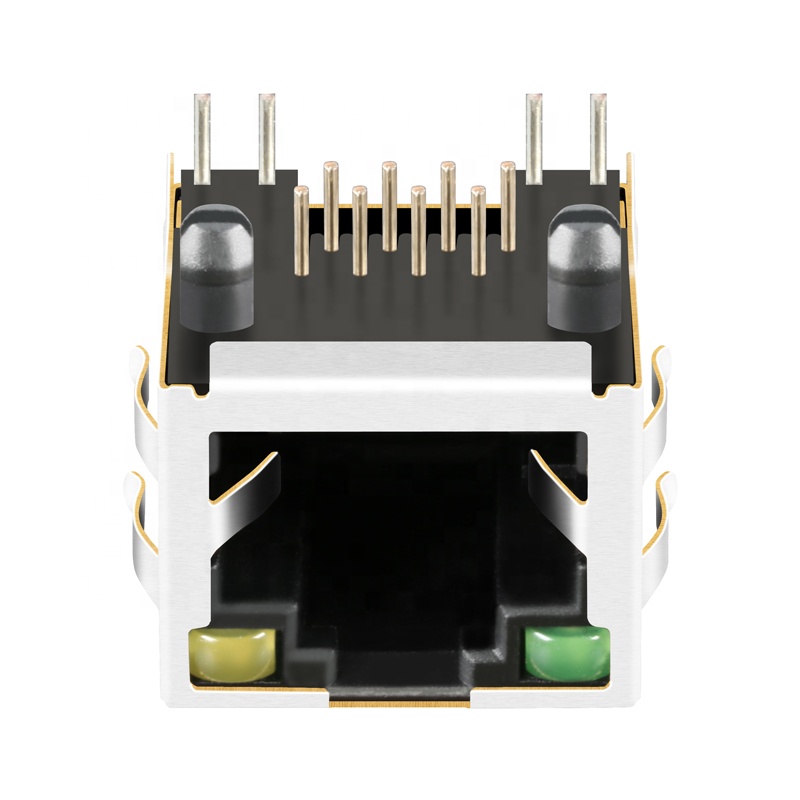

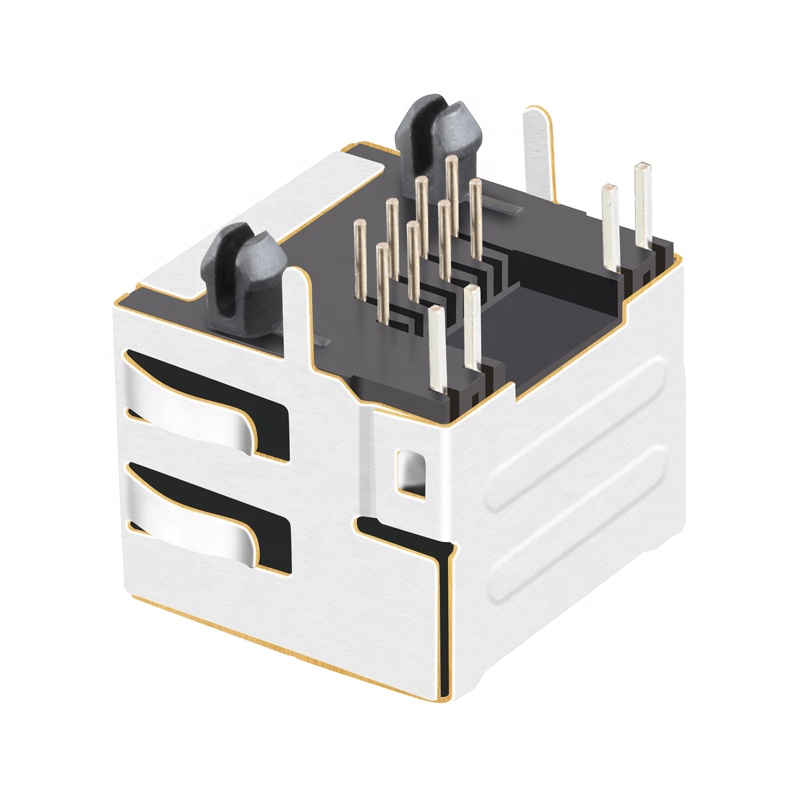

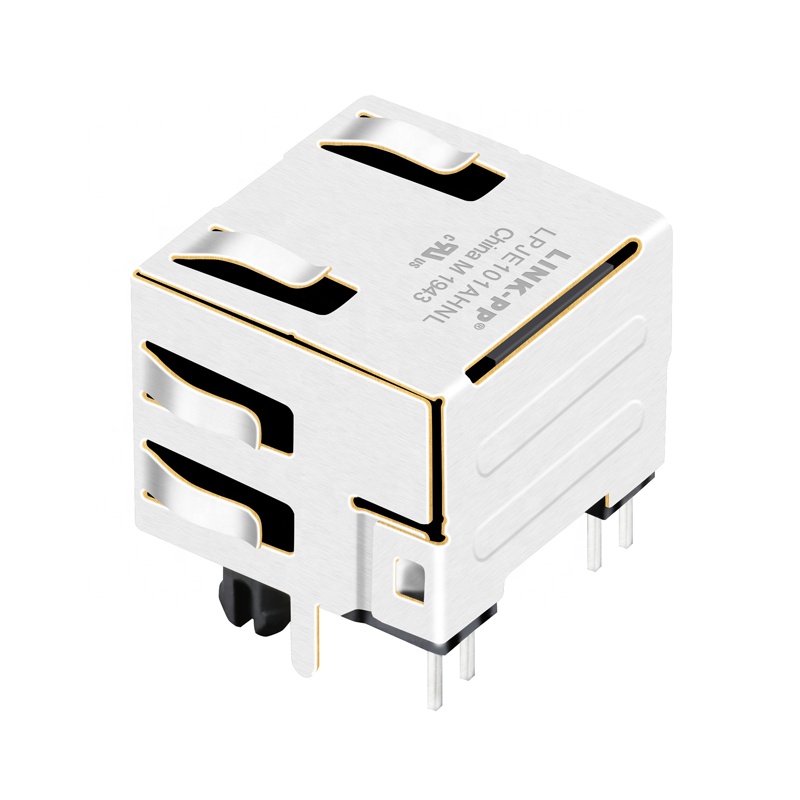

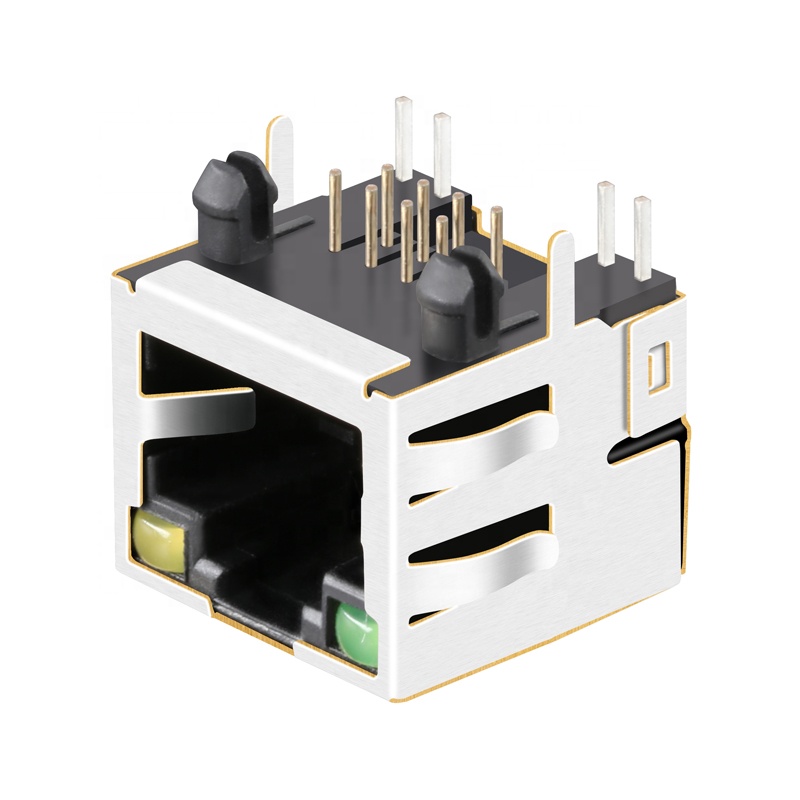

| Part Number | 1116173-4 |
| Reference Part Number | LPJE101AHNL |
| Application-LAN | ETHERNET (NON POE) |
| AutoMDIX | YES |
| Package Height (Inches/mm) | 0.516/13.10 |
| Package Length (Inches/mm) | 0.620/15.75 |
| Package Width (Inches/mm) | 0.640/16.26 |
| Configuration TX/RX | T, C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | - |
| Diodes | No |
| Latch Orientation | Up |
| LED Option | Green/Yellow LEDS |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Shield EMI Tabs | WITH |
| Operating Temperature | -40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
