LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
1 / 5
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

Send Inquiry

Product Description

✓
Product Description

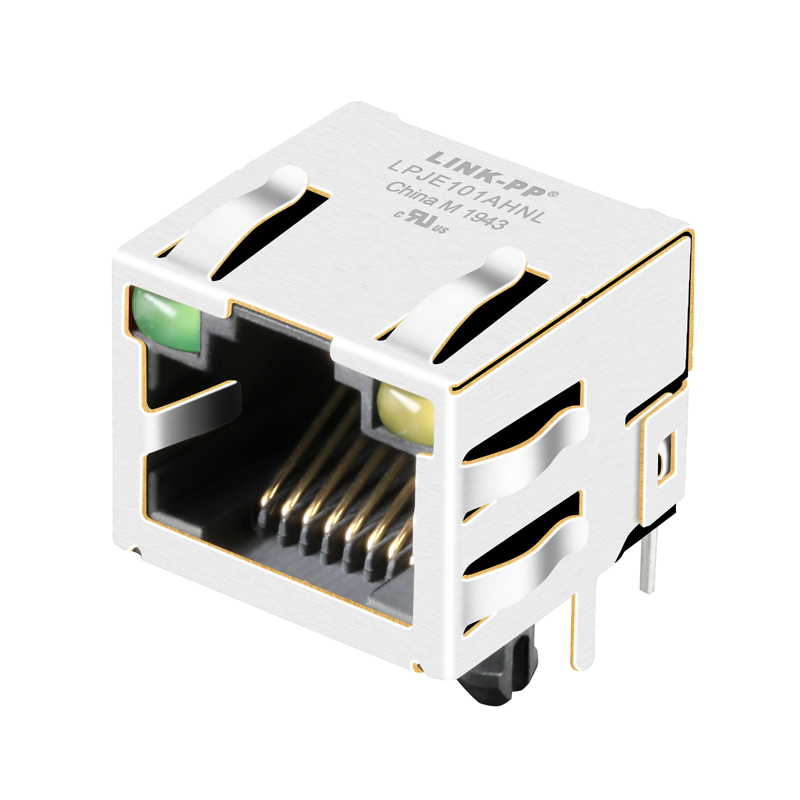

Product View 1

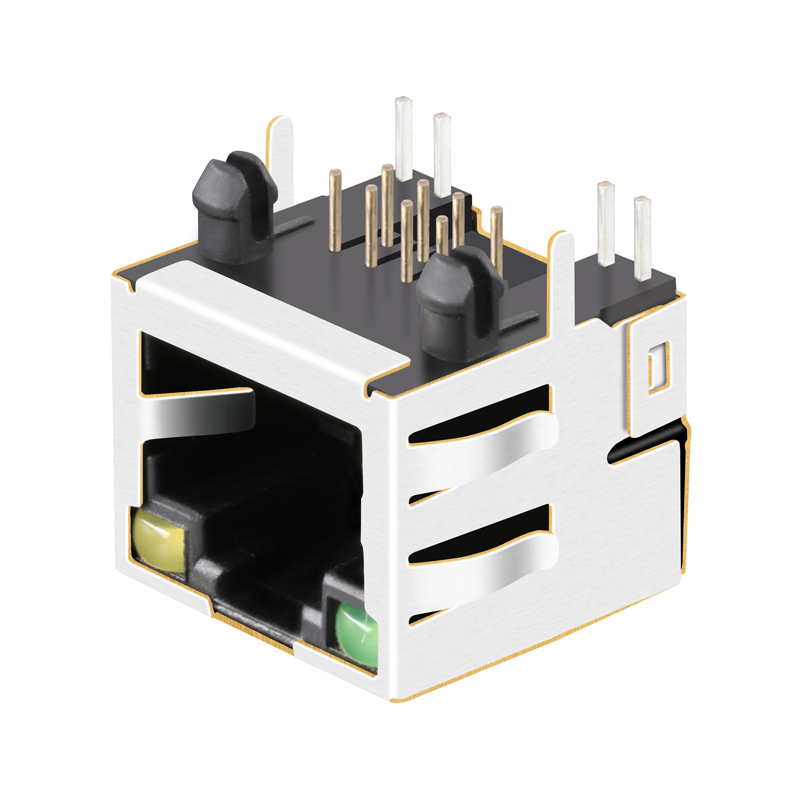

Product View 2
★
Technical Specifications
Model Number LPJE101AHNL
Part Status Active
Connector Type RJ45
Applications Without Magnetics
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Shielding Shielded, EMI Finger
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
📦
Packing & Delivery
Packaging Details: Tray Packing
Carton Size: 54.5 * 28.5 * 27 cm
Gross Weight: 13.1 kg / carton
Quantity: 3000 pcs / carton
SPQ: 100 pcs
Unit Weight: 0.004 kg / pcs
Packaging Detail
🏭
Production Showcase
Showcase 1
Showcase 2
Showcase 3
Showcase 4
Showcase 5
Showcase 6
?
Frequently Asked Questions
What is the specific application for the LPJE101AHNL connector?
This model is a standard RJ45 connector designed for applications without integrated magnetics, suitable for through-hole mounting on PCBs.
What LED colors are integrated into this RJ45 port?
The LPJE101AHNL features integrated Yellow and Green LEDs for convenient status signaling.
Does this connector provide EMI protection?
Yes, it is fully shielded and includes EMI fingers to ensure reliable signal integrity and reduced electromagnetic interference.
What is the operating temperature range?
This connector is designed to operate reliably in industrial environments with a temperature range from -40°C to 85°C.
How is the product packaged for bulk orders?
Products are packed in trays, with 100 pieces per standard package (SPQ) and 3000 pieces per master carton.
What is the orientation and mounting style?
It features a 90-degree right-angle orientation for through-hole mounting, utilizing solder termination for a secure board connection.
