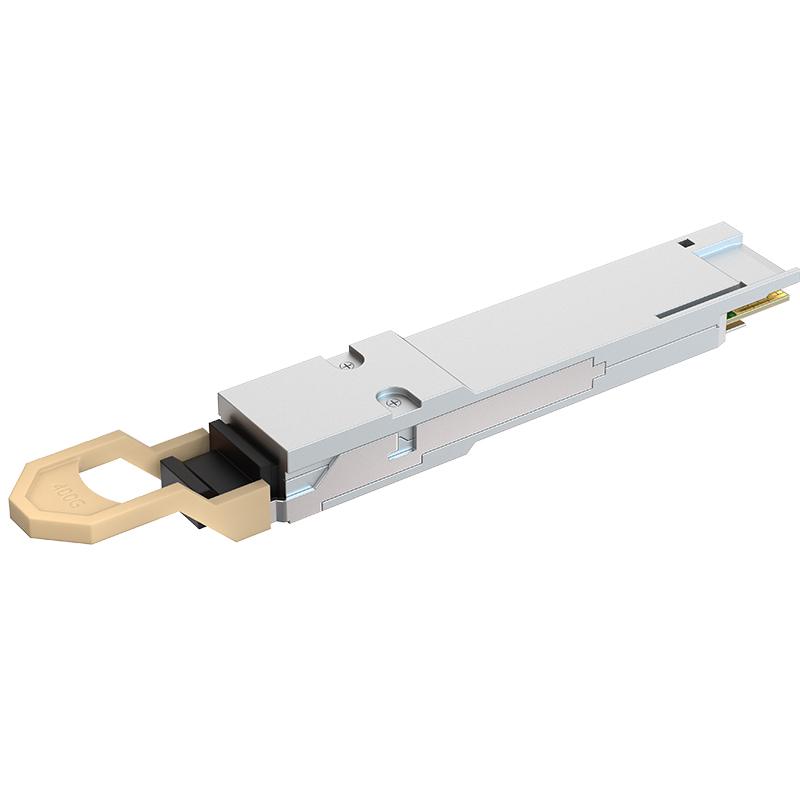

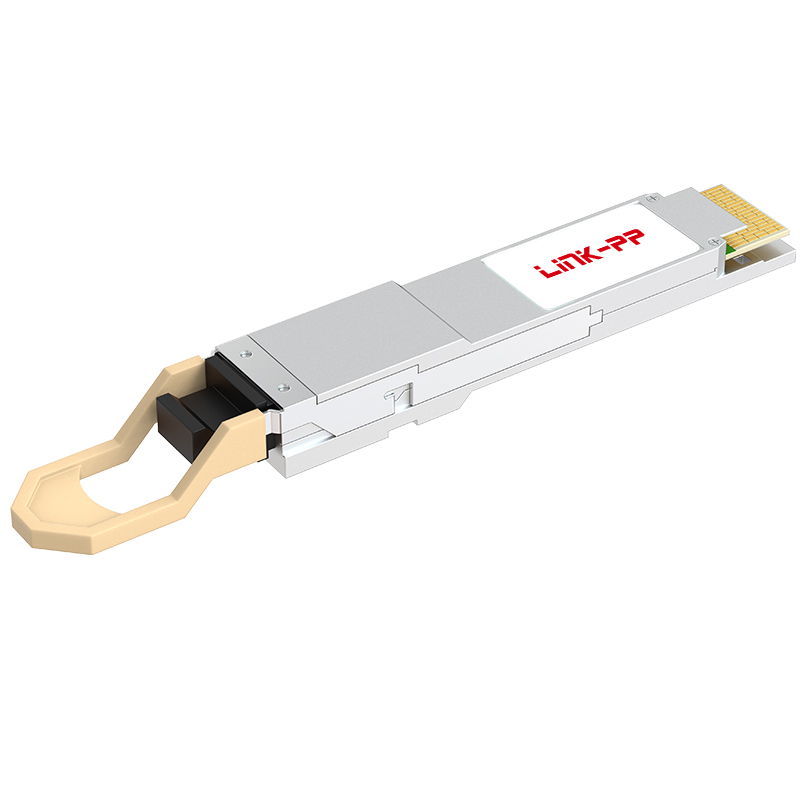

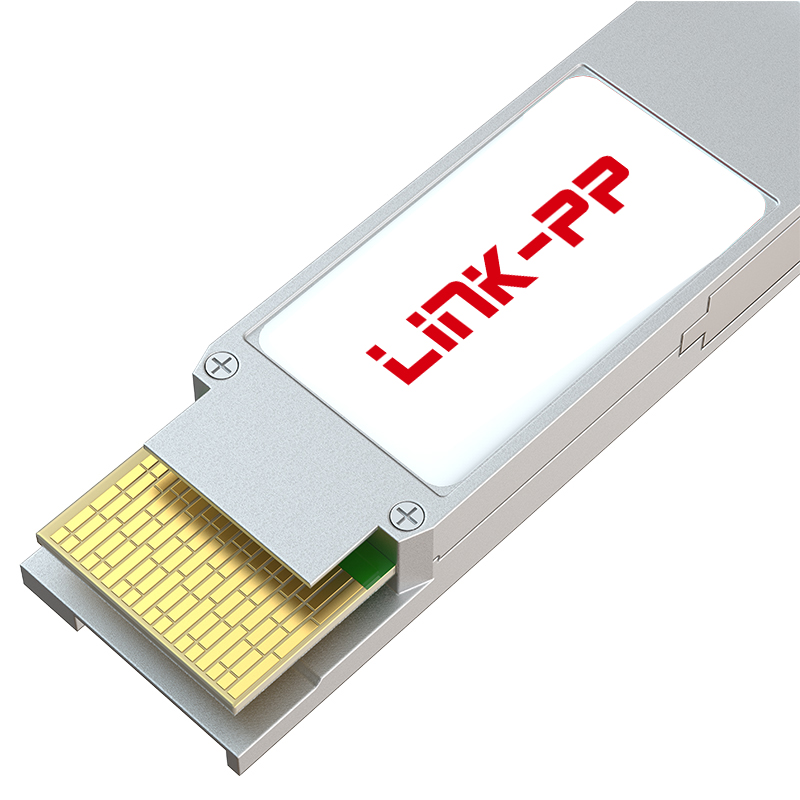

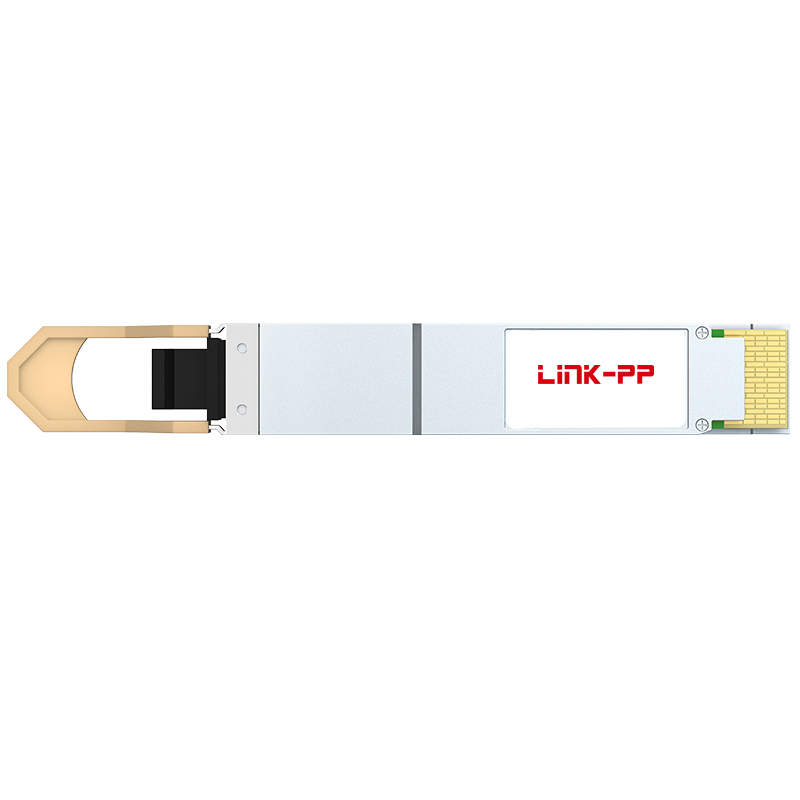

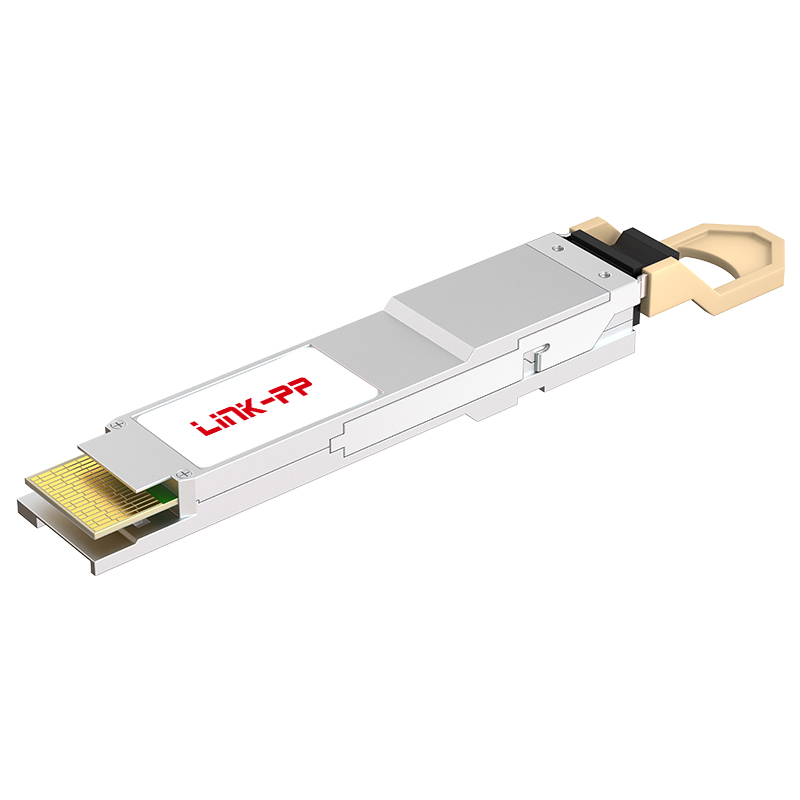

Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Products Description
| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | QSFP-DD |
| Max Data Rate | 400Gbps |
| Max Cable Distance | 70m@OM3 / 100m@OM4 |
| Wavelength | 850nm |
| Connector | MTP/MPO-16 (APC) |
| Media | MMF |
| Optical Component | VCSEL/PIN |
| TX Power | -6~4dBm |
| RX Power | -7.9~4dBm |
| Modulation | 8x 50G PAM4 |
| Power Budget | 1.9dB |
| Power Consumption | ≤10W |
| Extinction Ratio | 3dB |
| DDM/DOM | Supported |
| Commercial Temperature | 0 to 70°C (32 to 158°F) |
| Warranty | 5 Years |
| Sample | Available |
| Protocols | IEEE 802.3cd, QSFP-DD MSA, CMIS 4.0 |
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
❖ Related Products SFP Cage ❖
Why Choose Us
Profile Overview
Our specialized manufacturing focuses on magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and imported test equipment. With an abundant monthly productive capacity, we deliver products within short lead times. We offer high-speed optical interconnection solutions for cloud computing and ultra-broadband networks globally.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, lan transformers, and SFP modules.
Can I request samples before placing a bulk order?
Yes, free samples are available to test quality; however, shipping costs are to be covered by the requester.
What is the standard delivery time?
Stock items are ready to ship immediately, while mass production typically takes 15 to 30 days.
What kind of after-sales service and warranty do you provide?
We offer a one-year guarantee period and 24-hour online technical support. Product specific warranties (like 5 years for transceivers) also apply.
Do you accept OEM or ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us with your specific requirements for a detailed discussion.
What are your core advantages in the industry?
With over 19 years of production experience and high-level certifications, we have established long-term partnerships with leading global technology firms.
