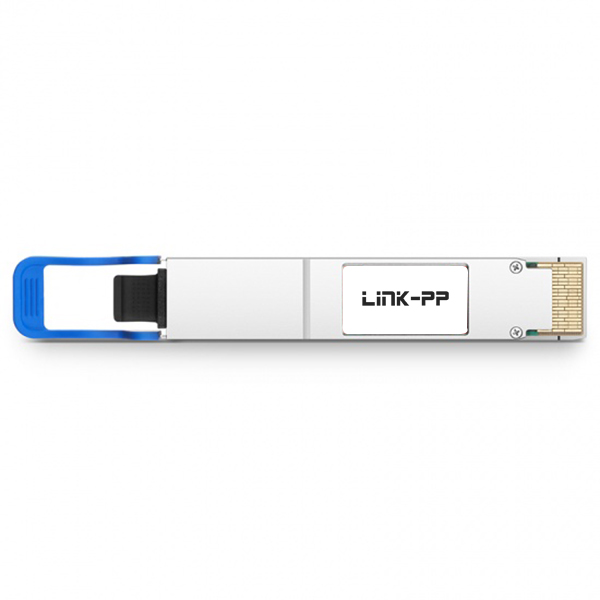

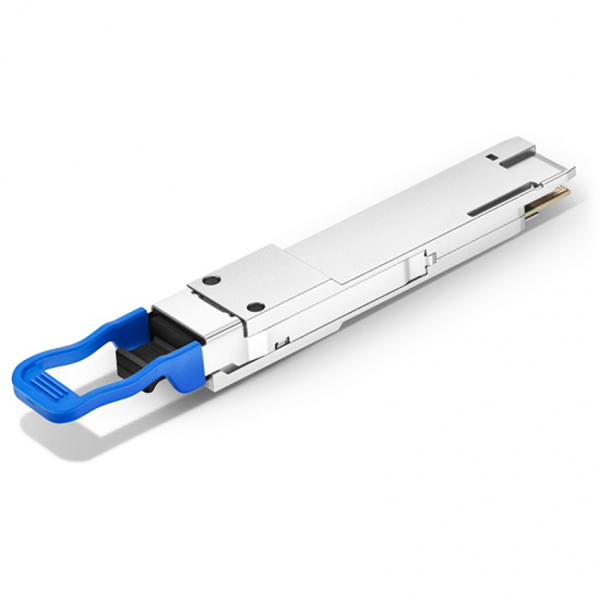

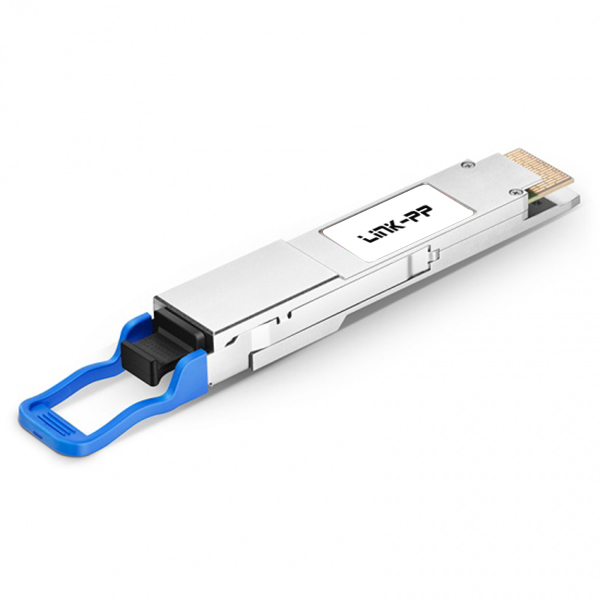

| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | QSFP-DD |
| Max Data Rate | 400Gbps |
| Max Cable Distance | 10km |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm |
| Connector | Duplex LC |
| Media | SMF |
| Optical Component | CWDM EML/PIN |
| TX Power | -2.8~4.0dBm |
| RX Power | -9.1~4.0dBm |
| Modulation | 8x 50G PAM4 |
| Powerbudget | 6.3dB |
| Power Consumption | ≤10W |
| Extinction Ratio | 3.5dB |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Warranty | 5 Years |
| Sample | Available |
| Protocols | IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1 |
A specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, we currently have around 2000 staff. With an abundant productive capacity of 3000K per month, we are able to deliver products within a short time.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, and cloud computing interconnection. With the latest optoelectronics technologies, we develop and manufacture products for global distribution.
