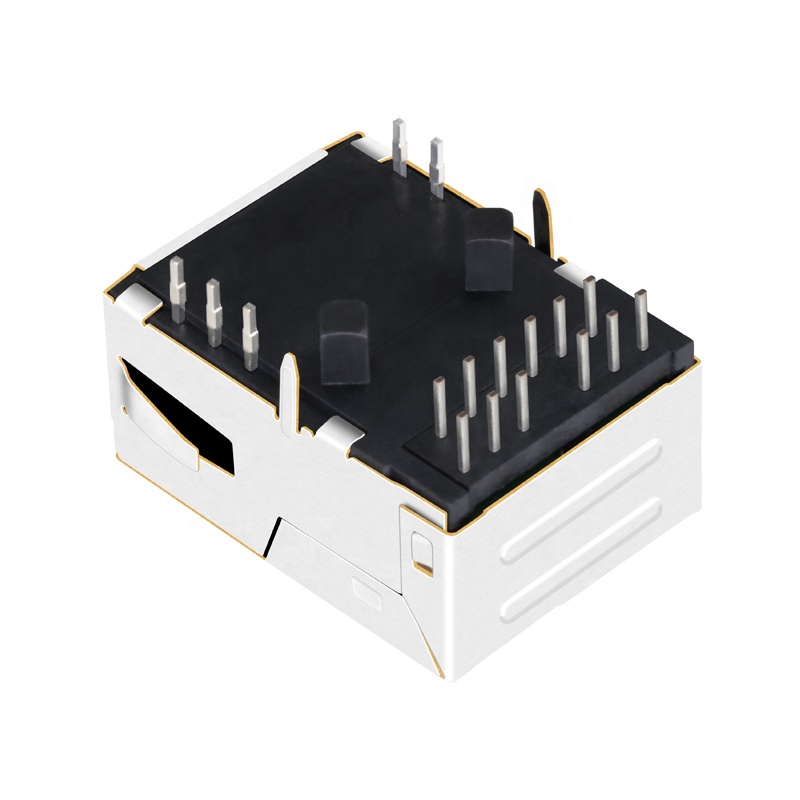

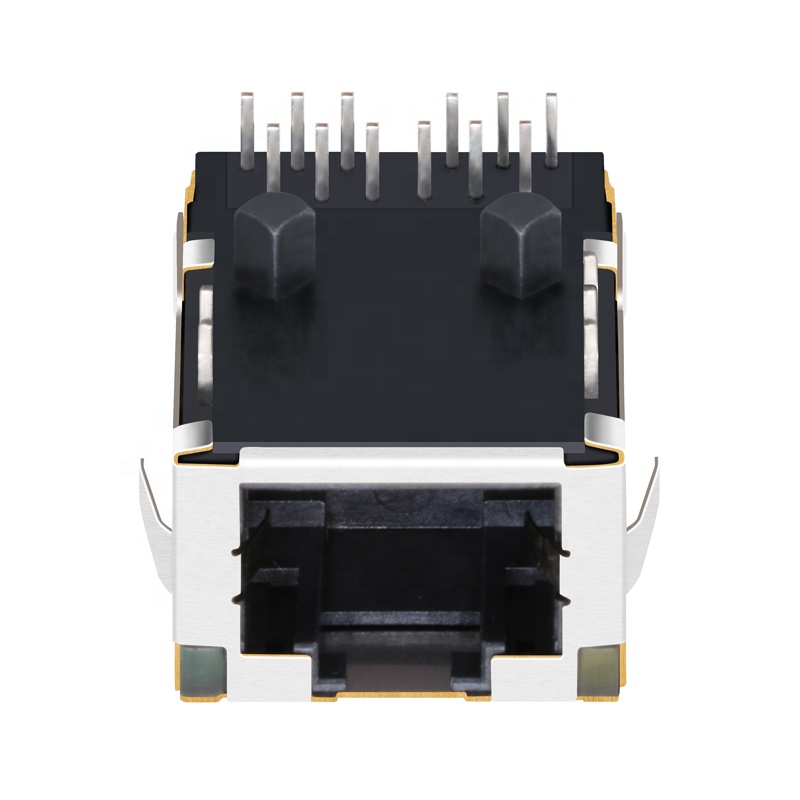

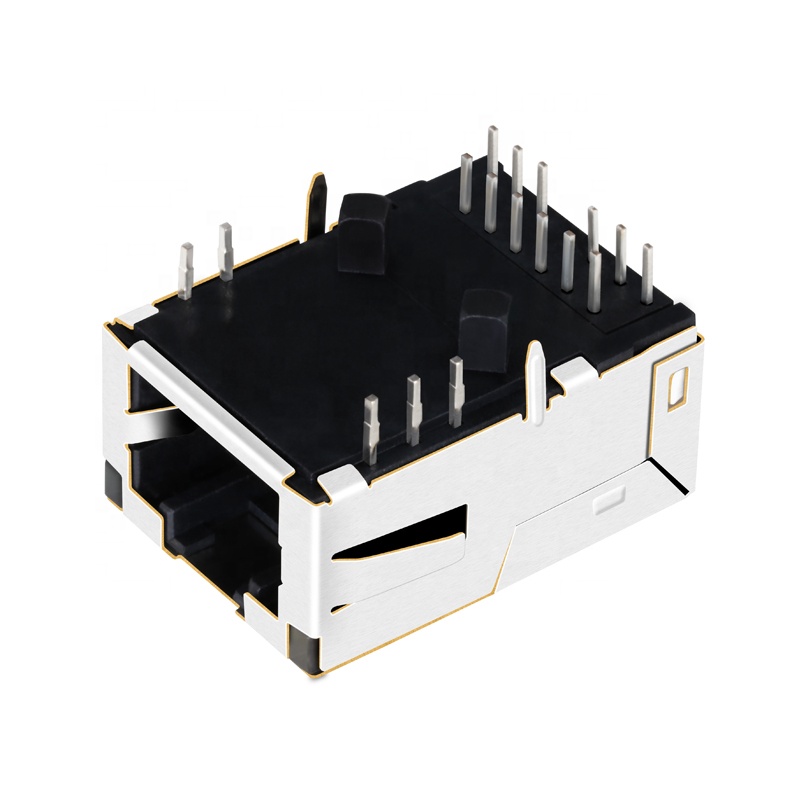

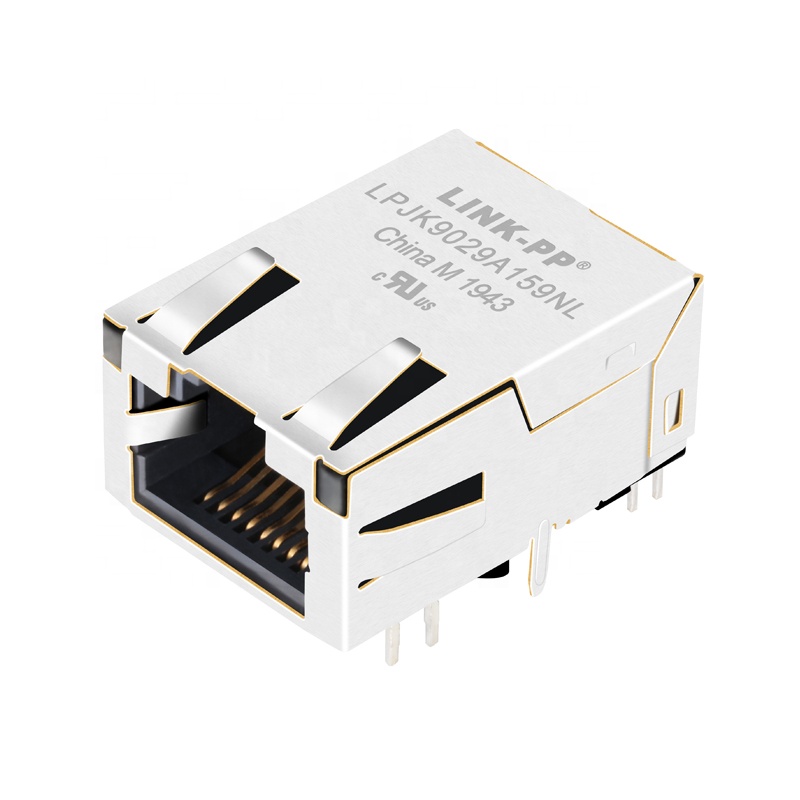

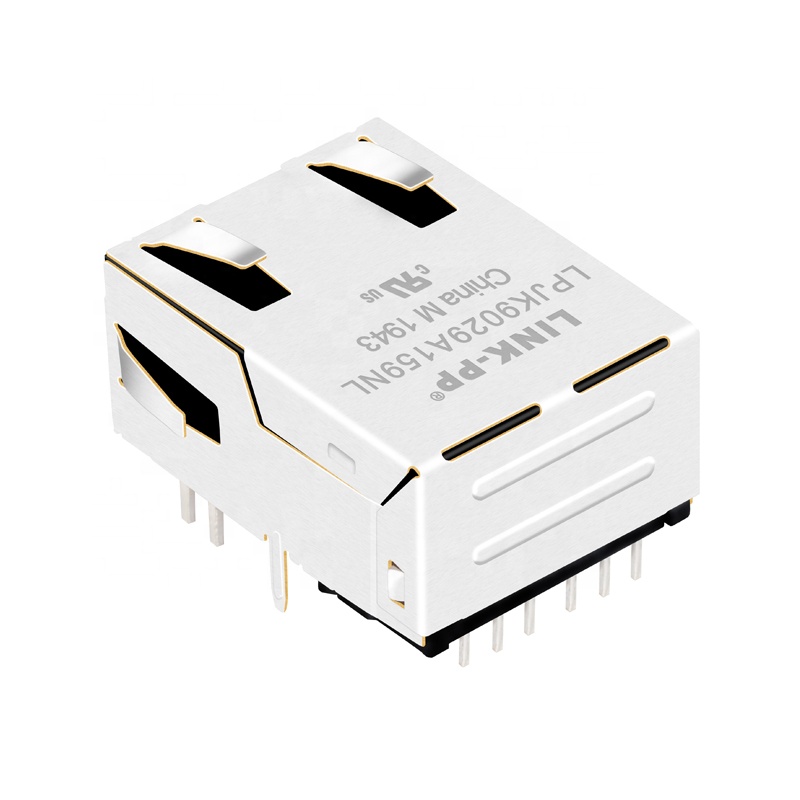

5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
1 / 5
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector

5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector

Send Inquiry

Product Description

📦 Product Description
Product Image 1
Product Image 2
⚙️ Specification
Model NumberLPJK9029A159NL
Part StatusActive
Connector TypeRJ45
Applications-Lan5G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow&Green - Yellow
Number of Cores per Jack8
ShieldingShielded
Number of PortsSingle Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C
💡 Characteristics
RJ45 Connector with integrated transformer / common mode choke. Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s. Available in SMT, THT and THT with USB. Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt. HPLE products: Improved Common Mode Rejection due to additional NiZn cores.
Characteristics
🚚 Packing & Delivery
The Part Number package: 110 pcs in 1 tray, which is 34.5*34.5*27cm, 5.5KGS (550pcs) of each carton.
Packing
🏭 Production Overview
Frequently Asked Questions
Q: What is the main application for this RJ45 connector? A: This connector is designed for 5G Base-T Lan applications and supports AutoMDIX functionality.
Q: Does this connector support Power over Ethernet (PoE)? A: Yes, it supports PoE up to 50 Watt and follows IEEE 802.3 standards including 802.3af and 802.3at.
Q: What are the mounting and orientation specifications? A: It is a Through Hole mounting type with a 90° Angle (Right) orientation and solder termination.
Q: What is the operating temperature range for this component? A: The connector is rated for an operating temperature range of 0°C to 70°C.
Q: Is the connector shielded? A: Yes, it is fully shielded to ensure improved common mode rejection and signal integrity.
Q: What is the standard packaging for this product? A: The standard packaging includes 110 pieces per tray, with 550 pieces per carton.
