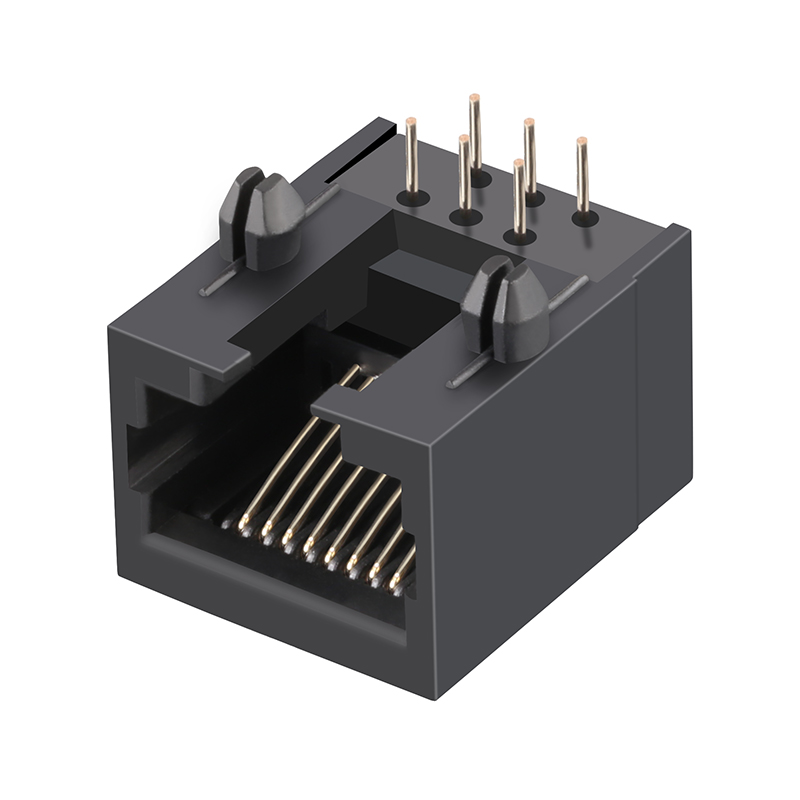

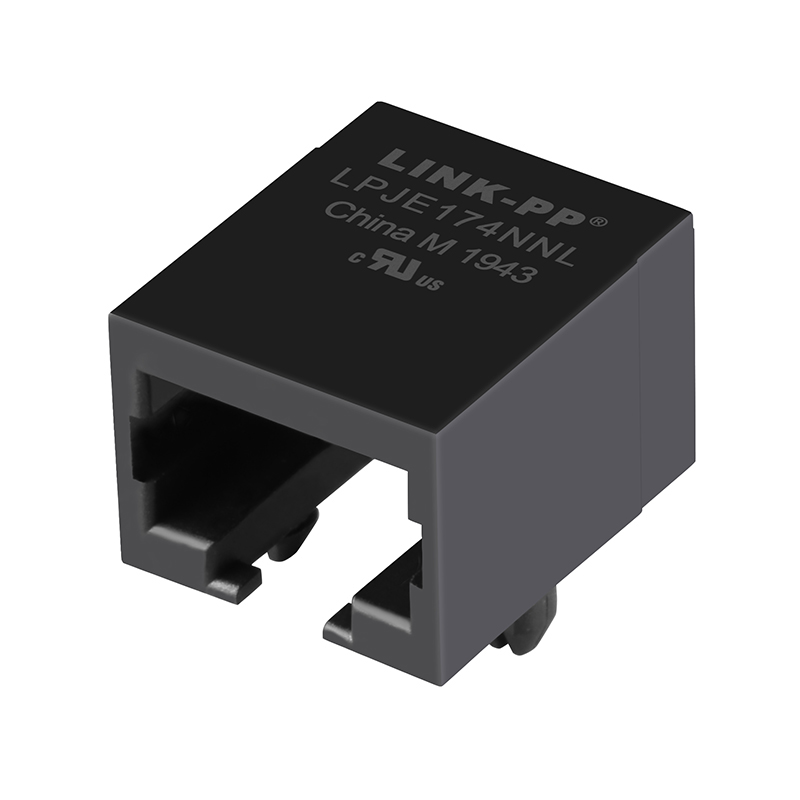

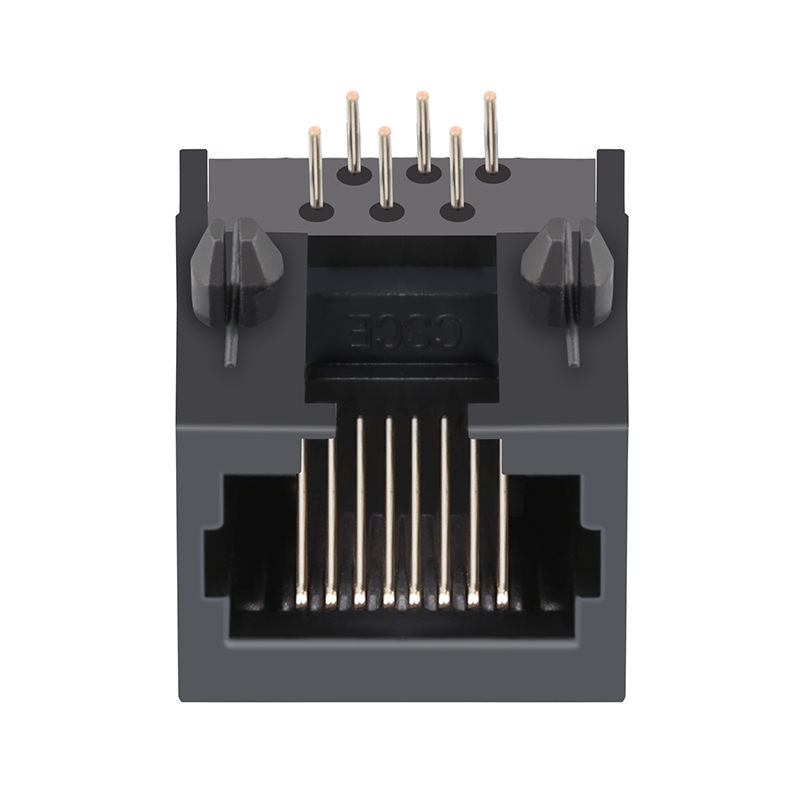

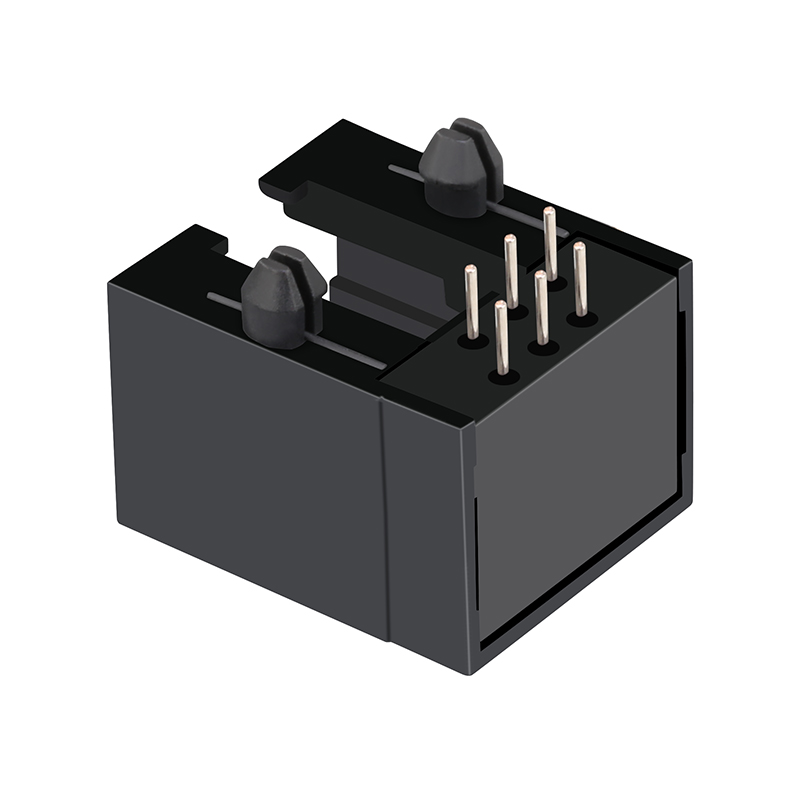

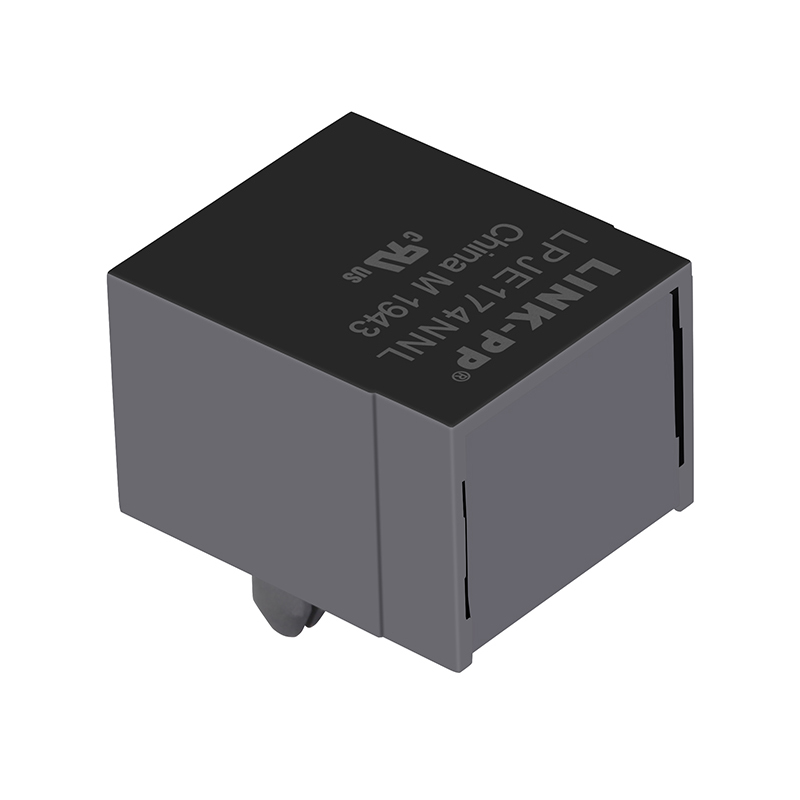

TS6P6C-PCB-U Unshielded Tab Down Without LEDs 1X1 Port RJ45 Modular Jack
| Item |
RJ45 Female Connector |
| Part Number |
LPJE174NNL |
| Compatible With |
S11-ZZ-0159 |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
6p6c (RJ45, Ethernet) |
| Application-Lan |
Ethernet (Non-PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100/1000 Base-T |
| Latch |
Down |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
Without |
| LED Option |
Without |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
-40°C TO 85°C |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
Established in 1997, our partner manufacturer is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, the facility acts as a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading provider of Ethernet RJ45 connectors and LAN transformers.
1. Are you a factory or a trading company?
Our partner is a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to cover the shipping fee.
3. What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production orders typically require 15 to 30 days.
4. What after-sales service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your specific inquiry to us so we can discuss the details of your customization needs.
6. What is your competitive advantage?
Our manufacturing partner has over 19 years of dedicated production experience and has established long-standing partnerships with world-leading electronics manufacturing services providers.
