VIEW OUR SOLUTIONS: We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

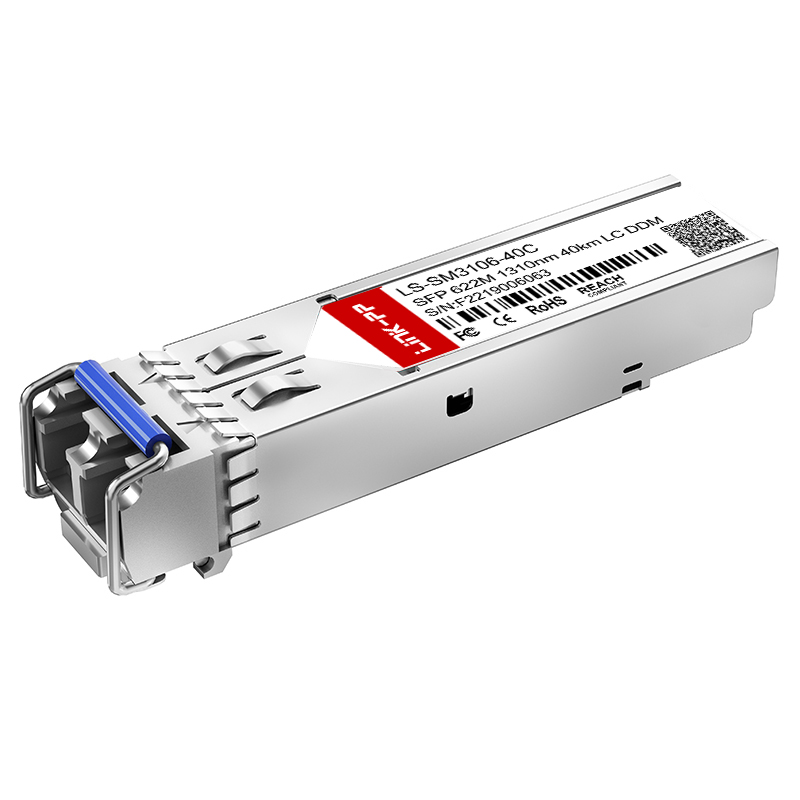

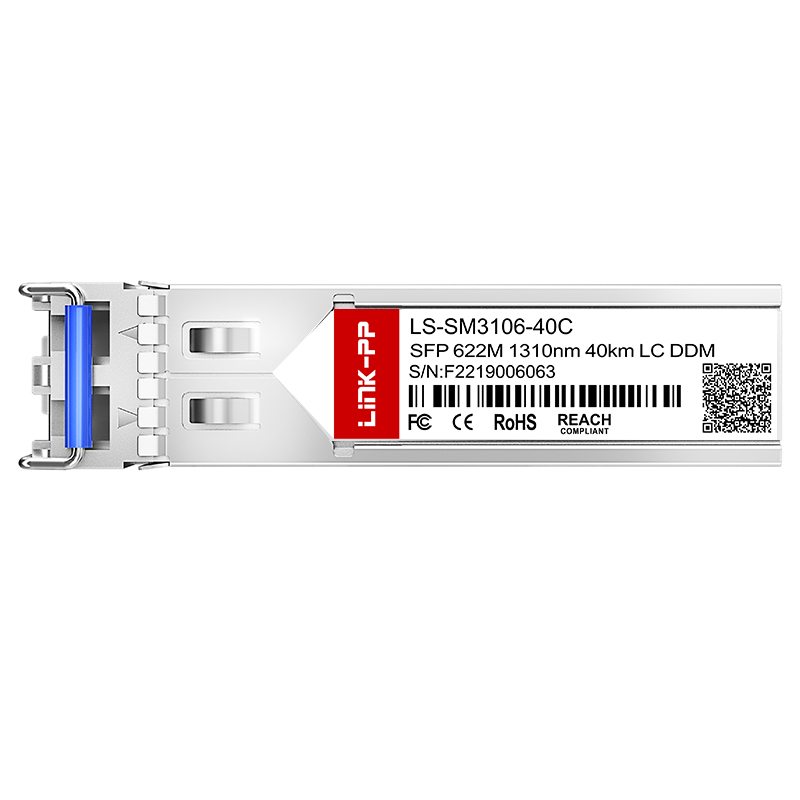

| Form Factor | SFP |
| Max Data Rate | 622Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 40km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|
| 622Mbps | 850nm | 500m | Multi-mode | Yes |
| 622Mbps | 1310nm | 500m | Single Mode | Yes |
| 622Mbps | 1310nm | 2km | Single Mode | Yes |
| 622Mbps | 1310nm | 2km | Multi-mode | Yes |
| 622Mbps | 1310nm | 20km | Single Mode | Yes |
| 622Mbps | 1310nm | 40km | Single Mode | Yes |
| 622Mbps | 1550nm | 80km | Single Mode | Yes |
| 622Mbps | 1550nm | 100km | Single Mode | Yes |
| 622Mbps | 1550nm | 120km | Single Mode | Yes |
Optical Transport Networks
End-to-end DWDM devices including active modules and optical passive devices like amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, and OTDR.
Cloud and Enterprise
High-speed optical interconnect solutions for data centers with rates ranging from 10G to 800G, ensuring mass data transmission quality.
Wireless Solutions
Reliable performance with mature laser solutions for Dark Fiber, WDM, and Radio over Fiber, meeting 4G/5G system needs.
FTTx
Total optical fiber access solutions covered from all-optical or optical copper combined access products.
Our facility is a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL. With advanced manufacturing and testing equipment, we maintain a production capacity of 3000K per month, ensuring short delivery times. We design, manufacture and sell products worldwide using the latest optoelectronic technologies.
