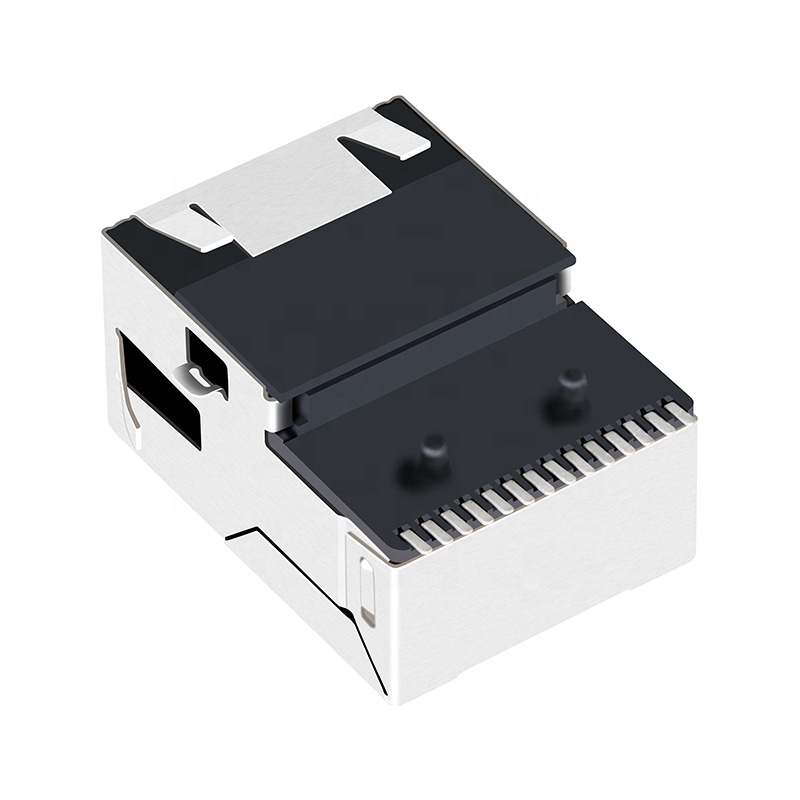

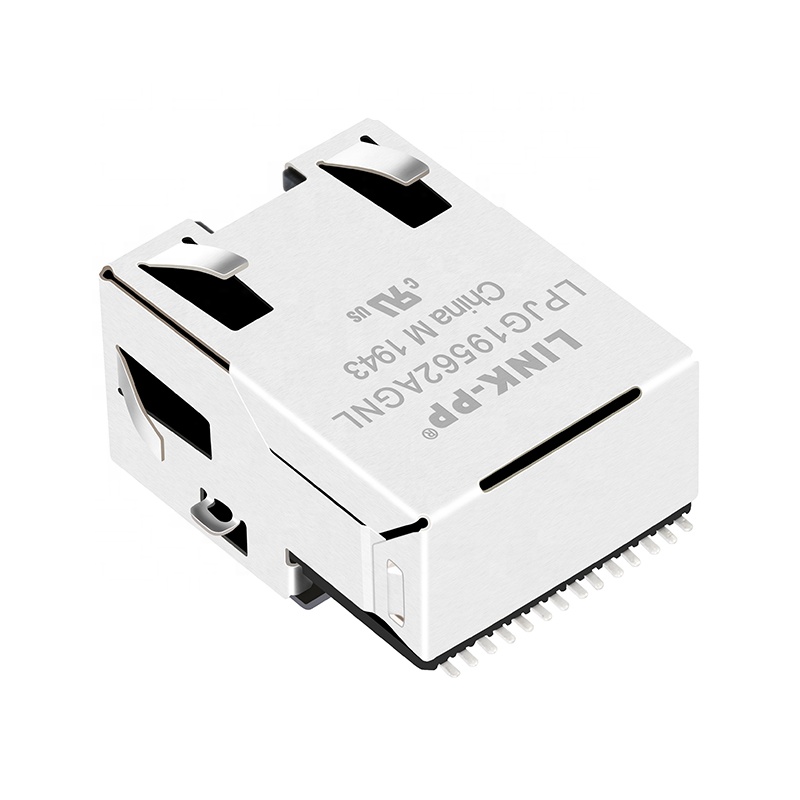

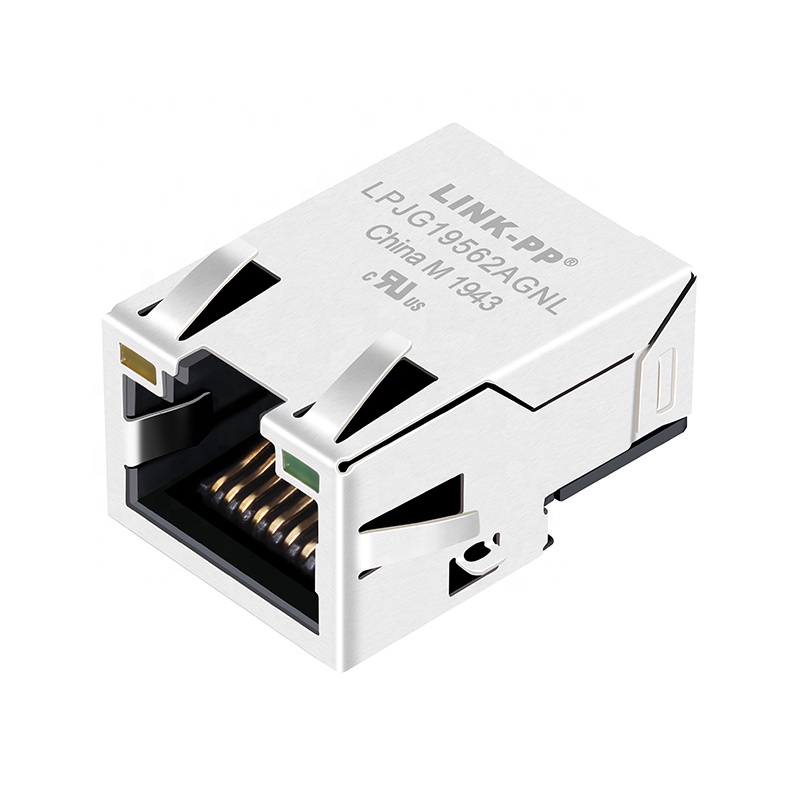

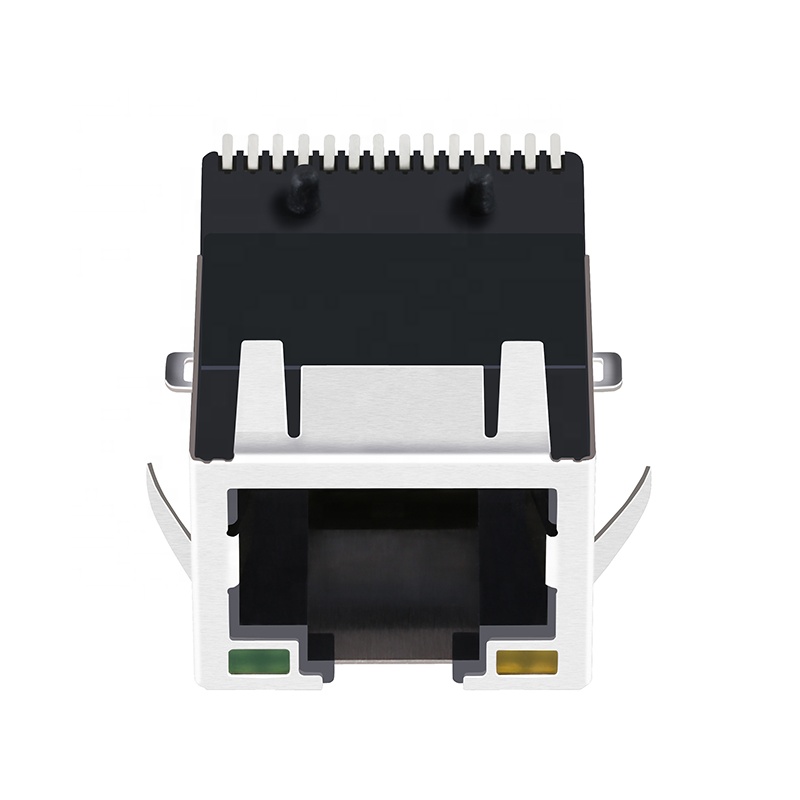

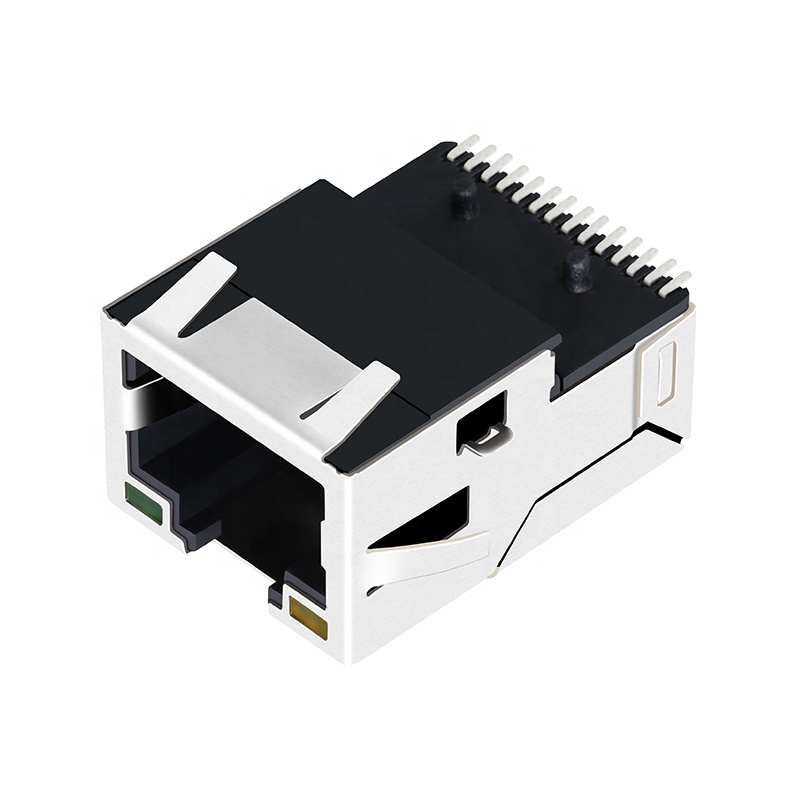

7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
Products Description
Item
RJ45 Female Connector
Manufacturer Part Number
LPJG19562AGNL
Cross Part Number
7498111120AR 7498111120R
Part Status
Active
Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet)
Application-Lan
Ethernet (Non-PoE)
Number of Ports
1x1 Port
Speed
10/100/1000 Base-T
Latch
Up
Cores per Port
4
Orientation
90° Angle (Right)
PCB Mount Angle
SIDE ENTRY
Shield EMI Tabs
With
LED Option
Green/Yellow
PCB
FR4
PCB Retaining Post
T POST
Temperature
0℃ TO 70℃
Bst Circuit
Yes
AutoMDIX
YES
Contact Mating Area Plating
GOLD 6u"/15u"/30u"
Turns Ratio RX/TX
1CT:1CT
Configuration RX/TX
T, C
