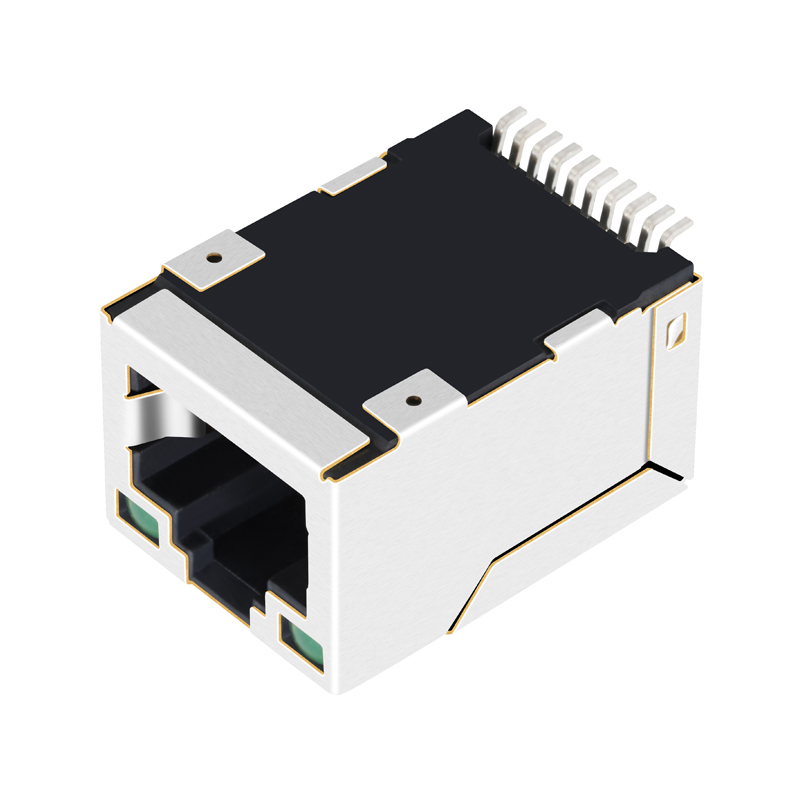

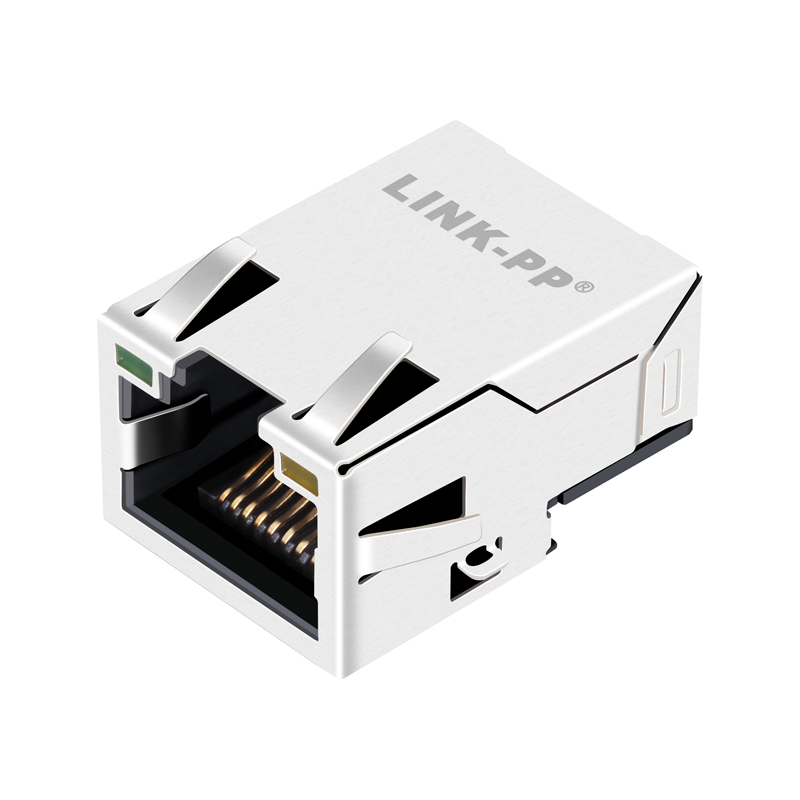

100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors

📦 Product Description

Characteristics

RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores

📋 Specification

Item	Value
Model Number	SMT RJ45 Connector
Part Status	Active
Connector Type	RJ45
Applications-Lan	Ethernet(PoE/Non_PoE)
Speed	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack	4/6/8/12
Shielding	Shielded, Emi Finger
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Down/Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C / -40°C ~ +85°C

🚚 Packing & Delivery

Package Details:

Tray packaging with professional protection.
Carton size: 34.5*34.5*27cm
G.W./carton: 6.9kg
Qty/carton: 550pcs
SPQ: 110pcs
N.W/pcs: 0.013kg

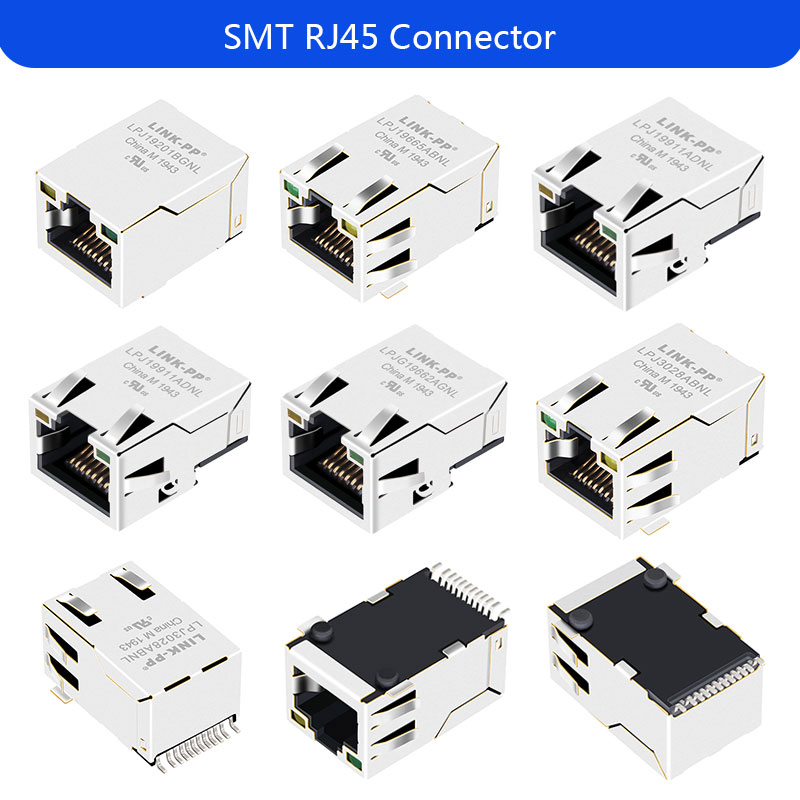

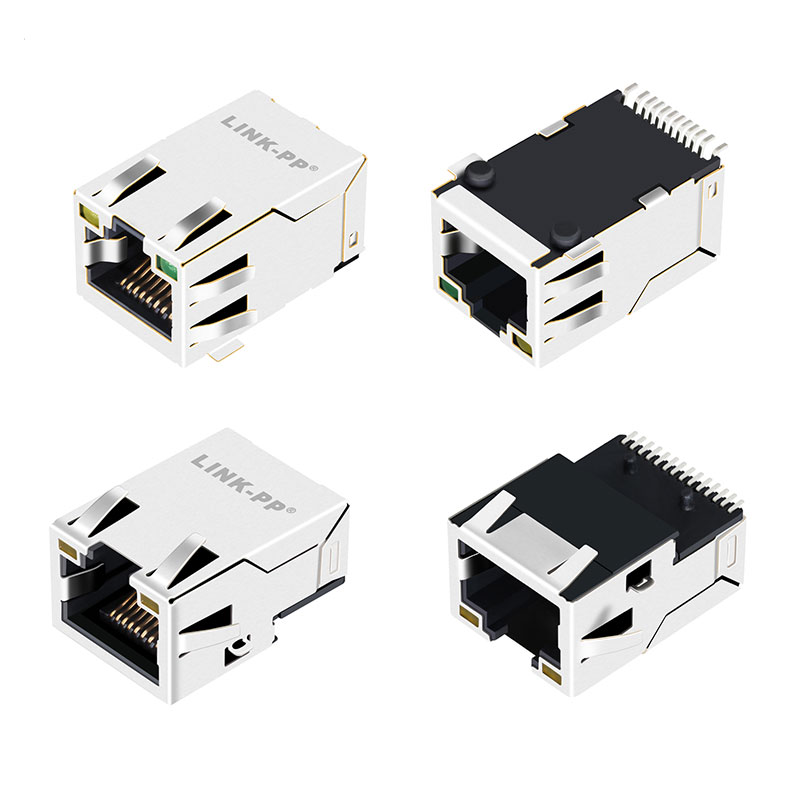

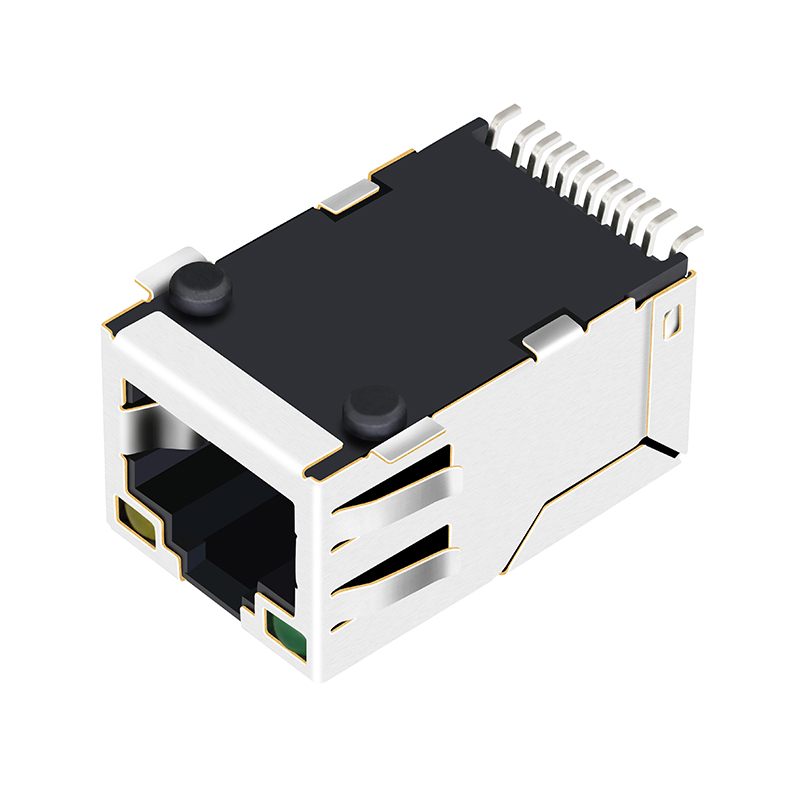

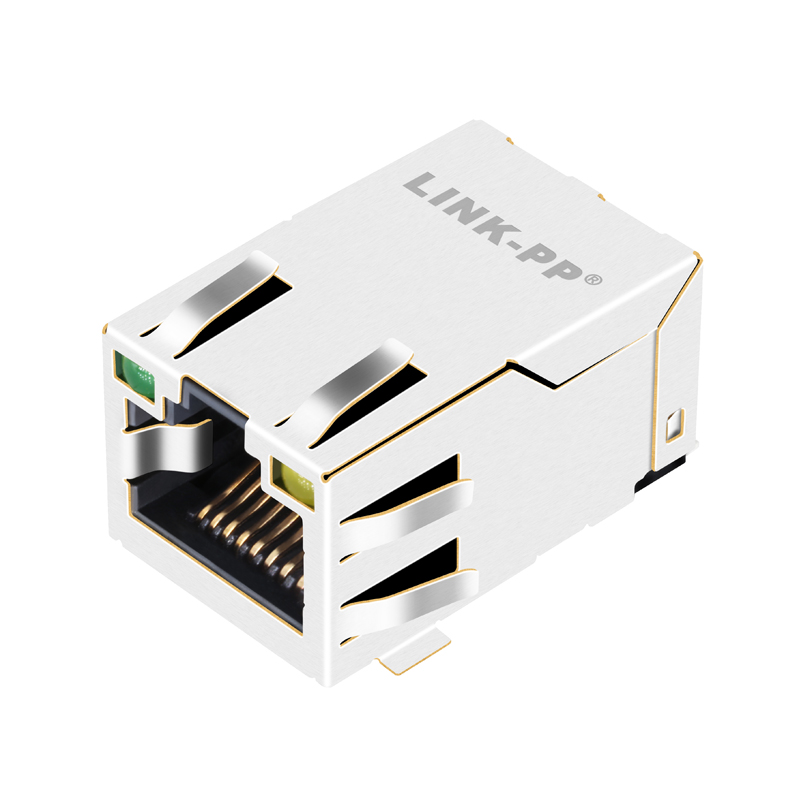

🏭 Visual Display

❓ Frequently Asked Questions

How do you guarantee product quality?

We ensure quality through a strict process: always provide a pre-production sample before mass production and conduct a final inspection before shipment.

What products can I purchase from you?

Our product range includes RJ45 Magnetic, Lan transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.

Why choose your products over other suppliers?

We are a specialized manufacturer of RJ45 connectors and LAN transformers with 19 years of experience. We maintain a high productive capacity and follow strict international manufacturing standards.

What certifications do your products have?

Our products and facilities are certificated by SGS, ISO9001:2008, UL, REACH, and CE.

What payment and delivery terms do you accept?

We accept various delivery terms including FOB, CFR, CIF, EXW, DDP, and Express Delivery. Accepted payment methods include T/T, L/C, PayPal, Western Union, and Credit Card in multiple currencies.

What is your typical production scale?

We operate with a large professional team and a productive capacity of approximately 30,000K units per week to meet global demand.
