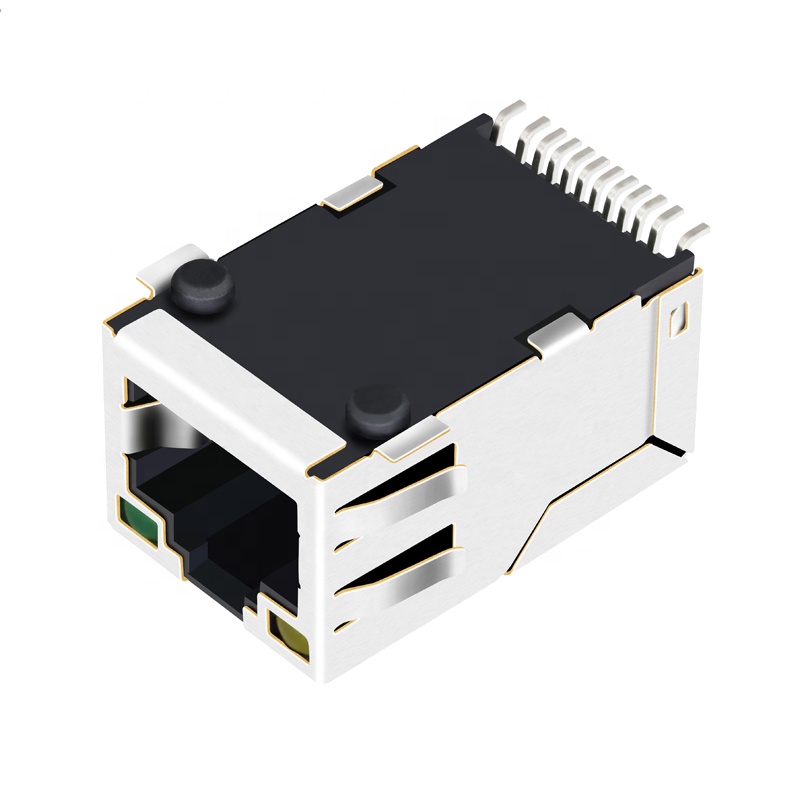

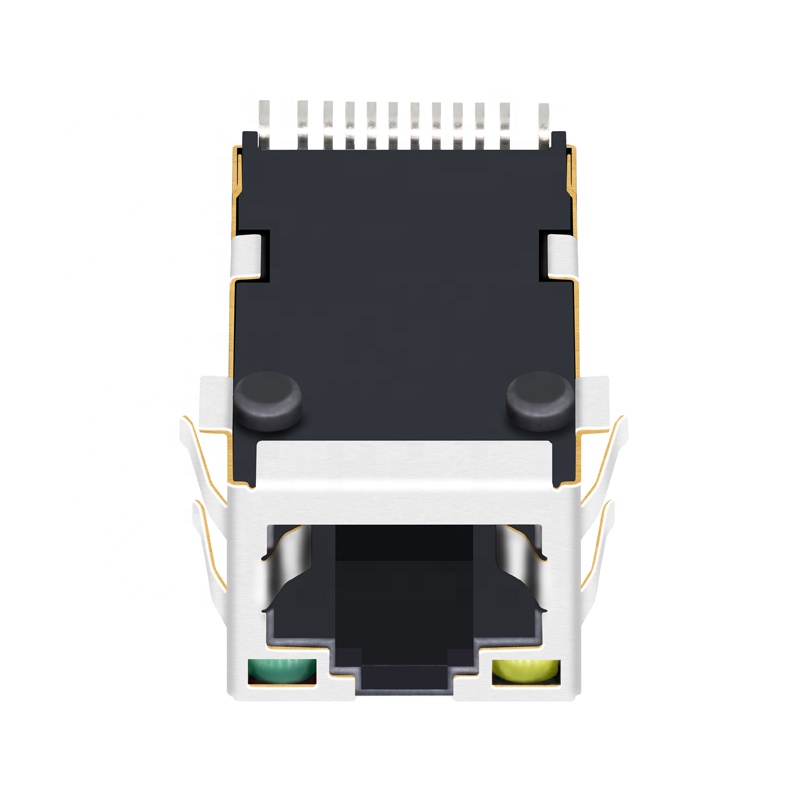

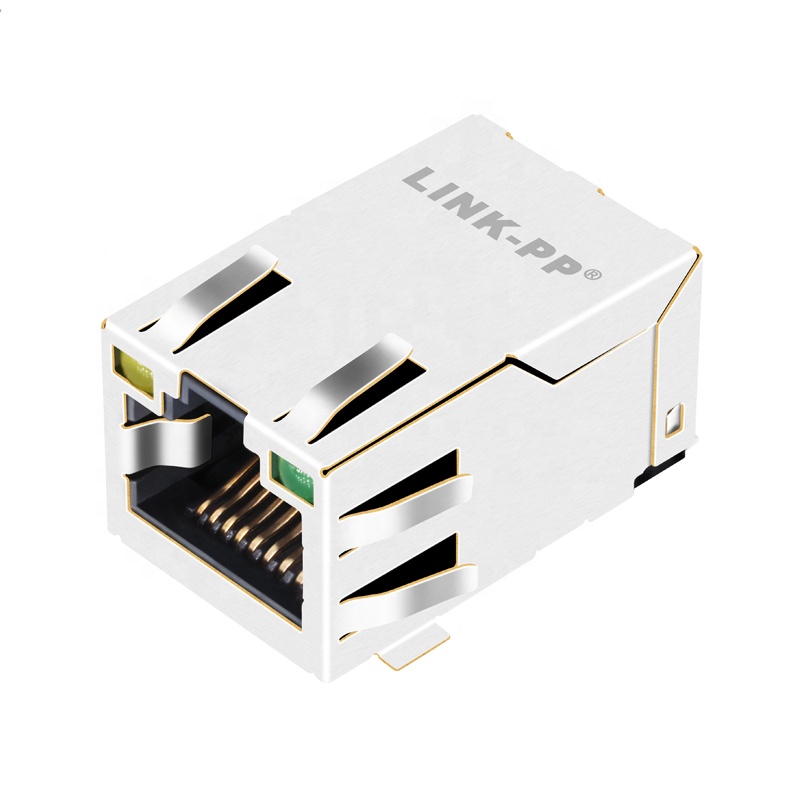

Shielded 100 Base-T SMT RJ45 Modular Jack With Magnetics
| Item | RJ45 Female Connector |
| Part Number | LPJ3007AANL |
| Compatible With | 74980111211 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB Material | FR4 |
| PCB Retaining Post | T POST |
| Operating Temperature | 0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit | Yes |
| AutoMDIX | YES |
| Contact Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
As a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples for quality testing, though shipping costs are typically covered by the customer.
What is your typical delivery time?
In-stock items are ready to ship immediately. For mass production, the lead time is generally between 15 to 30 days.
What kind of after-sales service do you provide?
We provide a one-year guarantee period and offer 24-hour online technical support to assist with any queries.
Do you accept OEM or ODM orders?
Yes, we welcome OEM and ODM requests. Please contact us to discuss your specific requirements in detail.
What are your core advantages?
With over 19 years of production experience, we have established long-term partnerships with leading global technology firms and maintain high standards of quality and reliability.
