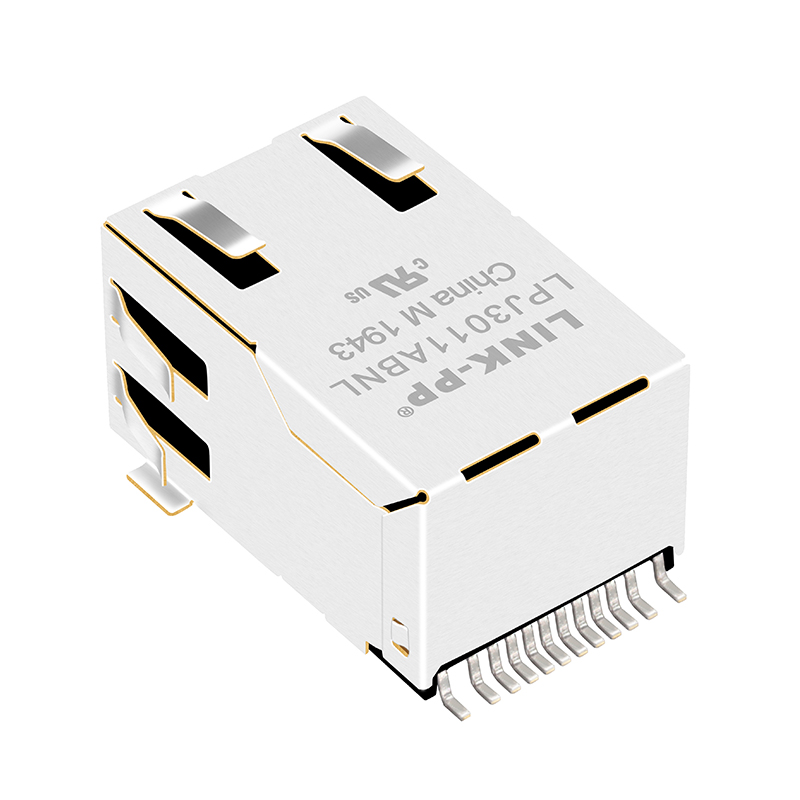

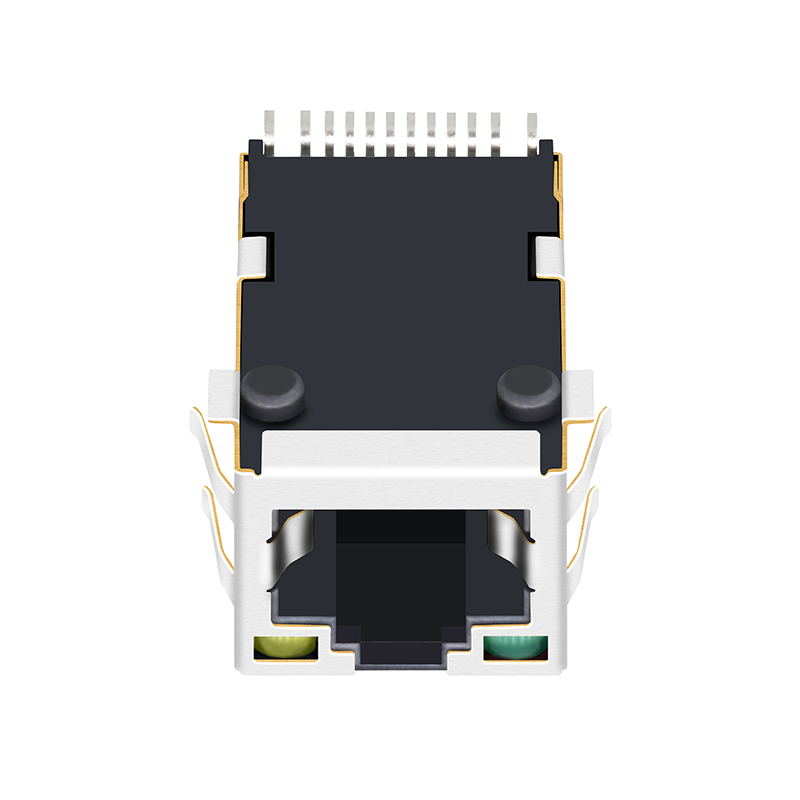

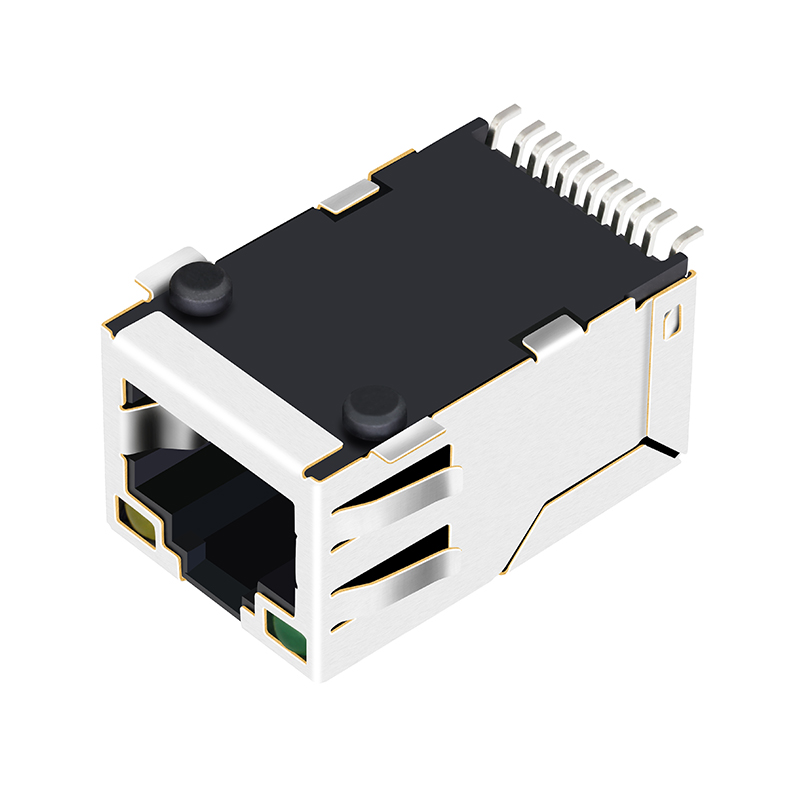

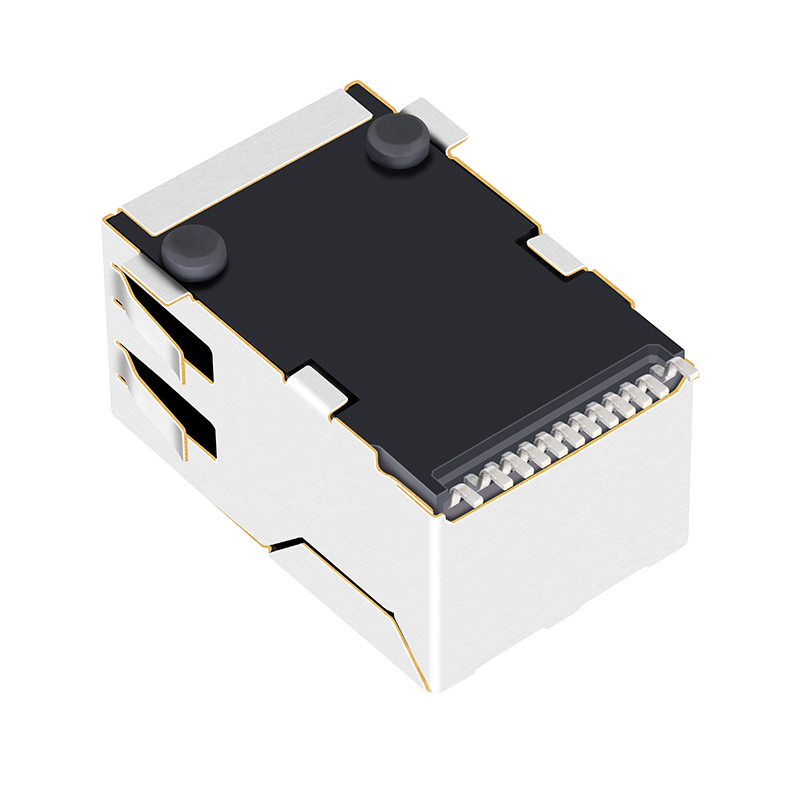

JB0-1002NL 10/100 Base-t Tab Up SMT Magnetic RJ45 Surface Mount Ethernet RJ45 Connector With Led
Products Description
| Item | RJ45 Female Connector |
| Part Number | LPJ3011ABNL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Up |
| Cores per Port | 4 |
| Orientation | 90° Angle |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Product Categories
Production Capability
🏭
Established in 1997, our facility is a professional designer and manufacturer in magnetic telecom and networking components. We offer an extensive line of state-of-the-art catalog products as well as custom capabilities.
🌐
As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across over 200 countries.
📦
By maintaining multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer solutions.
Frequently Asked Questions
❓ 1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
❓ 2. Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees apply.
❓ 3. What is your delivery time?
Ready-to-ship stock is available immediately; mass production typically takes 15-30 days.
❓ 4. What after-service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
❓ 5. Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM inquiries for detailed discussion.
❓ 6. What is your advantage?
With over 19 years of production experience, we have established long-term partnerships with leading global technology firms.
