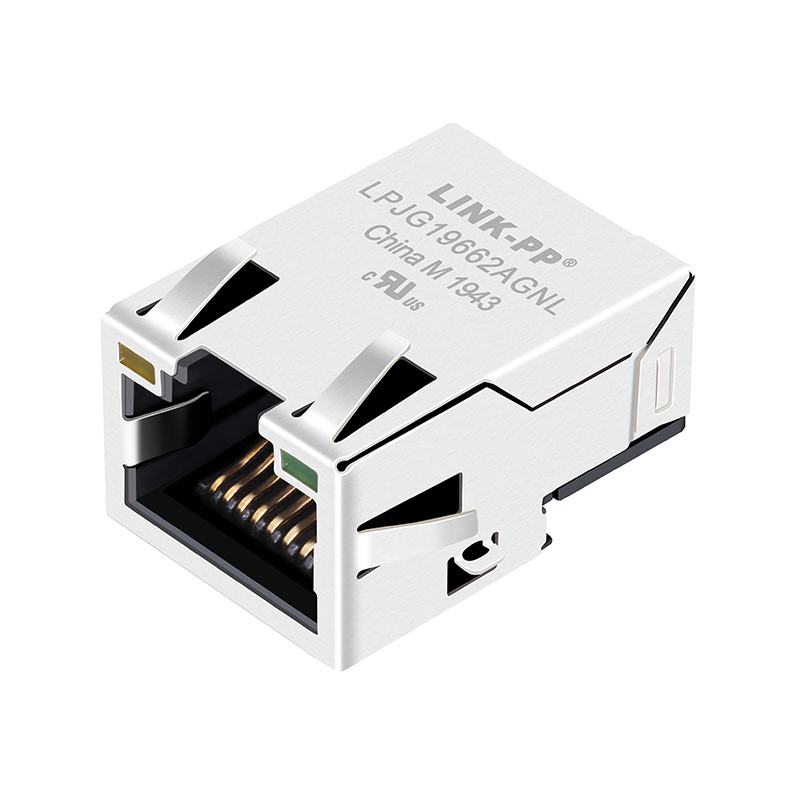

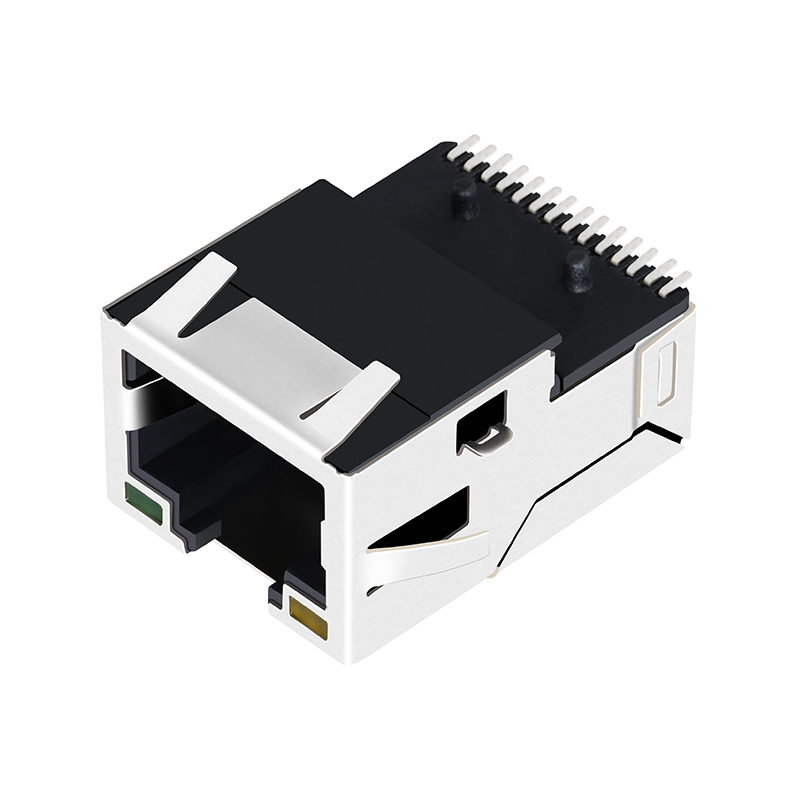

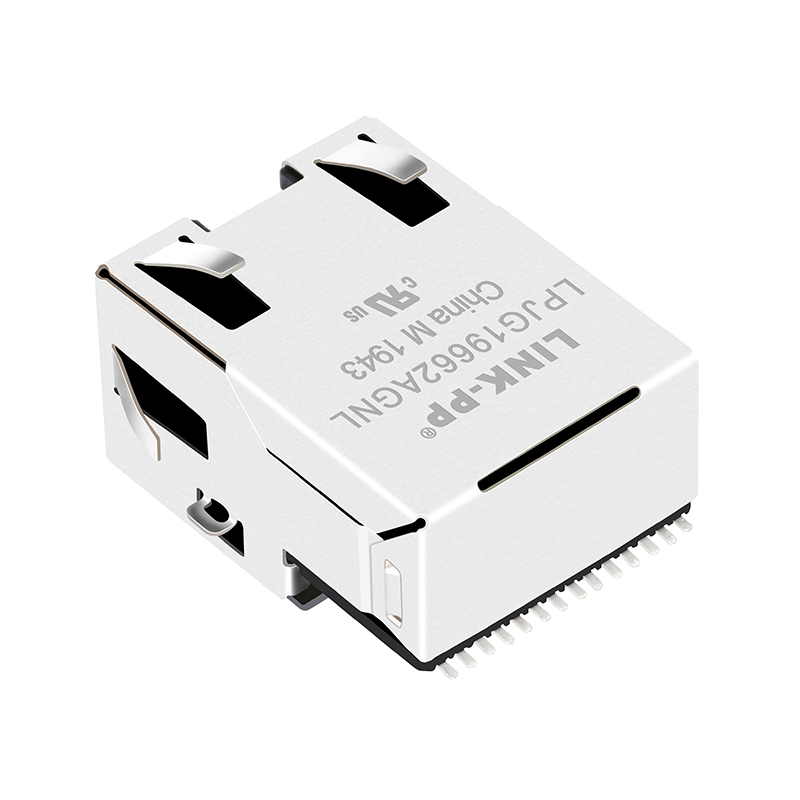

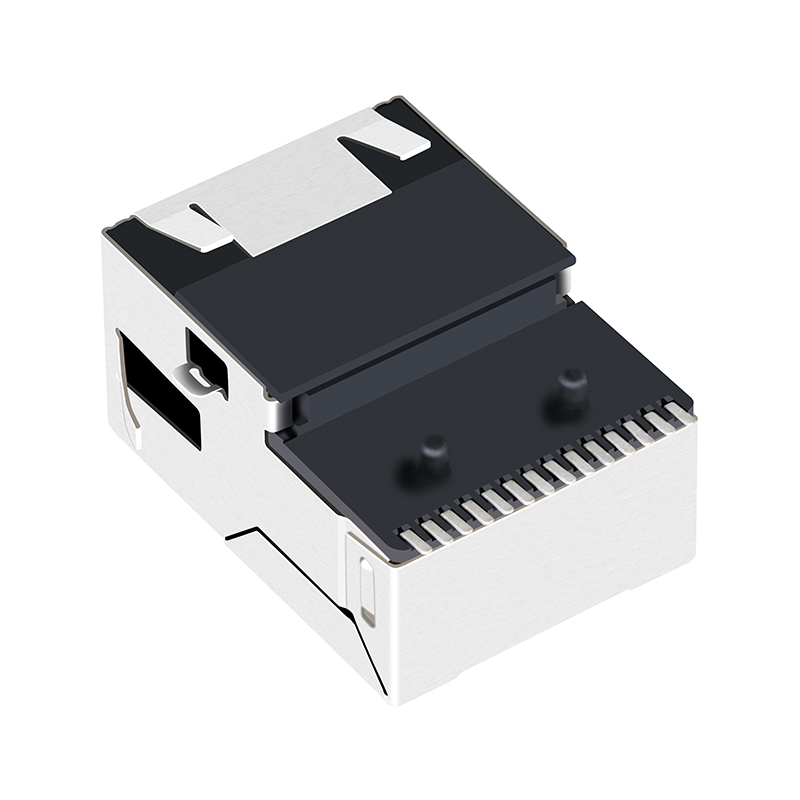

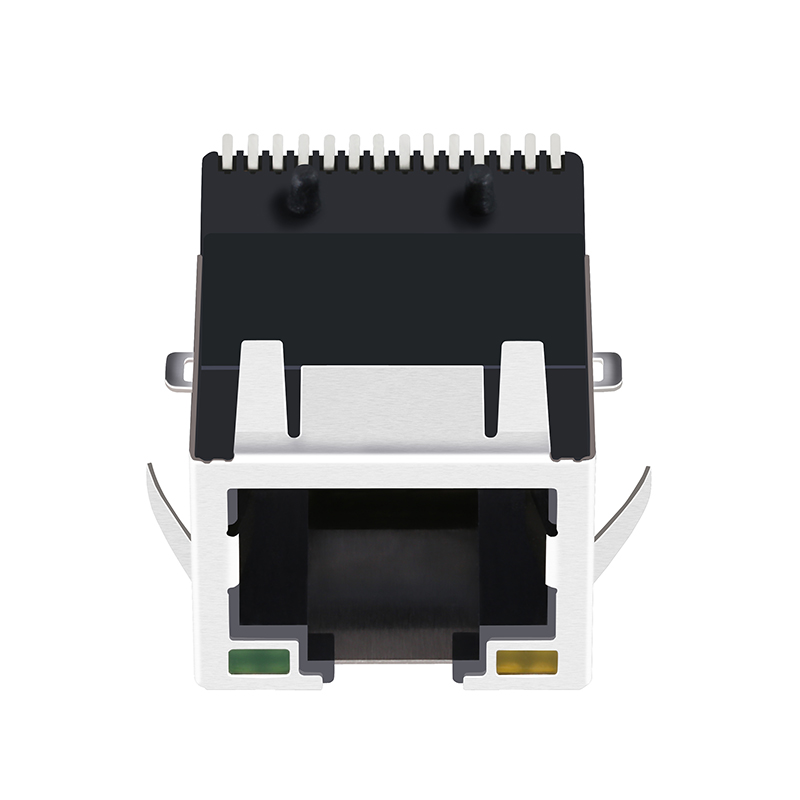

7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
1 / 5
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds

7498111120 Tab up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds

Send Inquiry

Product Description

Product Overview
7498111120 Tab Up 10/100/1000 Base-t Magnetic Ethernet Female SMT Surface Mount RJ45 Jack With Leds
Products Description
ItemRJ45 Female Connector
Part NumberLPJG19662AGNL
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100/1000 Base-T
LatchUp
Cores per Port8
Orientation180° Angle
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionYellow/Green
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
