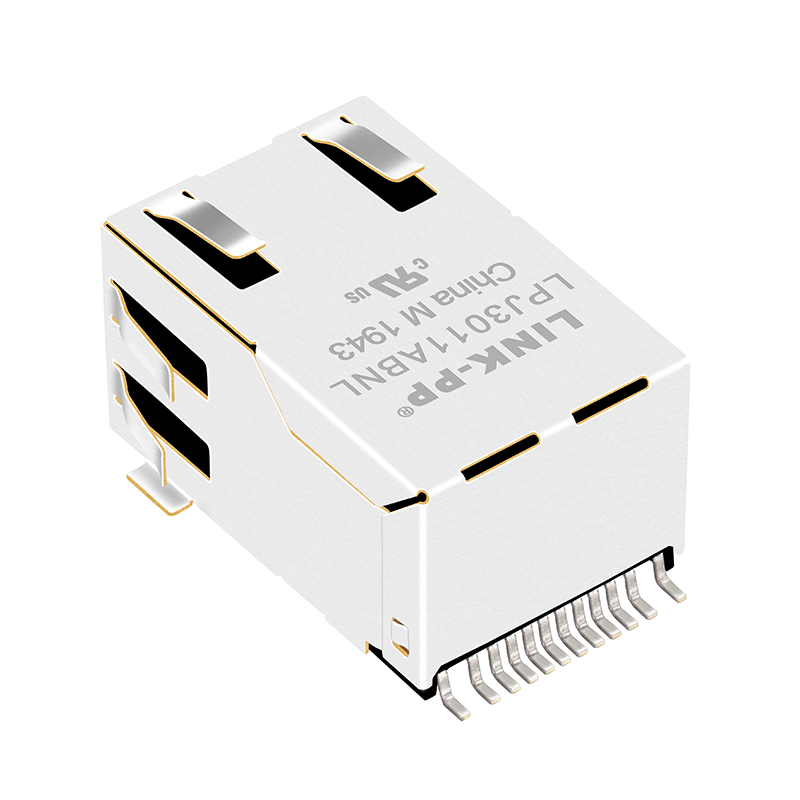

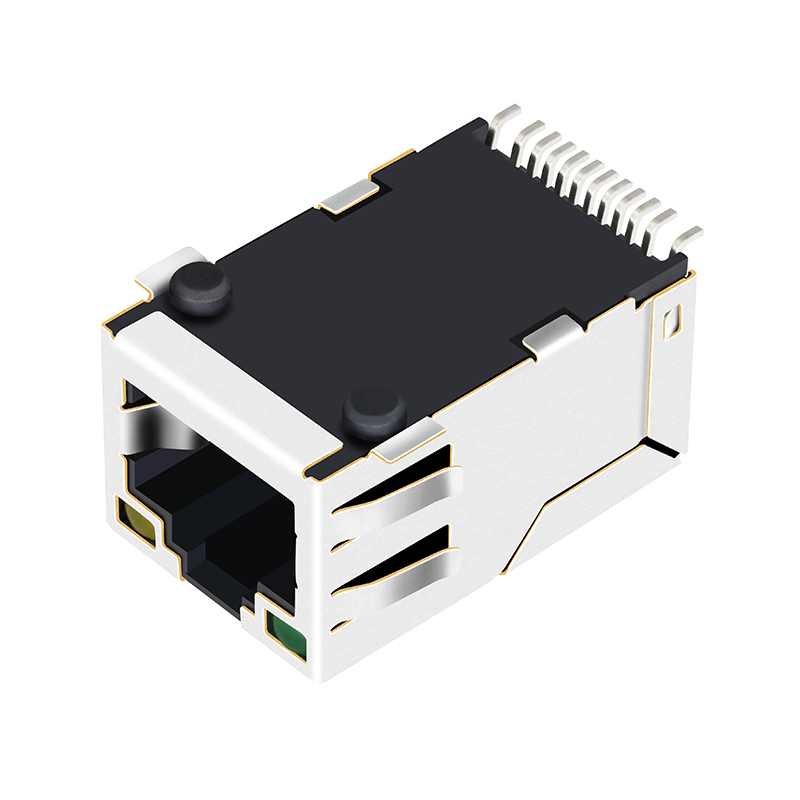

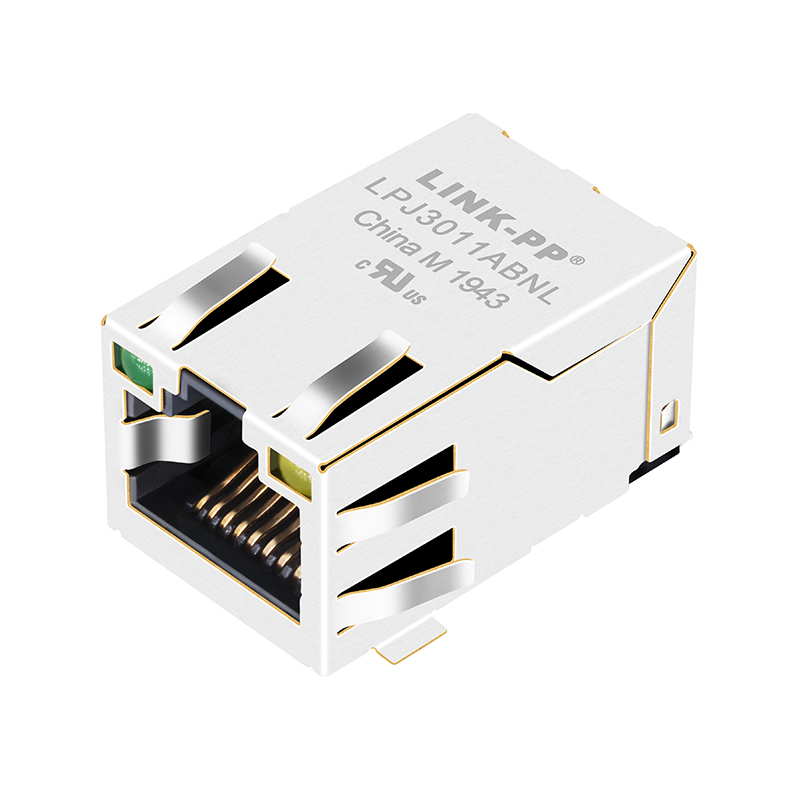

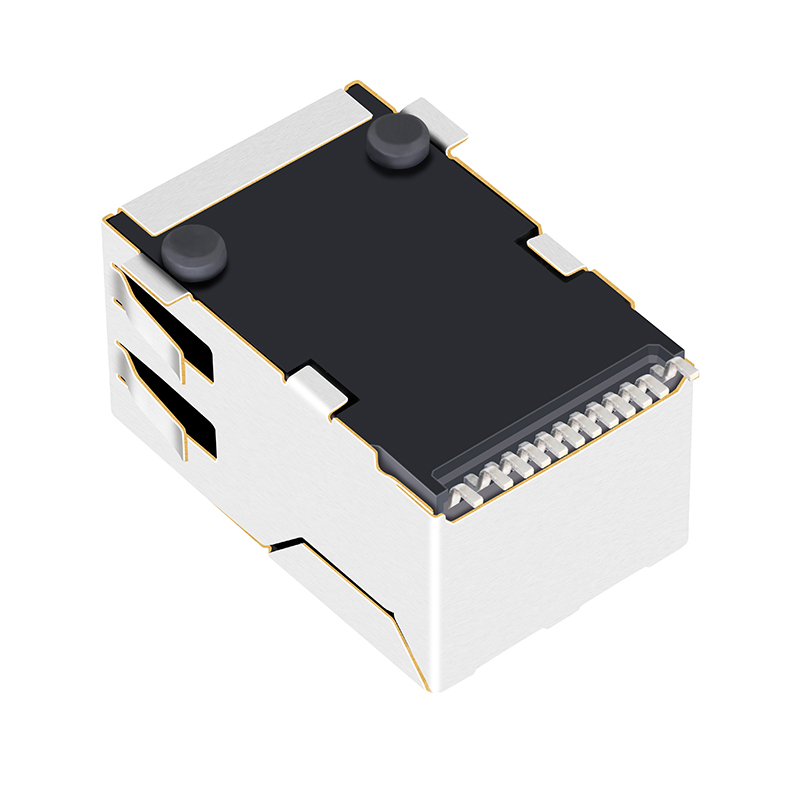

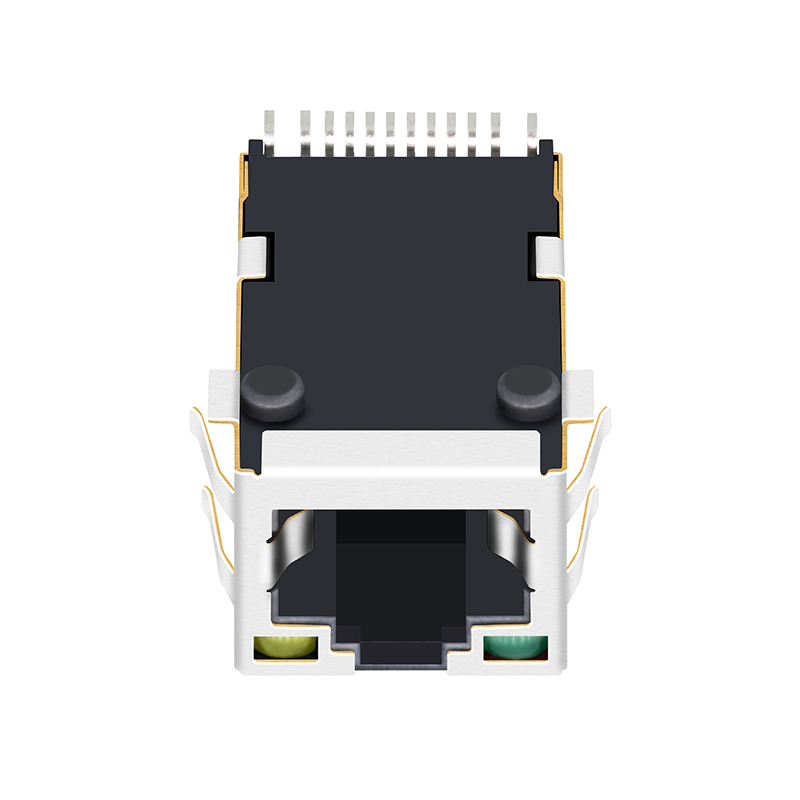

LPJ3011ABNL With G/Y Leds Tab up 100 Base-T RJ45 Jack Connector SMT RJ-45 Connector

📦 Product Description

📋 Specifications

Model Number	LPJ3011ABNL
Part Status	Active
Connector Type	RJ45
Applications	10/100 Base-T, AutoMDIX
Mounting Type	Surface Mount (SMT)
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Green - Yellow
Number of Cores	4 Cores per Jack
Shielding	Shielded, EMI Finger
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Up
Contact Finish	Gold
Configuration RX/TX	T, C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C

🚚 Packing & Delivery

Package Details:

110 pcs in 1 tray
6 trays in 1 carton (660 pcs total)
Carton Dimensions: 36 * 36 * 35 cm
Gross Weight: 7.4 KGS per carton

🏭 Manufacturing Excellence

❓ Frequently Asked Questions

1. What are the primary applications for the LPJ3011ABNL connector?

This RJ45 connector is specifically designed for 10/100 Base-T networking and AutoMDIX applications, making it ideal for routers, switches, and network interface cards.

2. What type of mounting does this RJ45 connector support?

The LPJ3011ABNL is a surface mount (SMT) type connector with a 90-degree right-angle orientation and a board guide for precise PCB placement.

3. How is the quality of these magnetic components guaranteed?

Quality is maintained through a rigorous process including pre-production samples before mass production and a final inspection of all units before shipment.

4. What are the packaging specifications for bulk orders?

Standard packaging consists of 110 pieces per tray. A full carton contains 6 trays (660 pieces), measuring 36x36x35 cm with a weight of approximately 7.4kg.

5. Does the connector include LED indicators?

Yes, this model features integrated Green and Yellow LEDs to provide visual status indicators for network connectivity and activity.

6. What certifications do these components hold?

Our manufacturing processes and products are certificated by ISO9001:2000, RoHS, REACH, CE, and UL standards, ensuring global compliance and reliability.
