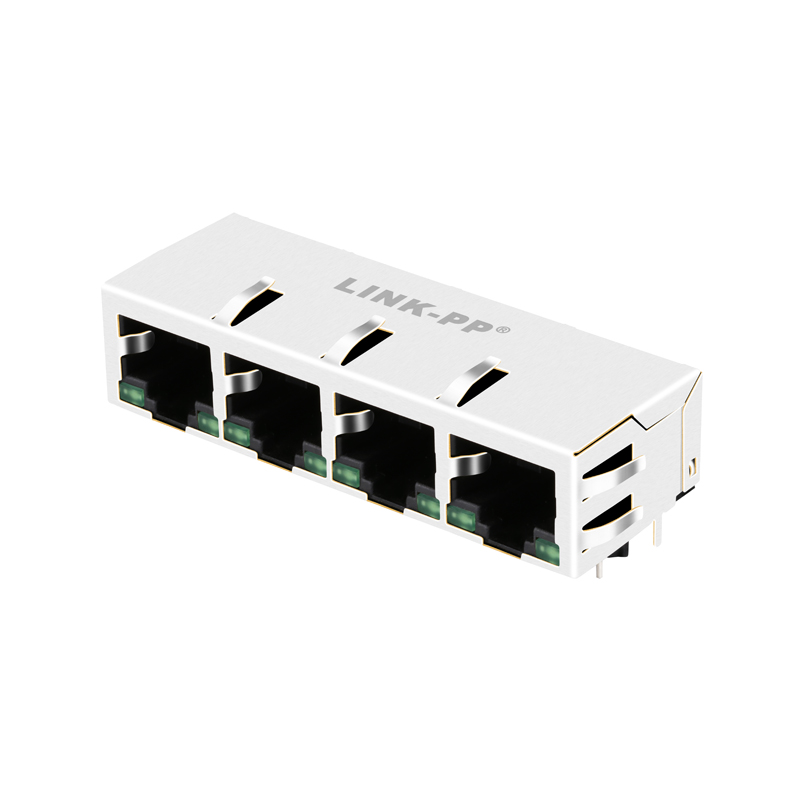

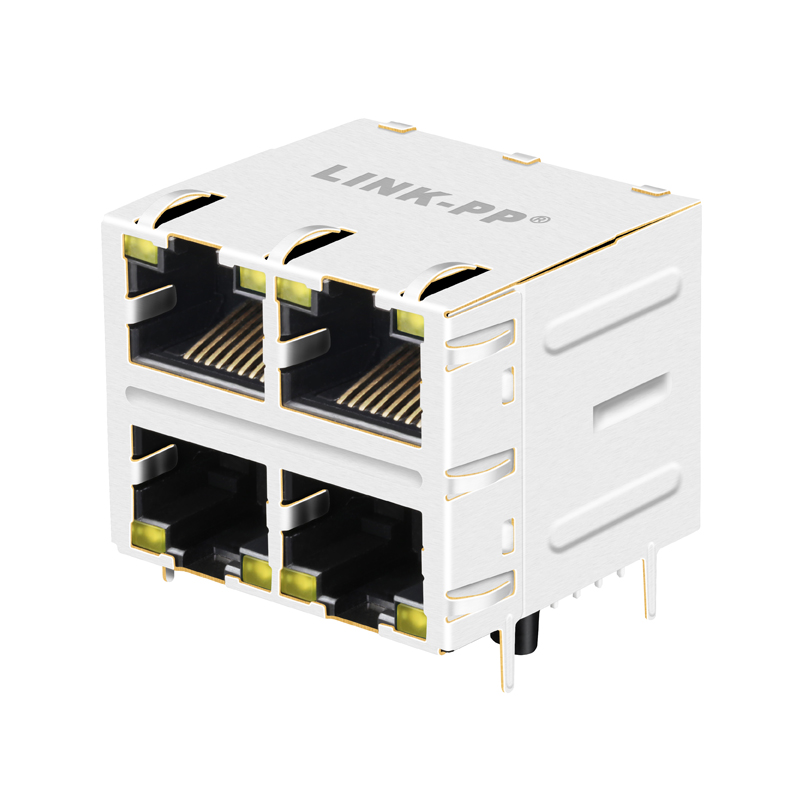

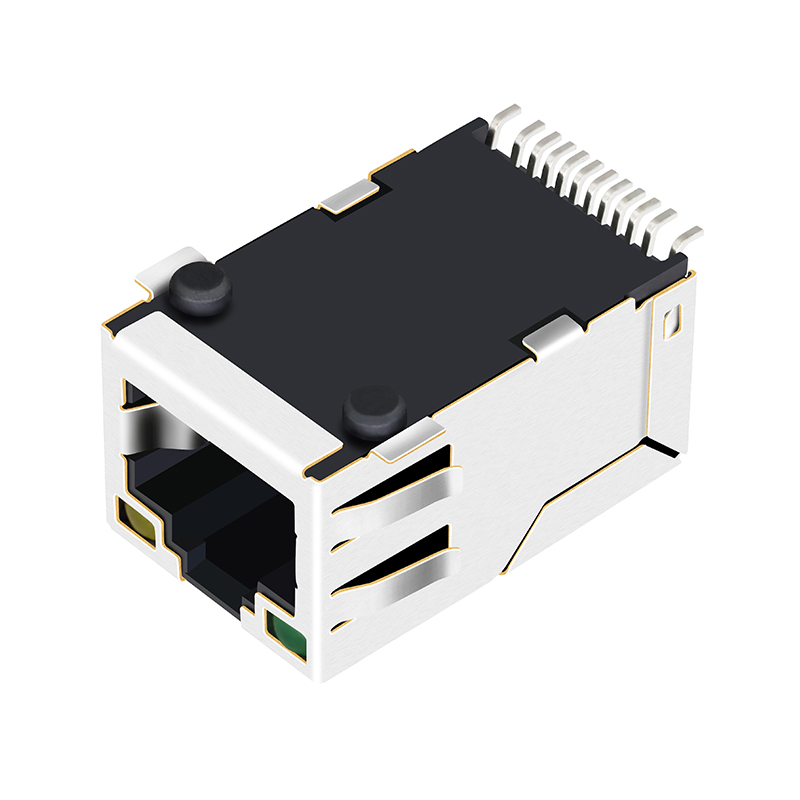

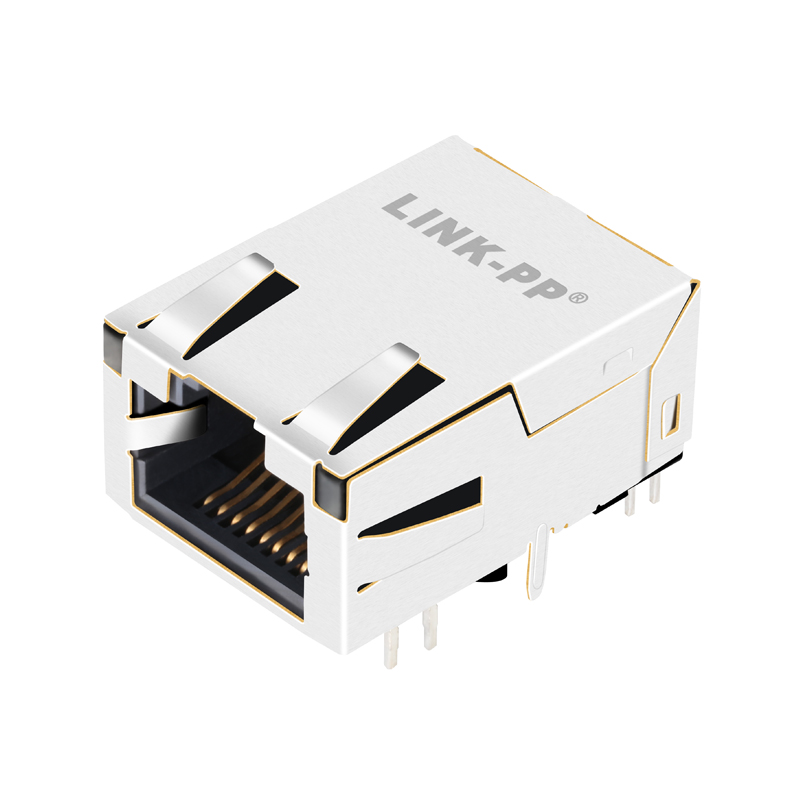

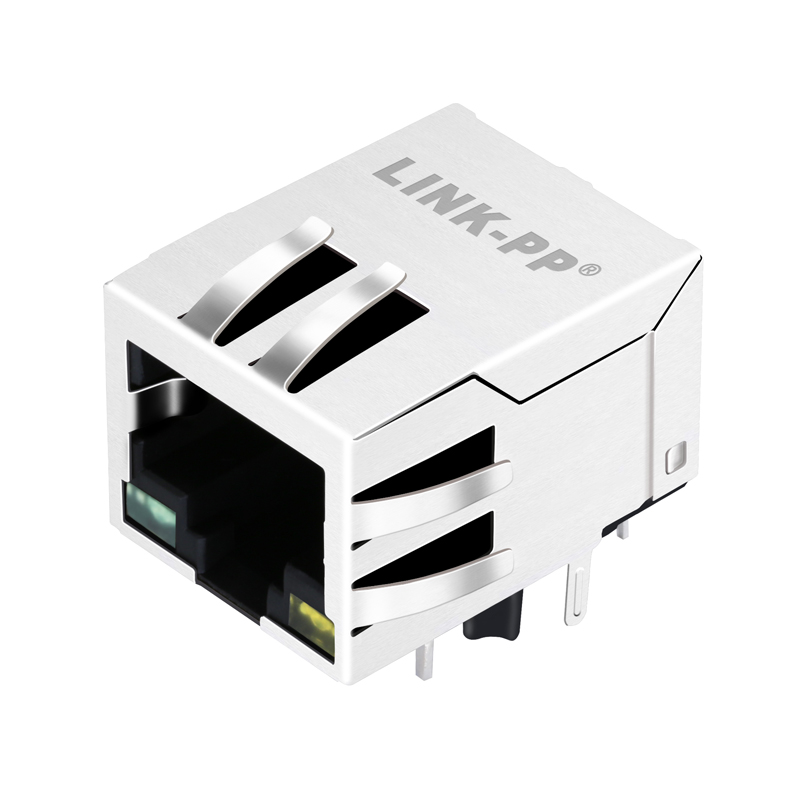

1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1 / 5
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack
1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack

1xN 2xN Low Profile Vertical SMT 10p8c 8p8c PCB Mount High Speed RJ45 Ethernet Port Female Magjack Conector RJ45 Jack

Send Inquiry

Product Description

📦
Product Description
Product Image
📋
Specification
Model NumberRJ45 Jacks
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(PoE/Non_PoE)
Speed10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack4/6/8/12
ShieldingShielded, Emi Finger
Number of Ports1xN, 2xN, Low Profile, Vertical, SMT, With Usb RJ45 Jack
FeaturesBoard Guide
Tab DirectionDown/Up
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C / -40°C ~ +85°C
🚚
Packing & Delivery

Package Details: Tray Packing

Carton Size: 32*30*31cm

Weight: G.W. 8.5kg / Carton (N.W/pcs: 0.007kg)

Quantity: 1200pcs/Carton (SPQ: 50pcs)

Packing Image
🏭
Visual Presentation
❓
FAQ
Q1: What types of connectors do you offer?
We provide a wide range of components including RJ45 Magnetic, Lan transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
Q2: What transmission speeds are supported by your RJ45 Jacks?
Our products support various speeds ranging from 10/100/1000 Base-T up to high-speed 2.5G, 5G, and 10G Base-T applications with AutoMDIX.
Q3: How do you ensure product quality?
We maintain strict quality control by always providing a pre-production sample before mass production and performing a final inspection before every shipment.
Q4: What are the available mounting and orientation options?
The connectors are designed for Through Hole mounting with a 90° Angle (Right) orientation, featuring solder termination and gold contact finish.
Q5: Can these connectors be used in extreme temperatures?
Yes, we offer options for different environments, with operating temperature ranges from 0°C ~ 70°C for standard use and -40°C ~ +85°C for industrial applications.
Q6: Do the RJ45 jacks include shielding and LED options?
Yes, our jacks are shielded with EMI fingers and come with various LED color configurations such as Yellow/Green and Green/Yellow to meet your requirements.
