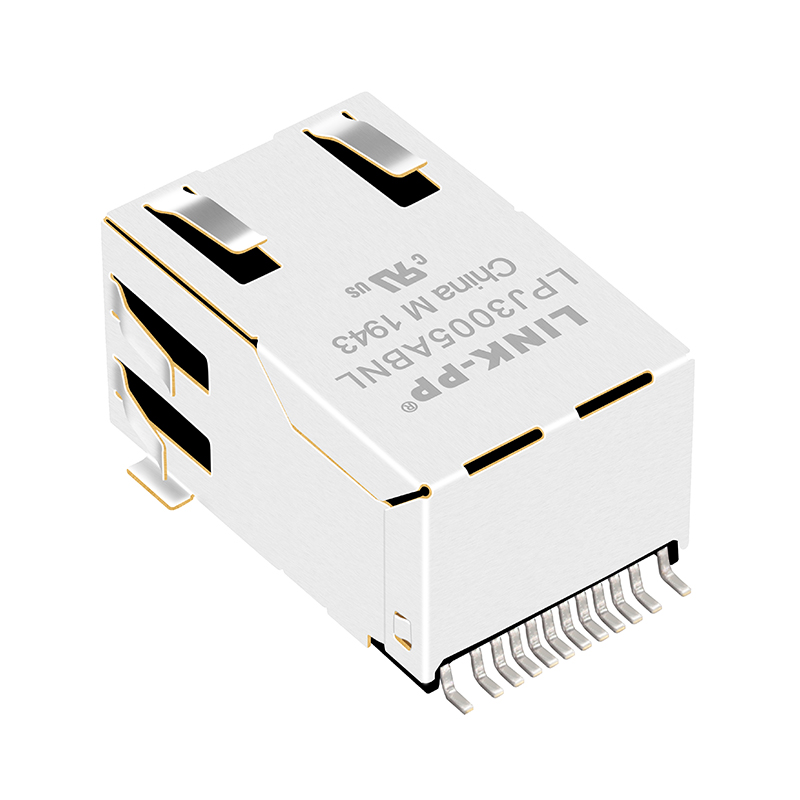

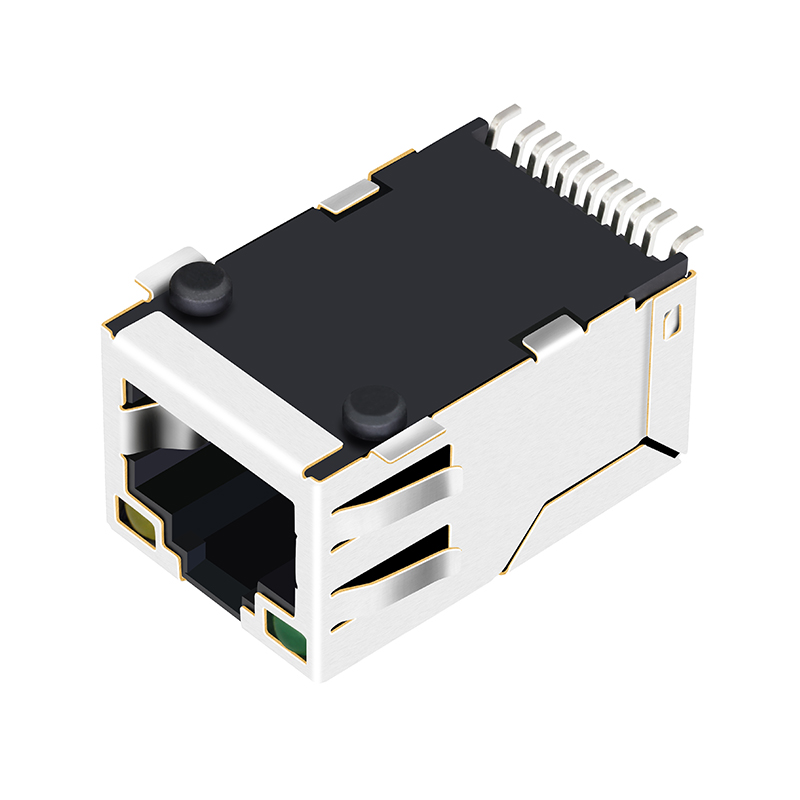

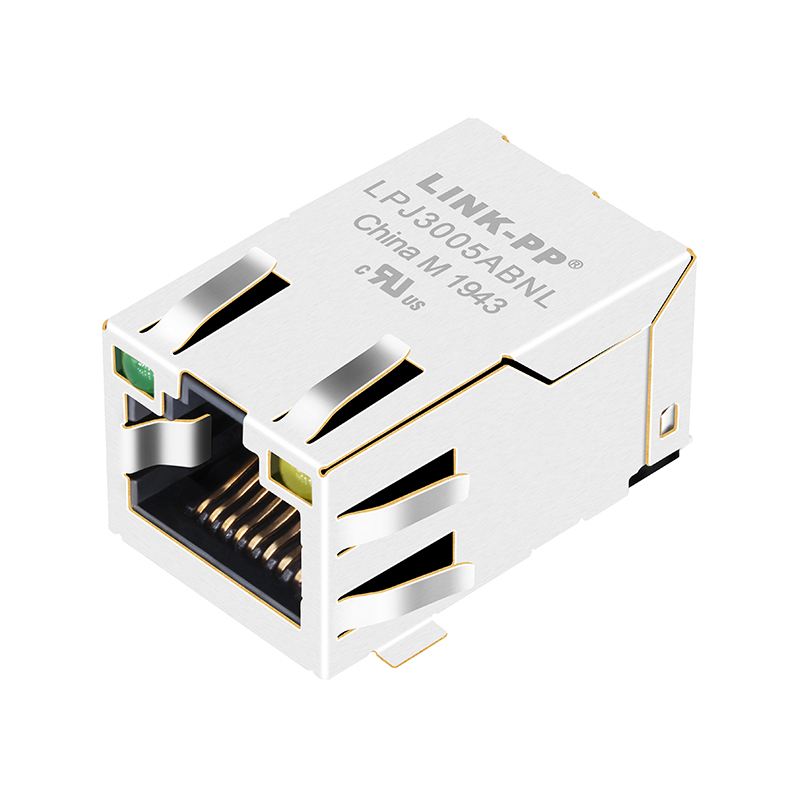

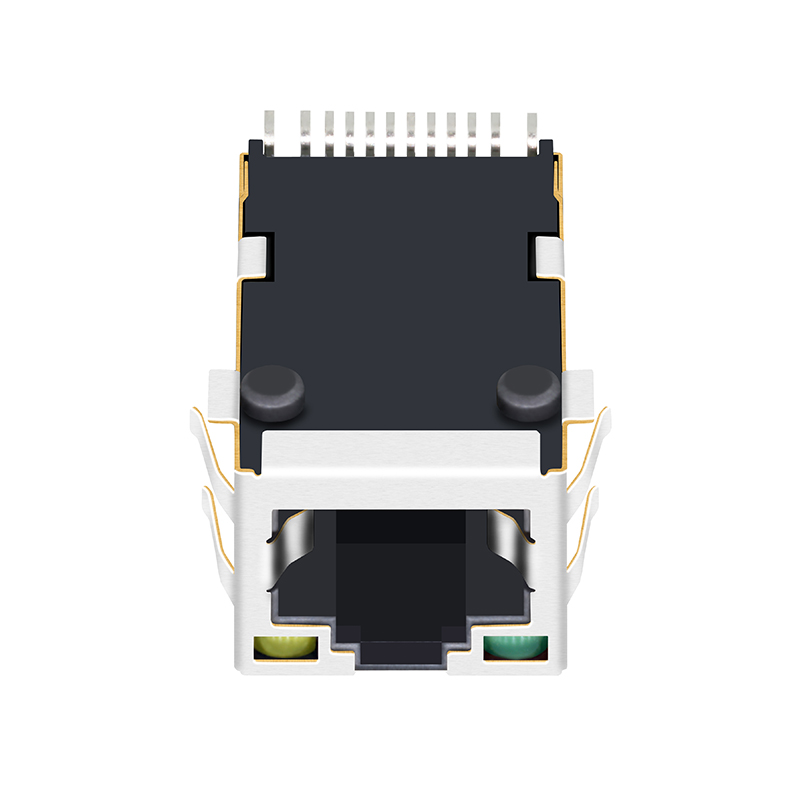

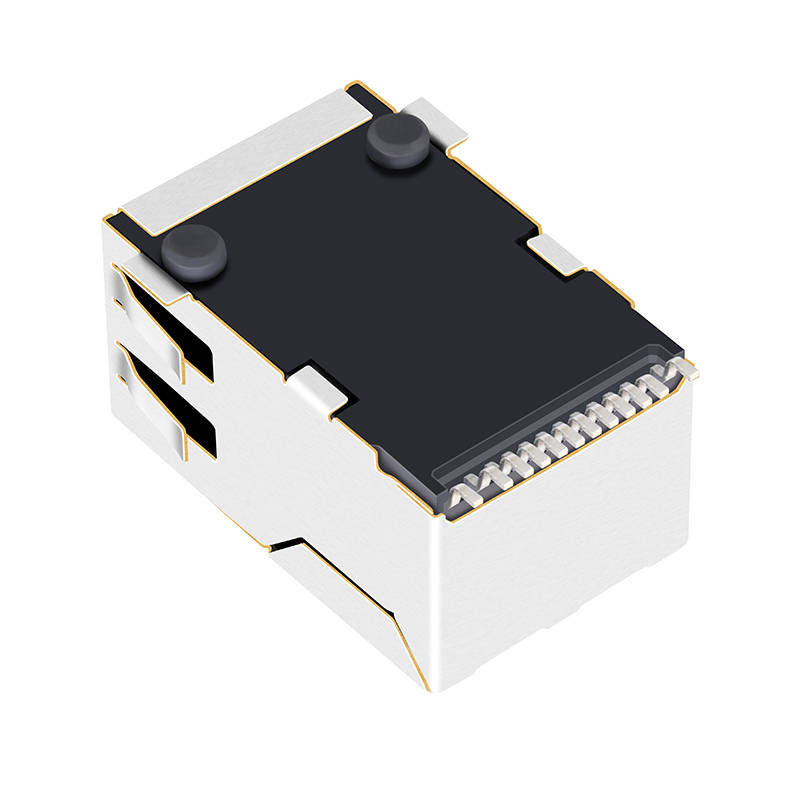

JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector

1 / 5

JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector

Send Inquiry

Product Description

⚙️ Products Description

Item	RJ45 Female Connector
Part Number	LPJ3005ABNL
Cross Reference	JX30-0005NL 74980111211 J3011G21DNL
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port
Speed	10/100 Base-T
Latch	Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With
LED Option	Green/Yellow
PCB Material	FR4
PCB Retaining Post	T POST
Operating Temperature	-40℃ TO 85℃
Bst Circuit	Yes
AutoMDIX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

🔍 Explore More Professional Networking Components

🏭 Production & Quality Control

🏢 Professional Profile

Established for over two decades, we are a professional designer and manufacturer specializing in magnetic telecom and networking components. Our extensive line includes state-of-the-art catalog products and customized capabilities to meet diverse industry needs. As a global supplier to OEMs, contract manufacturers, and CEMs, we serve thousands of customers worldwide. With multi-warehouse systems and a commitment to inventory availability, we strive to be a leading provider of Ethernet RJ45 connectors and LAN transformers.

❓ Frequently Asked Questions

Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer free samples for quality testing purposes, though shipping costs are the responsibility of the customer.

What is your typical delivery time?

Stock items are ready for immediate shipment. For mass production, the lead time is generally between 15 to 30 days.

What after-sales service do you provide?

We provide a one-year guarantee period along with 24-hour online technical support to assist with any inquiries.

Do you accept OEM or ODM orders?

Yes, we welcome OEM and ODM requirements. Please contact us with your specifications for a detailed discussion.

What are your core advantages?

With nearly 20 years of specialized production experience, we have established long-term partnerships with global industry leaders, ensuring reliable quality and professional service.
