Home > Single Port RJ45 Connector > Female RJ45 for Internet Modular Plug TIC-L003-11

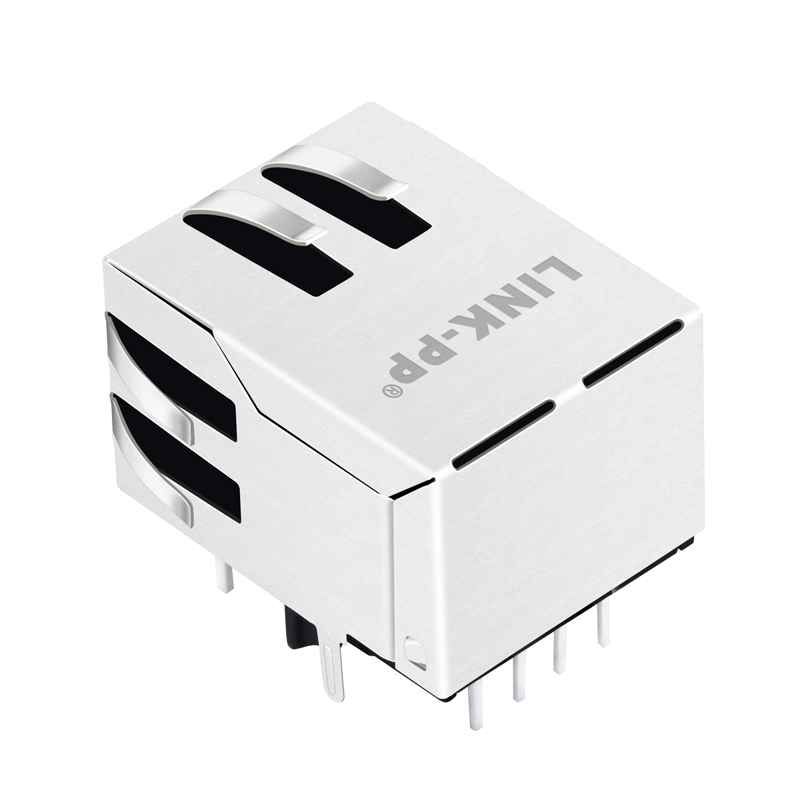

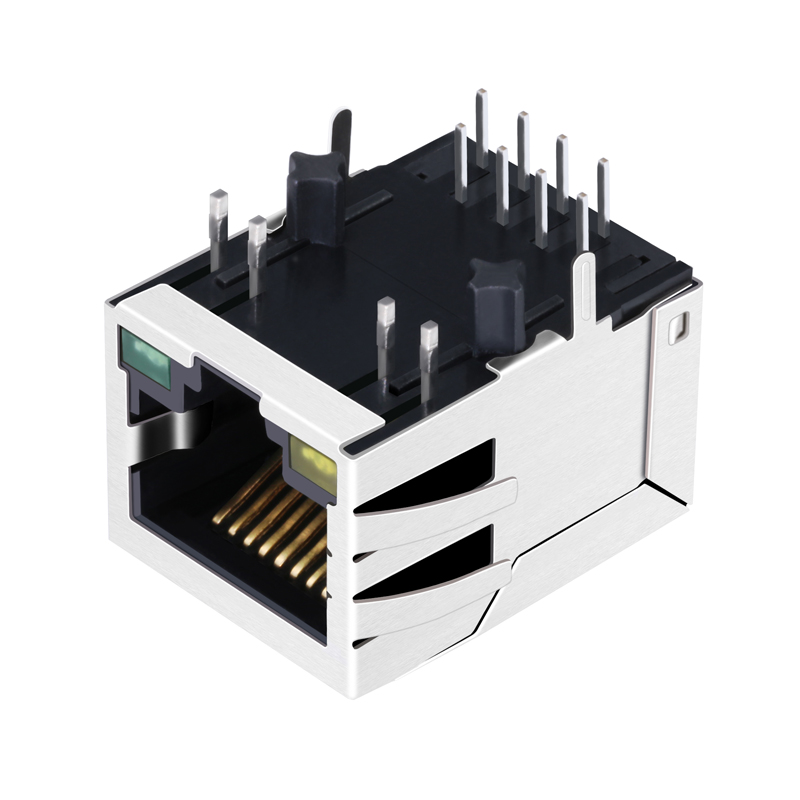

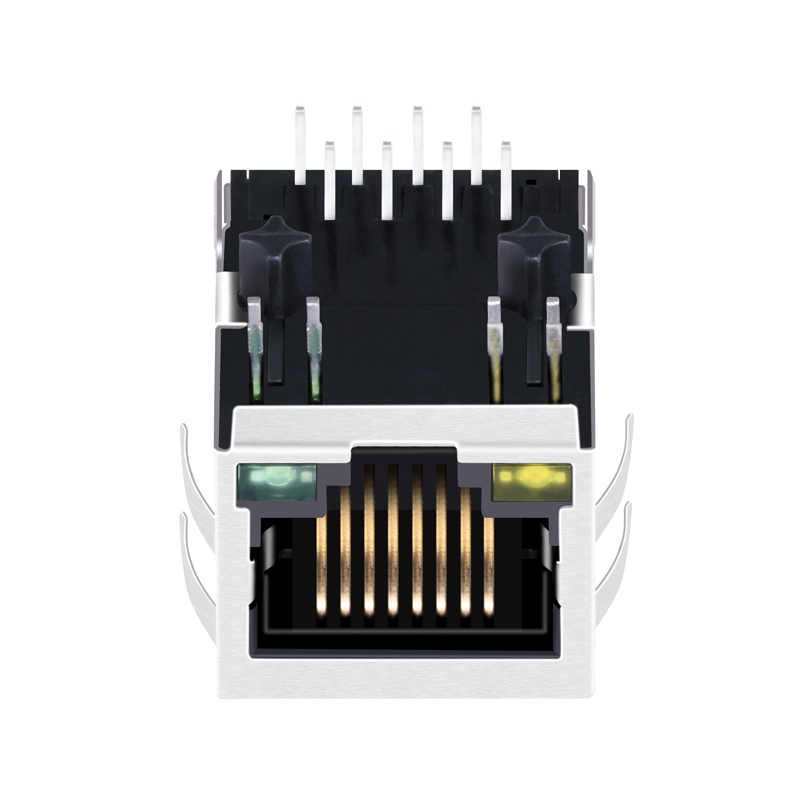

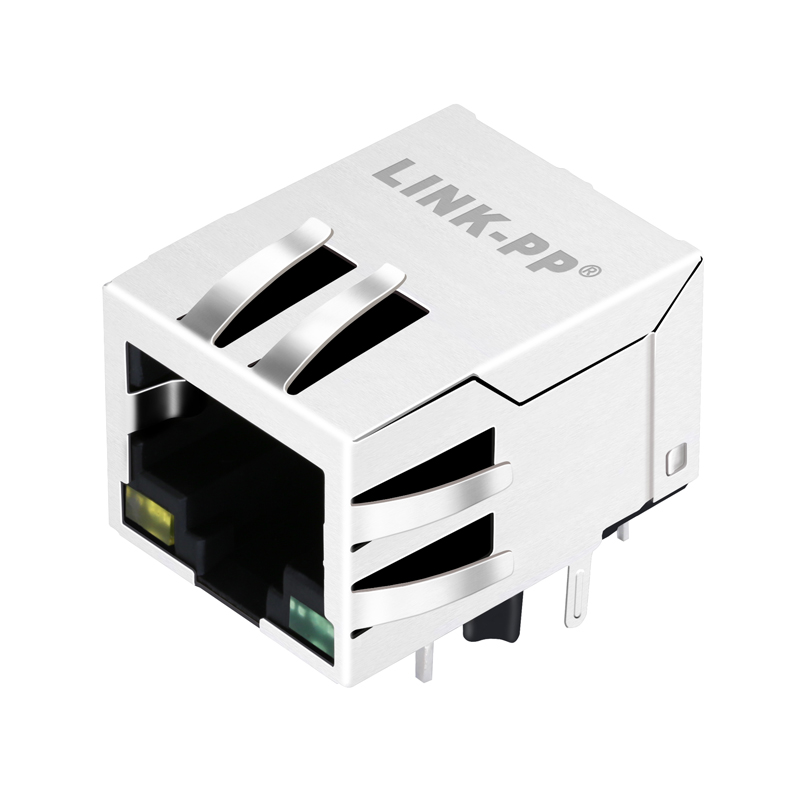

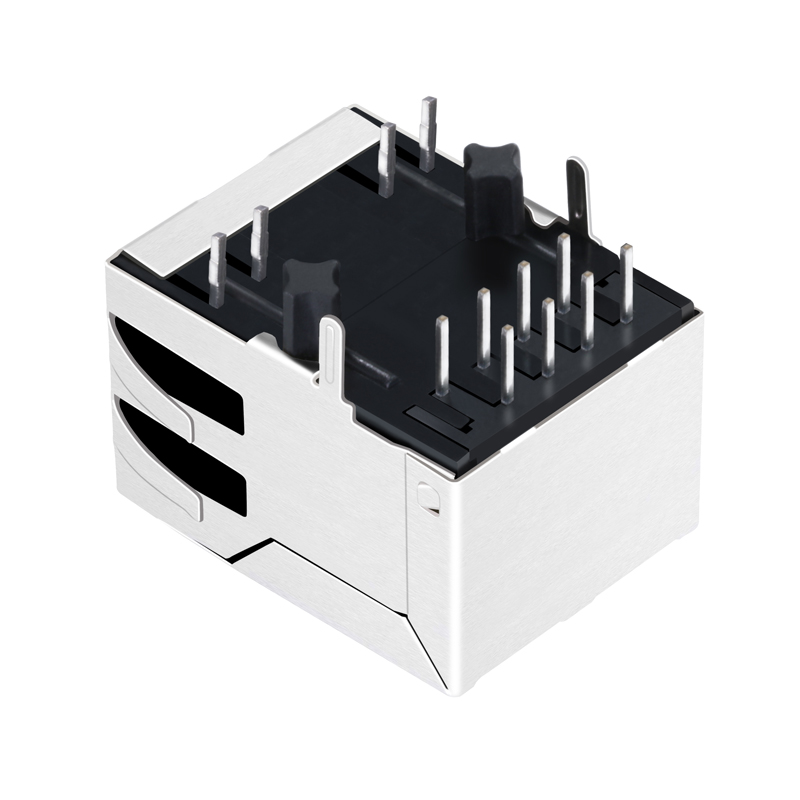

Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11
1 / 5
Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11
Female RJ45 for Internet Modular Plug TIC-L003-11

Female RJ45 for Internet Modular Plug TIC-L003-11

Send Inquiry

Product Description

TIC-L003-11 Banner

Female RJ45 for Internet Modular Plug TIC-L003-11

TIC-L003-11 Product View TIC-L003-11 Details
Part NumberTIC-L003-11
AutoMDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Cores Per Port4
DiodesNO DIODES
LED OptionWithOUT LEDS
LatchDOWN
Number of Ports1X1
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 With LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWith OR WithOUT
Speed10/100 BASE-T
Temperature0 TO 70°C/-40 TO 85°C
Turns Ratio RX1CT:1
Turns Ratio TX1CT:1
Why Choose Our Solutions

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification
  • ISO 9001:2008
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy
100% Guarantee Quality
  • Manufactured Under Strict Controls.
  • 100% Tested (Not Just Batch Tested)
  • OEM Of TE (Tyco) For 9 Years
  • Successful Customer: Texas Instruments, Samsung, Cisco, Siemens And Intel…
  • Preferred Supplier Of TI (Texas Instruments)
  • Quality Guarantee: 6 Years
Competitive Price And Service
  • More Competitive Price Than Pulse, Tyco, Halo, Wurth And Amphenol
  • Delivery Time: 2-3 Weeks After Orders
  • Free Samples Are Available
  • Provide New Design For Customer Requirements
  • 90% Off Shipping Cost By DHL, UPS, FEDEX Or TNT
Corporate Policy
  • The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
  • Committed To And Expects Quality Performance From Every Employee
  • The Company Standard Is Defect-Free Products And Services
TIC-L003-11 Technical Drawing TIC-L003-11 Dimensions
TIC-L003-11 Schematic TIC-L003-11 Internal Structure

• Preferred Supplier Of TI Samsung Cisco Siemens …

Welcome To Visit The TI Website to view our components on BeagleBone boards

You Will Look At Our Logo on BeagleBone Board

Quality Banner
Production Facility Quality Testing
Frequently Asked Questions (FAQ)
Q1: What is the transmission speed of the TIC-L003-11 RJ45 connector? A1: The TIC-L003-11 supports 10/100 BASE-T speeds, making it ideal for standard Ethernet applications.
Q2: Does this connector come with integrated LEDs? A2: No, this specific model (TIC-L003-11) is designed without LEDs.
Q3: What are the options for contact mating area plating? A3: We offer multiple gold plating thicknesses including 6u", 15u", and 30u" to meet different durability requirements.
Q4: What is the operating temperature range for this component? A4: The TIC-L003-11 can operate in standard environments from 0 to 70°C, and industrial environments from -40 to 85°C.
Q5: Is this RJ45 connector RoHS compliant? A5: Yes, it is RoHS-5 compliant with lead-in solder exemption.
Q6: What mounting orientation does this connector use on the PCB? A6: It features a Side Entry (Right Angle) PCB mount angle with THT (Through-Hole Technology) solder pins.
