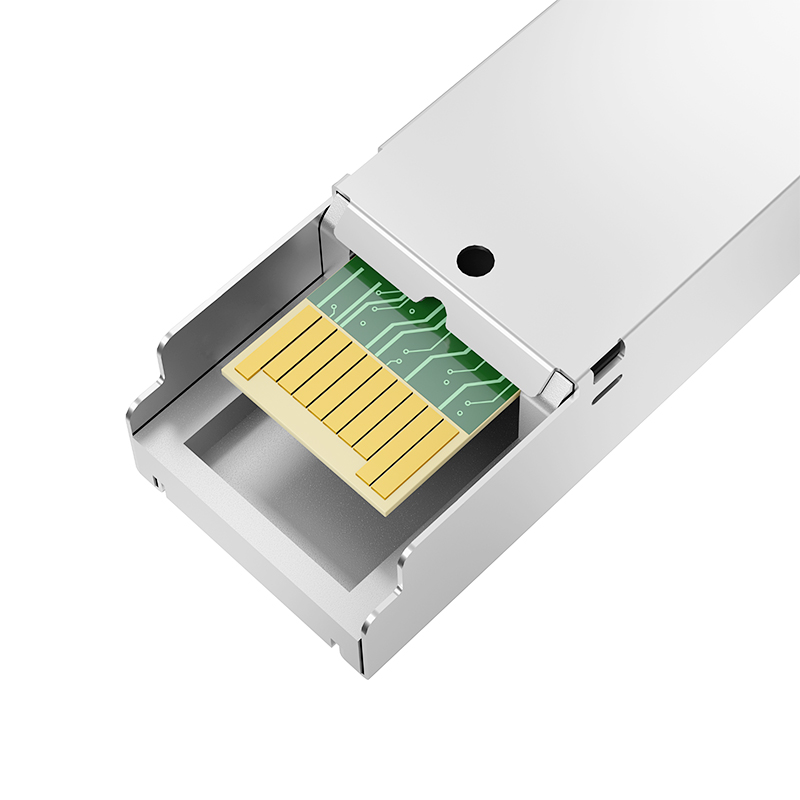

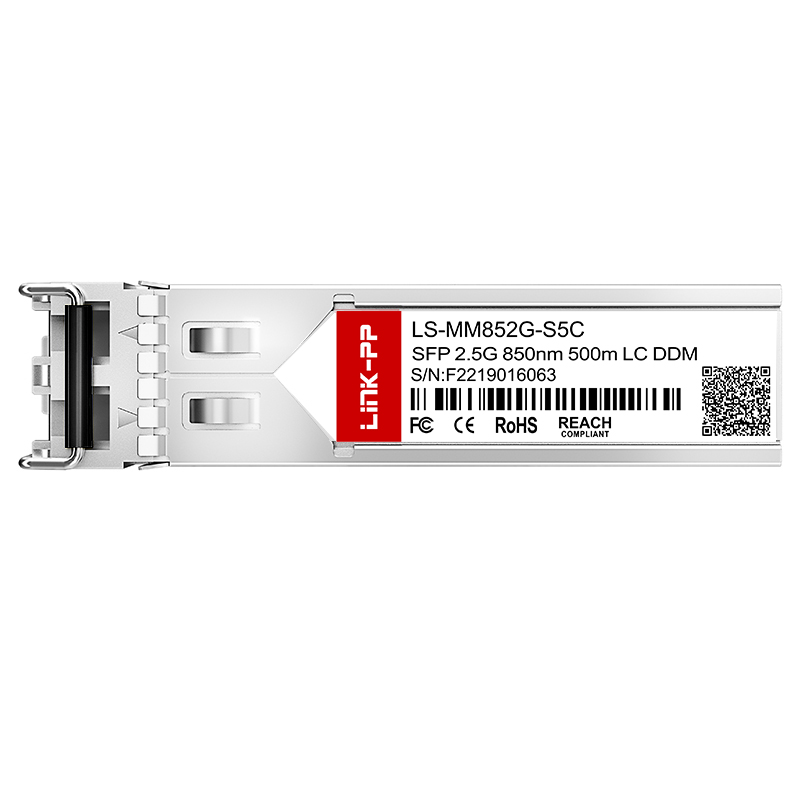

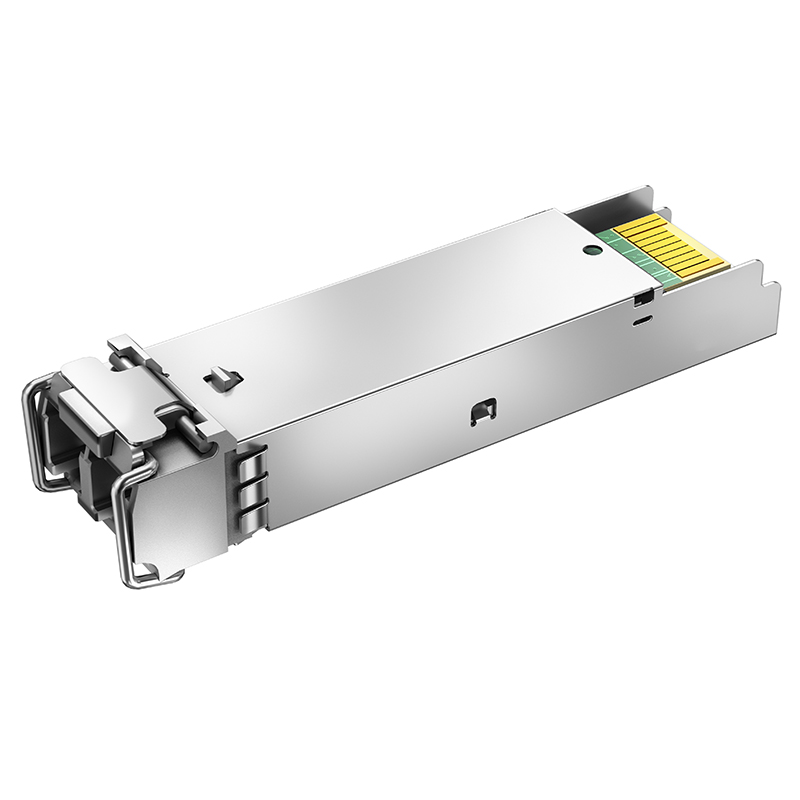

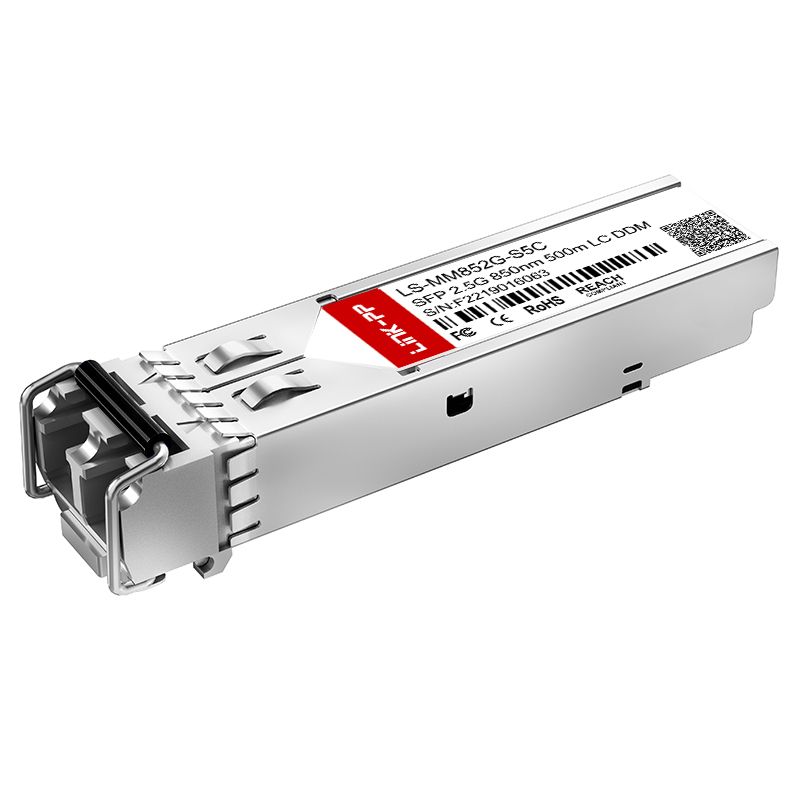

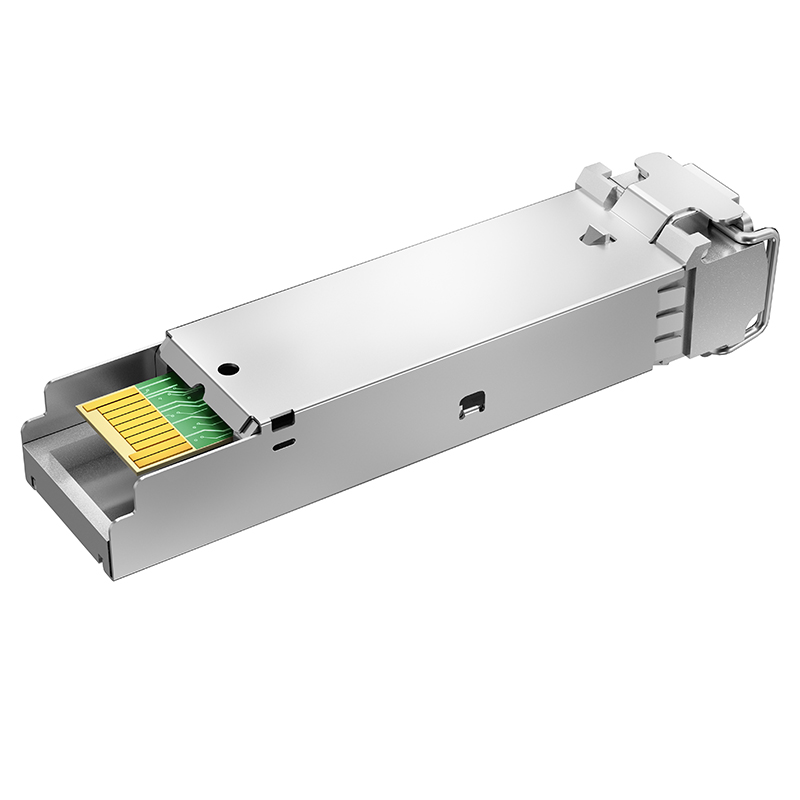

Multi Mode 850nm SFP 2.5G 550m MMF Duplex LC Optic Transceiver Module

1 / 5

Multi Mode 850nm SFP 2.5G 550m MMF Duplex LC Optic Transceiver Module

Send Inquiry

Product Description

Technical Specifications

Form Factor	SFP
Max Data Rate	2.5Gbps
Wavelength	850nm
Max Cable Distance	550m
Connector	Duplex LC
Media	MMF (Multi-mode Fiber)
Transmitter Type	VCSEL
Receiver Type	PIN
TX Power	-9 ~ 0dBm
Receiver Sensitivity	< -18dBm
Receiver Overload	-1dBm
DDM/DOM	Supported
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years

View Our Solutions

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Support Full Range Of 2.5G SFP

Part Number	Data Rate	Wavelength	Distance	Media	DDM
LS-MM852G-S3C	2.5Gbps	850nm	300m	Multi-mode	Yes
LS-MM852G-S5C	2.5Gbps	850nm	550m	Multi-mode	Yes
LS-SM312G-02C	2.5Gbps	1310nm	2km	Single Mode	Yes
LS-SM312G-10C	2.5Gbps	1310nm	10km	Single Mode	Yes
LS-SM312G-15C	2.5Gbps	1310nm	15km	Single Mode	Yes
LS-SM312G-20C	2.5Gbps	1310nm	20km	Single Mode	Yes
LS-SM552G-20C	2.5Gbps	1550nm	20km	Single Mode	Yes
LS-SM312G-40C	2.5Gbps	1310nm	40km	Single Mode	Yes
LS-SM552G-40C	2.5Gbps	1550nm	40km	Single Mode	Yes
LS-SM552G-80C	2.5Gbps	1550nm	80km	Single Mode	Yes

Application Fields

Optical Transport Networks

We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions.

Wireless

High reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.

FTTx

For global communication network constructers, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.

Related Products SFP Cage

Why Choose Us

As a specialized manufacturer of magnetic telecom and network components, we are certified by ISO9001:2000, ROSH, REACH, CE and UL. With advanced manufacturing equipment imported from abroad and an abundant production capacity, we deliver high-quality products within short lead times. We design, manufacture, and sell optical interconnection solutions for cloud computing and ultra-broadband networks worldwide.

Frequently Asked Questions

Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer free samples to test quality, though the shipping fee should be covered by the requester.

What is your delivery time?

Stock items are ready to ship immediately; mass production typically takes 15-30 days.

What after-service do you offer?

We provide a one-year guarantee period and 24-hour online technical support.

Can you accept OEM/ODM orders?

Yes, we welcome OEM/ODM inquiries to meet your specific networking requirements.

What is your core advantage?

We have 19 years of professional production experience and serve as a reliable partner for world-leading technology integrators.
