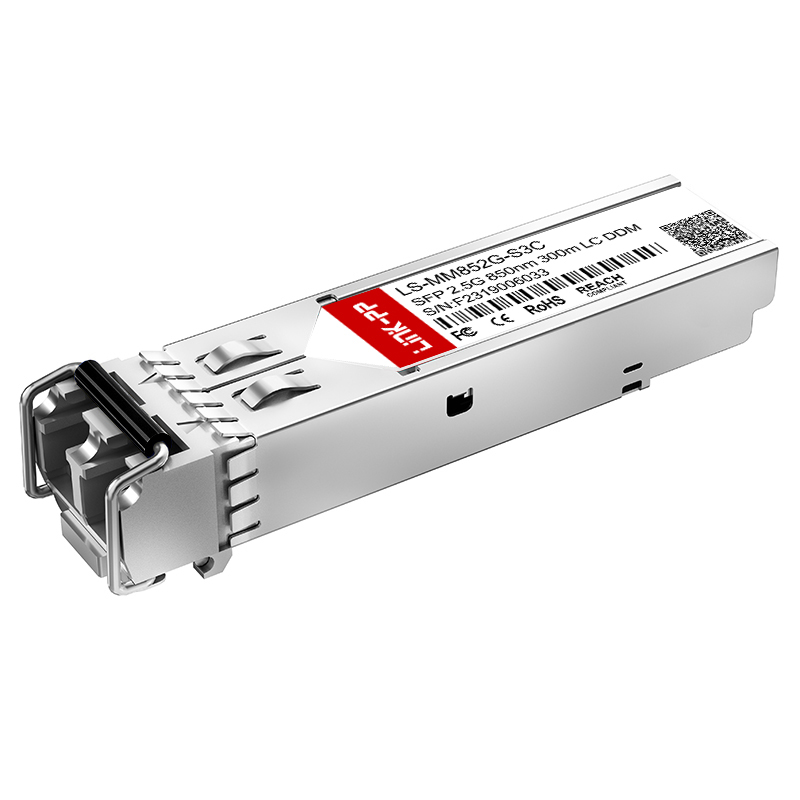

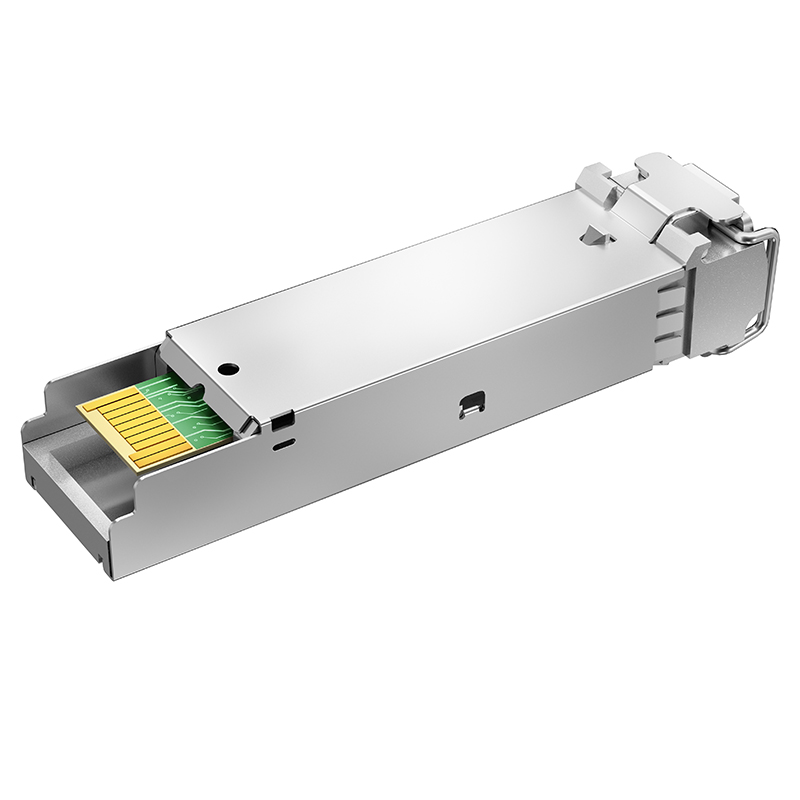

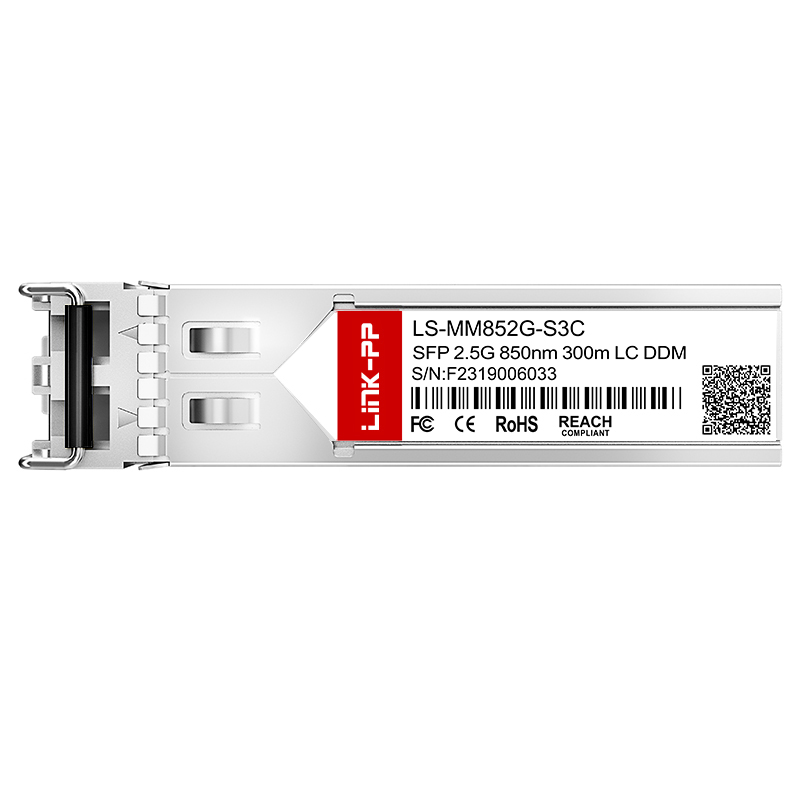

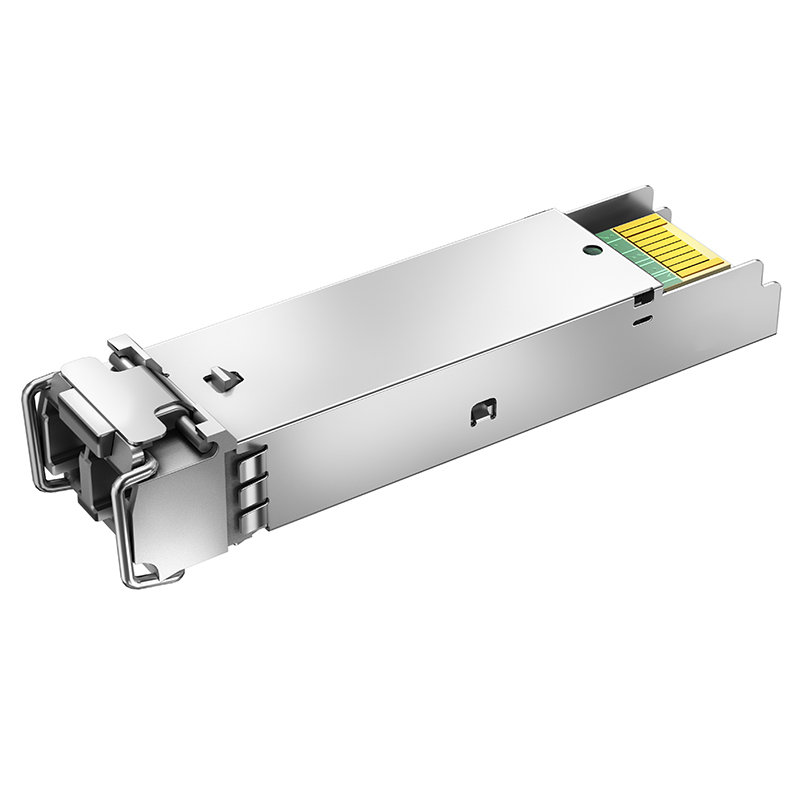

| Item | 2.5G SFP |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 2.5Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 300m |
| Media | MMF |

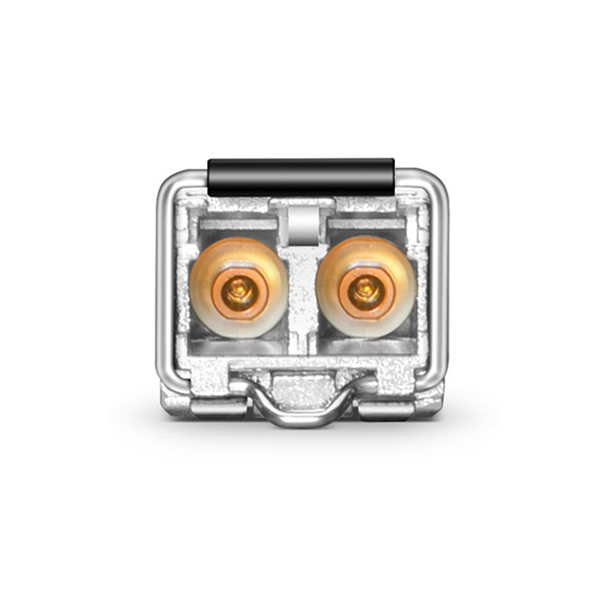

| Connector | Duplex LC |
| Optical Component | VCSEL/PIN |
| TX Power | -10~-3dBm |
| Receiver Sensitivity | <-18dBm |
| Receiver Overload | -3dBm |
| Power Consumption | 1W |
| Extinction Ratio | >8.2dB |
| DDM/DOM | Supported |
| Temperature Range | -10 to 70°C (-37 to 158°F) |
| Protocols | SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5 |
| Warranty | 5 Years |
| Sample | Available |
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing and test equipment. Established in 1997, we have a large dedicated staff and an abundant monthly production capacity, enabling us to deliver goods within a short lead time.
We provide professional complete solutions for magnetic components alongside strong technical support. Our products are widely used in networking and communication equipment such as hubs, switches, routers, IP phones, and modems. We have exported our products to more than 30 countries and regions worldwide, serving global leaders in the technology industry.
