We integrate fast speeds, small size, power savings, and high performance in every module. Providing a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

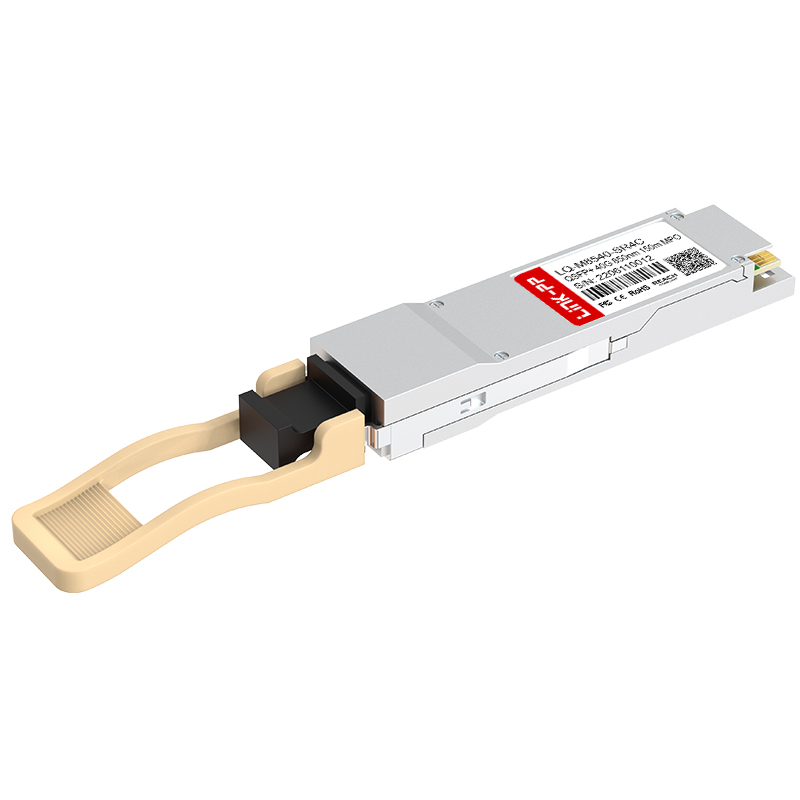

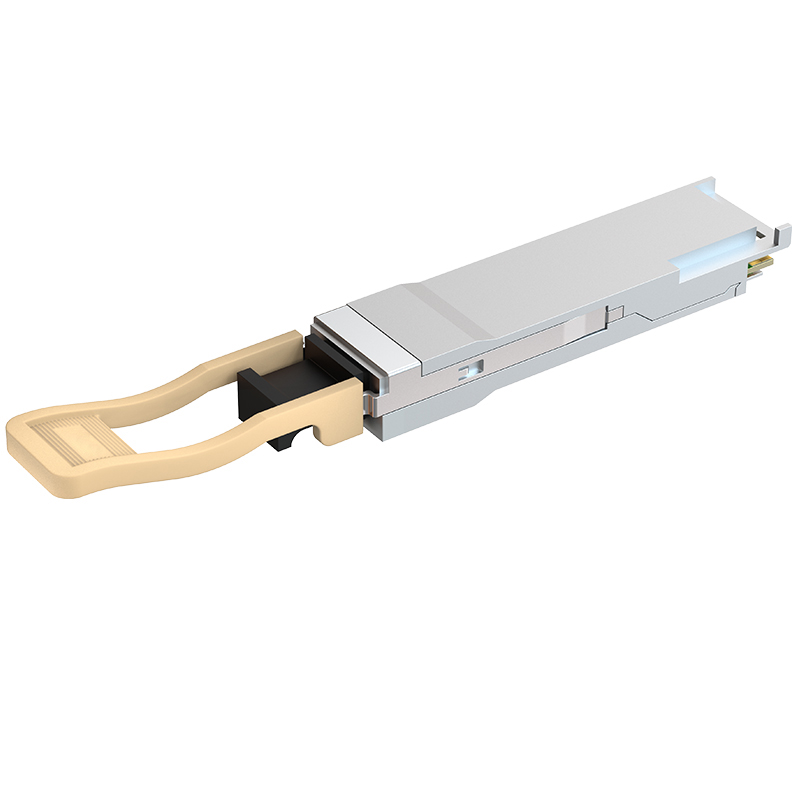

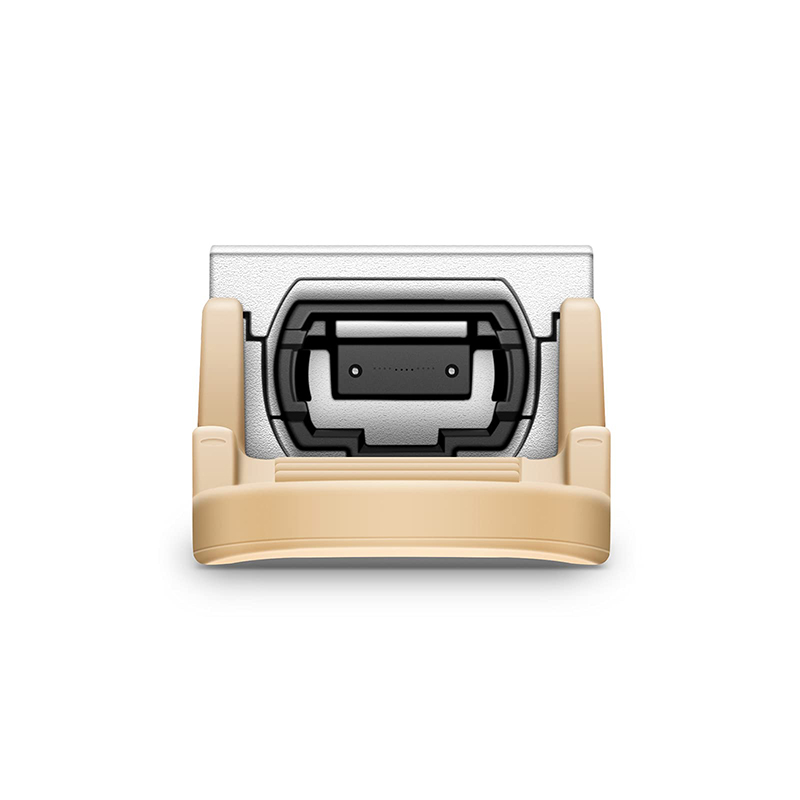

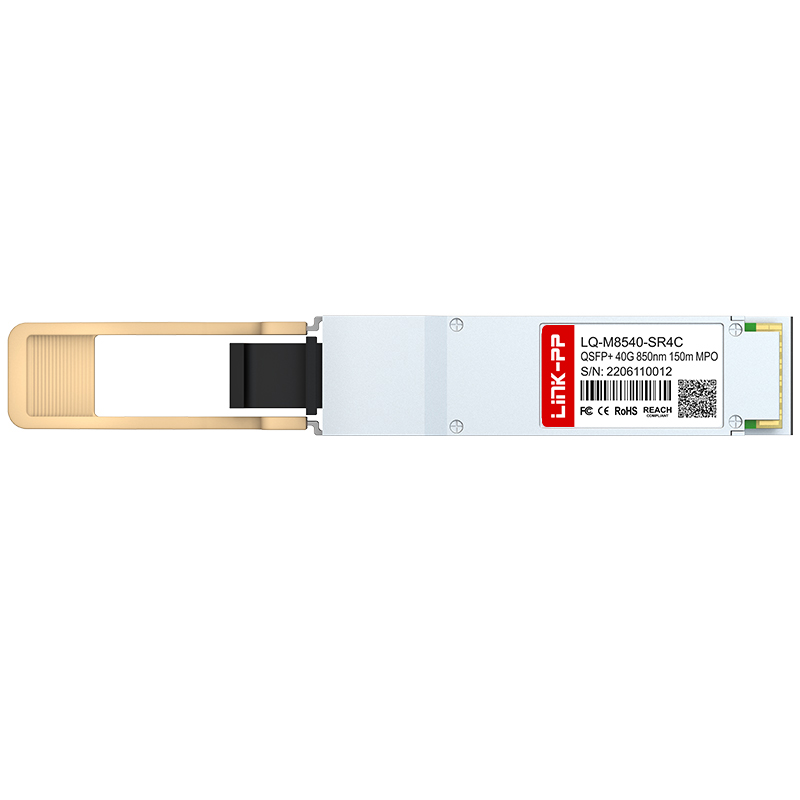

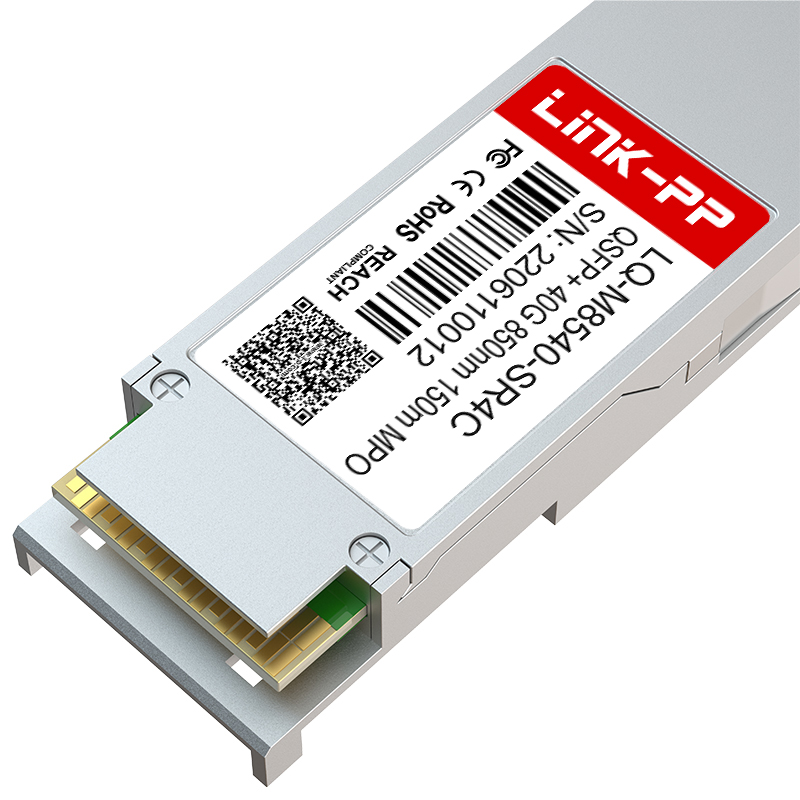

| Item | 40G QSFP+ Module |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 40G |
| Max Cable Distance | 150m@OM4/100m@OM3 |
| Wavelength | 850NM |
| Connector | MTP/MPO-12 Male |
| Media | MMF |
| Optical Component | VCSEL/PIN |
| TX Power | -7.1~1.9dBm |
| Receiver Sensitivity | <-10.3dBm |
| Receiver Overload | 2.4dBm |
| Power Consumption | <1.5W |
| DDM/DOM | Supported |
| Commercial Temperature | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636 |
| Warranty | 5 Years |
| Sample | Available |
End-to-end DWDM devices ranging from active modules to optical passive devices including amplifiers (EDFA & RFA), Mux & Demux, OPM, and OTDR.
High-speed optical interconnection solutions for data centers with rates ranging from 10G to 800G, meeting the demand for mass data transmission.
High reliability solutions for 4G/5G systems including Dark Fiber, WDM, and Radio over Fiber, covering all-optical and combined copper access.
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facilities include advanced manufacturing and test equipment imported from abroad to ensure the highest quality standards.
With an abundant productive capacity of 3000K units per month, we provide a full series of optical modules for fixed access, wireless access, and cloud computing interconnection globally.
