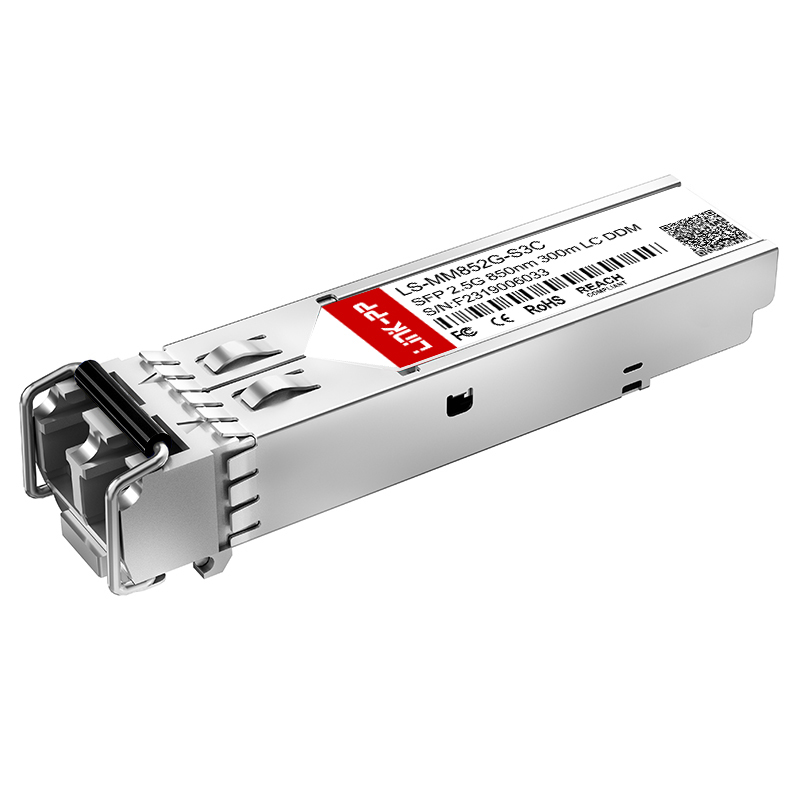

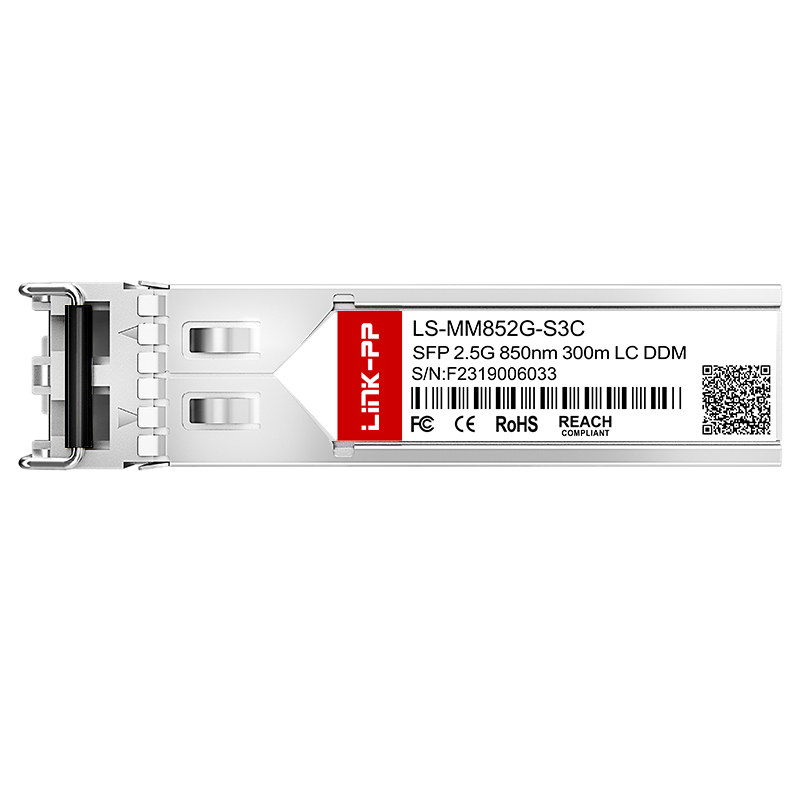

2.5GBASE-SX Multimode 850nm 2.5G SFP 300m Duplex LC MMF Optical Transceiver Module

1 / 5

2.5GBASE-SX Multimode 850nm 2.5G SFP 300m Duplex LC MMF Optical Transceiver Module

Send Inquiry

Product Description

2.5GBASE-SX Multimode 2.5G SFP 300m Duplex LC MMF Optical Transceiver Module

Part No.	LS-MM852G-S3C
Form Factor	SFP
Max Data Rate	2.5Gbps
Wavelength	850nm
Max Cable Distance	300m
Connector	Duplex LC
Media	MMF
Transmitter Type	VCSEL
Receiver Type	PIN
TX Power	-10 ~ -3dBm
Receiver Sensitivity	< -18dBm
Receiver Overload	-3dBm
EMC Supported	Yes
DDM/DOM	Supported
Protocols	SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years

VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Support Full Range Of 2.5G SFP

Part Number	Data Rate	Wavelength	Distance	Media	DDM
LS-MM852G-S3C	2.5Gbps	850nm	300m	Multi-mode	Yes
LS-MM852G-S5C	2.5Gbps	850nm	550m	Multi-mode	Yes
LS-SM312G-02C	2.5Gbps	1310nm	2km	Single Mode	Yes
LS-SM312G-10C	2.5Gbps	1310nm	10km	Single Mode	Yes
LS-SM312G-20C	2.5Gbps	1310nm	20km	Single Mode	Yes
LS-SM552G-80C	2.5Gbps	1550nm	80km	Single Mode	Yes

Optical Transport Networks

We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

Providing high reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.

Product Gallery

Why Choose Us

Our Capability

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL. With advanced manufacturing equipment and testing systems, we maintain a production capacity of 3000K per month, ensuring short lead times for high-speed optical interconnect solutions, cloud computing, and ultra-broadband networks.

Frequently Asked Questions

Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer free samples to test quality, with the shipping fee covered by the customer.

What is your delivery time?

Items in stock are ready to ship immediately; mass production typically takes 15-30 days.

What after-sales service do you offer?

We provide a one-year guarantee period and 24-hour online technical support.

Can you accept OEM/ODM orders?

Yes, we welcome OEM and ODM inquiries for detailed discussion on customized solutions.

What are your production advantages?

We have nearly 20 years of specialized production experience in high-performance network components and optical modules.
