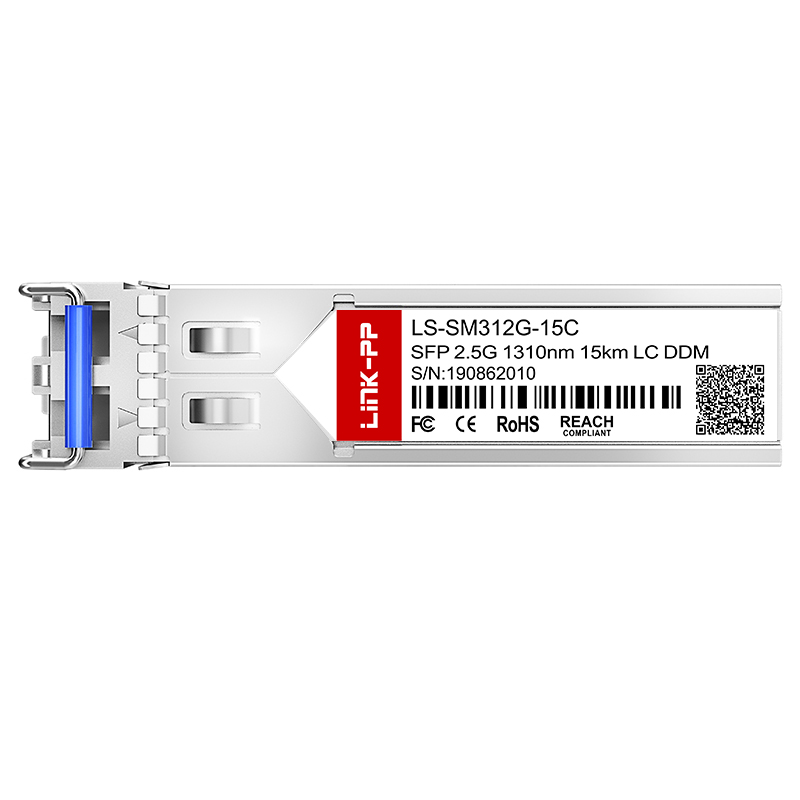

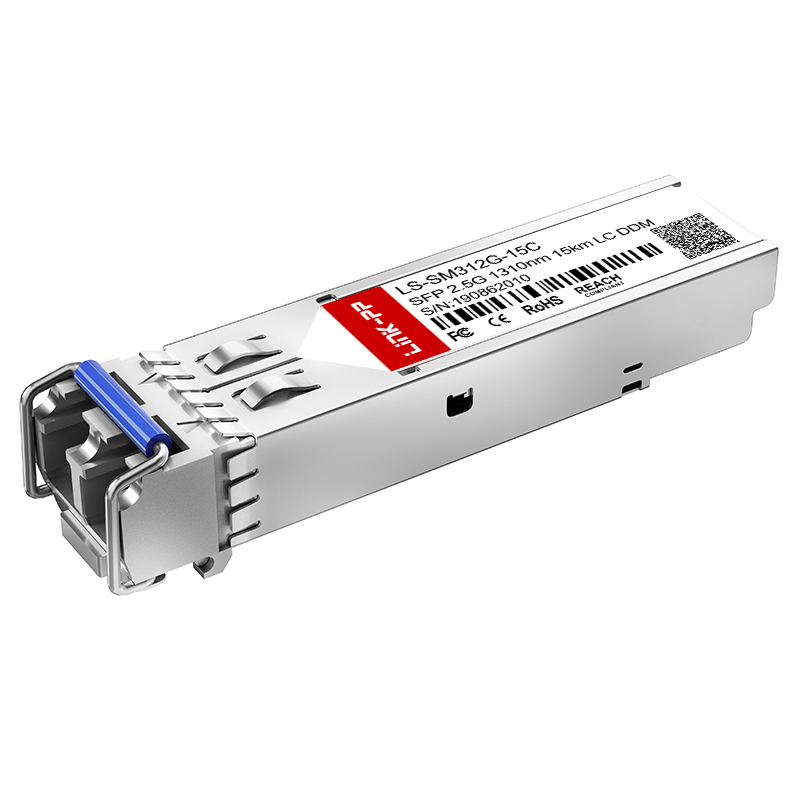

2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km SMF LC Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km SMF LC Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km SMF LC Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km SMF LC Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km SMF LC Optical Transceiver Module
1 / 5
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km SMF LC Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km SMF LC Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km SMF LC Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km SMF LC Optical Transceiver Module
2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km SMF LC Optical Transceiver Module

2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km SMF LC Optical Transceiver Module

Send Inquiry

Product Description

2.5GBASE-LX Single Mode SFP Optical Transceiver Module

Form FactorSFP
Max Data Rate2.5Gbps
Wavelength1310nm
Max Cable Distance15km
ConnectorDuplex LC
MediaSMF
Transmitter TypeDFB
Receiver TypePIN
TX Power-5 ~ 0dBm
Receiver Sensitivity< -18dBm
Receiver Overload-3dBm
DDM/DOMSupported
Temperature Range0 to 70°C / -40 to 85°C
Warranty5 Years
View Our Solutions

Drawing on over 10 years of expertise in chips and modules, our solutions integrate fast speeds, compact sizing, power efficiency, and high-performance reliability in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, WDM, and data communication networks.

2.5G SFP Module
🌐
Optical Transport Networks End-to-end DWDM solutions covering active modules to passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.
☁️
Cloud and Enterprise High-speed optical modules ranging from 10G to 800G, specifically developed to meet the mass data transmission demands of modern data centers.
📡
Wireless Systems High-reliability products featuring mature laser and mainstream chip solutions. Includes Dark Fiber, WDM, Radio over Fiber, and Back-haul solutions for 4G/5G systems.
Support Full Range Of 2.5G SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM852G-S3C2.5Gbps850nm300mMulti-modeYes
LS-MM852G-S5C2.5Gbps850nm550mMulti-modeYes
LS-SM312G-02C2.5Gbps1310nm2kmSingle ModeYes
LS-SM312G-10C2.5Gbps1310nm10kmSingle ModeYes
LS-SM312G-15C2.5Gbps1310nm15kmSingle ModeYes
LS-SM312G-20C2.5Gbps1310nm20kmSingle ModeYes
LS-SM552G-20C2.5Gbps1550nm20kmSingle ModeYes
LS-SM312G-40C2.5Gbps1310nm40kmSingle ModeYes
LS-SM552G-40C2.5Gbps1550nm40kmSingle ModeYes
LS-SM552G-80C2.5Gbps1550nm80kmSingle ModeYes
Product Overview & Navigation
Why Choose Our Components
Frequently Asked Questions
Are you a specialized manufacturer for these components?
Yes, we are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules, certified by ISO9001, RoHS, REACH, CE, and UL.
Can I request a sample before placing a mass production order?
Yes, we offer samples to test quality. Please contact us regarding shipping arrangements for the sample modules.
What is the standard delivery time for orders?
Items in stock are ready to ship immediately. For mass production orders, the lead time typically ranges from 15 to 30 days.
What kind of warranty and after-sales support do you provide?
We provide a comprehensive warranty period and 24-hour online technical support to ensure your network stays operational.
Do you accept OEM or ODM orders for specific network requirements?
Yes, we support both OEM and ODM requirements. We can discuss detailed specifications based on your inquiry.
What are your core advantages in the optical module industry?
With over 19 years of production experience and long-standing partnerships with industry leaders, we provide abundant production capacity and high-quality interconnection solutions.
