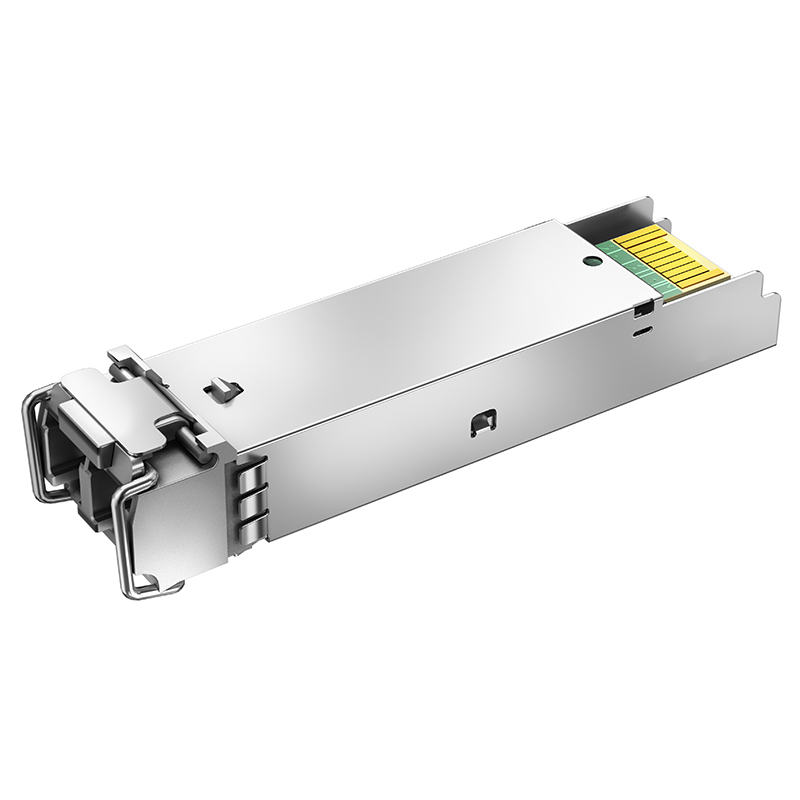

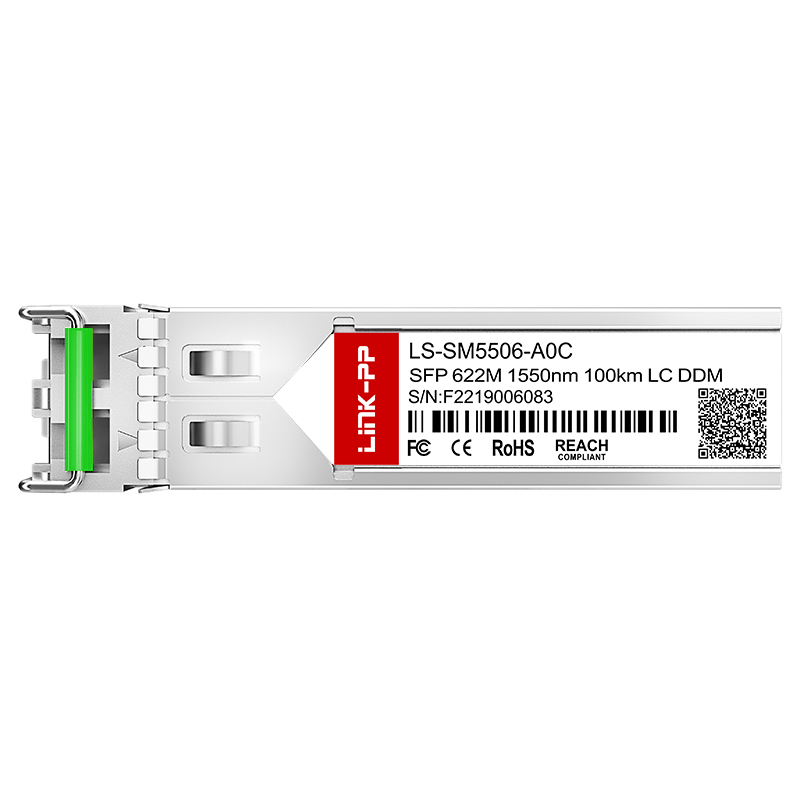

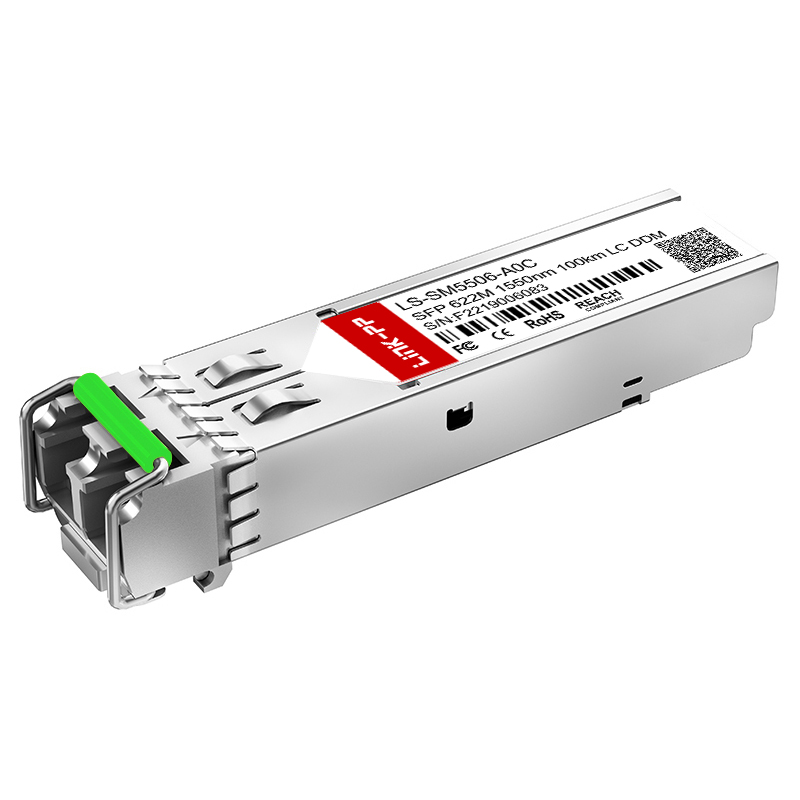

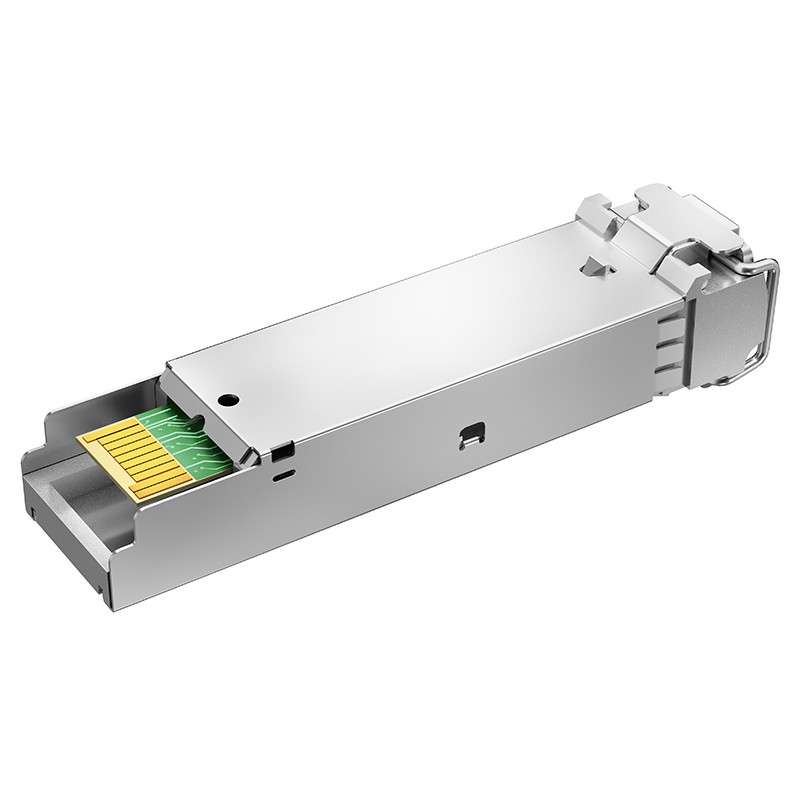

Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module
Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module
Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module
Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module
Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module
1 / 5
Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module
Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module
Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module
Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module
Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module

Single Mode 1550nm SFP 622M Transceiver 100km Duplex LC Optical Module

Send Inquiry

Product Description

Product Overview: Single Mode 1550nm SFP 622M Transceiver
Form Factor SFP
Max Data Rate 622Mbps
Wavelength 1550nm
Max Cable Distance 100km
Connector Duplex LC
Media SMF
Transmitter Type DFB
Receiver Type PIN
EMC Support Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
VIEW OUR SOLUTIONS
⚙️
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
SFP Optical Module
Support Full Range Of 622M SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM8506-S5C622Mbps850nm500mMulti-modeYes
LS-SM3106-S5C622Mbps1310nm500mSingle ModeYes
LS-SM3106-02C622Mbps1310nm2kmSingle ModeYes
LS-MM3106-02C622Mbps1310nm2kmMulti-modeYes
LS-SM3106-20C622Mbps1310nm20kmSingle ModeYes
LS-SM3106-40C622Mbps1310nm40kmSingle ModeYes
LS-SM5506-80C622Mbps1550nm80kmSingle ModeYes
LS-SM5506-A0C622Mbps1550nm100kmSingle ModeYes
LS-SM5506-A2C622Mbps1550nm120kmSingle ModeYes
Applications & Scenarios
🌐
Optical Transport Networks: End-to-end DWDM solutions - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Optical Transport
☁️
Cloud and Enterprise: High-speed optical modules ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Cloud Data Center
📶
Wireless: High reliability products with mature chip solutions for Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul in 4G/5G systems.
Wireless Networks
🏠
FTTx: Optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
FTTx Solutions
Why Choose Us & Subsystems

We provide optical cable O&M solutions integrating optical line protection systems (OLP) and optical line monitoring systems (OLM).

Subsystems
Quality Control
Testing
Manufacturing
Assembly
About Our Company
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL. Our company was established in 1997 with a production capacity of 3000K per month, enabling short delivery times. We provide a complete series of optical modules for fixed access, wireless, carrier Ethernet, and data communication networks, using the latest optoelectronic technologies to serve customers worldwide.
Factory Facility
Certification
Frequently Asked Questions
1. Are you a manufacturer or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees apply.
3. What is the standard delivery time?
In-stock items are ready to ship immediately; mass production typically takes 15-30 days.
4. What after-sales service do you provide?
We provide a one-year guarantee period and offer 24-hour online technical support.
5. Do you accept OEM/ODM orders?
Yes, we welcome OEM/ODM inquiries for detailed discussion on specific requirements.
6. What is your competitive advantage?
With over 19 years of production experience, we have established long-term partnerships with major industry leaders such as Intel and Jabil.
