Deltavox
Deltavox

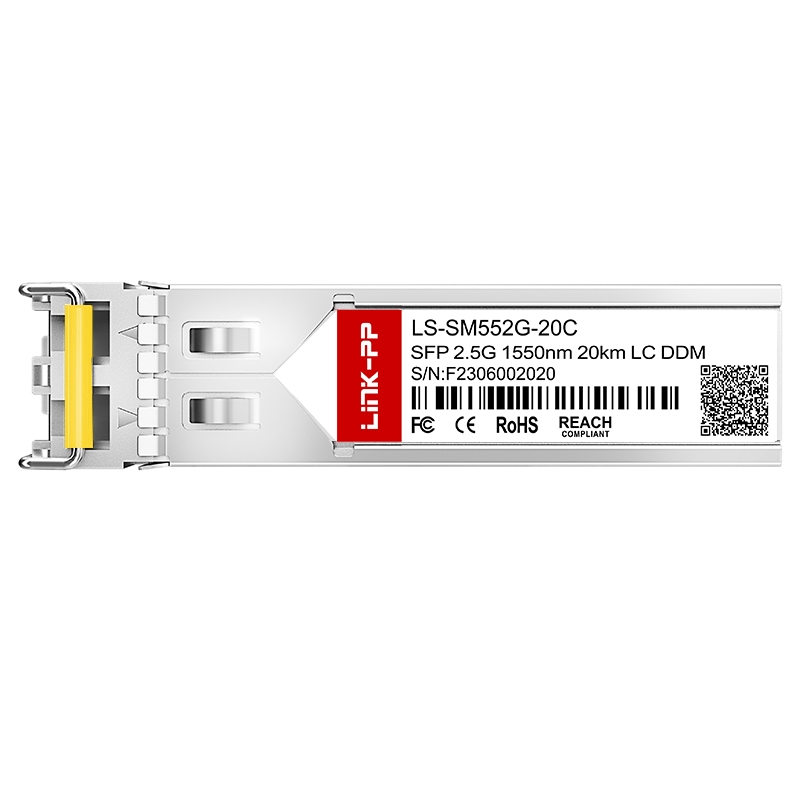

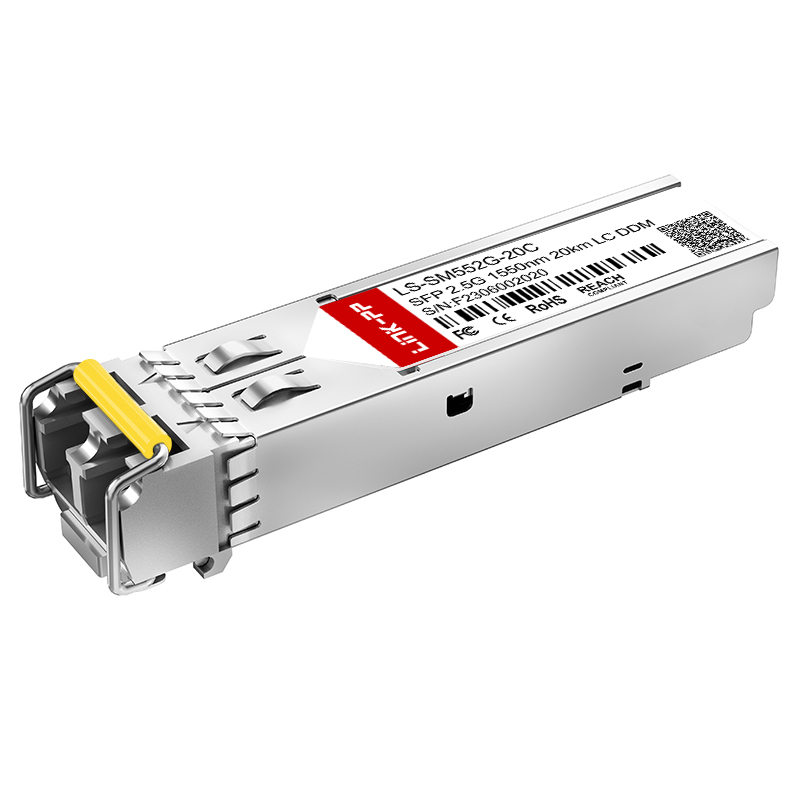

| Parameter | Specifications |
|---|---|
| Part No. | LS-SM552G-20C |
| Form Factor | SFP |
| Max Data Rate | 2.5Gbps |
| Wavelength | 1550nm |
| Max Cable Distance | 20km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| TX Power | -6 ~ 1dBm |
| Receiver Sensitivity | < -18dBm |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
Drawing on over 10 years of expertise in chips and modules, we integrate fast speeds, compact dimensions, power efficiency, and superior performance into every module. We provide a comprehensive range of optical modules for fixed access, wireless networks, carrier Ethernet, WDM, and data communication systems.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
| LS-MM852G-S3C | 2.5Gbps | 850nm | 300m | Multi-mode | Yes |
| LS-MM852G-S5C | 2.5Gbps | 850nm | 550m | Multi-mode | Yes |
| LS-SM312G-02C | 2.5Gbps | 1310nm | 2km | Single Mode | Yes |
| LS-SM312G-10C | 2.5Gbps | 1310nm | 10km | Single Mode | Yes |
| LS-SM312G-20C | 2.5Gbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM552G-20C | 2.5Gbps | 1550nm | 20km | Single Mode | Yes |
| LS-SM312G-40C | 2.5Gbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM552G-80C | 2.5Gbps | 1550nm | 80km | Single Mode | Yes |
Operating as a specialized manufacturer of telecom and network components, our facilities are certified under ISO9001:2000, RoHS, REACH, CE, and UL. We utilize advanced manufacturing and testing equipment imported globally to ensure the highest standards.
Established in 1997, our production capacity reaches 3000K units per month, ensuring rapid delivery for large-scale requirements. We specialize in high-speed optical interconnect solutions for cloud computing and ultra-broadband networks using the latest optoelectronic technologies.
