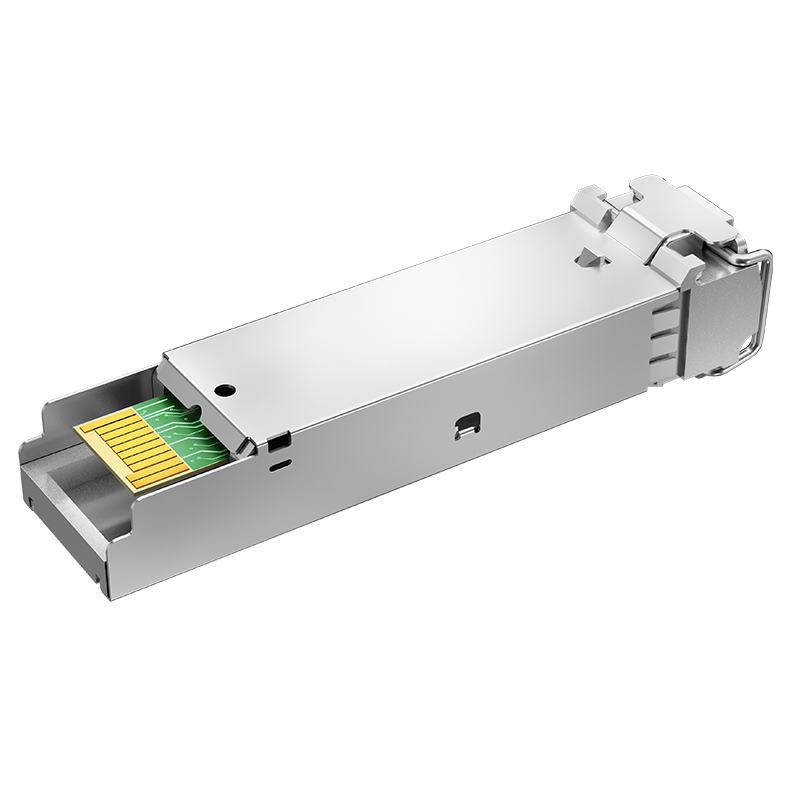

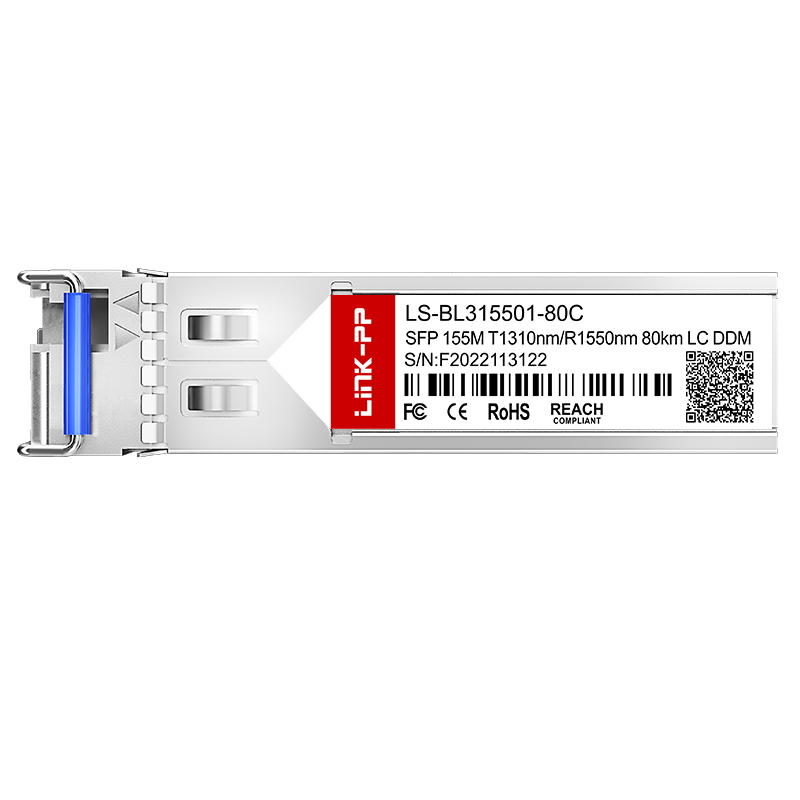

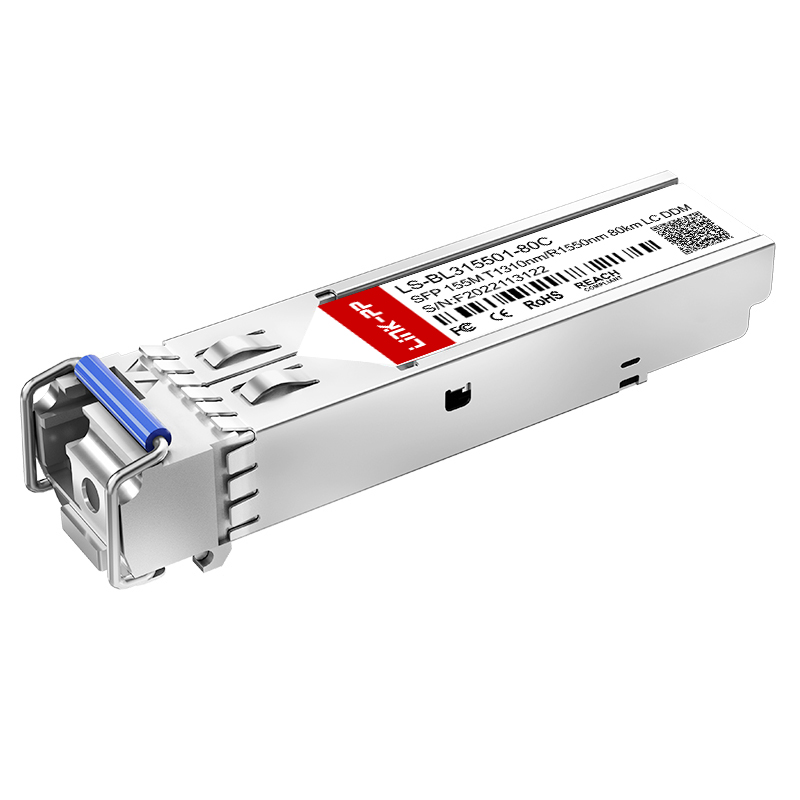

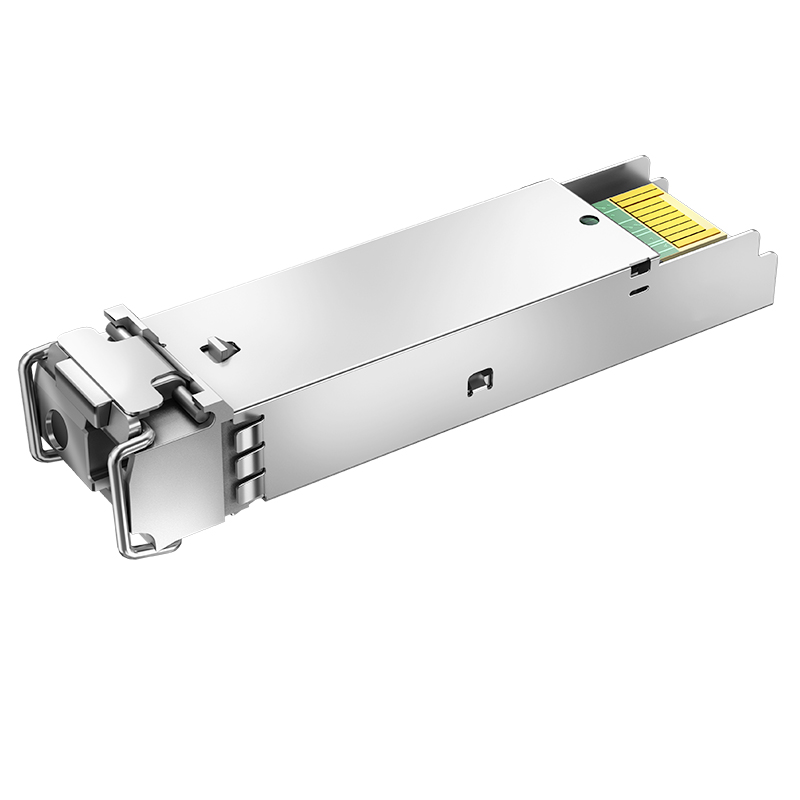

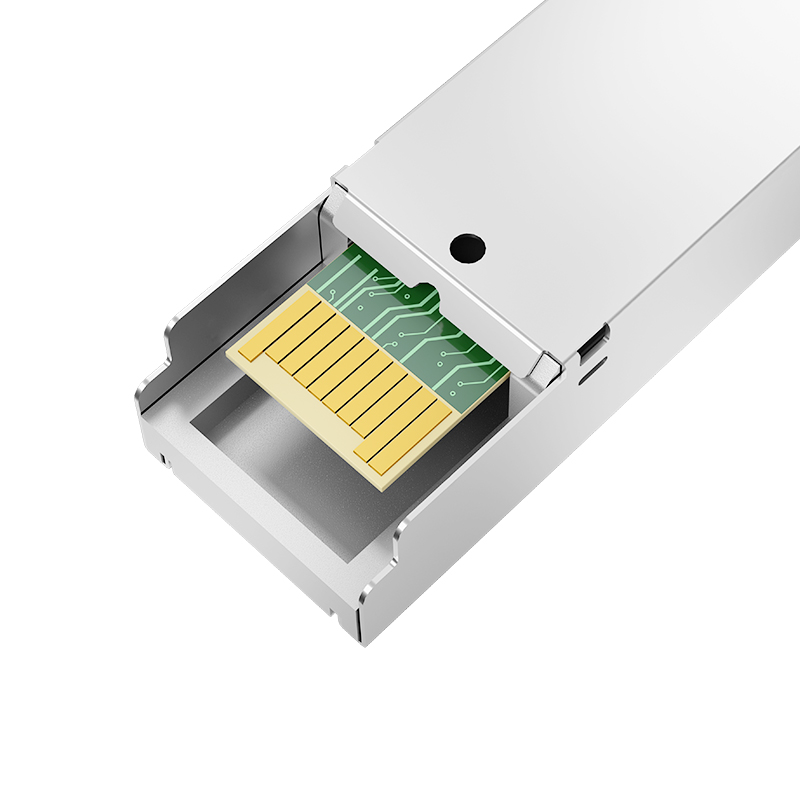

1310nm-TX/1550nm-RX Single Mode SFP 155M Bidi 80km LC Optical Transceiver Module
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Technical Specifications
| Parameter |
Details |
Parameter |
Details |
| Form Factor |
SFP |
Max Data Rate |
155Mbps |
| Wavelength |
1310nm-TX/1550nm-RX |
Max Cable Distance |
80km |
| Connector |
Simplex LC |
Media |
SMF |
| Transmitter Type |
FP |
Receiver Type |
PIN |
| TX Power |
-5 ~ 2dBm |
Receiver Sensitivity |
< -32dBm |
| EMC Supported |
Yes |
DDM/DOM |
Supported |
| Protocols |
SFP MSA and SFF-8472 |
Temperature Range |
0 to 70°C / -40 to 85°C |
| Warranty |
5 Years |
Sample |
Available |
Support Full Range of 155M BiDi SFP
| Part Number |
Data Rate |
Wavelength |
Distance |
Components |
DDM |
| LS-BL315501-10C | 155Mbps | 1310T/1550R | 10km | FP/PIN | Yes |
| LS-BL553101-10C | 155Mbps | 1550T/1310R | 10km | FP/PIN | Yes |
| LS-BL315501-15C | 155Mbps | 1310T/1550R | 15km | FP/PIN | Yes |
| LS-BL553101-15C | 155Mbps | 1550T/1310R | 15km | FP/PIN | Yes |
| LS-BL315501-40C | 155Mbps | 1310T/1550R | 40km | FP/PIN | Yes |
| LS-BL315501-80C | 155Mbps | 1310T/1550R | 80km | FP/PIN | Yes |
Application Solutions
Optical Transport Networks
We provide end-to-end DWDM devices with almost all optical components - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with rates ranging from 10G to 800G, providing high-quality interconnection solutions.
Wireless Systems
Our solutions include Dark Fiber, WDM, Radio over Fiber, and High Speed Mid-haul/Back-haul components designed to meet the diverse needs of 4G and 5G system scenarios.
Company Capabilities
As a specialized manufacturer of magnetic telecom and network components, we are certified by ISO9001:2000, ROSH, REACH, CE and UL. With advanced manufacturing and testing equipment, we maintain an abundant production capacity of 3000K units per month, ensuring short delivery times. We provide a complete series of optical modules and high-speed interconnect solutions for cloud computing and ultra-broadband networks worldwide.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, and SFP modules.
Can I request samples before placing a mass order?
Yes, we offer samples for quality testing purposes. Please contact us regarding shipping arrangements for sample units.
What is the standard delivery time for orders?
Items in stock are ready for immediate shipment. For mass production orders, the lead time typically ranges from 15 to 30 days.
What kind of after-sales service and warranty do you provide?
We offer a comprehensive warranty period and 24-hour online technical support to ensure the reliable operation of our products.
Do you accept OEM or ODM customization?
Yes, we accept OEM/ODM orders. Please provide your detailed requirements so we can discuss the technical specifications and production.
What are your core advantages in the industry?
With nearly 20 years of production experience and long-standing partnerships with global industry leaders, we provide high-reliability solutions with mature chip technology.
