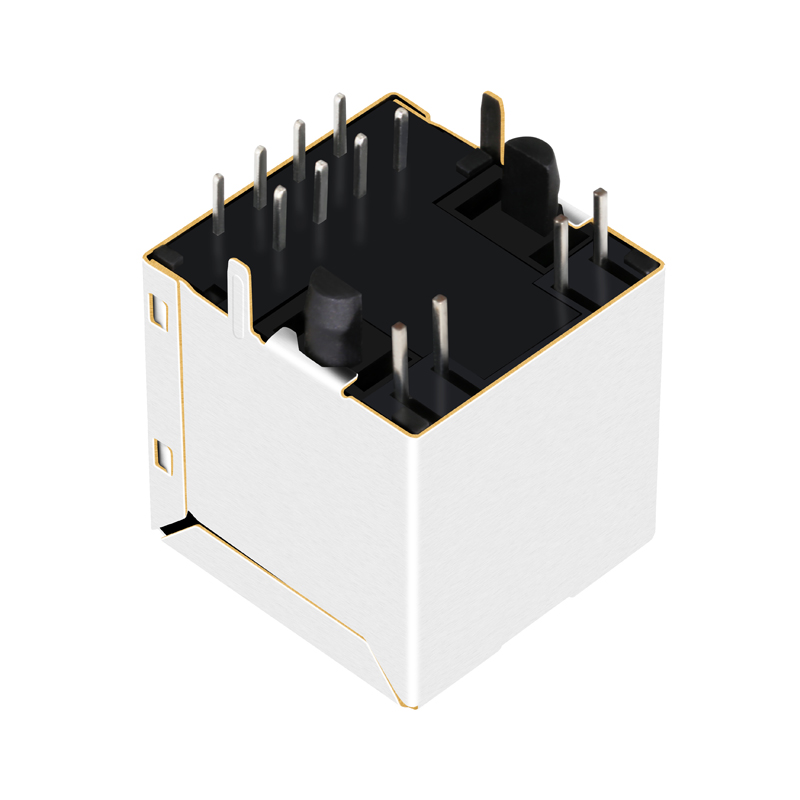

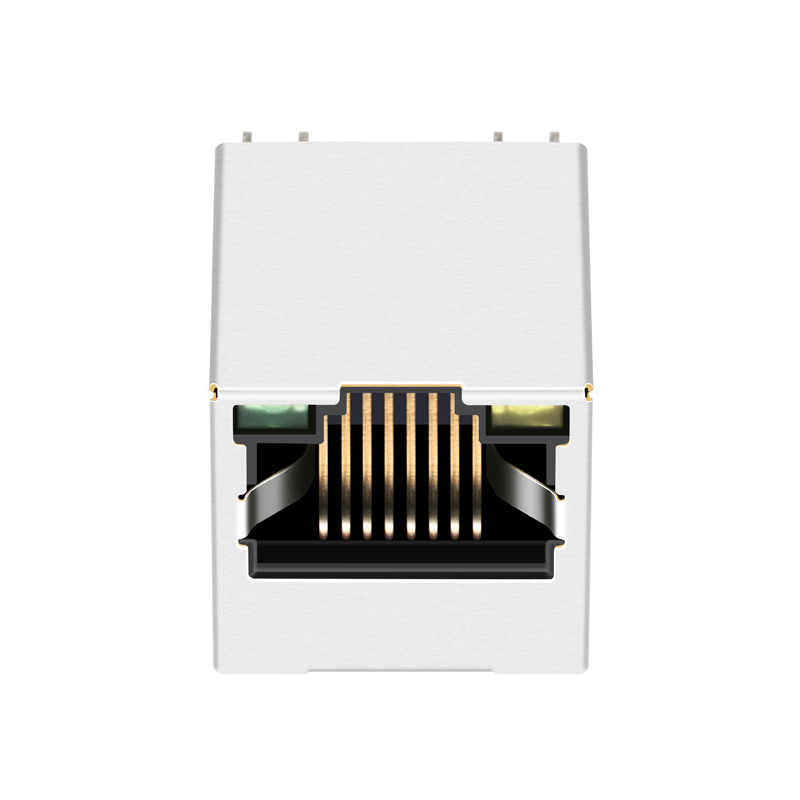

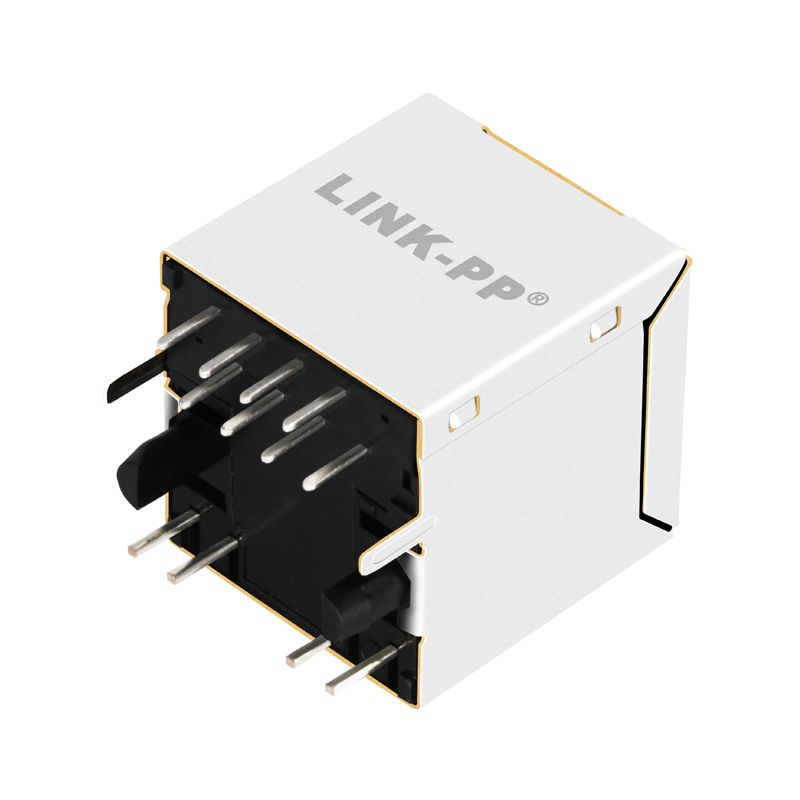

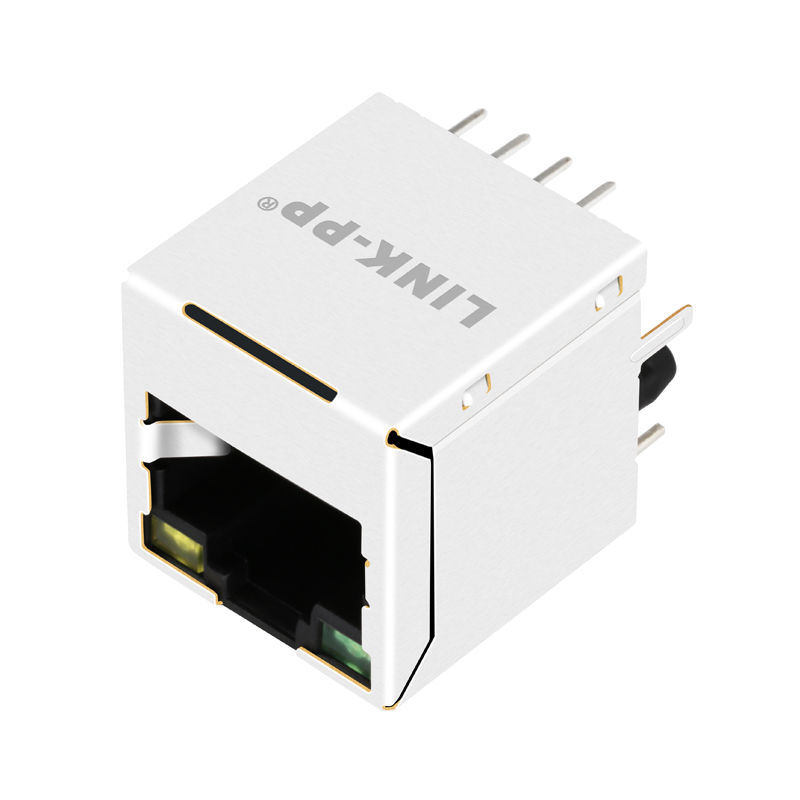

| Item | RJ45 Female Connector |
| Part Number | 1840469-4 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB Material | FR4 |
| PCB Retaining Post | T POST |
| Operating Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutoMDIX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Established in 1997, we are a professional designer and manufacturer specializing in magnetic telecom and networking components. Our extensive line includes state-of-the-art catalog products as well as custom-engineered solutions tailored to specific client needs.
As a global supplier, we serve OEMs, contract manufacturers, and CEMs, supporting over 10,000+ customers across 200 countries. By maintaining a robust multi-warehouse system and increasing inventory levels, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer technology.
