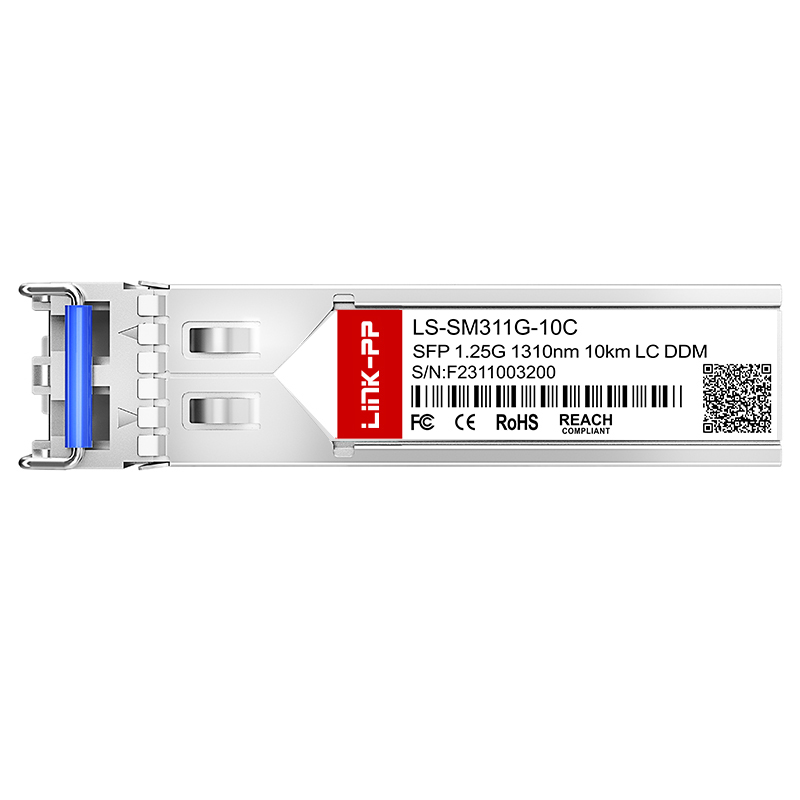

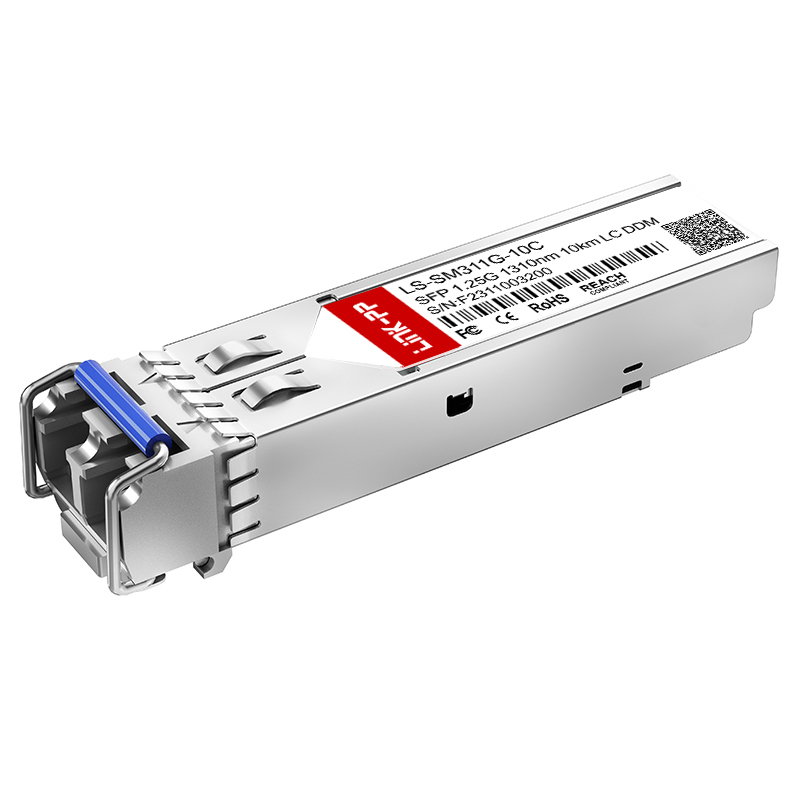

| Item | 1000BASE SFP |
| Compatible | H3C SFP-GE-LX-SM1310 |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10Km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | FP/PIN |
| TX Power | -9.5~-3dBm |
| Receiver Sensitivity | <-20dBm |
| Receiver Overload | -3dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | >9dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
| Warranty | 5 Years |
| Sample | Available |
