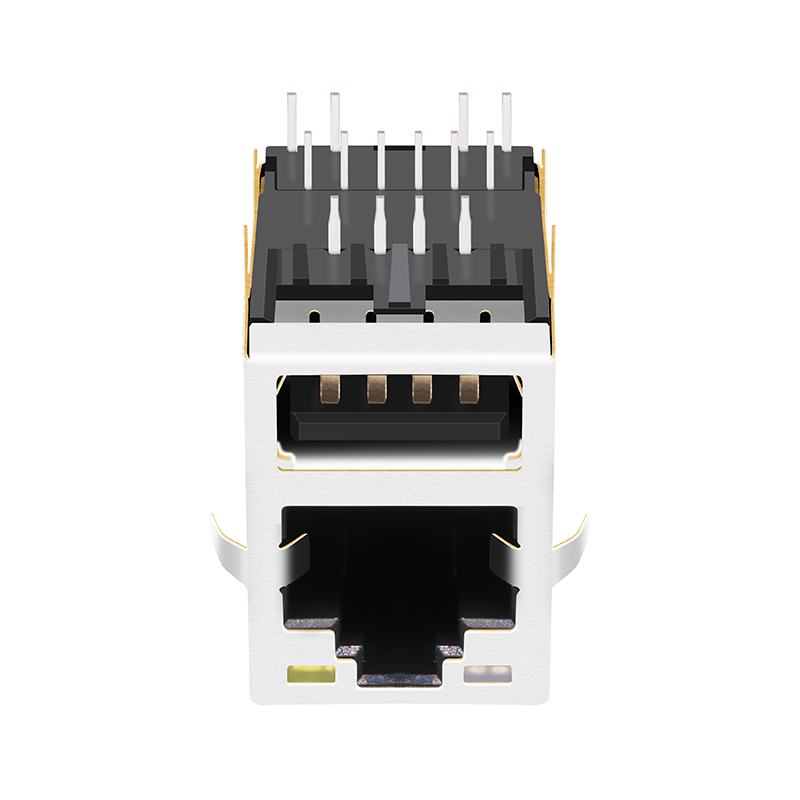

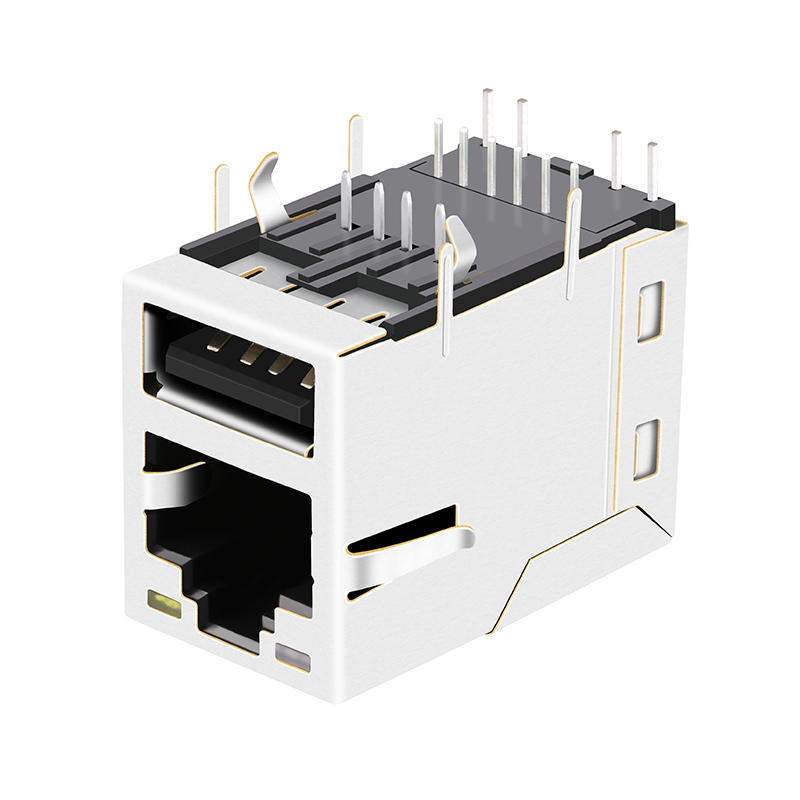

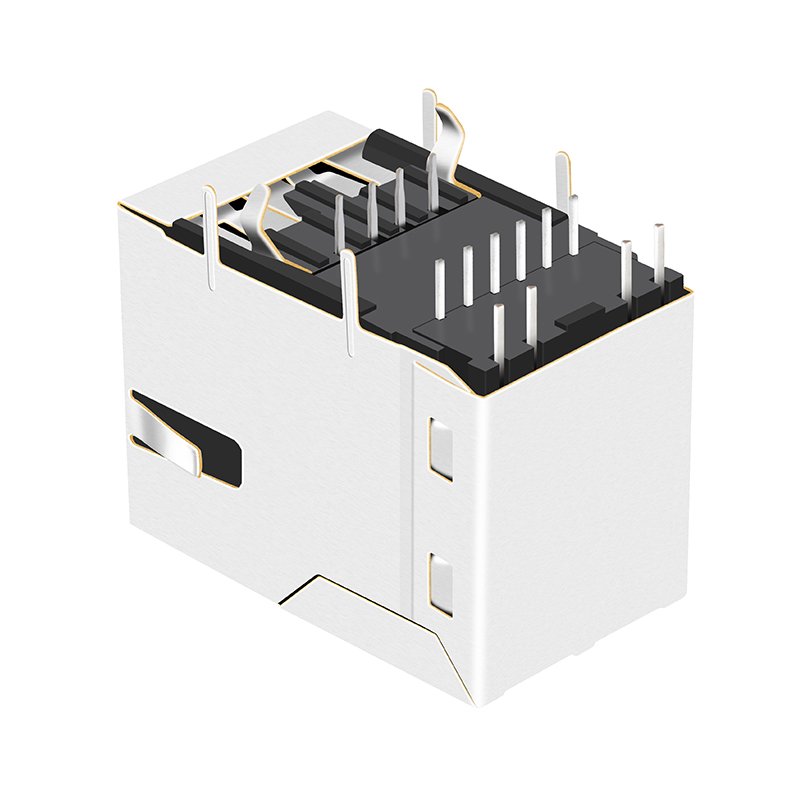

8211-1X1T-36-F 10/100 Base-T RJ45 Female Connector With Single USB

Product Description

RJ45 Connectors Overview
Lan Transformer Overview
Send Inquiry To Get Latest Price List
Contact Us Now
RJ45 Connector Drawing
RJ45 Connector Side View
8211-1X1T-36-F 10/100 Base-T RJ45 Connector with Single USB
Products Description
Item RJ45 Female Connector
Part Number LPJU3101AONL
Reference Part Number 43F-1201DYD2NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port With 1 USB
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Orange&Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Connector Detail 1 Connector Detail 2 Connector Detail 3 Connector Detail 4 Connector Detail 5 Connector Detail 6 Connector Detail 7 Connector Detail 8 Connector Detail 9
Product Technical Dimension
Why Choose Us
Advantage 1 Advantage 2 Advantage 3 Advantage 4
Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. We own advanced manufacturing facilities and testing equipment imported from abroad. Established in 1997, we have approximately 2,000 staff members. With an abundant production capacity of 3,000K units per month, we deliver goods within short lead times. Moreover, we provide professional complete solutions for magnetic components alongside strong technical support.
Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We export our products to more than 30 countries and regions worldwide. Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solutions for unique requirements.
Manufacturing Area Testing Equipment Warehouse Setup Office Facility
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are to be covered by the customer.
3. What is your delivery time?
Products in stock are ready to ship immediately, while mass production typical lead times range between 15 to 30 days.
4. What after-sales service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, OEM and ODM orders are welcome. Please send us your requirements to start a detailed technical discussion.
6. What is your advantage?
We bring over 19 years of dedicated production experience in network components, providing high reliability and engineering standards.
